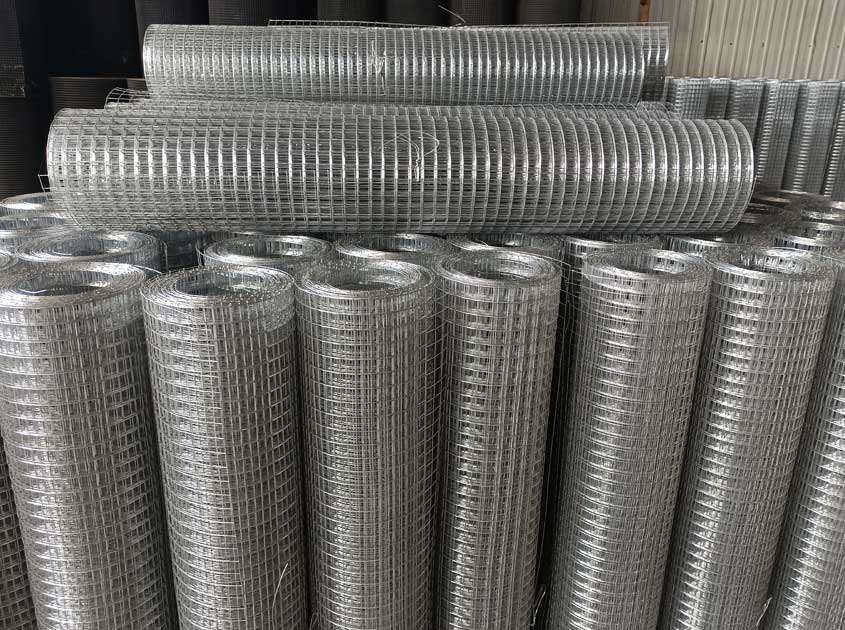

Welded wire mesh roll is one of the most versatile wire mesh products used in construction, agriculture, fencing, industrial protection, and general fabrication projects.

Because welded wire mesh is available in a wide range of wire diameters, mesh openings, roll dimensions, materials, and coatings, choosing the correct specification is essential for achieving the required strength, durability, and cost efficiency.

A light-duty garden fence, an animal enclosure, and an industrial safety barrier may all use welded wire mesh rolls, but their specifications can be completely different.

This guide explains the key specifications, material options, common sizes, and applications of welded wire mesh rolls to help buyers select the right product for their projects.

What Are the Main Specifications of Welded Wire Mesh Roll?

The performance of welded wire mesh roll is mainly determined by the following specifications:

• Wire diameter

• Mesh opening size

• Roll width

• Roll length

• Material

• Surface treatment

• Welding quality

• Edge type

Among these factors, wire diameter and mesh opening are the most important when selecting a product.

1. Wire Diameter Specifications

Wire diameter determines the strength, weight, and durability of welded wire mesh.

Common wire diameters include:

A thicker wire provides:

• Higher mechanical strength

• Better impact resistance

• Longer service life

However, it also increases:

• Material consumption

• Weight

• Transportation cost

The ideal wire diameter should match the actual application requirements.

2. Mesh Opening Size

Mesh opening refers to the distance between two adjacent wires.

Common welded wire mesh openings include:

Smaller openings provide:

• Better containment

• Higher security

• Increased protection against small animals

Larger openings provide:

• Lower cost

• Better visibility

• Reduced weight

3. Roll Width Specifications

Welded wire mesh rolls are available in different widths depending on the project requirements.

Common roll widths include:

• 0.5 m

• 0.9 m

• 1.0 m

• 1.2 m

• 1.5 m

• 1.8 m

• 2.0 m

The selected width affects:

• Installation efficiency

• Cutting waste

• Transportation convenience

For fencing projects, wider rolls can reduce the number of joints and improve installation speed.

4. Roll Length Specifications

Common welded wire mesh roll lengths include:

• 10 m

• 15 m

• 20 m

• 25 m

• 30 m

• 50 m

Longer rolls are suitable for:

• Large fencing projects

• Agricultural boundaries

• Construction sites

Shorter rolls are easier to:

• Handle manually

• Transport

• Install in small projects

5. Material Options for Welded Wire Mesh Roll

Different materials provide different levels of performance.

Galvanized Welded Wire Mesh Roll

Galvanized welded wire mesh is one of the most commonly used options.

The zinc coating protects the steel wire from corrosion.

Two main types include:

Electro Galvanized Welded Mesh

Features:

• Smooth surface

• Uniform coating

• Economical price

Suitable for:

• Indoor applications

• Light outdoor use

• General-purpose mesh

Hot Dipped Galvanized Welded Mesh

Features:

• Thicker zinc coating

• Better corrosion resistance

• Longer outdoor service life

Suitable for:

• Agricultural fencing

• Outdoor barriers

• Construction projects

• Industrial applications

PVC Coated Welded Wire Mesh Roll

PVC coated welded wire mesh adds a plastic protective layer over steel wire.

Advantages include:

• Better corrosion resistance

• Attractive appearance

• Multiple color options

Common colors:

• Green

• Black

• White

• Brown

Applications include:

• Garden fencing

• Residential fencing

• Decorative barriers

• Landscape projects

Stainless Steel Welded Wire Mesh Roll

Stainless steel welded mesh provides excellent corrosion resistance.

Common grades:

• Stainless steel 304

• Stainless steel 316

Advantages:

• High durability

• Excellent corrosion resistance

• Easy cleaning

• Long service life

Applications:

• Food processing

• Chemical industry

• Marine environments

• High-end industrial projects

Common Welded Wire Mesh Roll Types

1. Standard Welded Wire Mesh Roll

This is the most common type for general applications.

Typical specifications:

• Medium wire diameter

• Square openings

• Galvanized finish

Applications:

• General fencing

• Agriculture

• Garden protection

2. Heavy Duty Welded Wire Mesh Roll

Designed for applications requiring greater strength.

Features:

• Larger wire diameter

• Smaller openings

• Higher load capacity

Applications:

• Industrial barriers

• Security fencing

• Heavy animal fencing

3. Fine Welded Wire Mesh Roll

Uses thinner wires and smaller openings.

Applications:

• Small animal cages

• Screens

• Protective covers

• Filter support

4. PVC Coated Decorative Welded Mesh Roll

Designed where appearance is important.

Applications:

• Residential fencing

• Parks

• Gardens

• Decorative barriers

Welded Wire Mesh Roll Applications Guide

1. Agricultural Applications

Agriculture is one of the largest application areas.

Common uses include:

Livestock Fencing

Used for:

• Cattle areas

• Sheep fencing

• Animal pens

Recommended features:

• Galvanized coating

• Medium/heavy wire

• Larger mesh openings

Poultry and Small Animal Enclosures

Used for:

• Chicken coops

• Rabbit cages

• Pet areas

Recommended features:

• Smaller mesh openings

• Thinner wire diameter

Crop Protection

Used to protect:

• Vegetable gardens

• Orchards

• Plants

PVC coated mesh is often selected because of its appearance and corrosion resistance.

2. Construction Applications

Welded wire mesh rolls are widely used in construction.

Applications include:

Concrete Reinforcement

Welded wire mesh helps improve:

• Crack resistance

• Structural stability

• Load distribution

Construction reinforcement mesh may require specific standards and engineering specifications depending on the project.

Wall Reinforcement

Used for:

• Plaster reinforcement

• Wall strengthening

• Building repair

Temporary Construction Fencing

Used around:

• Construction sites

• Storage areas

• Restricted zones

Advantages:

• Fast installation

• Easy removal

• Reusable

3. Industrial Applications

Industrial facilities use welded wire mesh rolls for:

Machine Guards

Provides:

• Worker protection

• Equipment separation

• Visibility

Storage Partitions

Used in:

• Warehouses

• Factories

• Distribution centers

Applications include:

• Safety cages

• Storage areas

• Material separation

Equipment Protection

Used for:

• Ventilation covers

• Protective barriers

• Safety screens

4. Garden and Landscape Applications

Welded wire mesh rolls are commonly used for:

• Garden fences

• Plant support

• Tree protection

• Decorative barriers

PVC coated welded mesh is popular because it provides a cleaner appearance.

5. Animal Protection Applications

Different animals require different mesh specifications.

Selecting the correct opening size is important to prevent animals from escaping or becoming trapped.

Welded Wire Mesh Roll Specification Selection Guide

Welded Wire Mesh Roll vs Chain Link Fence

Welded mesh is often preferred when a stable grid structure and precise openings are required.

How to Choose the Right Welded Wire Mesh Roll?

Before purchasing, confirm:

1. Application

What will the mesh be used for?

• Fence

• Cage

• Construction

• Industrial protection

• Agriculture

2. Required Strength

Determine:

• Wire diameter

• Mesh opening

• Expected impact

3. Environmental Conditions

Consider:

• Outdoor exposure

• Humidity

• Salt environment

• Chemical exposure

4. Surface Treatment

Choose:

• Electro galvanized

• Hot dipped galvanized

• PVC coated

• Stainless steel

5. Installation Requirements

Confirm:

• Roll width

• Roll length

• Fixing method

• Supporting structure

Why Choose Qunkun Metal Welded Wire Mesh Roll?

Qunkun Metal manufactures welded wire mesh rolls for global customers in construction, agriculture, fencing, and industrial markets.

We provide customized solutions including:

• Wire diameter

• Mesh opening

• Roll width

• Roll length

• Galvanized coating

• PVC coating

• Stainless steel material

Our welded wire mesh rolls are suitable for:

• Agricultural fencing

• Animal enclosures

• Garden protection

• Industrial barriers

• Construction applications

With professional production equipment and export experience, Qunkun Metal helps distributors, contractors, and project buyers source reliable welded wire mesh products.

Frequently Asked Questions

What is the most common size of welded wire mesh roll?

50 mm × 50 mm is one of the most common general-purpose sizes, but the best specification depends on the application.

How long does galvanized welded wire mesh last?

Service life depends on coating thickness, environment, and installation conditions. Hot dipped galvanized mesh generally provides better outdoor durability than electro galvanized mesh.

Can welded wire mesh rolls be used as fencing?

Yes. Welded wire mesh rolls are widely used for garden fences, agricultural fences, animal enclosures, and industrial barriers.

What is better: galvanized or PVC coated welded wire mesh?

Galvanized mesh is usually selected for economical outdoor durability, while PVC coated mesh is preferred when appearance and additional protection are important.

Can welded wire mesh rolls be customized?

Yes. Manufacturers can customize wire diameter, mesh opening, roll dimensions, material, and surface treatment.

Conclusion

Welded wire mesh roll is a flexible and practical solution for a wide range of applications, from agriculture and fencing to construction and industrial protection.

The correct specification depends on several factors, including:

• Wire diameter

• Mesh opening

• Material

• Coating

• Roll dimensions

• Application environment

By selecting the right combination of specifications, welded wire mesh rolls can provide a durable, economical, and efficient solution for different projects.

Qunkun Metal supplies customized welded wire mesh rolls for international customers, providing reliable products for fencing, agriculture, construction, and industrial applications.
