Introduction:
Features of Titanium Wire Mesh:
Titanium wire mesh is with low density and high specific strength.
Titanium wire mesh is with outstanding corrosion resistance. In the corrosion environment, the surface of high purity titanium mesh will form an oxidation film layer to protect wire mesh from being corroded, the layer is compact and inert, which has strong resistance to corrosion.
Titanium wire mesh has excellent corrosion resistant performance in below environment: Seawater, wet chlorine, chlorite and hypochlorite solution, nitric acid, chromic acid, metal chlorides and organic salts etc.
Applications of Titanium Wire Mesh:
Titanium wire mesh can be used in shipbuilding, war industry manufacturing, chemical filter, mechanical filter, desalination filter, high temperature vacuum equipment, medicine filtration industries etc.
Features:
1. Low density and high tensile strength.
2. Excellent Corrosion resistance.
3. High temperature resistance.
4. Outstanding filtration performance.
5. Good thermal property.
6. Acid and alkali resistance.
7. Nontoxic.
Specifications:
| Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
| 4 × 4 | 0.0320 | 0.2180 | 76.00 |
| 4 × 4 | 0.0350 | 0.2150 | 74.00 |
| 6 × 6 | 0.0320 | 0.1350 | 65.60 |
| 7 × 7 | 0.0250 | 0.1180 | 68.20 |
| 8 × 8 | 0.0320 | 0.0930 | 55.40 |
| 9 × 9 | 0.0320 | 0.0790 | 50.60 |
| 10 × 10 | 0.0350 | 0.0650 | 42.30 |
| 10 × 10 | 0.0300 | 0.0700 | 49.00 |
| 10 × 10 | 0.0250 | 0.0750 | 56.30 |
| 12 × 12 | 0.0110 | 0.0723 | 75.30 |
| 14 × 14 | 0.0160 | 0.0550 | 60.20 |
| 16 × 16 | 0.0060 | 0.0565 | 81.70 |
| 18 × 18 | 0.0100 | 0.0460 | 67.40 |
| 18 × 18 | 0.0110 | 0.0445 | 64.40 |
| 18 × 18 | 0.0160 | 0.0400 | 50.8 |
| 20 × 20 | 0.0030 | 0.0470 | 88.40 |
| 20 × 20 | 0.0200 | 0.0300 | 36.00 |
| 20 × 20 TW | 0.0160 | 0.0340 | 46.20 |
| 24 × 24 | 0.0100 | 0.0320 | 57.90 |
| 24 × 24 | 0.0118 | 0.0299 | 51.40 |
| 26 × 26 | 0.0100 | 0.0290 | 54.90 |
| 30 × 30 | 0.0100 | 0.0233 | 49.00 |
| 32 × 32 | 0.0100 | 0.0210 | 46.50 |
| 35 × 35 | 0.0080 | 0.0206 | 51.80 |
| 40 × 40 | 0.0050 | 0.0200 | 64.00 |
| 40 × 40 | 0.0100 | 0.0150 | 36.00 |
| 50 × 50 | 0.0090 | 0.0110 | 30.30 |
| 50 × 50 TW | 0.0040 | 0.0160 | 64.00 |
| 60 × 60 TW | 0.0090 | 0.0077 | 21.30 |
| 90 × 90 | 0.0040 | 0.0071 | 41.00 |
| 100 × 100 | 0.0020 | 0.0080 | 64.00 |
| 120 × 120 TW | 0.0040 | 0.0043 | 27.00 |
| 150 × 150 TW | 0.0027 | 0.0040 | 35.50 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Material: TA1, TA2, GR2, GR3, R50250, Titanium alloy etc. Black pure titanium wire Ti ≥ 99.6% (Applies to ships, water filtration and other industries) Bright pure titanium wire (For production of electrodes, battery collector net, fine chemical filtration) Medical titanium wire (Applies to make medical apparatus and instruments)
Hole Shape: square
Mesh Count: 2-100
Weaving: Plain weave, twill weave.
Width: 5mm-2000mm
Features of Titanium Wire Mesh:
Titanium wire mesh is with low density and high specific strength.
Titanium wire mesh is with outstanding corrosion resistance. In the corrosion environment, the surface of high purity titanium mesh will form an oxidation film layer to protect wire mesh from being corroded, the layer is compact and inert, which has strong resistance to corrosion.
Titanium wire mesh has excellent corrosion resistant performance in below environment: Seawater, wet chlorine, chlorite and hypochlorite solution, nitric acid, chromic acid, metal chlorides and organic salts etc.
Applications of Titanium Wire Mesh:
Titanium wire mesh can be used in shipbuilding, war industry manufacturing, chemical filter, mechanical filter, desalination filter, high temperature vacuum equipment, medicine filtration industries etc.

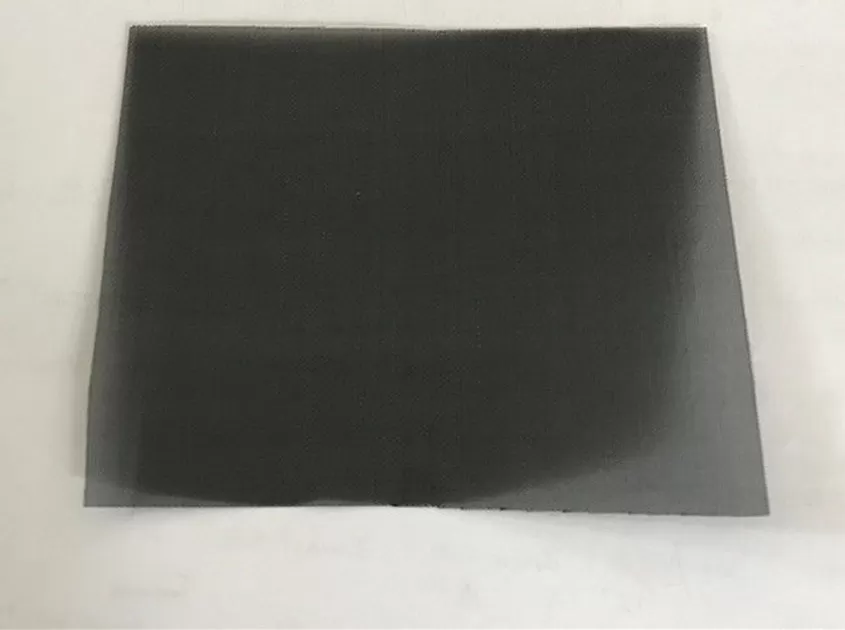

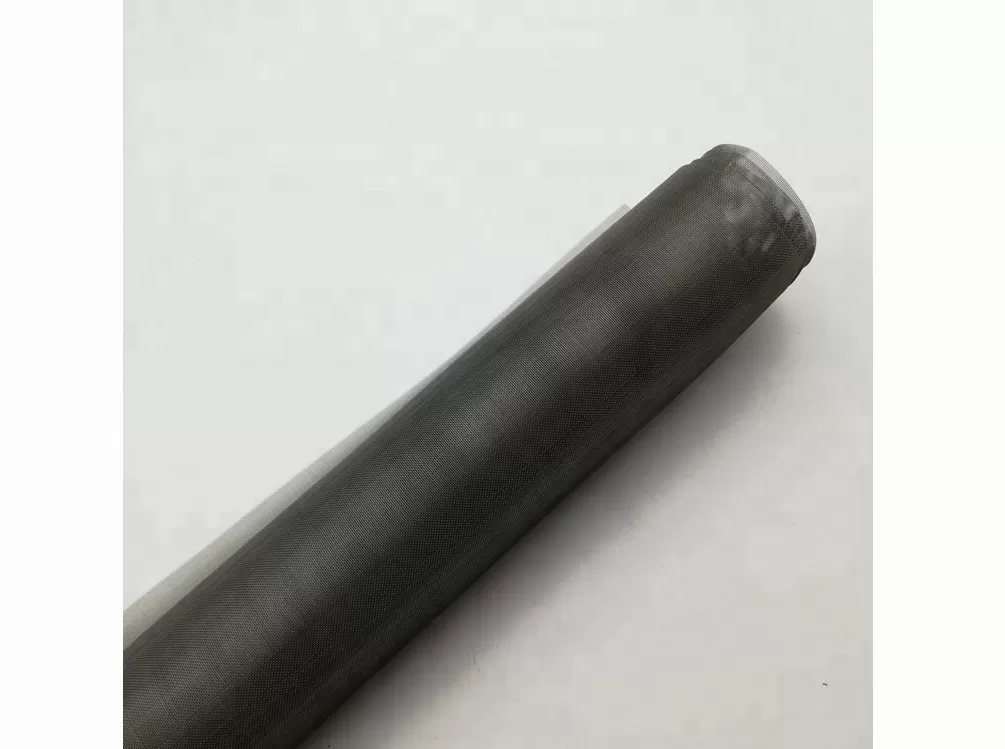

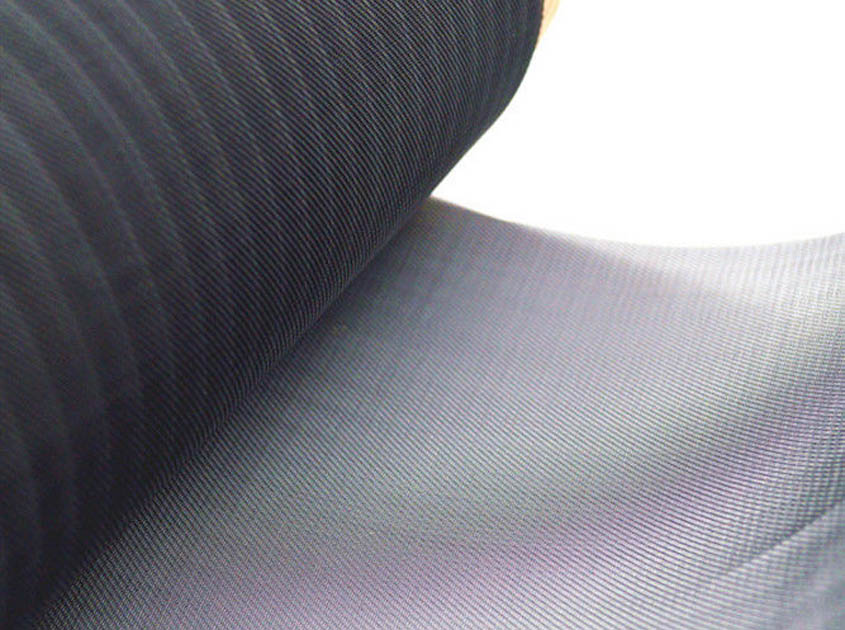

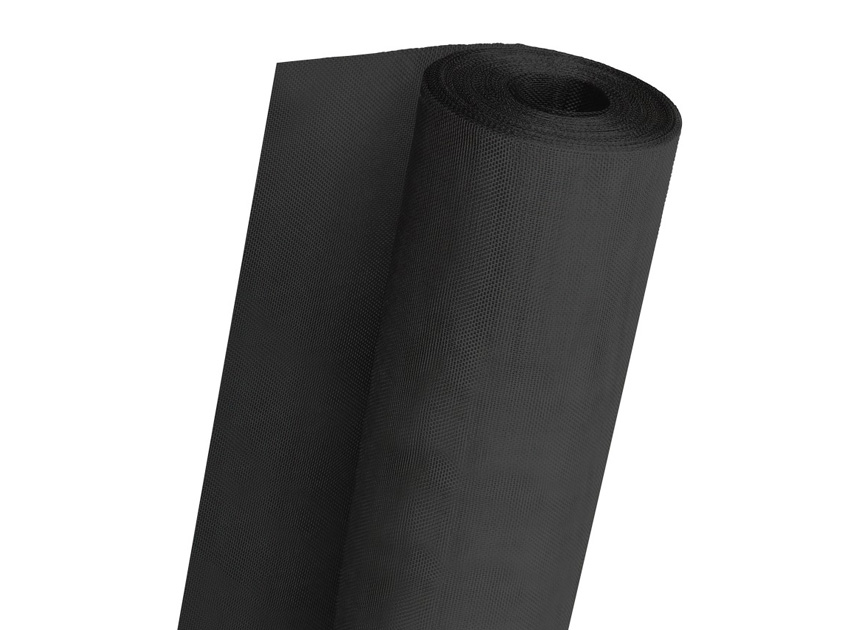

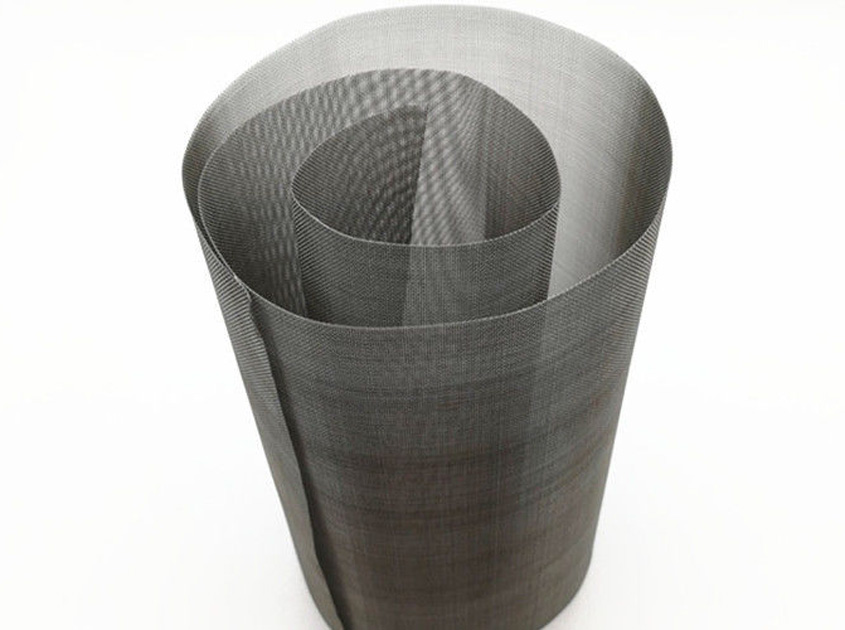

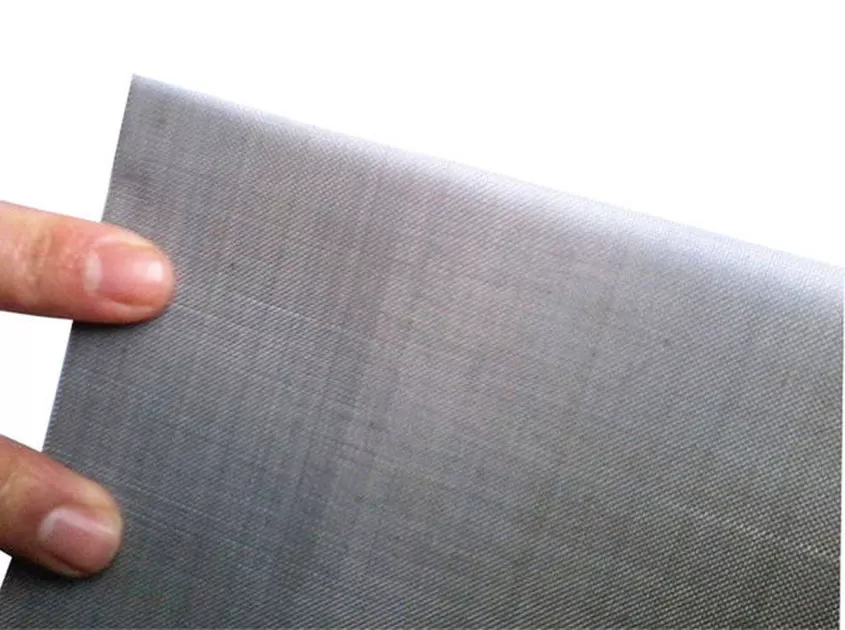

Drawing and Gallery:
Product Name: Titanium Wire Mesh
