Introduction:

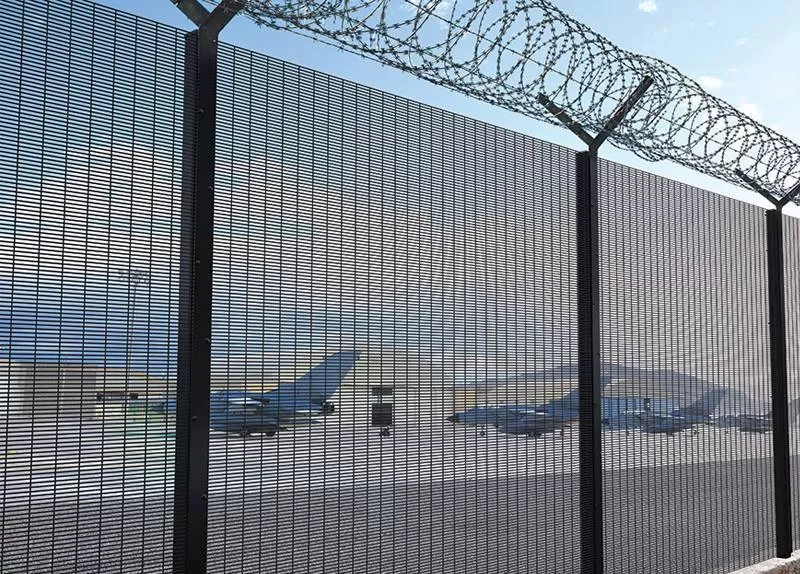

High security fencing, as a kind of anti-anti-climb and anti-cut fence barrier, is extremely difficult to penetrate or attack using conventional hand tools. The panels have small apertures which prevent foot and finger holds making it anti-climb with excellent visibility and resistance to vandalism. High weld strength at each intersection makes the fence strong and durable. It is designed to provide security and protection for industrial and commercial properties and public utilities. As well,it is suitable for military, airport, prison or security units, if together with electronic alarm and detection systems.
Panels
358 security mesh fence made from a type of strong welded mesh panel with small mesh opening. It is extremely difficult to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 75mm × 12.5mm × 4mm mesh openning. This mesh fencing is for high security applications, though is also often used for lower security applications for peace of mind. The very small apertures mean that it is not possible for any would-be intruder to get a finger or toe hold for climbing, or indeed for getting a cutting tool into.
The panels are made of heavy mesh with a high level of security in width 2515mm and a height of 2007mm to 3302mm. Several panels can be installed on top of each other. Thus may be achieved a total height of 6300mm.
Mesh pattern: 75mm (3") × 12.5mm (0.5") resistance welded well at each intersection
Wire diameter: 4mm horizontal wire and vertical Wire.
Weld strength: range 540-690 N/m2
Surface treatment: 358 mesh fence panels made from hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.

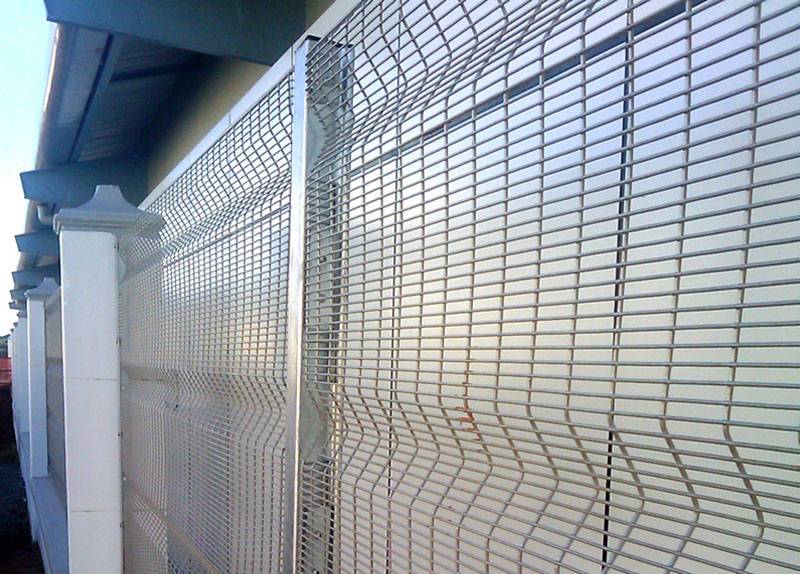

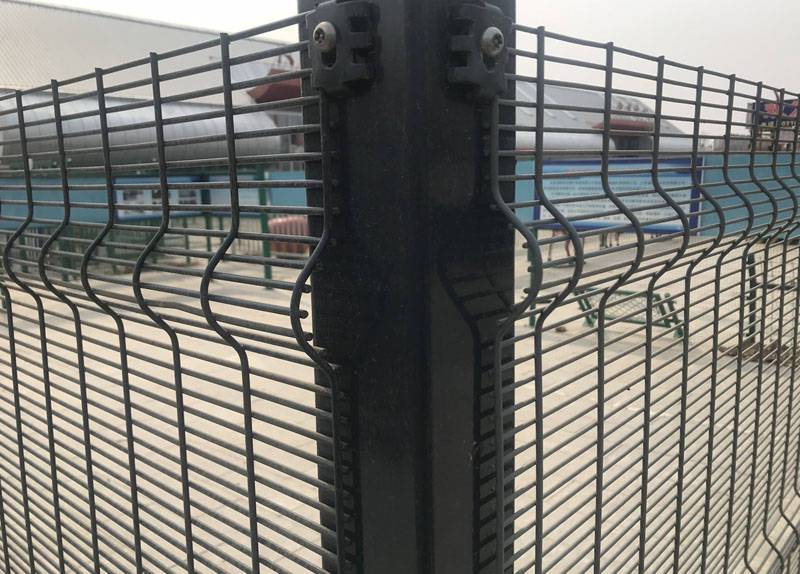

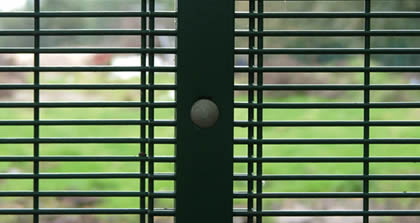

Installation: Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts.
Features:
Anti-climbing: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
High strength welded at each intersection.
Durable: covering Galfan and polymer powder coating ensure a long service life.
Mesh fencing specially configured to provide maximum visibility, especially used for emergency and electronic detection systems.
Specifications:
| Panel Size (Height × Width) | Fence Post (Height × Size × Thick ) | Clamp Bar (Height × Width × Thick ) | Inter or corner Clamp No (PCS) |
| 2007mm ×2515mm | 2700mm ×60×60×2.5mm | 2007mm×60mm ×5.00mm | 7 or 14 |
| 2400mm× 2515mm | 3100mm×60×60×2.5mm | 2400mm×60mm ×5.00mm | 9 or 18 |
| 2997mm×2515mm | 3800mm×80×80×2.5mm | 2997mm×80mm ×6.00mm | 11 or 22 |
| 3302mm ×2515mm | 4200mm×80×80×2.5mm | 3302mm×80mm ×6.00mm | 12 or 24 |
| 3607mm ×2515mm | 4500mm×100×60×3.0mm | 3607mm×100mm×7.00mm | 13 or 26 |
| 3607mm ×2515mm | 4500mm×100×100×3.0mm | 3607mm×100mm×7.00mm | 13 or 26 |
| 4204mm × 2515mm | 5200mm×100×100×4.0mm | 4204mm×100mm×8.00mm | 15 or 30 |
| 4496mm × 2515mm | 5500mm×100×100×5.0mm | 4496mm×100mm×8.00mm | 16 or 32 |
| 5207mm ×2515mm | 6200mm×120×120×5.0mm | 5207mm×100mm×8.00mm | 18 or 36 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Post
Posts are made from steel hollow sections to suit the height of the mesh fence panels, with the mesh overlapped and secured with full length clamp bars and security fixings.
Material: high grade steel for maximum strength and rigidity.
Post section: 60×60mm,80×60mm, 80×80mm or 120×60mm.
Post Plate thickness: 2.5mm or 3.0mm.
Finish: inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ).
Post cap: 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap.
Metal clips and clamps are hot dip galvanised then powder coating in green or black color.
Colors

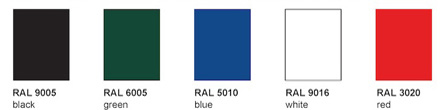

Linkland 358/Security Fence can be supplied in all colors according to international standard RAL Colors, the popular colors as below:
Coating and Warranty
The High security fence are manufacturedusing galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's Highest Weather-ability and Gloss Retention in U.V. exposure, and is backed by our 10-year Manufacturer’s Warranty.

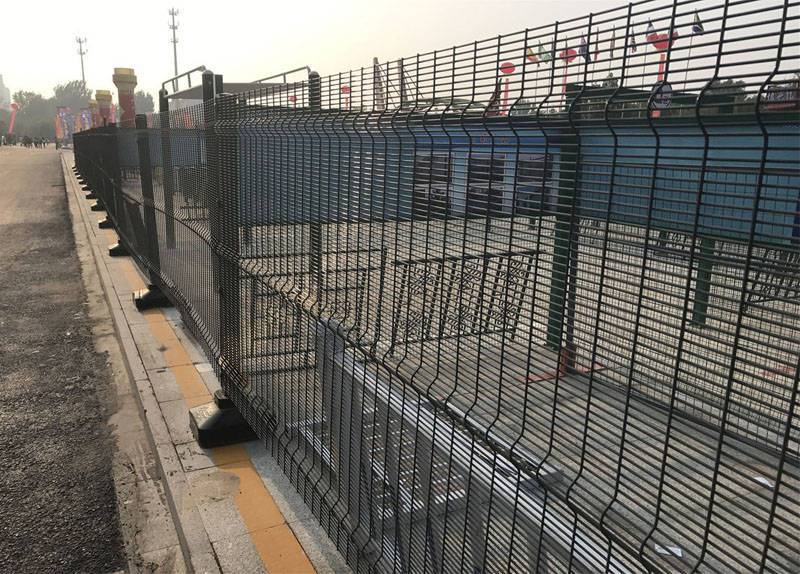

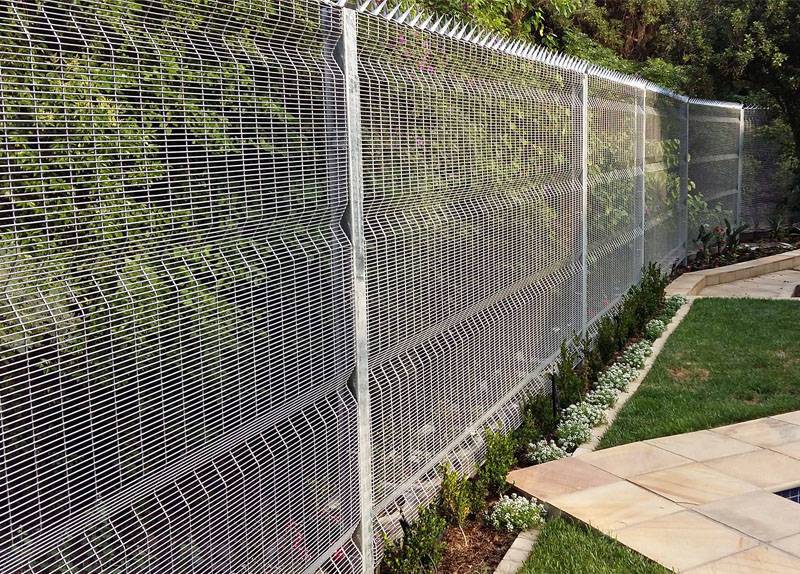

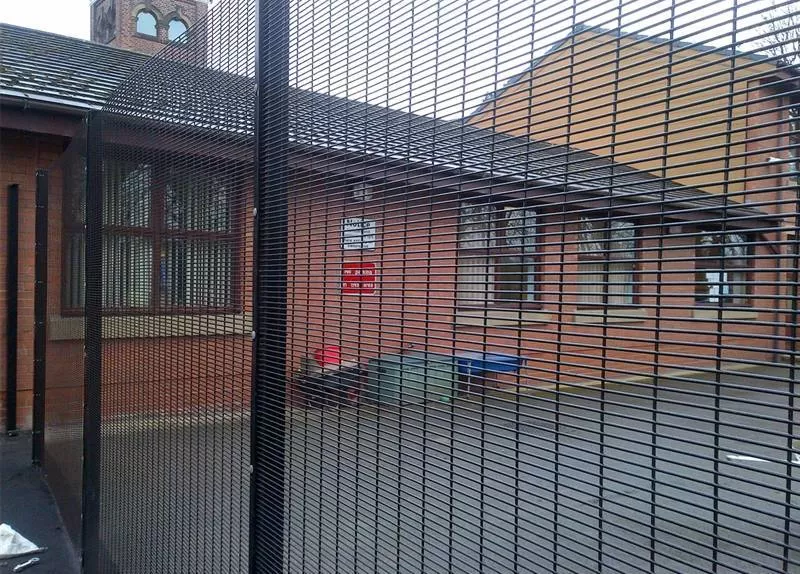

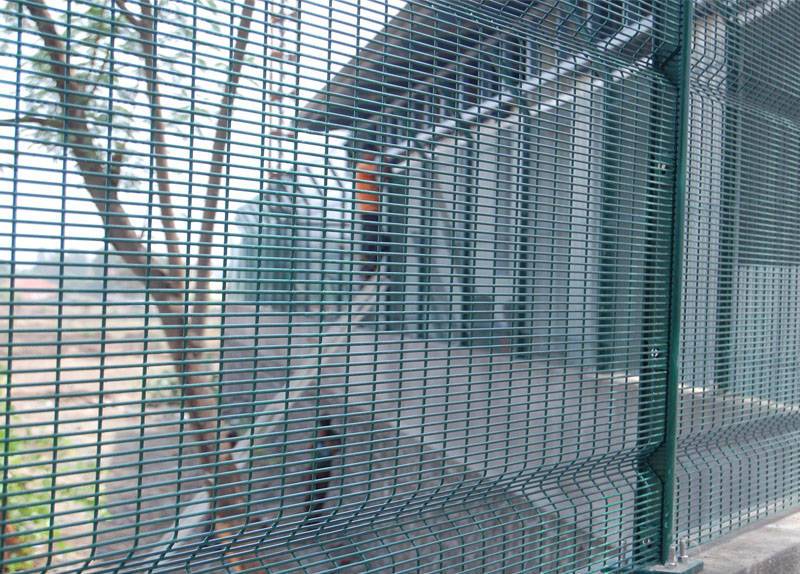

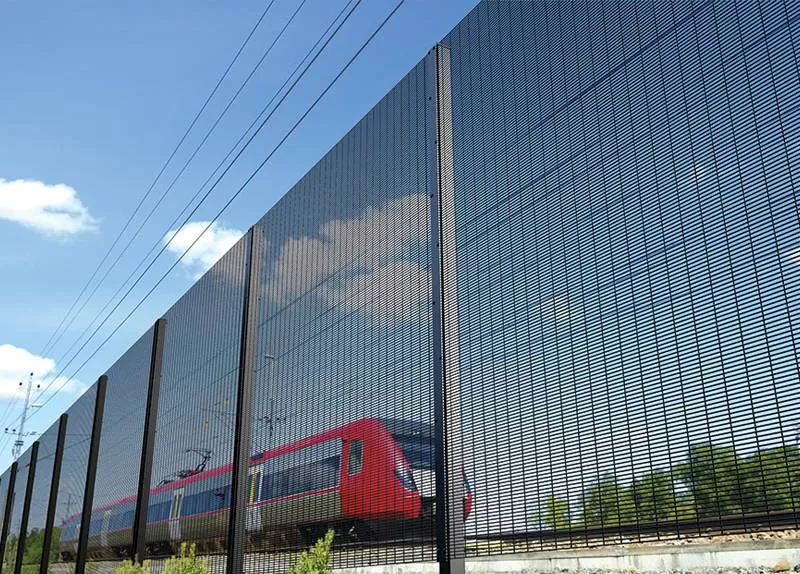

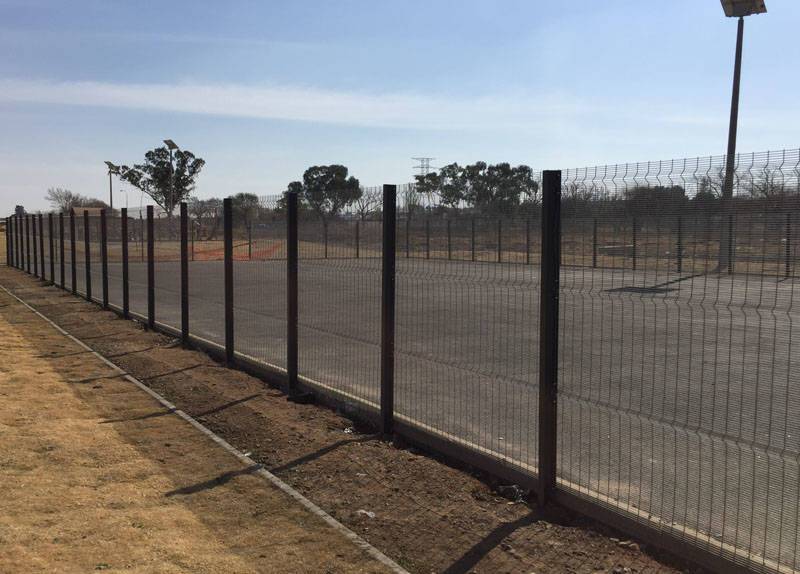

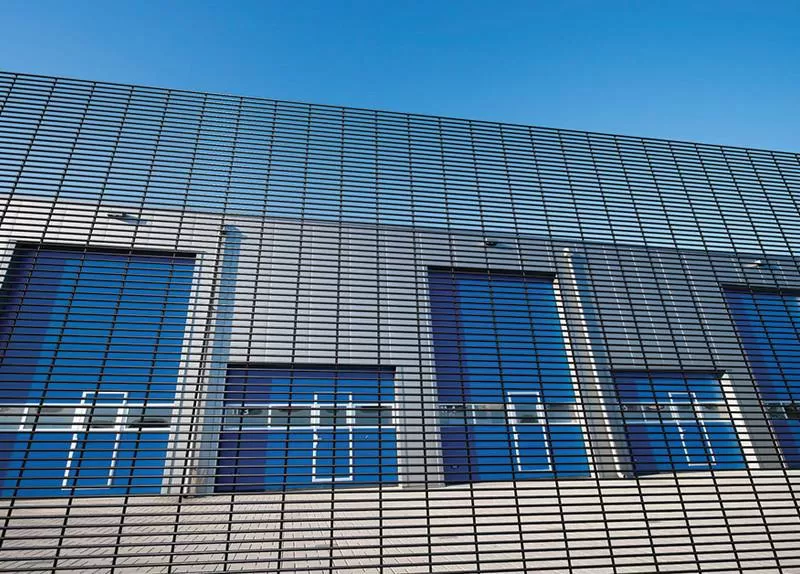

Drawing and Gallery:
Product Name: 358 Fence.High security fencing
