Phosphor Bronze Wire Mesh

Phosphorous wire mesh is also a copper-based alloy. It is mainly consist of 85% - 90% copper and 10% - 15% tin. Phosphorous bronze wires is acid and alkali resistance. The phosphorous bronze wire mesh has a beautiful color and fine mesh sizes, so it is commonly used as the window screen in homes and hotels. It can not only prevent insects from entering, it can add the traditional beauty for the house.

INQUIRY

Our Advantages:

Supply samples for FREE

Free Design

Quality Guaranteed By SGS

Fast reply within 24 hours

Reasonable price directly from Our own Factory

Detailed Information For Phosphor Bronze Wire Mesh

Introduction
Features
Specifications
Technology
Drawing and Gallery
Inquiry

Introduction:

Similar to the brass woven wire mesh, phosphorous bronze woven wire mesh is also a copper-based alloy. It is mainly consist of 85% - 90% copper and 10% - 15% tin. Phosphorous bronze wires is woven into woven wire mesh, which is acid and alkali resistance. The phosphorous bronze woven wire mesh has a beautiful color and fine mesh sizes, so it is commonly used as the window screen in homes and hotels. It can not only prevent insects from entering, it can add the traditional beauty for the house.

Applications of phosphorous bronze wire mesh:

The phosphorous bronze wire mesh is mainly used for sieving and filtering in pharmaceutical and chemical industries.

The phosphorous bronze can be used in the paper making industries.

The phosphorous bronze woven wire mesh is widely used in the window, porch and patio to prevent mosquitoes or other insects from entering the house.

The phosphorous bronze woven wire mesh can be used as the decorative screens.

Features:

1. Acid and alkali resistance.

2. Corrosion resistance.

3. Good ductility.

4. Wear resistance.

5. Beautiful surface.

Specifications:

MESH	WIRE DIAMETER		APERTURE/OPENING		%OPEN AREA
MESH	INCH	MM	INCH	MM	%OPEN AREA
4X4	0.063	1.60	0.187	4.75	56.0
4X4	0.047	1.19	0.203	5.16	65.9
5X5	0.041	1.04	0.159	4.04	63.2
6X6	0.035	0.89	0.132	3.35	62.7
8X8	0.028	0.71	0.097	2.46	60.2
10X10	0.025	0.64	0.075	1.91	56.3
10X10	0.020	0.51	0.080	2.03	64.0
12X12	0.023	0.584	0.060	1.52	51.8
14X14	0.020	0.508	0.051	1.30	51.0
16X16	0.018	0.457	0.0445	1.13	50.7
18X18	0.017	0.432	0.0386	0.98	48.3
20X20	0.020	0.508	0.0300	0.76	36.0
20X20	0.016	0.406	0.0340	0.86	46.2
24X24	0.014	0.356	0.0277	0.70	44.2
30X30	0.013	0.330	0.0203	0.52	37.1
35X35	0.011	0.279	0.0176	0.45	37.9
40X40	0.010	0.254	0.0150	0.38	36.0
50X50	0.009	0.229	0.0110	0.28	30.3
50X50	0.008	0.203	0.0120	0.31	36.0
60X60	0.0075	0.191	0.0092	0.23	30.5
80X80	0.0065	0.165	0.0060	0.15	23.0
80X80	0.0055	0.140	0.0070	0.18	31.4
90X90	0.005	0.127	0.0061	0.16	30.1
100X100	0.0045	0.114	0.0055	0.14	30.3
100X100	0.004	0.102	0.0060	0.15	36.0
110X110	0.0040	0.1016	0.0051	0.1295	30.7
120X120	0.0037	0.0940	0.0064	0.1168	30.7
150X150	0.0026	0.0660	0.0041	0.1041	37.4
160X160	0.0025	0.0635	0.0038	0.0965	36.4
180X180	0.0023	0.0584	0.0033	0.0838	34.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6
250X250	0.0016	0.0406	0.0024	0.0610	36.0
270X270	0.0016	0.0406	0.0021	0.0533	32.2
300X300	0.0051	0.0381	0.0018	0.0457	29.7
325X325	0.0014	0.0356	0.0017	0.0432	30.0

Note: Special size and specifications can be made according to customers requires.

Technology:

Name: Phosphor bronze wire mesh, Tin bronze wire mesh

Material: phosphor bronze wire ( Tin bronze wire)

Mesh Count: 2-350 Width: 0.6m-1.5m

Weave: Plain weave, Twill weave

Features of Phosphor Bronze Wire Mesh:

Phosphor bronze wire mesh features nonmagnetic, wear-resisting, acid and alkali resistance, good ductility

Applications of Phosphor Bronze Wire Mesh:

Phosphor bronze wire mesh is used for screening of all kinds of particles, powder, porcelain clay, glass, chinaware printing, filtering liquid and gas.

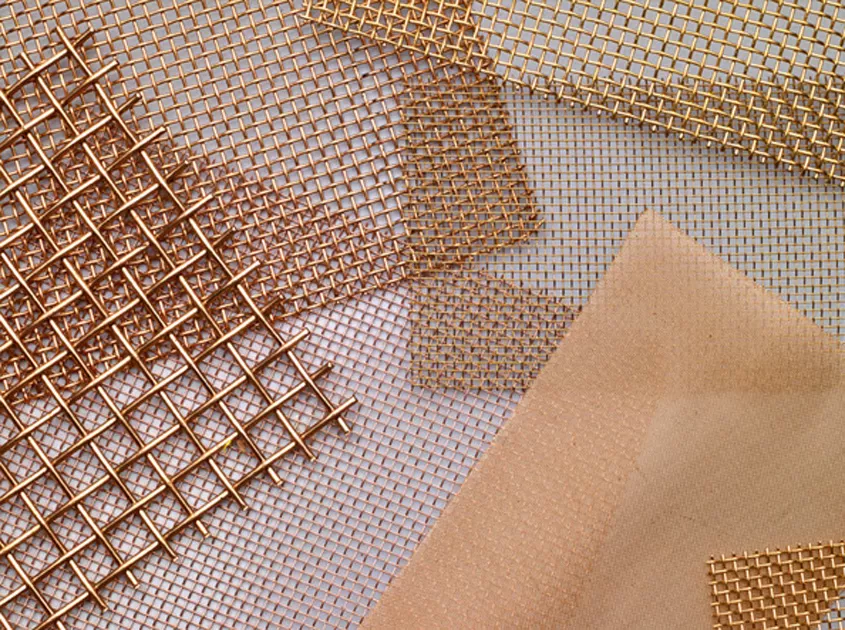

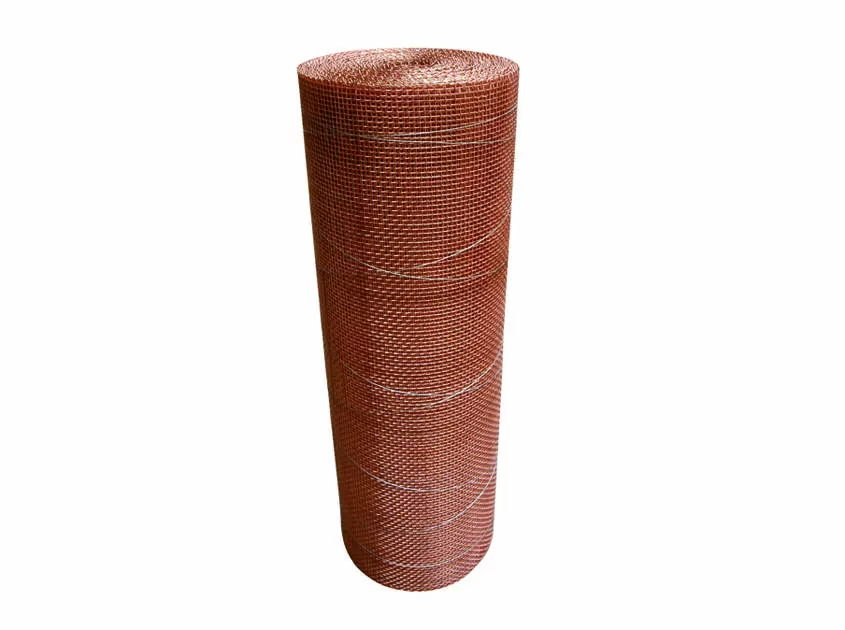

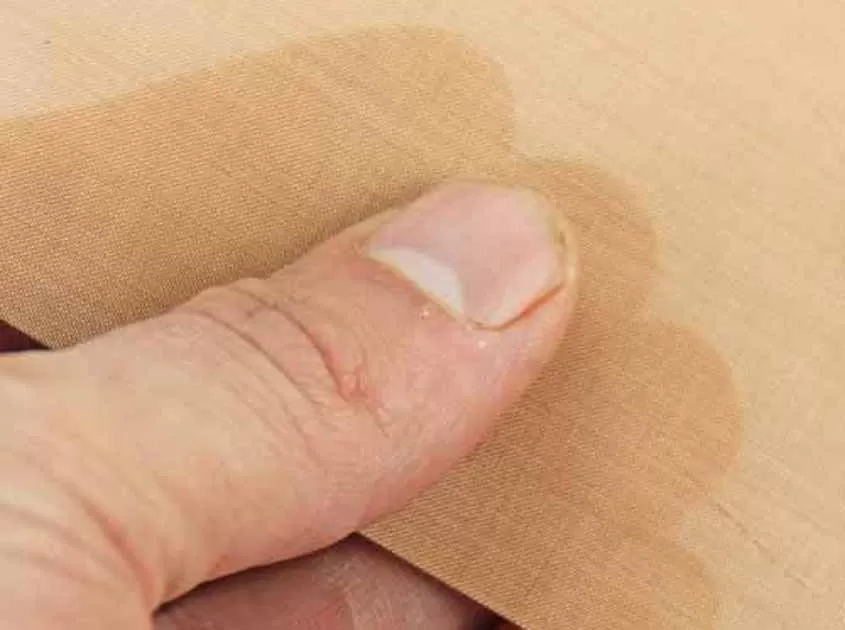

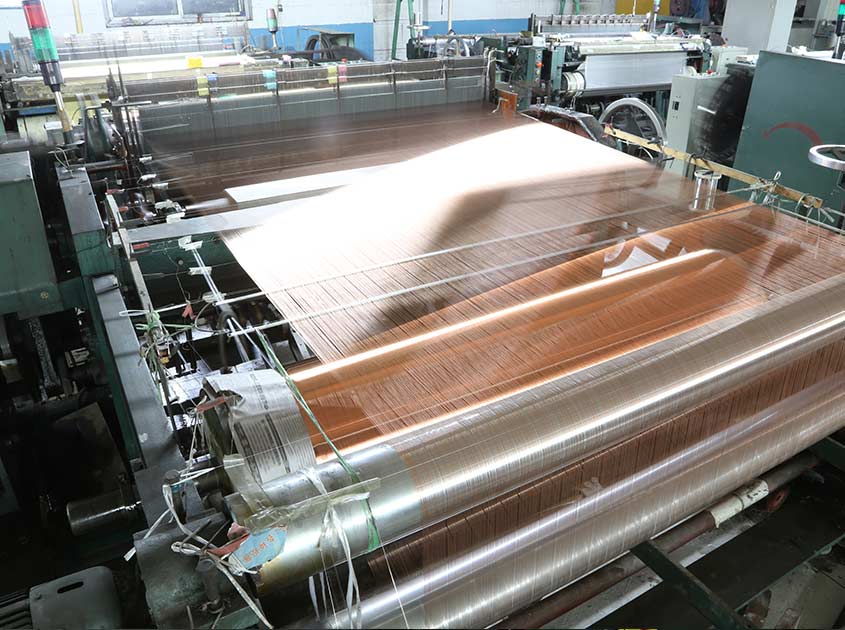

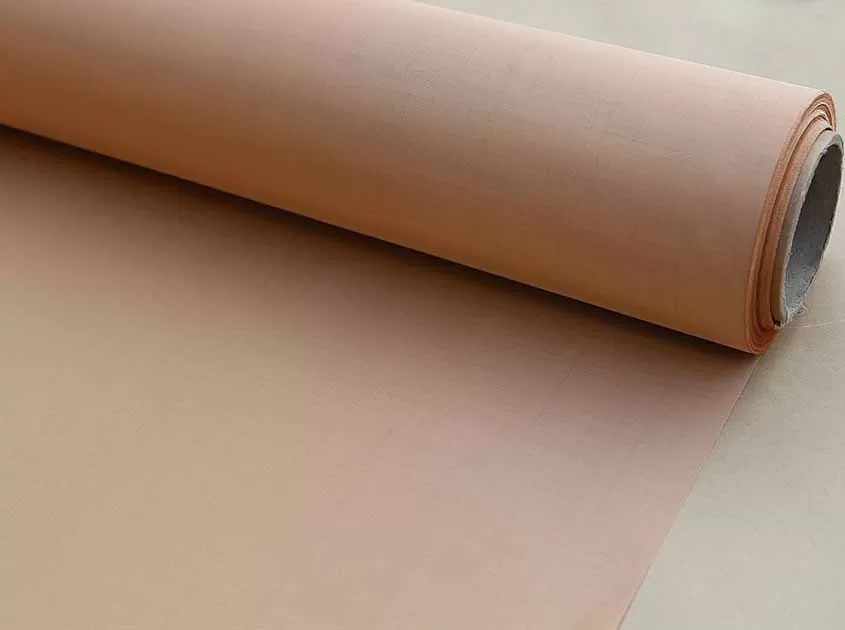

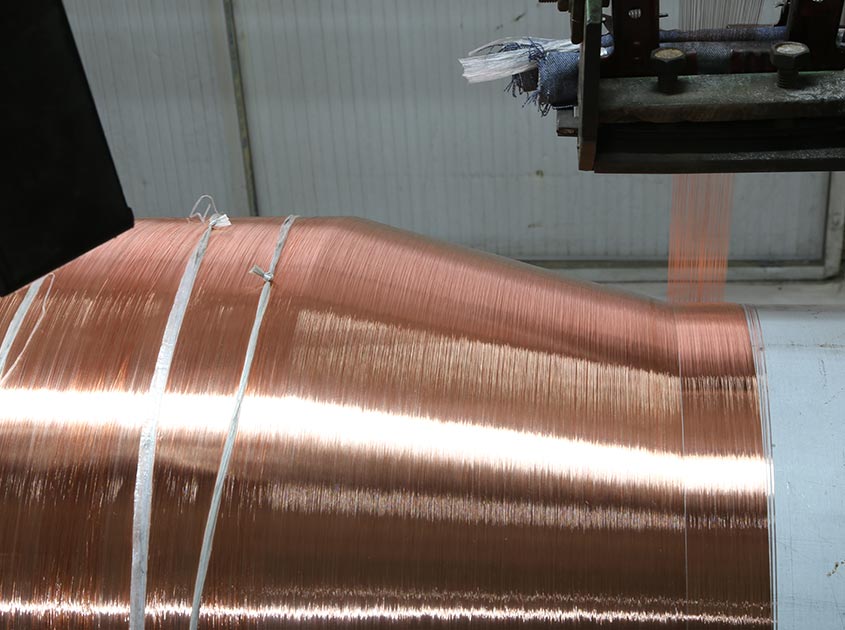

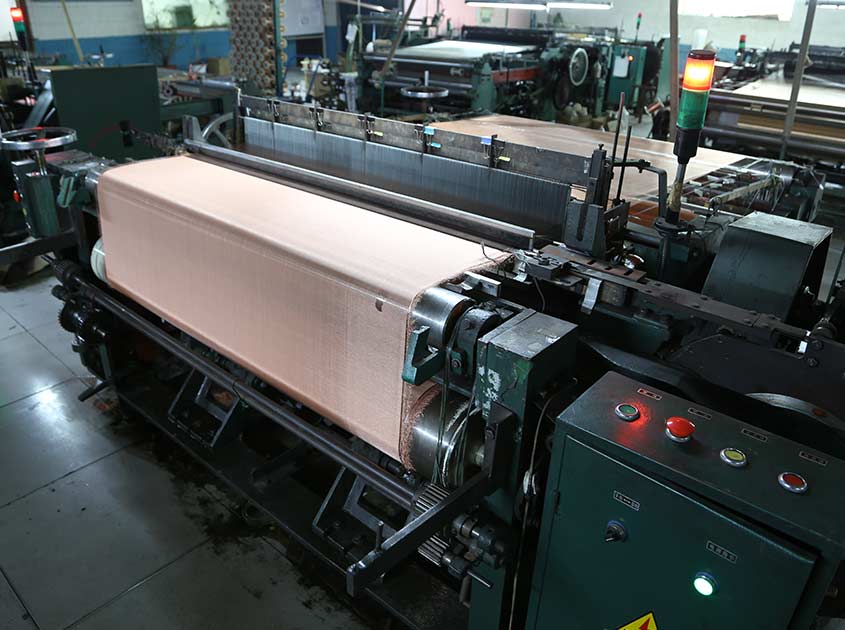

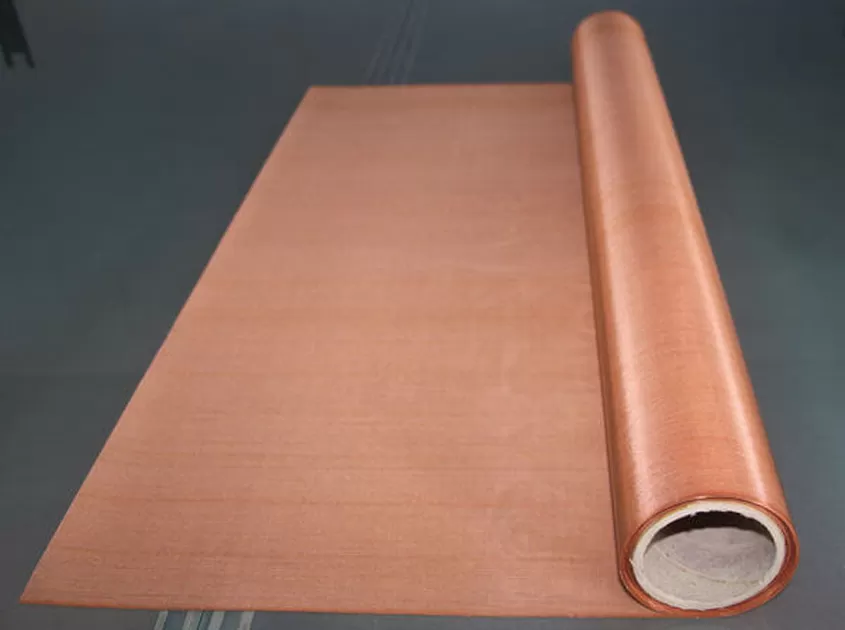

Drawing and Gallery:

Product Name: Phosphor Bronze Wire Mesh
