Introduction:
The barbed wire is twisted from a fully automated barbed wire machine.
Finished product type: single wire twist and double wire twist.
Wire Materials: high quality steel wire (Electro galvanized, Hot dip galvanized, PVC coated) and PVC wire in blue, green, yellow and other colors. The core wire of PVC wire can be galvanized wire or black wire.
Characteristics: anti-corrosion, anti-ageing, solarization resistance, durable,etc.
Applications: Barbed wire is mainly used in protecting of grass boundary, railway, highway, nation defence,airport,orchard,etc. It has a excellent protective performance,beautiful appearance,various patterns.
Features:
1. Bright finished
2. Anti-rust
3. Strong and hard
4. anti-corrosion,
5. anti-ageing,
6. solarization resistance,
7. Durable
Specifications:
| GALVANIZED BARBED WIRE | ||||
| Wire Diameter(BWG) | Length(meters) per Kg | |||
| Barb distance3” | Barb distance4” | Barb distance5” | Barb space6” | |
| 12 x 12 | 6.06 | 6.75 | 7.27 | 7.63 |
| 12 x 14 | 7.33 | 7.90 | 8.30 | 8.57 |
| 12.5 x 12.5 | 6.92 | 7.71 | 8.30 | 8.72 |
| 12.5 x 14 | 8.10 | 8.81 | 9.22 | 9.562 |
| 13 x 13 | 7.98 | 8.89 | 9.57 | 10.05 |
| 13 x 14 | 8.84 | 9.68 | 10.29 | 10.71 |
| 13.5 x 14 | 9.60 | 10.61 | 11.47 | 11.85 |
| 14 x 14 | 10.45 | 11.65 | 12.54 | 13.17 |
| 14.5 x 14.5 | 11.98 | 13.36 | 14.37 | 15.10 |
| 15 x 15 | 13.89 | 15.49 | 16.66 | 17.50 |
| 15.5 x 15.5 | 15.34 | 17.11 | 18.40 | 19.33 |
| PVC Coatedbarbed wire | Wire Diameter | Barbs’ distance | Barb length | |
| Before coating | After coating | 75mm - 150mm | 15mm - 30mm | |
| 1.0mm - 3.5mm | 1.4mm - 4.0mm | |||
| BWG20 - BWG11 | BWG17 - BWG8 | |||
| PVC coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request | ||||
| Specifications | Weight: 10kgs/coil | 1X20'FCL Quantity |
| 16GA*16GA | 160M/coil | 15TONS |
| 16GA*14GA | 125M/coil | 16TONS |
| 14GA*14GA | 100M/coil | 17TONS |
| 14GA*12GA | 80M/coil | 18TONS |
| 12GA*12GA | 65M/coil | 19TONS |
| Specifications | Weight: 15kgs/coil | 1X20'FCL Quantity |
| 16GA*16GA | 240M/coil | 15TONS |
| 16GA*14GA | 180M/coil | 16TONS |
| 14GA*14GA | 150M/coil | 17TONS |
| 14GA*12GA | 120M/coil | 18TONS |
| 12GA*12GA | 100M/coil | 19TONS |
| Specifications | Weight: 25kgs/coil | 1xX20'FCL Quantity |
| 16GA*16GA | 400M/coil | 16TONS |
| 16GA*14GA | 300M/coil | 17TONS |
| 14GA*14GA | 250M/coil | 18TONS |
| 14GA*12GA | 200M/coil | 19TONS |
| 12GA*12GA | 160M/coil | 20TONS |
Note: Special size and specifications can be made according to customers requires.
Technology:
1. Materials: Q195 and Q235 or high tensile steel wire
2. Surface treatment: Hot dipped Galvanized, Electro galvanized and PVC coated
3. Tensile of Strength:
1) Soft: 380-550N/mm2
2) High tensile: 800-1200N/mm2
4. IOWA type: 2 strands, 4 points. Barb distance 3" to 6"
5. Applications: Widely used in Agriculture, Animal husbandry, Dwelling house, Plantation, Fencing etc.

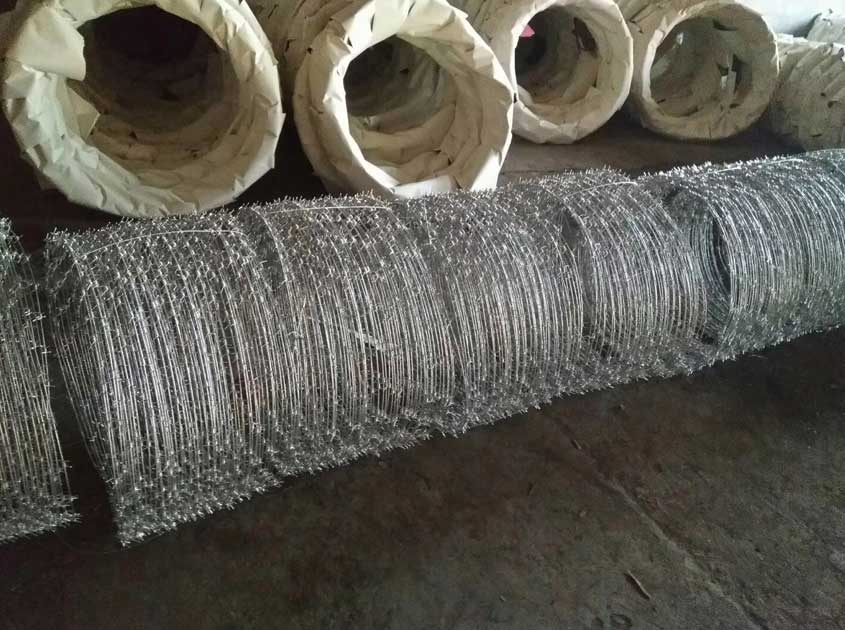

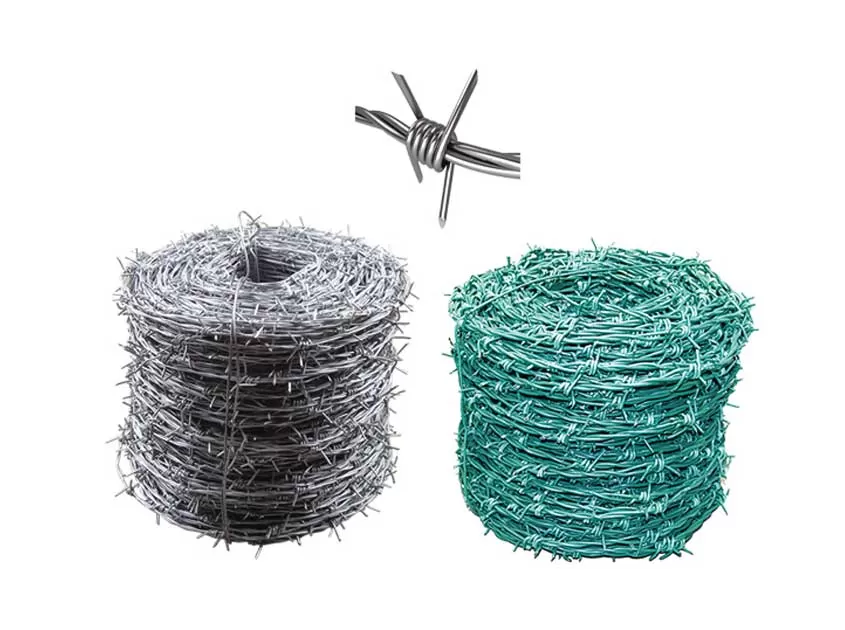

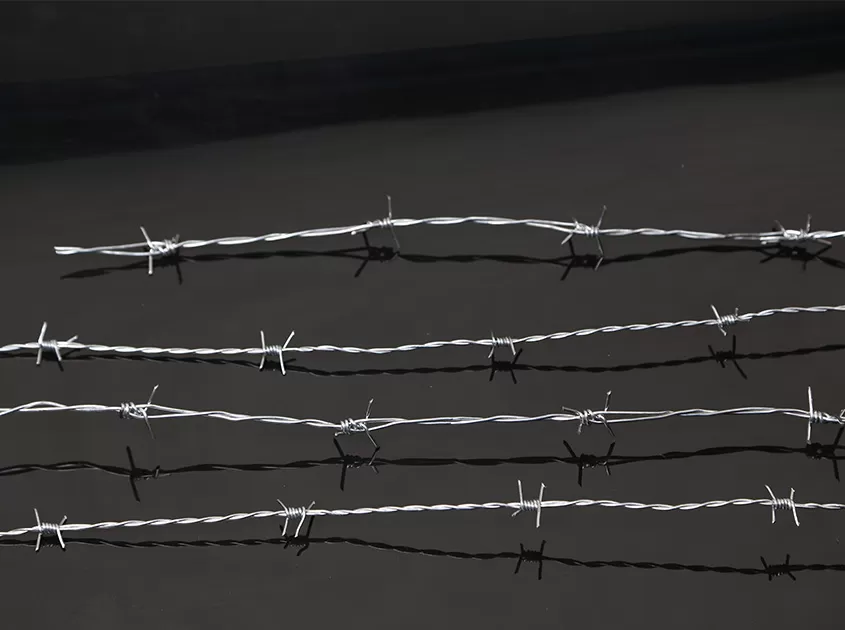

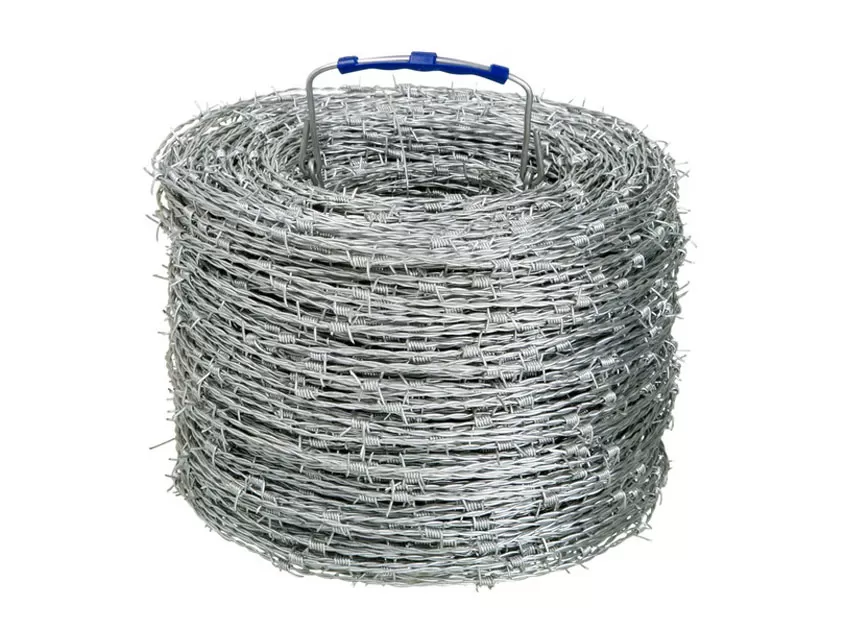

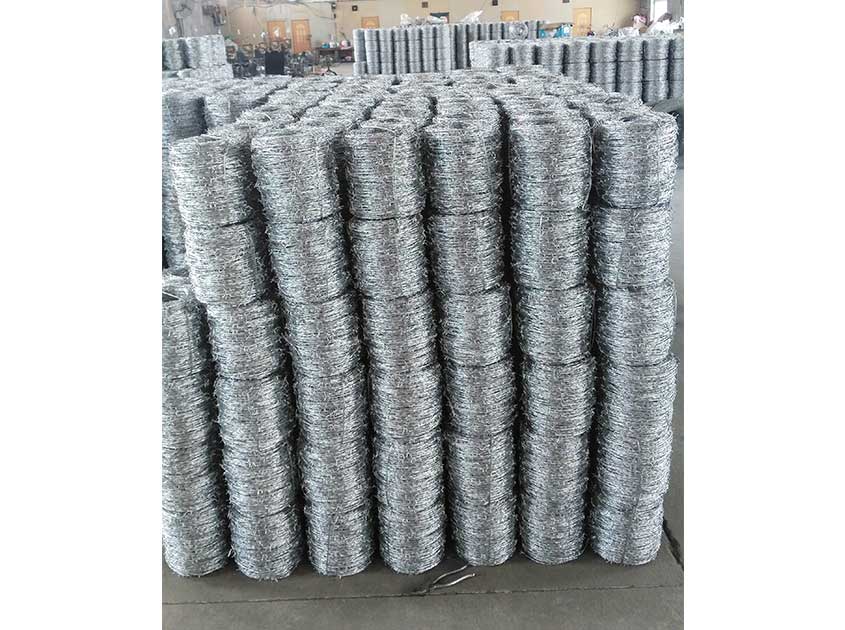

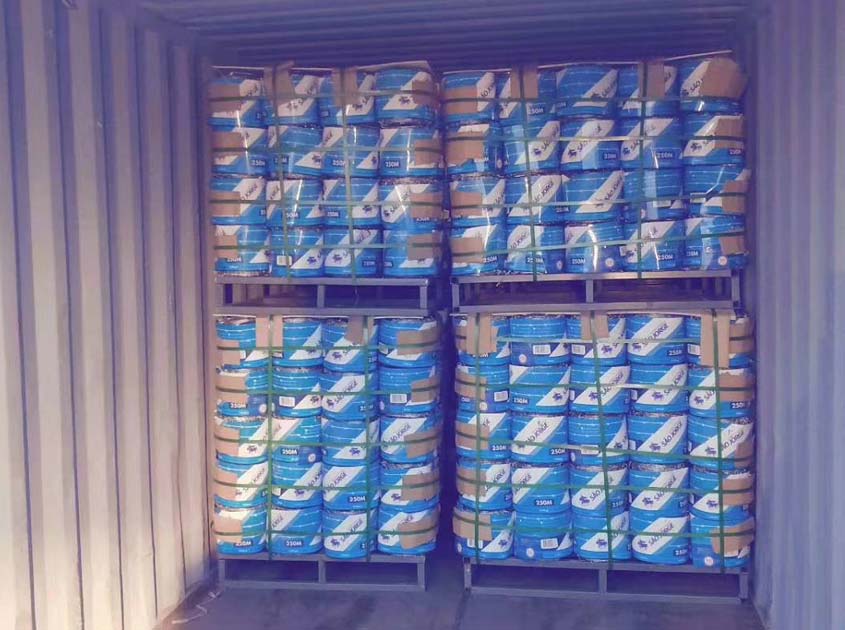

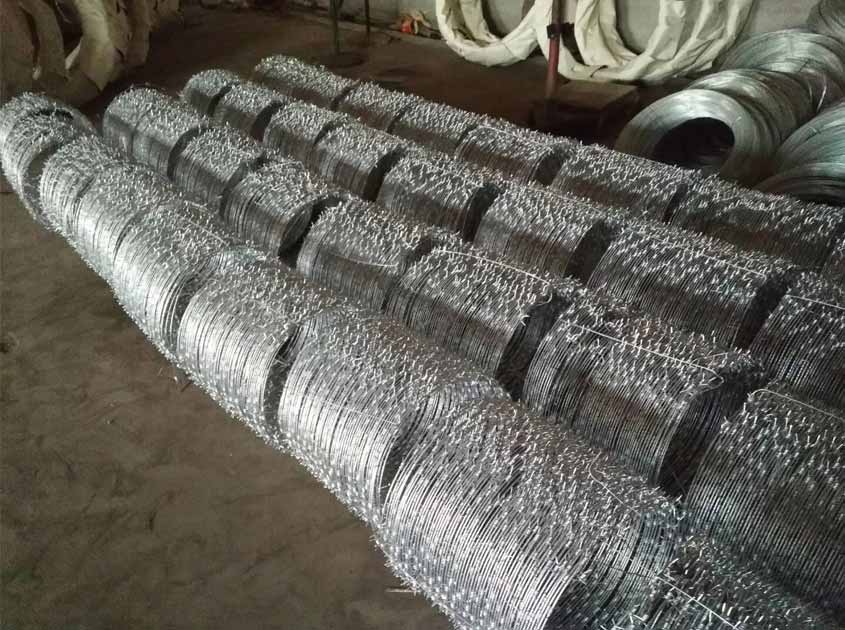

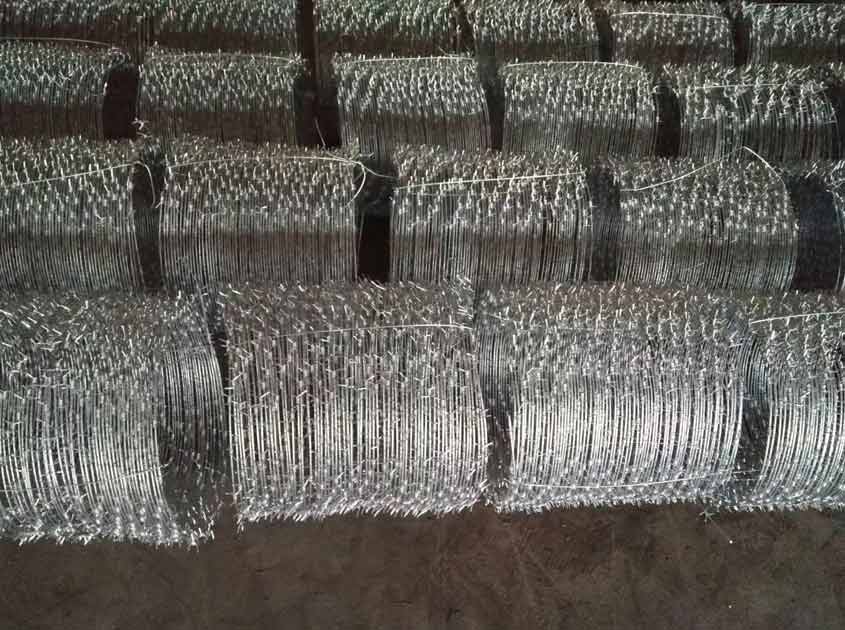

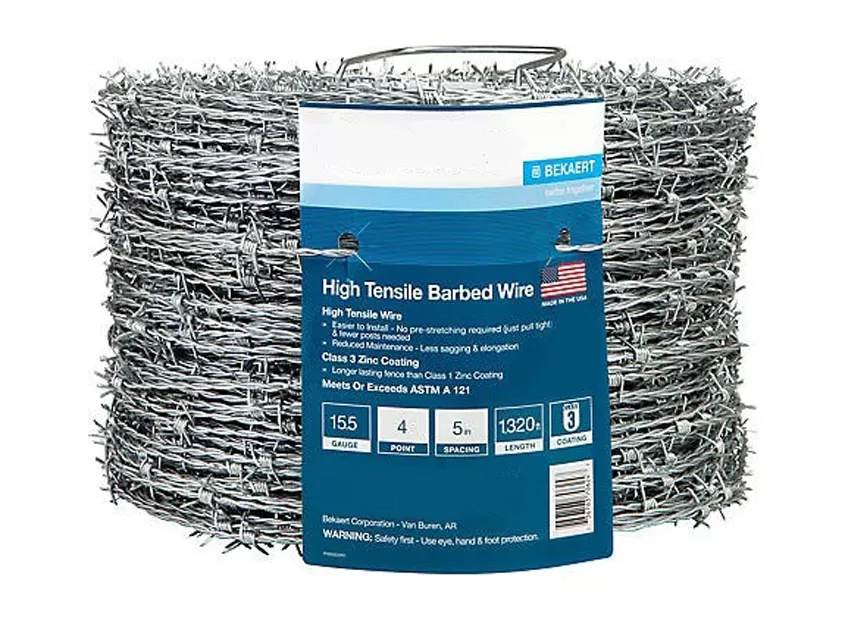

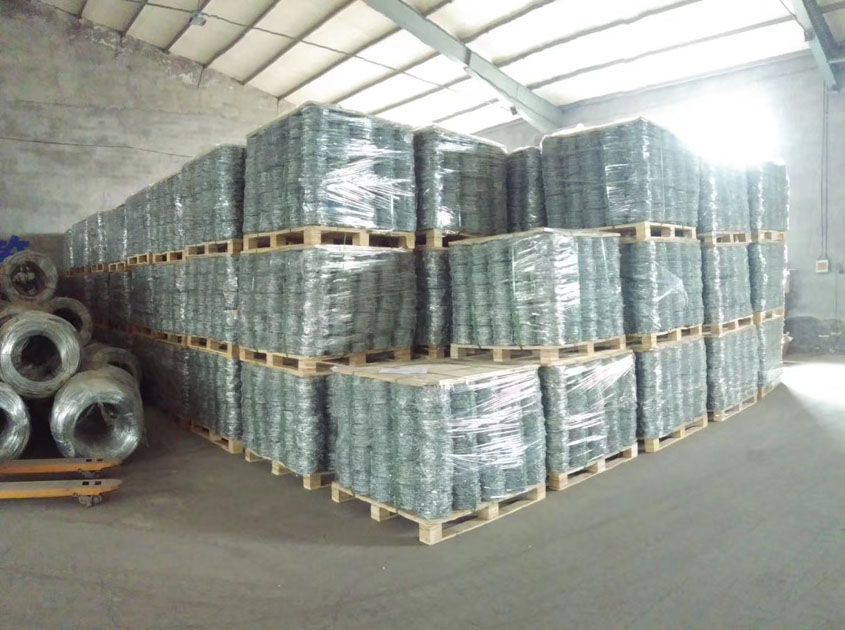

Drawing and Gallery:
Product Name: Barbed Wire
