Introduction:

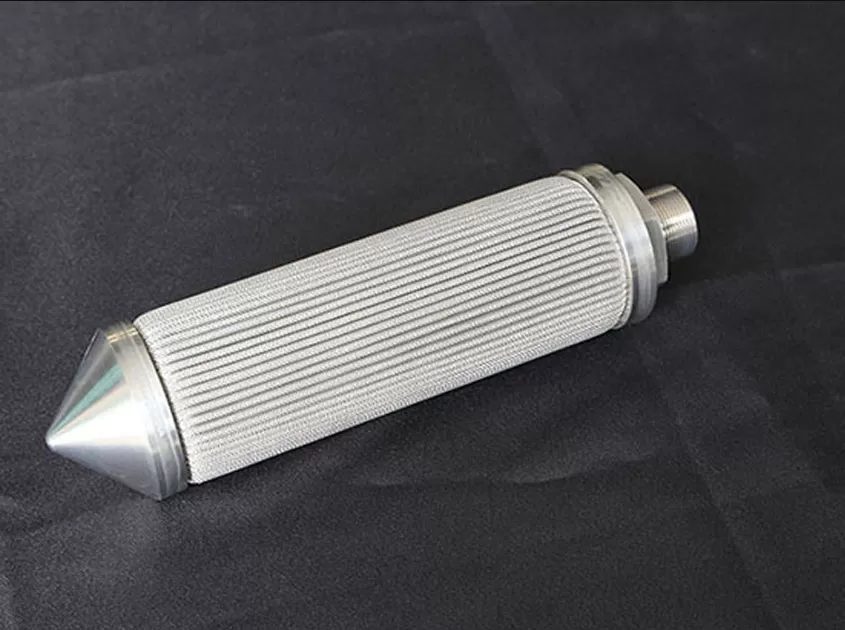

Candle Filter also named the melt filter element, is mainly used for high temperature, high pressure, high viscosity polymer, polyester melt filtration. The filter upper and lower end caps are made of stainless steel to ensure corrosion resistance. The filter medium is made of stainless steel fiber sintered felt and stainless steel wire braided mesh is folded and corrugated. The dimensions are small and the filter area is large. It can be cleaned repeatedly.With the pore gradient formed by layers of different pore sizes,the stainless steel sintered fiber felt product can achieve higher rating and larger holding capacity.
Features:
Strong Reusability
Large Filter Area
Large Flow Rate
High Porosity
Excellent Permeability
Strong Dirt Holding Capacity
Low Pressure Drop
Suitable For High Molecular Polymer Filtration
High Temperature Resistance
High Corrosion Resistance
Specifications:
| Material | ss304 wire mesh,ss316 wire mesh,ss316l wire mesh,brass wire mesh, hastelloy sintered wire mesh, nickel wire mesh, monel wire mesh, FrCrAl wire mesh etc |
| Filter precision | 1 - 2000μm |
| Working temperature | -50°C -800°C |
| Working pressure | 30Mpa |
| Filtration area | 0.01-0.2m2 |
| Rated flow | 80-200L/min |
| length | 5", 10", 20", 30", 40" or as needed. |
| Diameter | 60 mm, 64 mm, 69 mm, 83 mm, 131 mm, or as needed. |
| Inner diameter | 28–40 mm, or as needed. |
| Main filter media | stainless steel sintered fiber web and stainless steel wire woven cloth. |
| Installing form | standard (using o-ring to seal), thread, tie rod, flange, fast interface |
Note: Special size and specifications can be made according to customers requires.
Technology:
NoneDrawing and Gallery:
Product Name: Candle Filter
