Introduction:

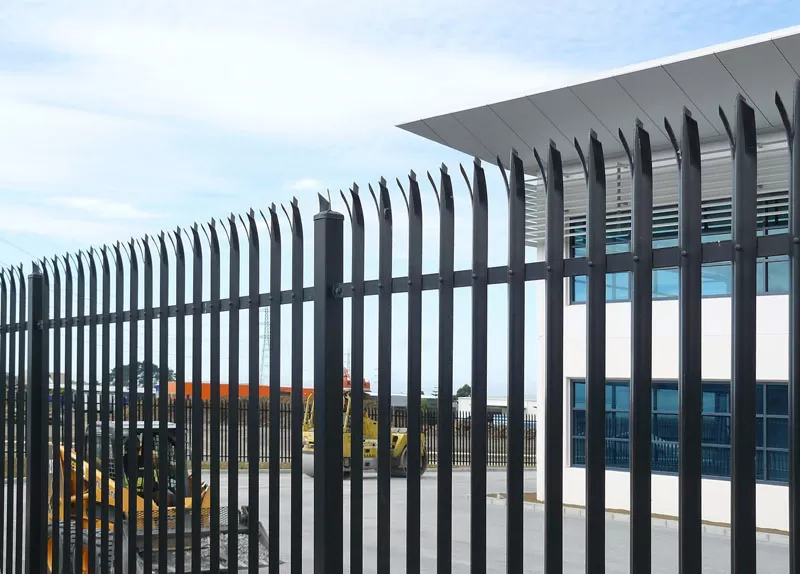

Palisade fencing, as effective security fencing, is the widest used type in the world. The forbidding appearance, inherent strength and high damage resistance make the palisade fencing one of the best choices of premise protection.
Designed with smooth surface, rigidity structure, sharp prongs and narrow pale spacing, the palisade fences are normally considered to be difficult even impossible to climb, straddle, grab and gain foot-hold. Thereby, it effective deters would to be intruders and trespassers, protects your assets, office and factory from damages.
Most of all, the palisade fence can be installed with flexibility to follow the profile of uneven terrains and offers a professional feel to your areas. So the fences are always close to the ground, no oversized gaps that may cause security issues anymore!
Panels

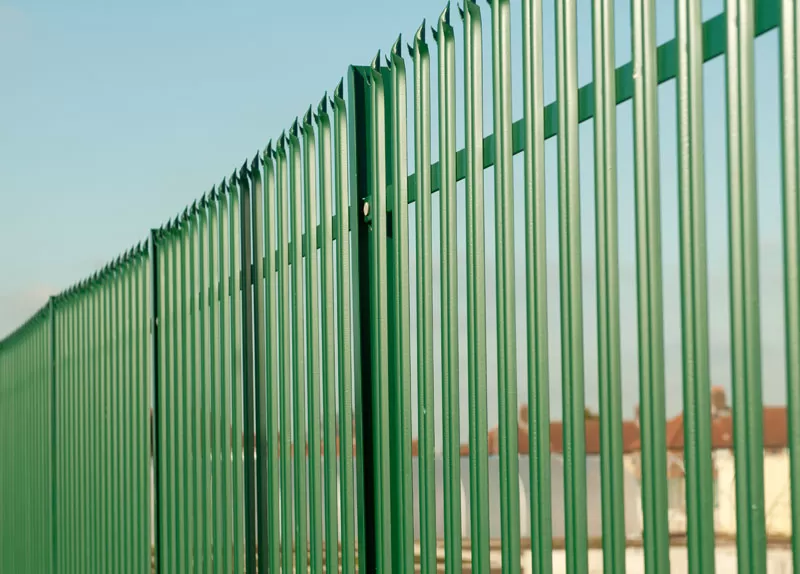

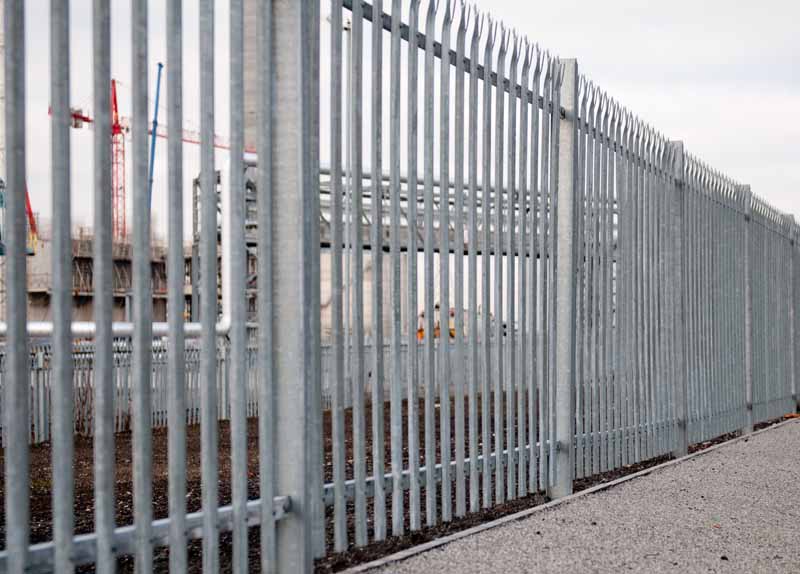

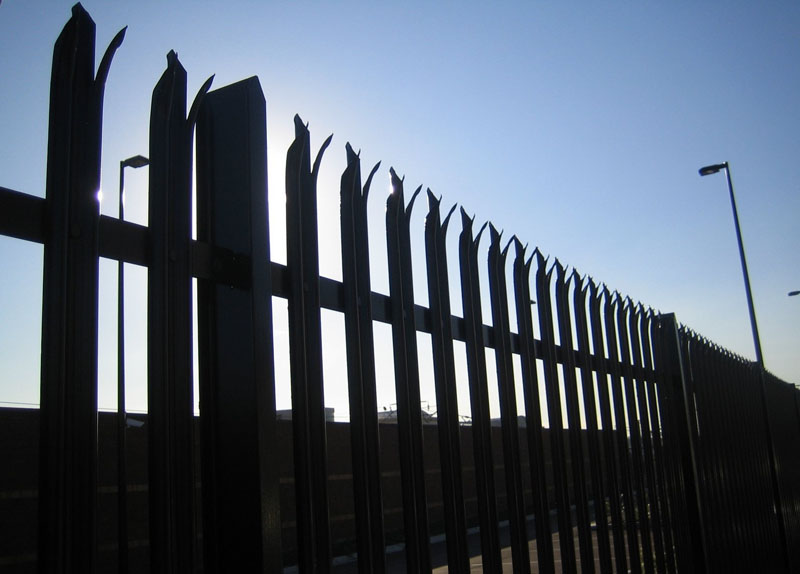

Steel Palisade fence is an effective and attractive security barrier. Panels feature strong and secure steel pales, available in a full range of top designs, depending on the security and architectural requirements.
Palisade pales, the main components of palisade fencing, can be sold separately for repairing a damaged fence and cladding a palisade gates. Taking full advantages of forbidding appearance, the pales deter would be intruders and protect your house, office or factory, etc
Pale Sections
Typically palisade pales are supplied with three types of vertical pale profile: angle iron, D section and W section style, which are engineered with inherent strength and high resistance to attempts of pry, impact, bending, dismantle installation and dislocation.
D section pales, working with long bolts, are designed for boundary delineation requiring low to medium security and damage resistance.
W section pales, with higher inherent strength and better vandal resistance, are the most used type to provide effective high security and extra protection. Fastened by short bolts, the W type palisade pales are flush against the horizon rails without flexibility.
Angle steel pales, bolted or welded to horizon fence rails, are suitable for general purpose applications, such as residential estates protection.

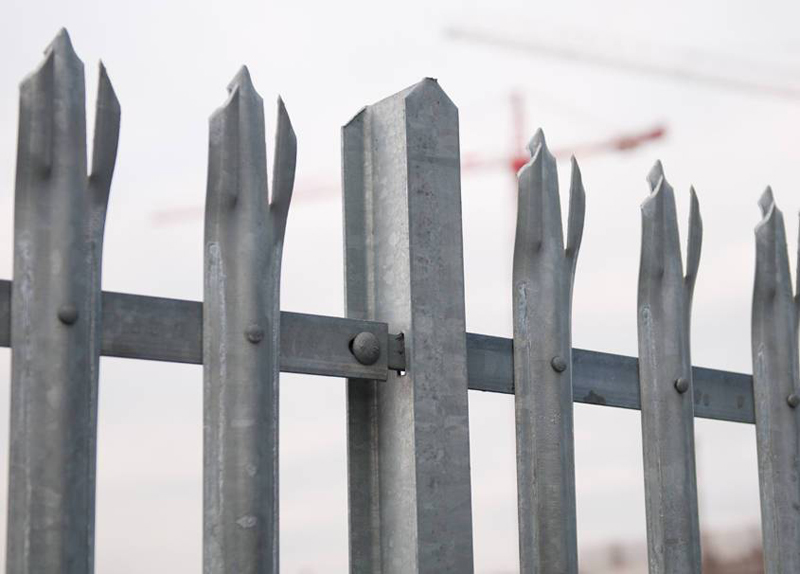

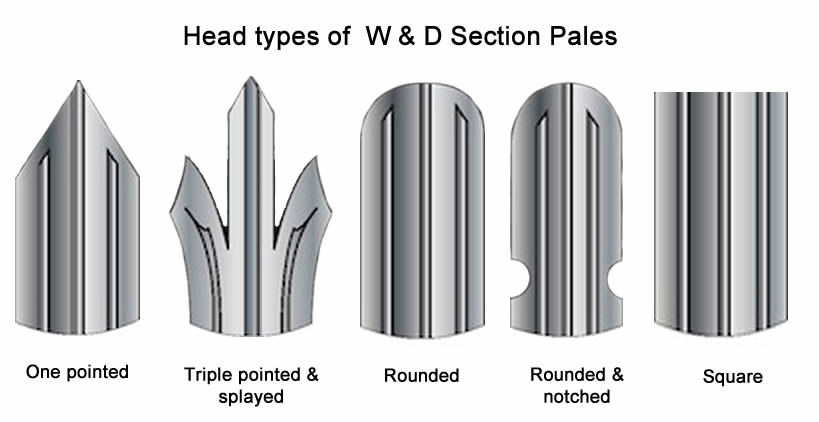

Pale Heads
It also available in a choice of pale heads for W or D section pales and angle iron pales as shown in the pictures:
Features:
Popular Choice
Our steel palisade fencing is one of our most popular choices for perimeter security. This fence offers both a visual and physical deterrent. It is a popular choice amongst businesses wanting to keep their premises safe.
Deter and Delay
The Palisade fence system presents an architecturally-pleasing security barrier design that deters potential attacks with pale designs to discourage scaling, and delays intrusion with high strength steel construction designed to withstand impact.
Fast Installation
Because of its unique rail support, this security fence can be installed in as little as half the time required of conventional systems that are set between posts.
Security Integration
This barrier solution can be integrated with Intrusion Detection and other electronic security components, protecting cabling through a raceway of steel rails within the framework of the Palisade Fence System.
Long Service Life
High-quality galvanized steel is coated with our exclusive super durable, Architectural Grade Powder Coating, providing the industry’s longest-lasting protection.
Specifications:
| Panel size | W PALE section:70mm | Rails | Post | |||
| Heights | Post Distance | Pale Thickness | Qty: Pale | Cross Rails | Height | I Post Section |
| 1.8m | 2.75m | 2/2.5/3mm | 17pcs | 50×50×6mm | 2400 | 100×55mm or 102x44mm |
| 2.1m | 2.75m | 2/2.5/3mm | 17pcs | 50×50×6mm | 2900 | 100×55mm or 102x44mm |
| 2.4m | 2.75m | 2/2.5/3mm | 17pcs | 50×50×6mm | 3200 | 100×55mm or 102x44mm |
| 3.0m | 2.75m | 2/2.5/3mm | 17pcs | 50×50×6mm | 3900 | 100×55mm or 102x44mm |
| 3.6m | 2.75m | 2/2.5/3mm | 17pcs | 50×50×6mm | 4500 | 100×55mm or 102x44mm |
| W Pale section:62mm | ||||||
| 1.8m | 2.75m | 1.5/2/2.5mm | 17pcs | 40×40×4mm or50×50×5mm | 2400 | 100×55mm or 102x44mm |
| 2.1m | 2.75m | 1.5/2/2.5mm | 17pcs | 40×40×4mm or50×50×5mm | 2900 | 100×55mm or 102x44mm |
| 2.4m | 2.75m | 1.5/2/2.5mm | 17pcs | 40×40×4mm or50×50×5mm | 3200 | 100×55mm or 102x44mm |
| 3.0m | 2.75m | 1.5/2/2.5mm | 17pcs | 40×40×4mm or50×50×5mm | 3900 | 100×55mm or 102x44mm |
| 3.6m | 2.75m | 1.5/2/2.5mm | 17pcs | 40×40×4mm or50×50×5mm | 4500 | 100×55mm or 102x44mm |
| Panel size | D Pale section:65mm | Rails | Post | |||
| Heights | Post Distance | Pale Thickness | Qty: Pale | Cross Rails | Height | I Post Section |
| 1.8m | 2.75m | 1.5/2/2.5/3mm | 17pcs | 40×40×4mm or50×50×5mm | Height | 100×55mm or 102x44mm |
| 2.1m | 2.75m | 1.5/2/2.5/3mm | 17pcs | 40×40×4mm or50×50×5mm | Height | 100×55mm or 102x44mm |
| 2.4m | 2.75m | 1.5/2/2.5/3mm | 17pcs | 40×40×4mm or50×50×5mm | Height | 100×55mm or 102x44mm |
| 3.0m | 2.75m | 1.5/2/2.5/3mm | 17pcs | 40×40×4mm or50×50×5mm | Height | 100×55mm or 102x44mm |
| 3.6m | 2.75m | 1.5/2/2.5/3mm | 17pcs | 40×40×4mm or50×50×5mm | Height | 100×55mm or 102x44mm |
Note: Special size and specifications can be made according to customers requires.
Technology:
Posts
Connecting to horizontal palisade rails, are the necessary support of whole fence panels and determine the property of assault resistance. made from high quality steel, these posts are extremely durable and robust to withstand the harshest damages.Catering for different needs, palisade posts are available in two fixing ways: concrete in and bolt down as shown in the right picture:
Concrete in palisade posts are the most used type complying with International Standards. The bolt down palisade posts with base plates, are also popular for applications where the concrete in posts are not suitable,such as on concrete ground. As your request, cranked wall mount palisade posts can be made to order.
Mostly, palisade post are manufactured from rolled steel joist or heavy duty box section steel - that means there are two varieties of palisade posts: RSJ post and square posts (See below pictures)
Palisade Rails
Also called as horizontal rails or crossbars, connect the palisade pales and posts together with the help of cap-head bolts and anti-vandal nets. They are manufactured of rolled steel angle and punched with holes for bolts and nuts, meanwhile, they are galvanized as standards and PVC coated as your request.
Normally, two palisade rails are capable to fasten palisade fence in a height up to 3 meters. However, additional rails should be fixed if the fence is above that height for ensuring its integrity.
The top palisade rails can be manufactured with razor sharps between each palisade pales to prevent would to be intruders from grabbing, climbing up even over the palisade fence.
Palisade Gates
Palisade gates, matching with palisade fencing, are designed for securing accesses to your promises and properties. Manufactured from heavy duty steel, the palisade gates we supplied are durable and enable to withstand the harshest damages.
Supplied as standard, all the palisade gates are hot dipped galvanized with the option of PVC coating. Owing to these surface treatments, palisade gates feature excellent rust and corrosion resistance properties. Therefore, it owns perfect performance even in extremely atrocious environments.
As a specific designer and manufacturer, we supply two types of palisade gates: palisade swing gate and palisade sliding gate as follow:
Pedestrian gate - single leaf
Height: 1.2m, 1.8m, 2.0m, 2.4m or 3.0m
Length: 1m, 1.2m or 1.5m
Gate leaf: one gate leaf
Palisade pales: W section, D section or angle pales
Gate post: 2 RSJ posts or square posts
Latch: one heavy duty slide latch
Horizontal palisade rails: 2 angle steel
Fittings: 2 hinges, some bots and nuts
Vehicle gate - double leaves
Height: 1.2m, 1.8m, 2.0m, 2.4m or 3.0m
Length: 2m, 3m, 4m, 5m or 6m
Gate leaf: two gate leaves
Palisade pales: W section, D section or angle pales.
Gate post: 2 heavy duty square post or RSJ post
Latch: 1 heavy duty slide latch
Horizontal palisade rails: 2 angle steel
Fittings: 4 hinges, and correct numbers of bots and nuts

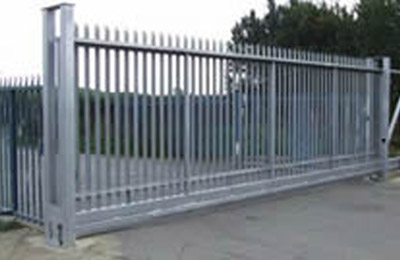

Palisade sliding gate
Height: 1.2m, 1.8m, 2.0m, 2.4m or 3.0m
Length: 4m, 5m, 6m, 7m, 8m, 9m, 10m, 11m, 12m, 13m, 14m, 15m or other widths as your request.
Leaf: one gate leaf
Palisade pales: W, D section or angle pales
Wheel: 2 gate wheel with a diameter of 100mm
Wheel run track: 10mm to 15mm protruding from the ground surface
End post: 120mm × 120mm
Center post: 100mm × 100mm
Fitting: post clamps, bolts and nuts
Colors
Linkland Double wire fence can be supplied in all colors according to international standard RAL Colors, the popular colors as below:
ACCESSORIES
To fix the pales to the rails two types of fixings are available. Rivets and collars (M6 and M8) for which a fencing rivet gun is required or M8 bolts with Permacone fixings, designed to snap off during erection for a secure fixing.
Bolts and nuts M6, M8, M12.
Fish plate and Angle steel
Coating
Palisade fence panels and gates are all hot dipped galvanized complying with BS EN ISO 1461: 1999. then protected by exclusive Super-Durable powder coating. This coating provides longer protection from U.V. rays and salt spray than either E-Coat or standard polyester coatings.
Warranty
Linkland Palisade fence system is backed by a 15-Year Manufacturer's Warranty, giving you the peace of mind that the world's leading producer of fencing stands behind this product.
Drawing and Gallery:
Product Name: Palisade Fence
