Filter disc | Filter pack

Filter disc, also named of wire mesh discs, is mainly made of stainless steel woven wire cloth, stainless steel sintered mesh, galvanized wire mesh and brass wire cloth, etc. It is mainly used to remove unwanted impurities from fluid, air, or solid. It can be made of single layer or multi layers filter packs, which can divide into spot welded edge and aluminum framed edge. Besides, it can be cut into various shapes, for example round, square, polygon and oval, etc.They can also be wrapped with edges and some of discs are spot welded into multi-layers. The discs find their applications in the absorption, evaporation and filtration process in the industries such as petroleum, chemical, metallurgy, food and beverage, medicine and automobiles.

INQUIRY

Our Advantages:

Supply samples for FREE

Free Design

Quality Guaranteed By SGS

Fast reply within 24 hours

Reasonable price directly from Our own Factory

Detailed Information For Filter disc | Filter pack

Introduction
Features
Specifications
Technology
Drawing and Gallery
Inquiry

Introduction:

Features:

1.Smooth surface and fine meshes, which can ensure the outstanding filtration performance.

2.Acid and alkali resistance.

3.Rust resistance.

4.Wear resisance.

5.High temperature resistance.

6.High tensile strength.

7.Outstanding filtration performance.

8.Made in various materials, patterns and sizes for different equipment.

9.Multi-layer filter disc for better filtration performance.

10.Spot welded and wrapped edges for durability and stability.

Specifications:

Material:	Stainless steel wire, Brass wire, Phosphor copper wire mesh, Black wire cloth, Galvanized wire mesh, Stainless steel sintered, Perforated Metal Mesh, Nickel Wire Mesh, Monel Mesh, Inconel Mesh Etc.
Shapes:	Square, Rectangular, Round, Oval, Annular, Kidney shape, Fan-shaped, Irregular shape and custom designs.
Disc sizes:	Round shape: Diameter 44mm - 600mm. Ring shape: Inner diameter: 18mm - 250mm. Outer diameter: 50mm - 350mm. Rectangular shape: Width: 50mm - 100mm. Length: 60mm - 400mm. The size also can be customized.
Thickness:	0.1mm - 6mm.
Mesh size:	10 mesh - 635 mesh.
Structure:	Single Layer, Double Layer And Multi-layers
Technique:	with or without frame, Spot Welded or without Spot Welded

Note: Special size and specifications can be made according to customers requires.

Technology:

Material:Stainless steel wire, Brass wire, Phosphor copper wire mesh, Black wire cloth, Galvanized wire mesh, Stainless steel sintered, Perforated Metal Mesh, Nickel Wire Mesh, Monel Mesh, Inconel Mesh Etc.
Shapes: Square, Rectangular, Round, Oval, Annular, Kidney shape, Fan-shaped, Irregular shape and custom designs.
Disc sizes:Round shape: Diameter 44mm - 600mm.
Ring shape: Inner diameter: 18mm - 250mm.
Outer diameter: 50mm - 350mm.
Rectangular shape: Width: 50mm - 100mm.
Length: 60mm - 400mm.
Thickness:0.1mm - 6mm.
Mesh size:10 mesh - 635 mesh.
Structure:Single Layer, Double Layer And Multi-layers
Technique:with or without frame, Spot Welded or without Spot Welded
The size also can be customized.

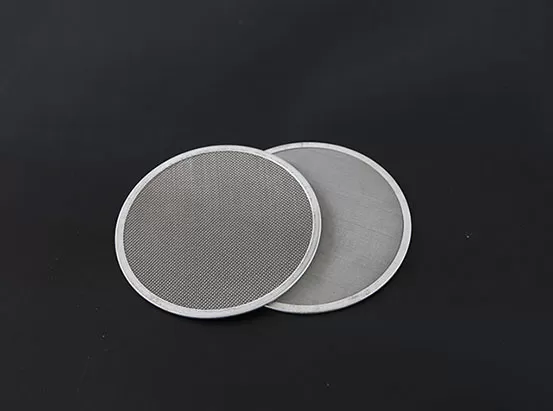

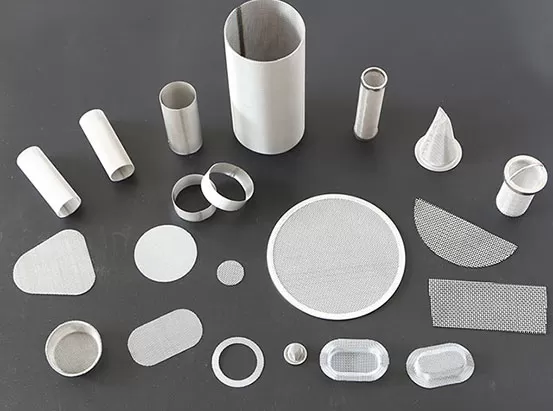

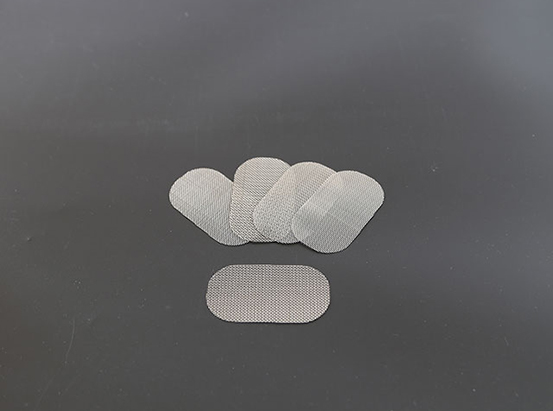

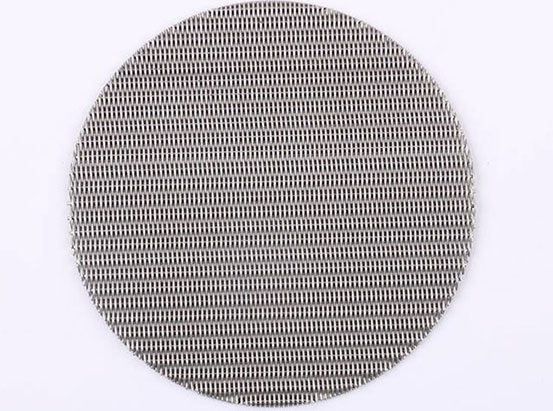

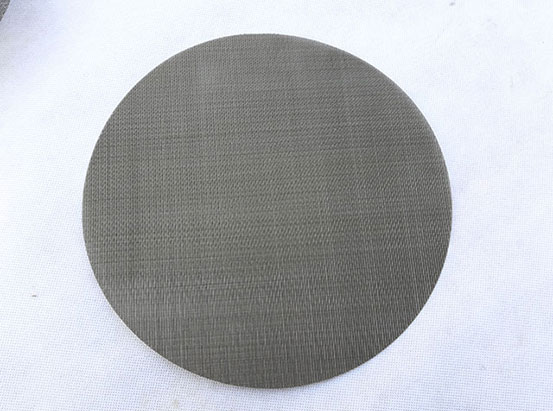

Drawing and Gallery:

Product Name: Filter disc | Filter pack
