Introduction:

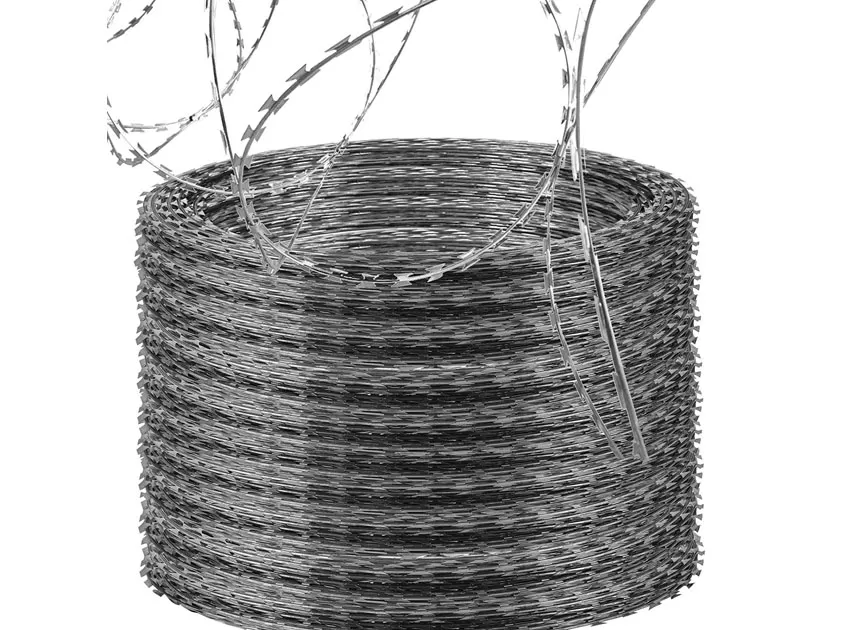

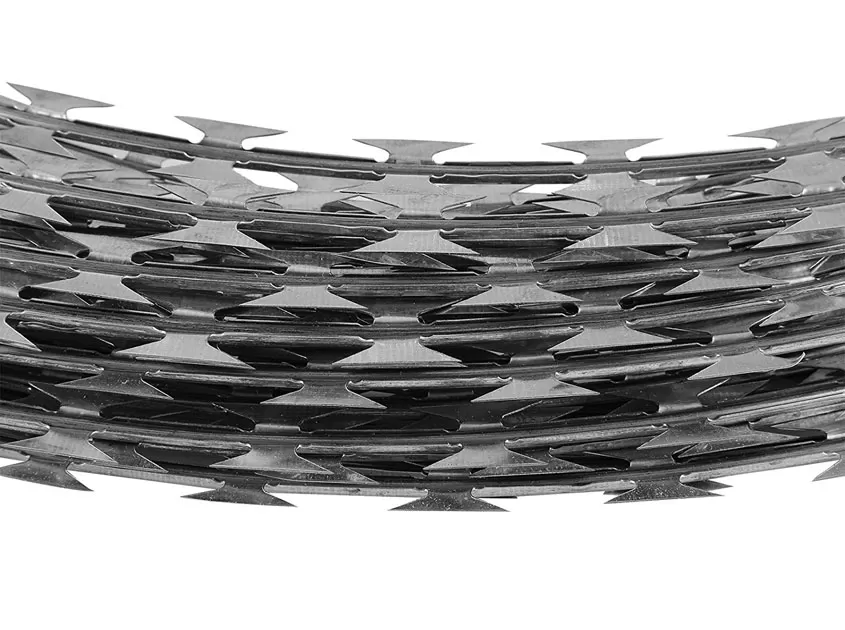

Razor wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.The wire and strip are galvanized to prevent corrosion. Razor wire is a type of steel fencing wire constructed with sharp edges
or points arranged at intervals along the strands. It is used to construct inexpensive
fences and is used atop wall surrounding secured property and It has the characteristic
of corrosion resisting and oxidation resisting. The razor wire are widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities.
Razor Type: BTO-10, BTO-12, BTO-15, BTO-22, BTO-30, CBT-25, CBT-60, CBT-65.
Material of razor blade: hot dipped galvanized, stainless steel 304, 316
Material of Razor wire: hot dipped galvanized wire or stainless steel wire
Razor wire coil diameter: 400mm, 450mm, 500mm,600mm, 1000mm as you required.
Features:
1. Stronger & Last longer
2. Low Cost effective solution.
3. Quick and Easy install
4. High security products
5. Anti-rust and anti-corrosion.
6. Suitable where safety is a consideration
7. Durable and well structured.
8. Excellent through vision
9. Customization options
Specifications:
| Specifications of Razor wire | ||||
| The Coil Diameter | No. of loops | Length per coil | Razor Wire Types | Notes |
| 450mm | 33 | 7-8m | CBT-60.65 | single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | cross type |
| 500mm | 56 | 9-10m (3clips) | BTO-10.12.18.22.28.30 | cross type |
| 600mm | 56 | 10-11M (3 clips) | BTO-10.12.18.22.28.30 | cross type |
| 600mm | 56 | 8-10M (5clips) | BTO-10.12.18.22.28.30 | cross type |
| 700mm | 56 | 8-10M (5 clips) | BTO-10.12.18.22.28.30 | cross type |
| 800mm | 56 | 11-13M (5 clips) | BTO-10.12.18.22.28.30 | cross type |
| 900mm | 56 | 12-14M (5 clips) | BTO-10.12.18.22.28.30 | cross type |
| 960mm | 56 | 13-15M (5 clips) | BTO-10.12.18.22.28.30 | cross type |
| 960mm | 56 | 14-16M (5 clips) | BTO-10.12.18.22.28.30 | |
Note: Special size and specifications can be made according to customers requires.
Technology:

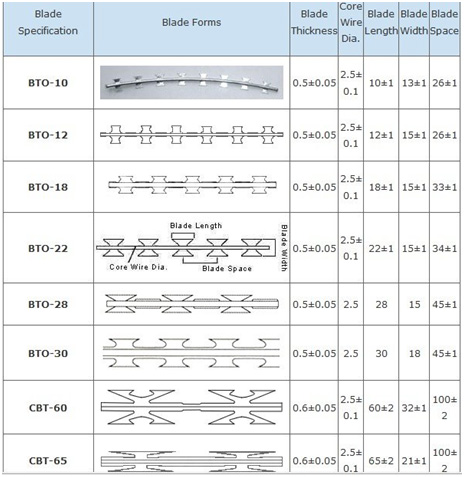

Types of Razor wires:
BTO10 BTO11 BTO12 BTO22 BTO28 BTO30 CBT65 CBT60
Specification of Razor blade wire:
1. Normal hot dipped galvanized razor wire(40-60g)
2. Heavily zinc coated razor wire (70-270g)
3. Stainless steel 304 or316 grades razor wire

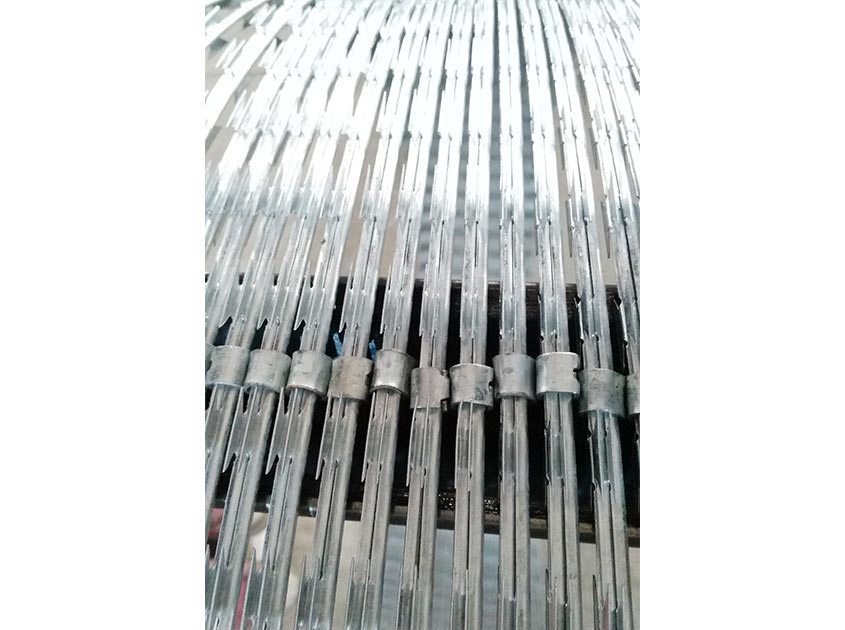

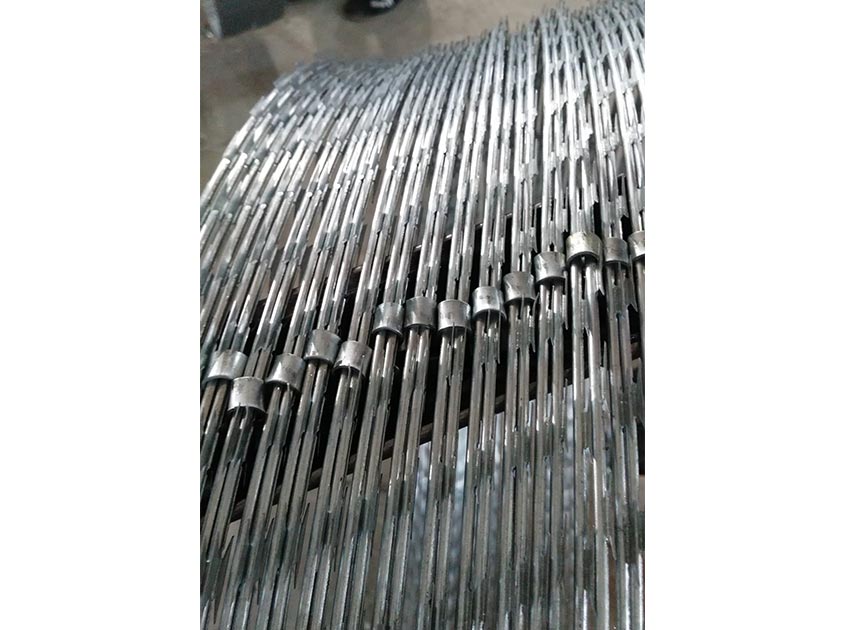

Clips of concertina wire: 3clips, 5clips or without clips
Coil Diameter of concertina wire: 300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm

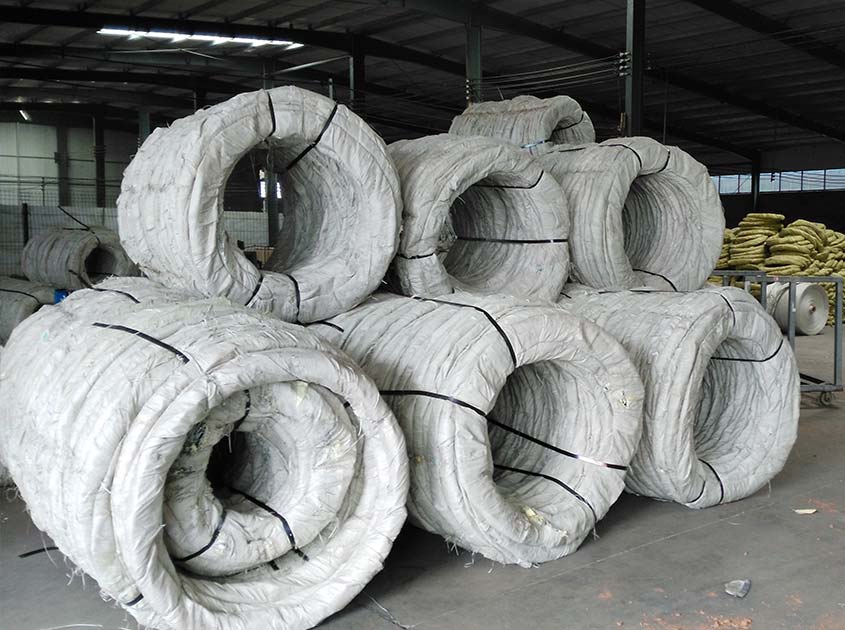

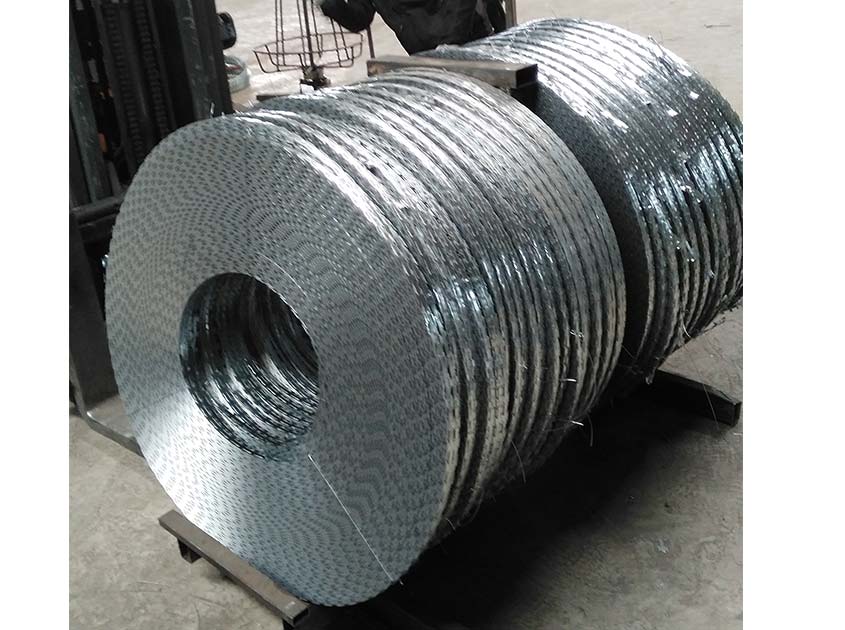

Package of razor wires:
1. Waterproof paper inside, woven bag outside, then 50rolls/bundle or as required
2. Nude package, then packing by wooden pallet or in bulk

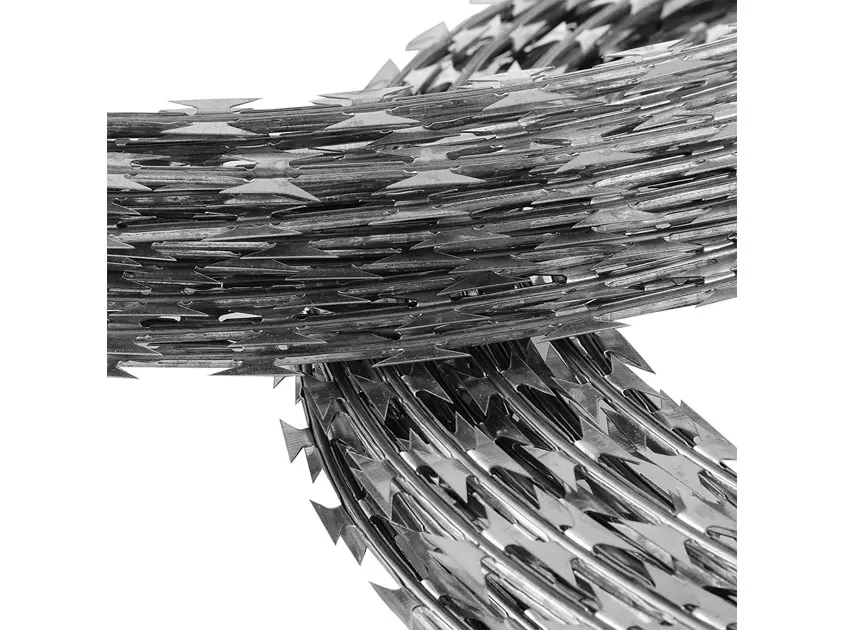

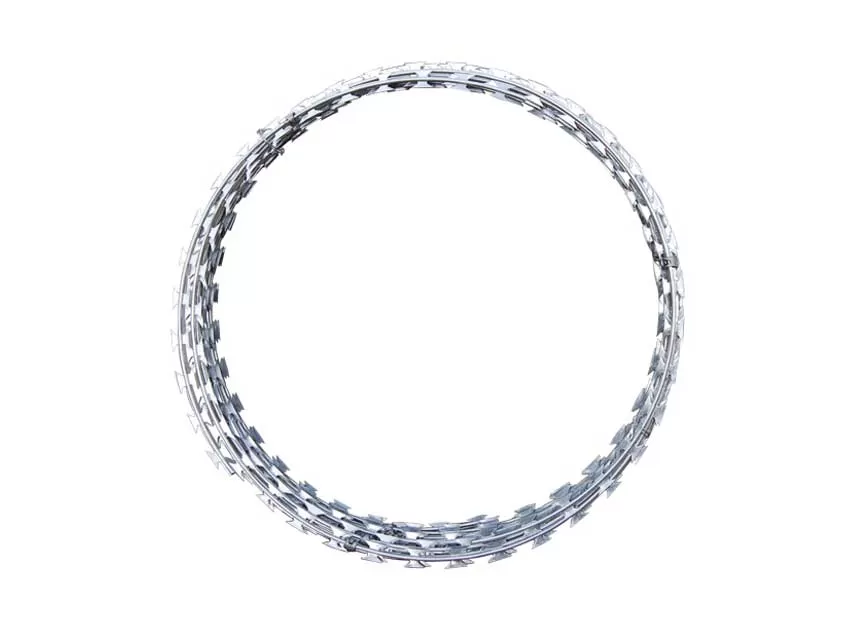

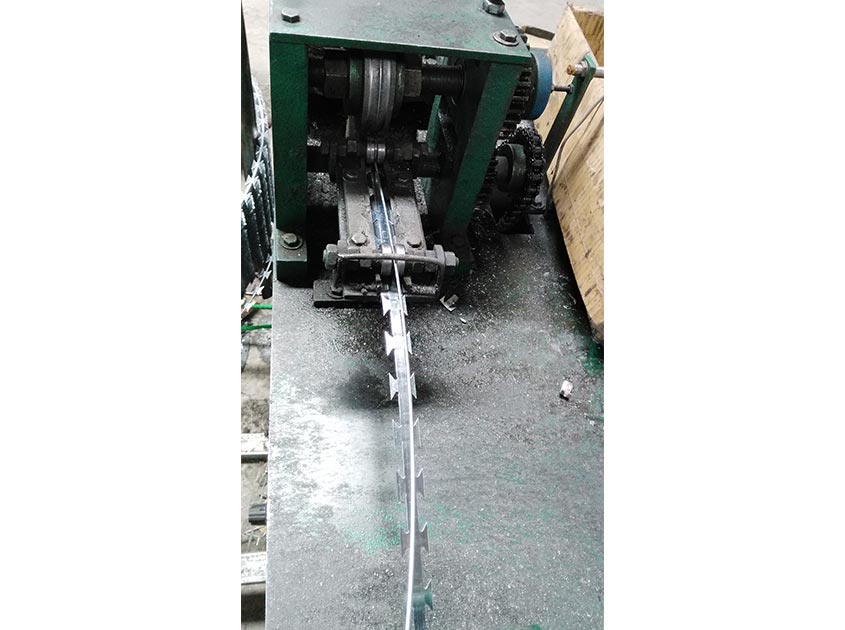

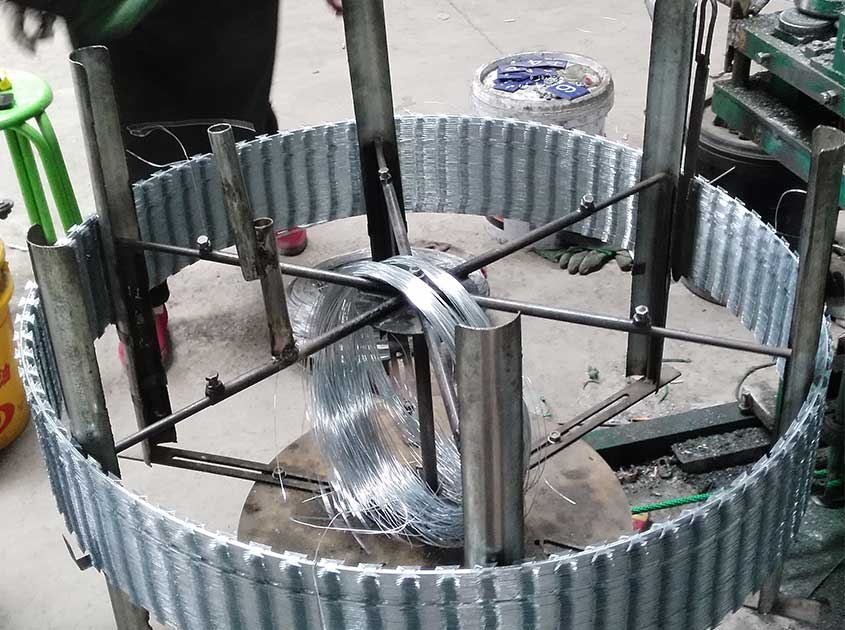

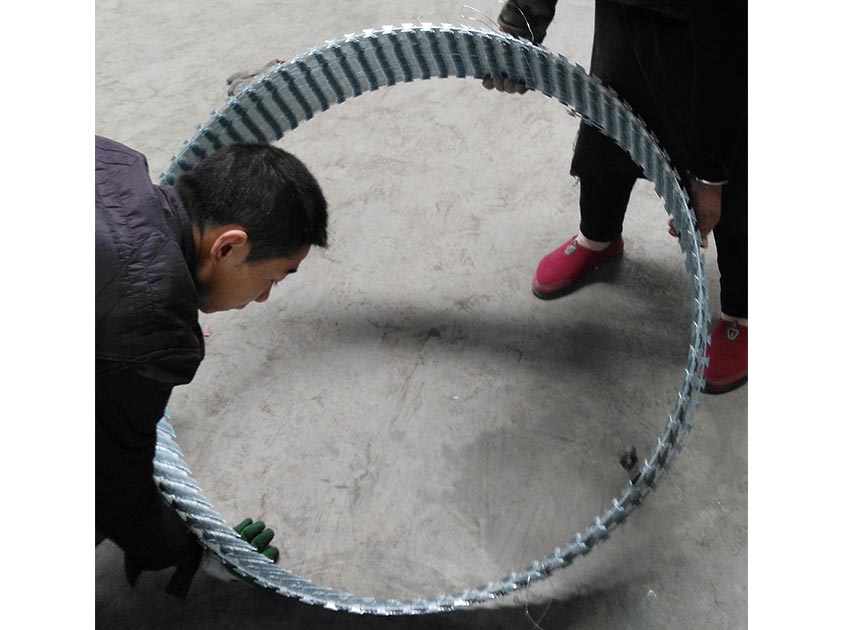

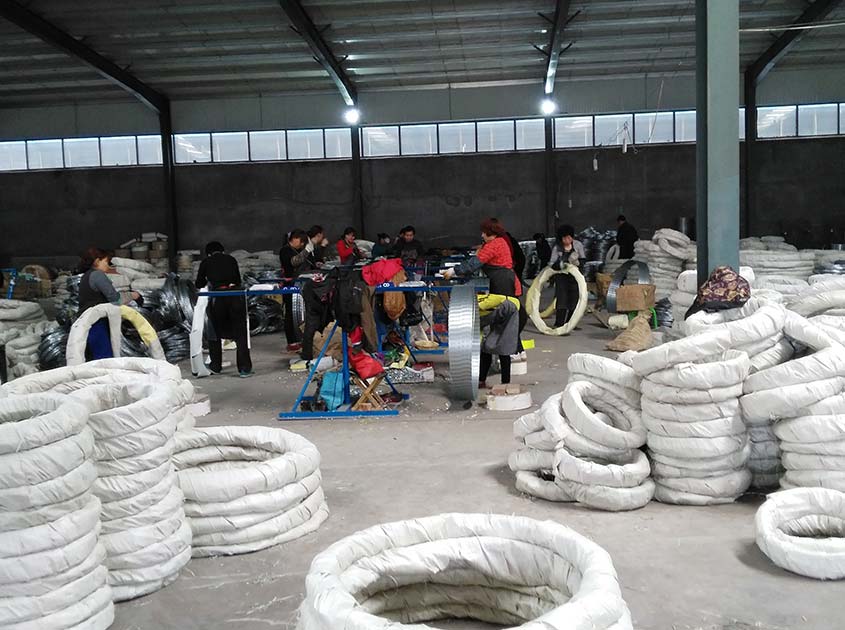

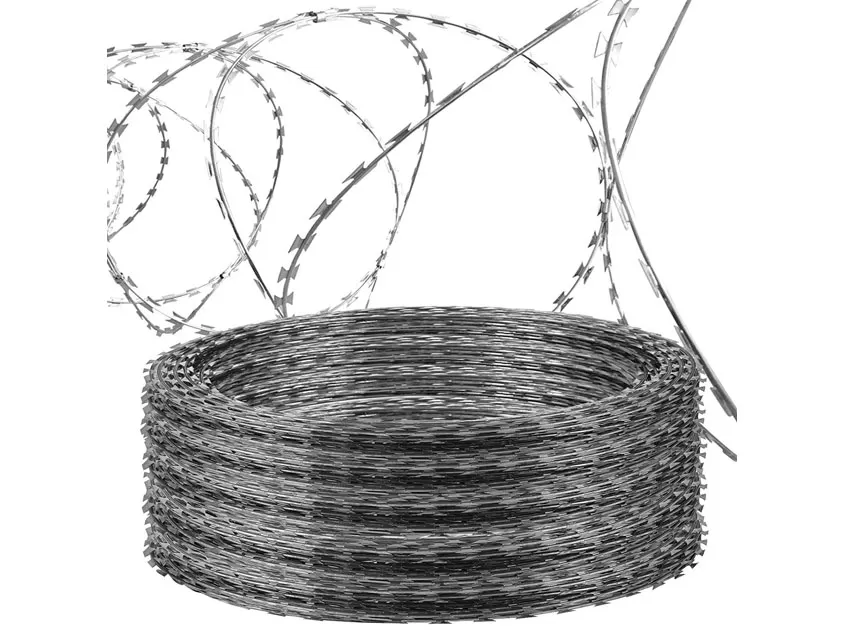

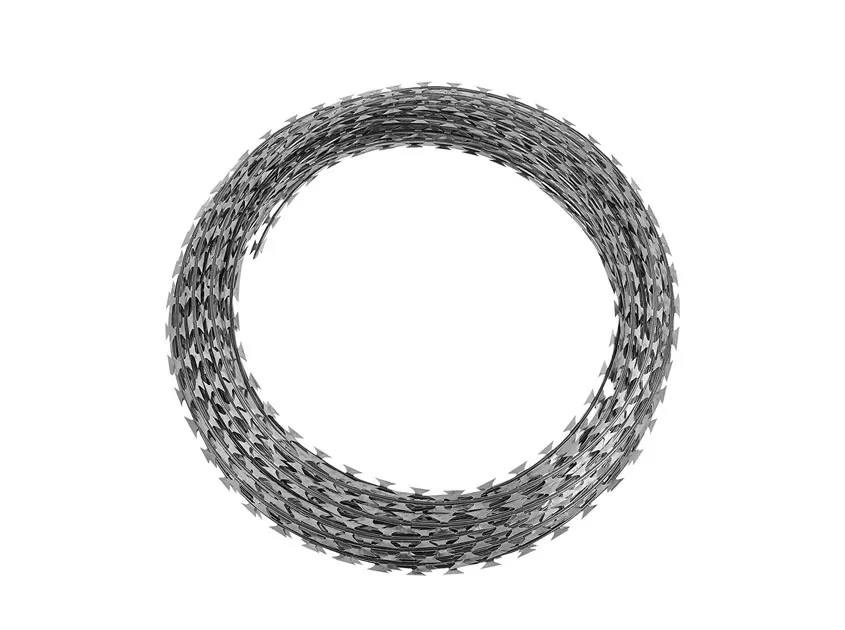

Drawing and Gallery:

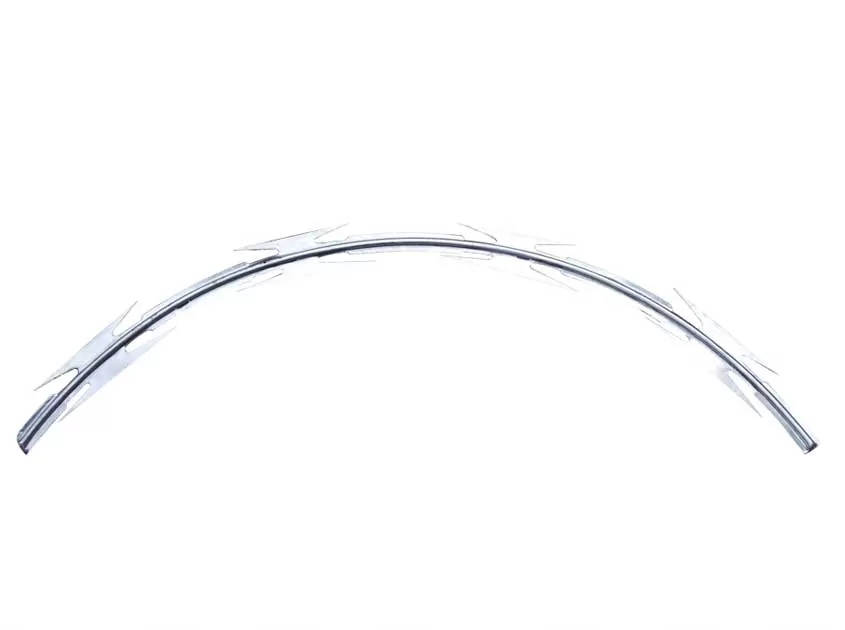

Product Name: Razor Wire
