Introduction:
Whats the feed storage farm silo for poultry farm?
The main warehouse used 275g/m2, double hot dip galvanized sheet steel, has a lower conical holes to view feed level. Feed silo volume according to different actual combinations.Hoarding water in a slope, in the hoarding at the bottom flange, so that rain water away from the cutting area. Provide weather protection , regardless of the weather. the next round head screw connection cone inside, effectively reducing cutting resistance. Upper and lower cone by pressure off treatment,both to improve the cone and strength of cone bottom's overall, but also conducive to bilateral clay bar installation , enhanced sealing.
The feed silo series are widely used in various industrial lines such as grain depot, farm, wooden pellets, sawdust, plastic pellet, seed, flour, starch, oil, feed, water storage, alcohol, wine, port, chemistry and so on, which are the very equipment for storage of granular and powder materials.
Features:
1. Corrugated plate laminating can effectively avoid scratching during production and installation.
2. The cone adopts pressure folding to increase the overall strength and sealing.
3. Double layers anti seepage seal, bolt hole equipped with waterproof gasket.
4. The observation ladders and observation ports are configured to facilitate the observation of feed.
5.Water proof design design directs moisture to drip off the silo side wall and keep the water off the silo hopper
6.Seal strip between hopper sheets prevent water from silo to avoid feed moldy
7.Easy to maintain. As the parts of the silo are connected by standard bolts, so it is easy to remove or repair it.
Specifications:
| Model | Capacity | Weight(Kg) | Overall Height(m) | Diameter(m) |
| QK-LC001 | 3ton | 3.00 | 3.8 | 1.80 |
| QK-LC002 | 5ton | 4.20 | 4.7 | 2.45 |
| QK-LC003 | 8ton | 4.70 | 5.6 | 2.45 |
| QK-LC004 | 10ton | 6.00 | 5.6 | 2.75 |
| QK-LC005 | 15ton | 6.40 | 5.6 | 3.10 |
| QK-LC006 | 16ton | 6.55 | 6.5 | 2.80 |
| QK-LC007 | 20ton | 7.55 | 6.5 | 3.10 |
Note: Special size and specifications can be made according to customers requires.
Technology:

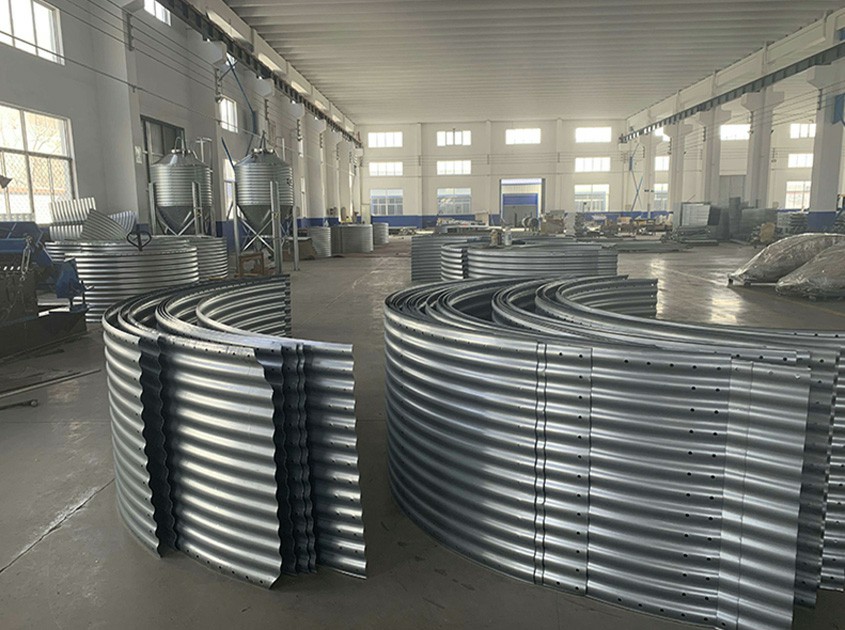

Silo body.
constructed with hot-galvanized corrugated steel plate;zn-coat thickness≥275g per square meter.
Silo body is 1250mm wide,fit for different thickness requirements(1.0-1.5mm)
All steel plate joints are fixed by Grade8.8,M10 bolt and seal gums,ensuring no leaking seams,security and long operating life

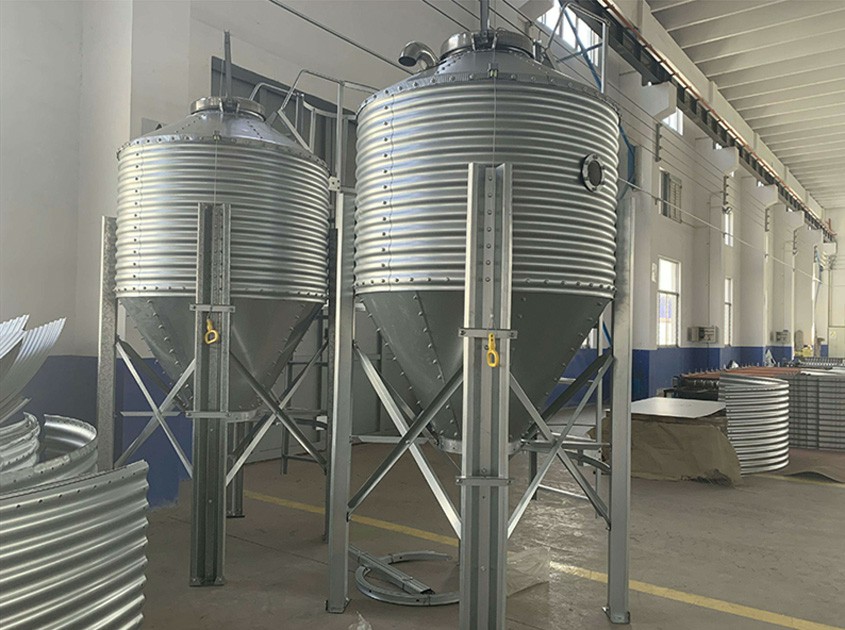

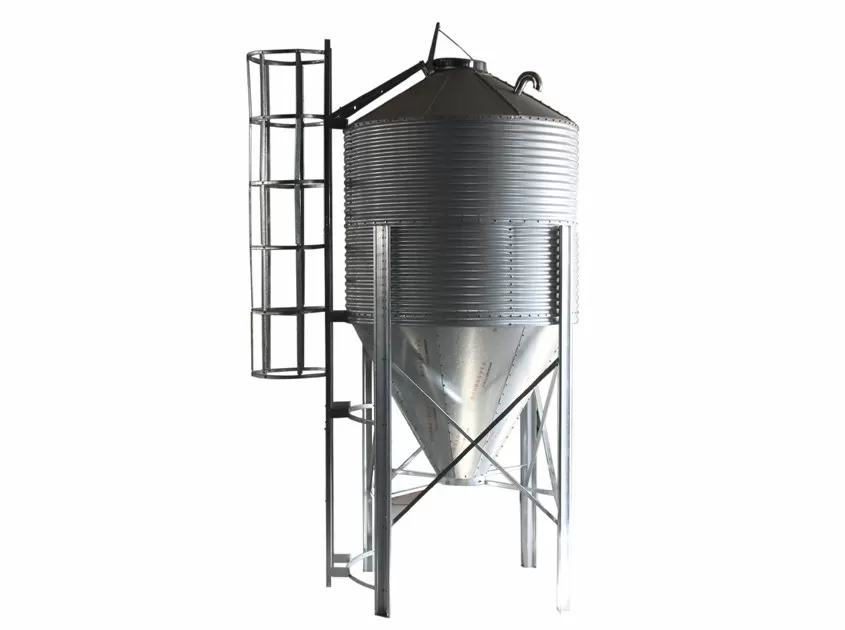

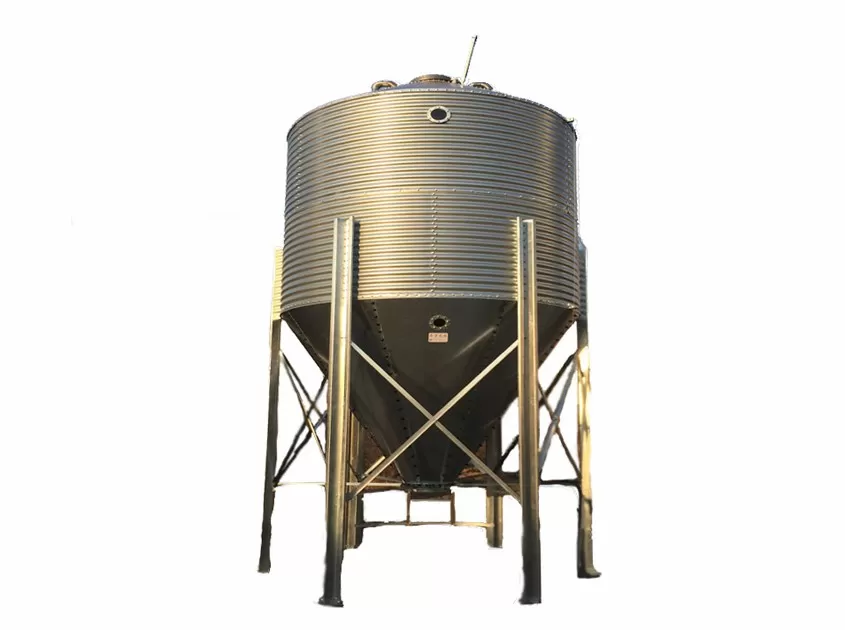

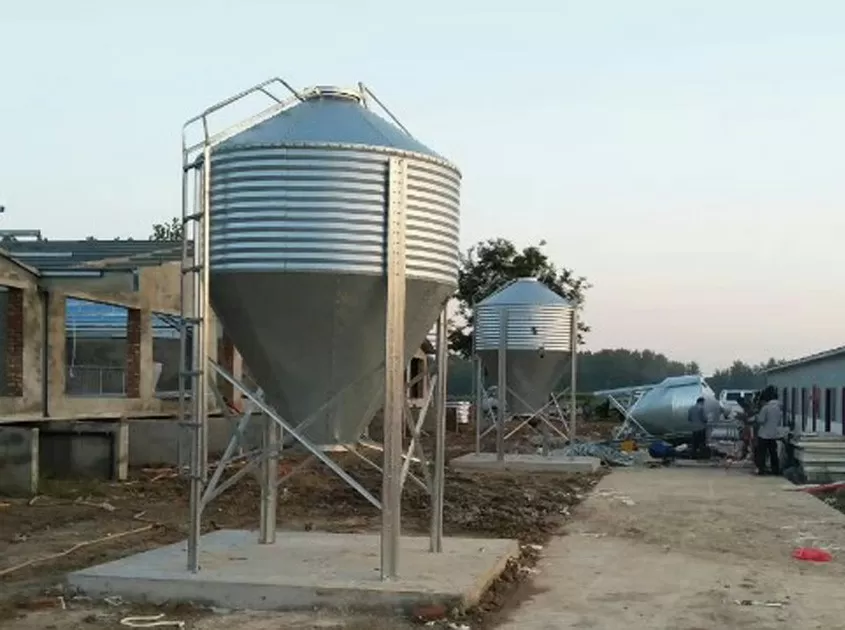

Drawing and Gallery:
Product Name: Feed Storage Farm Silo
