Introduction:

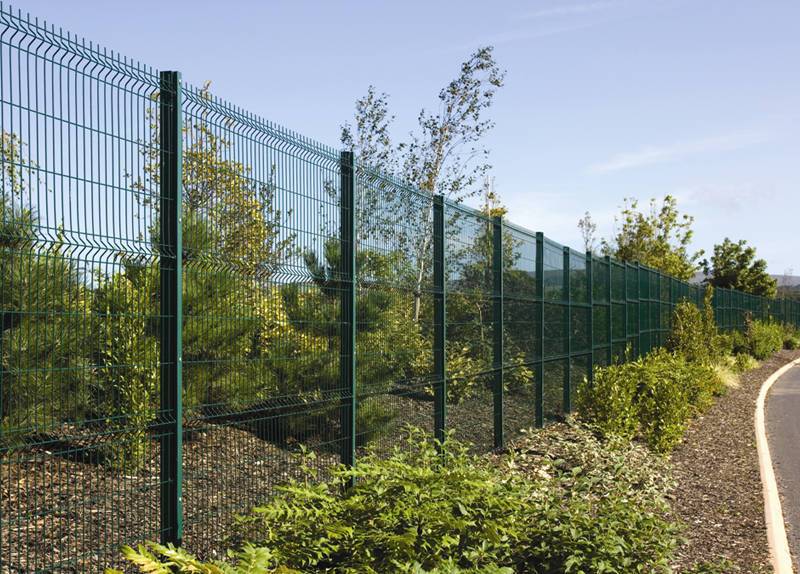

As an economical type of fence system, a welded mesh fence is a kind of 3D fence with longitudinal folds, which makes the fence stronger. The fence panel is welded by high quality low carbon steel wire. Its common surface treatments are hot dipped galvanized or electrostatic polyester powder spray coating over galvanized wire. The common posts of the welded fence are SHS tube, RHS tube, Peach post, Round pipe, or Special-shaped post. The fence panel will be fixed to the post by suitable clips according to different post types. Due to its simple structure, see-through panel, easy installation, and nice appearance, the welded mesh fence is becoming more and more popular.
The welded wire mesh fence is a type of fencing constructed using electrically welded steel wires arranged in a grid pattern. This durable, versatile, and cost-effective fencing solution is widely used in residential, commercial, and industrial applications due to its strength, security, and aesthetic appeal. It provides a clear and strong boundary while maintaining visibility, making it ideal for areas requiring both protection and openness.
Welded wire mesh fences are a reliable, durable, and cost-effective fencing solution for various applications, from residential gardens to high-security industrial sites. Their strength, visibility, and low maintenance requirements make them a preferred choice for securing property and protecting assets. With multiple customization options and excellent resistance to corrosion and wear, welded wire mesh fences provide a long-lasting and versatile fencing solution for any environment.
Features:
Low Cost
As an economical type of fence system, the welded mesh fence is the global standard for mesh panel fencing, and it is manufactured in China factory, providing a low cost but high value, attractive security fence solution.
Rigidity
Heavy welded security mesh panels with rectangular meshes and horizontal reinforcement ribs guarantee strength and rigidity.
Complete System
The system consists of high-quality panels available in various heights, secured to high-strength steel posts.Fence panel will be fixed to the post by suitable clips according to different post type.
Long Service Life
At least 10 Years warranty. Super durable powder coating assures a long service life for this fence system. This coating is applied over galvanization to ensure total protection of panels and gates.
Fast Installation
All components have been developed to provide a professional product of high quality that can be installed efficiently and rapidly
Specifications:
| Mesh Opening | Wire Thickness | Panel Width | Number of Folds | Height |
| 55x200mm, 50x200mm, 50x100mm, 75x150mm, 50x150mm etc. | 3.0mm or 3.5mm or 4.0mm or 4.50mm or 5.00mm | 2.0m or 2.50m or 2.9m | 2 | 830mm |
| 2 | 1030mm | |||
| 2 | 1230mm | |||
| 2 | 1430mm | |||
| 3 | 1630mm | |||
| 3 | 1830mm | |||
| 4 | 2030mm | |||
| 4 | 2230mm | |||
| 4 | 2430mm |
| Post Type | Size | Thickness | Height |
| Round Post | 48mm, 60mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| Square post | 50x50mm, 60x60mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| Rectangular post | 40x60mm, 40x80mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| Peach post, | 50x70mm, 70x100mm | 1.2mm, 1.5mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| I post | 42x70mm | 1.2mm, 1.5mm, 2.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
Note: Special size and specifications can be made according to customers requires.
Technology:
Posts
The welded mesh fence panels are attached with high strength steel posts. The common posts of the welded fence are SHS tube, RHS tube, Peach post, Round pipe or Special-shaped post. Welded mesh fence panels will be fixed to the post by suitable clips according to different post type.
Gates
The Fence System includes the availability of swing, slide and cantilever gates.
Colors

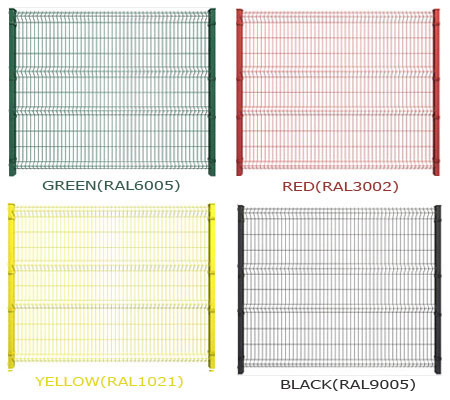

Linkland welded mesh fence can supply all colors according to international standard RAL Colors, the popular colors as below:
ACCESSORIES
Metal clamp / anti-UV plastic clamp
Metal cap / anti-UV plastic cap
Coating
The welded mesh fence panels are manufactured using galvanized steel wire, then coated with Architectural Grade Powder Coat, like AkzoNobel powder. This coating is super-durable and provides the industry’s highest weatherability and Gloss Retention in U.V.exposure. Assured a long service lift for the fencing systems.

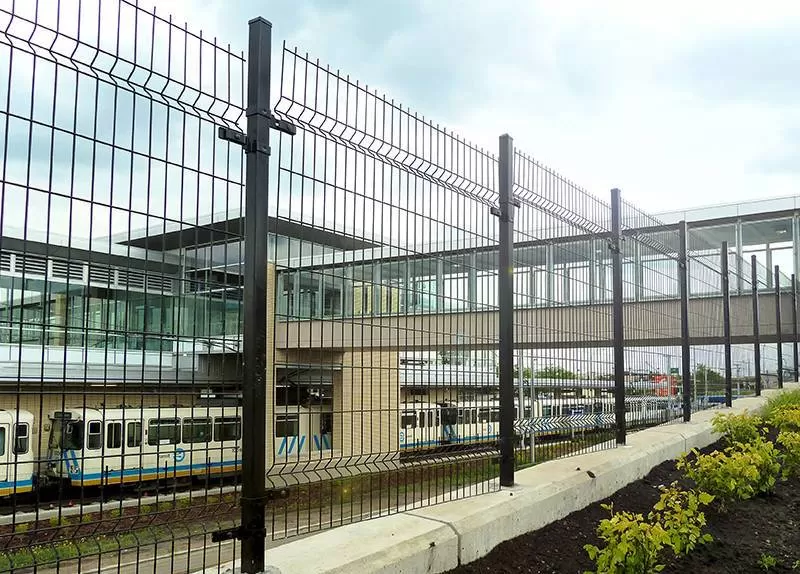

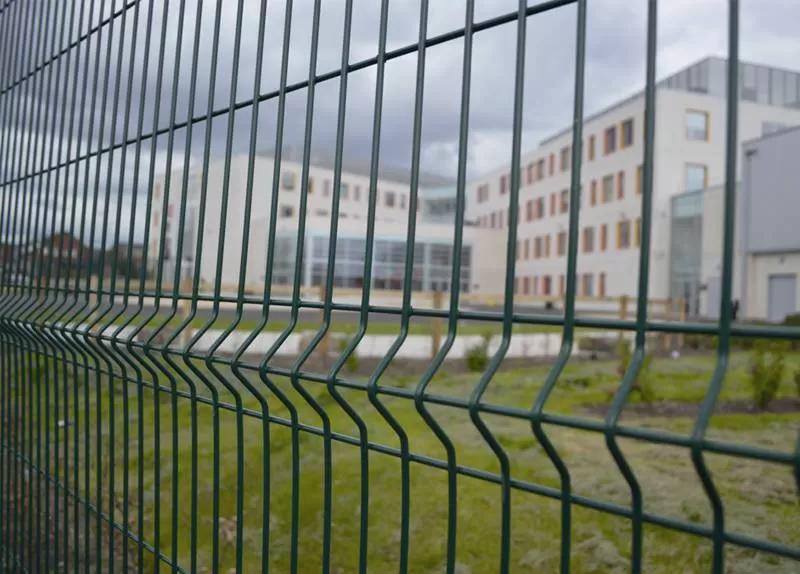

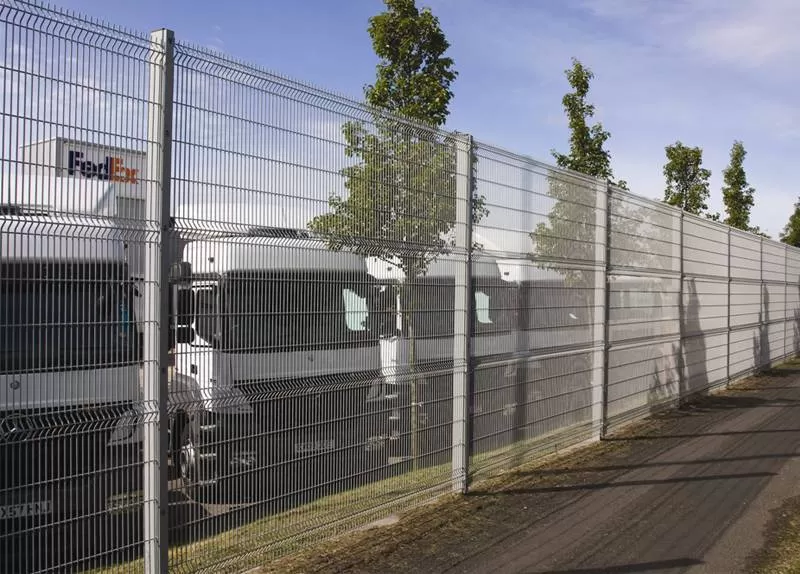

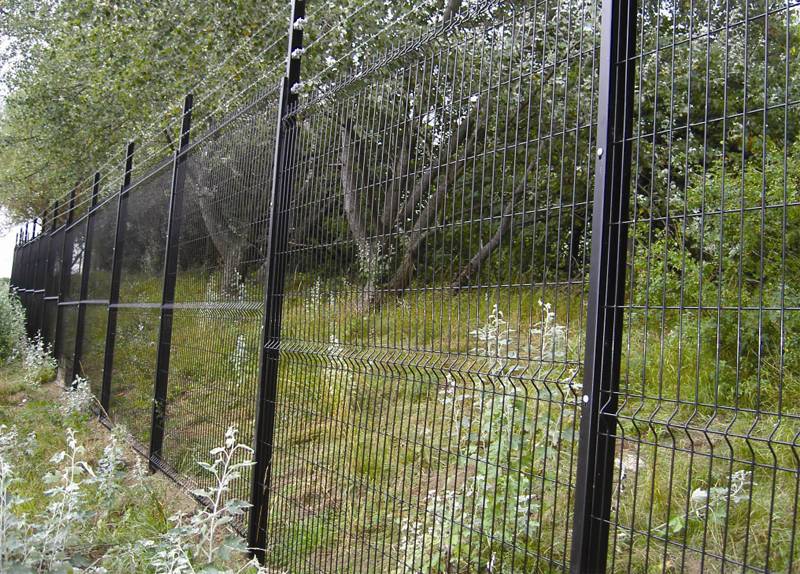

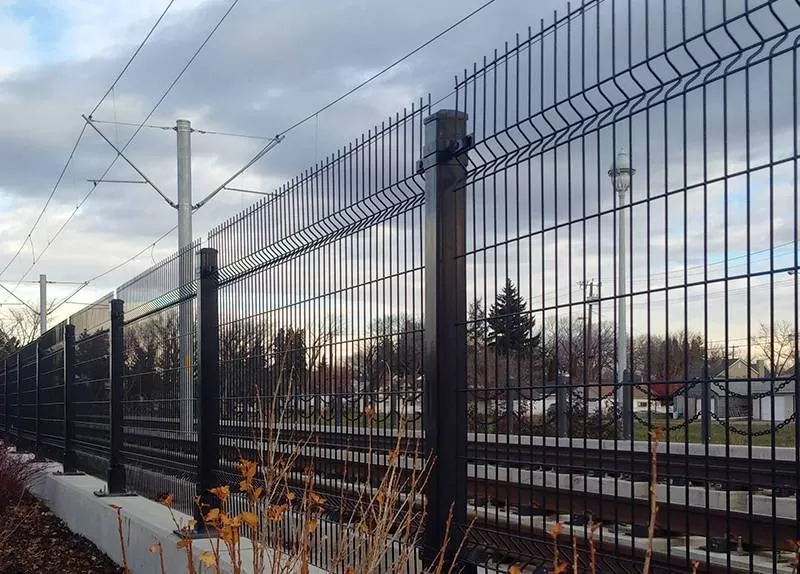

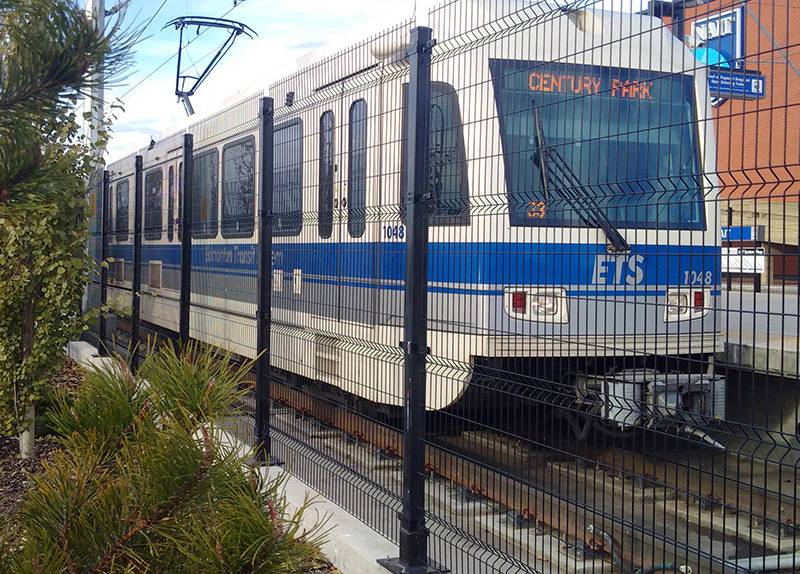

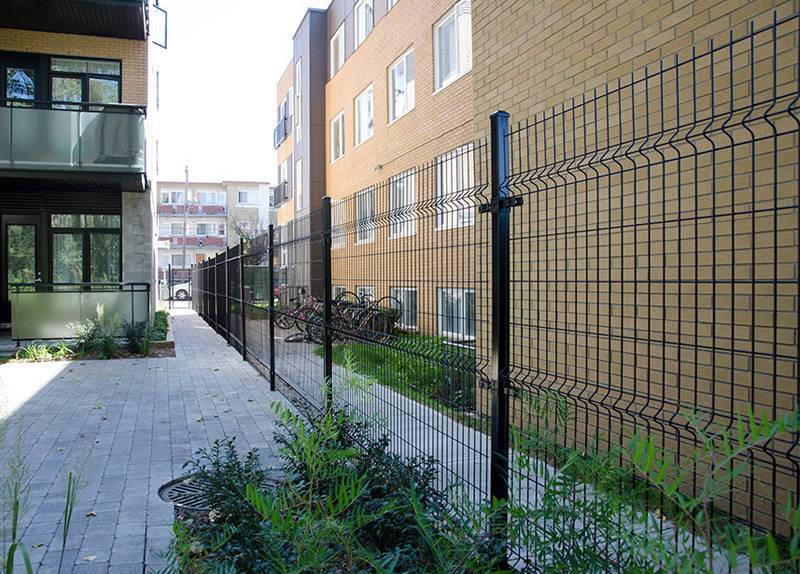

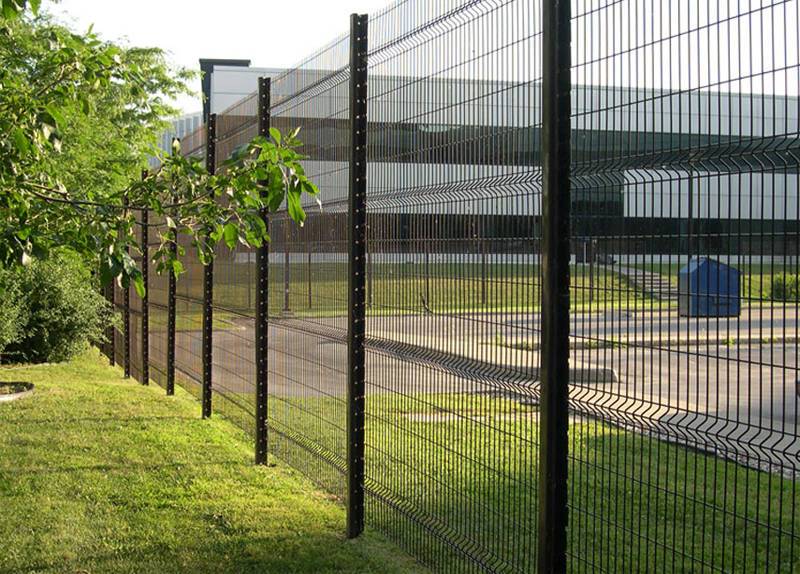

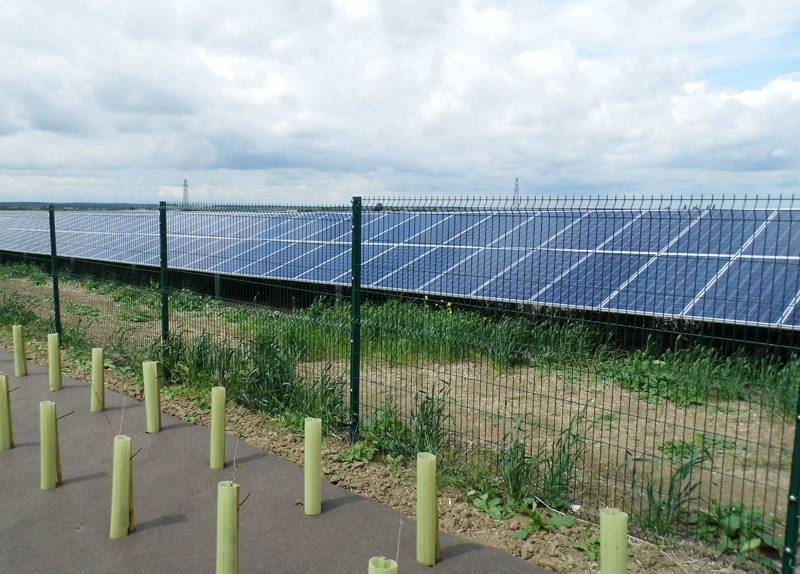

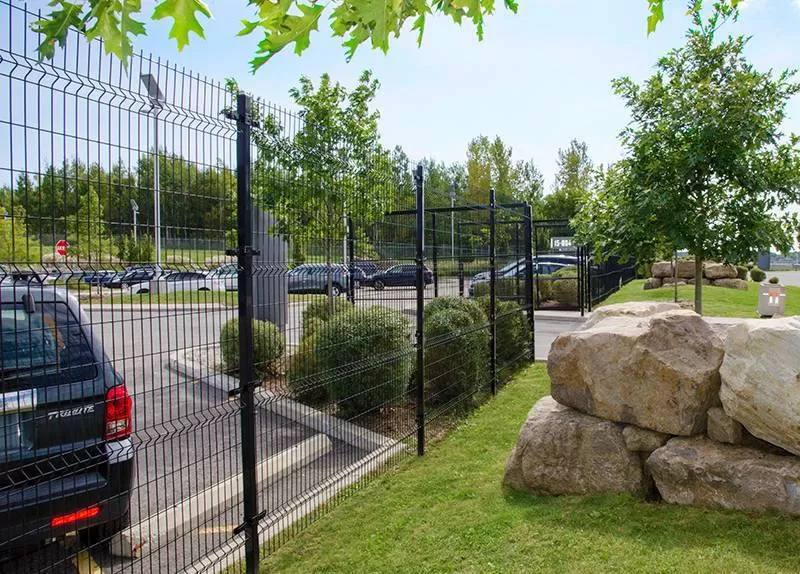

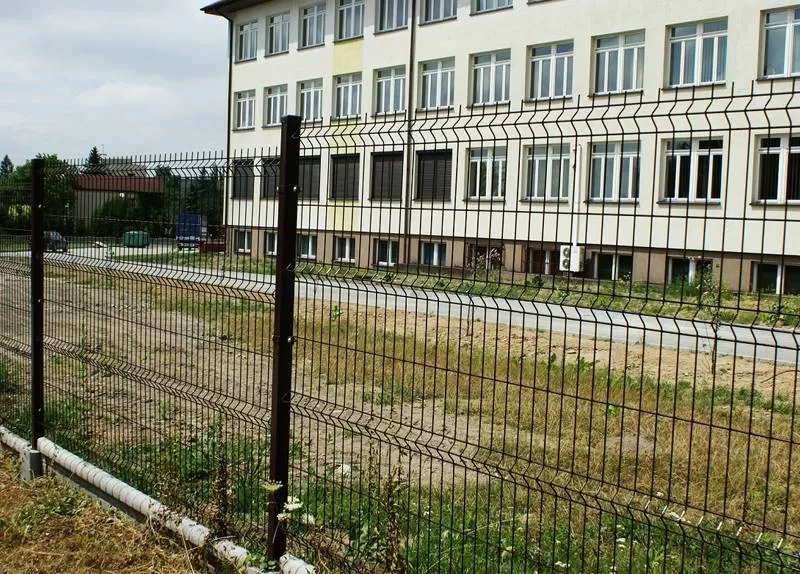

Drawing and Gallery:
Product Name: Welded Wire Mesh Fence
