Copper Wire Mesh

Copper wire mesh is also called red copper mesh, because of the red color. The purity of copper is 99.8%. The aperture of copper wire mesh can range from 2 meshes to 100 meshes, which can suit for different requirements. Except for the pure copper woven wire mesh, there are copper alloy wire mesh, such as the brass wire mesh and phosphor bronze wire mesh.

The copper woven wire mesh is non-magnetic, so it is also called shielding screen in the circuits, laboratories and computer rooms, it also has outstanding wear resistance and sound insulation performance.

Copper wire mesh with a red color is commonly used for shielding and filtering.

Introduction:

Copper wire mesh is also called red copper wire mesh, because of the red color. The purity of copper is 99.8%. The aperture of copper wire mesh can range from 2 to 100 meshes, which can suit different requirements. Except for the pure copper woven wire mesh, there are copper alloy wire mesh, such as the brass wire mesh and phosphor bronze wire mesh.

The copper woven wire mesh is non-magnetic, so it is also called a shielding screen in the circuits, laboratories, and computer rooms, it also has outstanding wear resistance and sound insulation performance.

Copper Wire Mesh Characteristics

Material: Made from high-quality copper wire, known for its excellent electrical and thermal conductivity.

Mesh Size: Available in different mesh sizes, which refers to the number of openings per inch. Mesh size can range from very fine to coarse.

Weave Type: Comes in different weave patterns, such as plain weave, twill weave, and Dutch weave, each offering different characteristics and benefits.

Durability: Copper is corrosion-resistant, making the mesh durable and long-lasting.

Chemical Composition of Copper Wire Mesh

Cu	O	As	Sn	Zn	Pb	P	Fe	Sb	Bi
≥99.95%	≤0.002%	≤0.002%	≤0.002%	≤0.005%	≤0.005%	≤0.002%	≤0.004%	≤0.002%	≤0.002%

Features:

1. Non-magnetic.

2. Wear resistance.

3. Acid and alkali resistance.

4. Good ductility.

5. Sound insulation.

6. EMI and EMF resistance.

Specifications:

Mesh/Inch	Wire Diameter(mm)	Aperture(mm)	Open Area %
4	1.2	5.15	65.8
5	1	4.08	64.5
6	0.71	3.52	69.2
8	0.5	2.67	70.7
10	0.5	2.04	64.5
12	0.45	1.66	61.5
14	0.4	1.41	60.4
16	0.3	1.28	65
18	0.25	1.16	67.6
20	0.25	1.02	64.5
30	0.21	0.64	57.1
40	0.19	0.45	50.2
50	0.15	0.36	50.1
60	0.15	0.27	40.7
70	0.13	0.232	40.8
80	0.12	0.197	39
90	0.11	0.172	37.2
100	0.1	0.154	37
110	0.09	0.141	37.2
120	0.09	0.122	33.2
130	0.07	0.125	41
140	0.07	0.111	37.6
150	0.06	0.109	41.5
160	0.06	0.098	38.1
180	0.053	0.088	41.6
200	0.05	0.077	36.7

Note: Special size and specifications can be made according to customers requires.

Technology:

Chemical Composition of Copper wire mesh:

Cu	O	As	Sn	Zn	Pb	P	Fe	Sb	Bi
≥99.95%	≤0.002%	≤0.002%	≤0.002%	≤0.005%	≤0.005%	≤0.002%	≤0.004%	≤0.002%	≤0.002%

Features of Copper wire mesh: nonmagnetic, good ductility, wear resistance, fast heat transfer, good electrical conductivity, sound insulation, electron beam filtration.

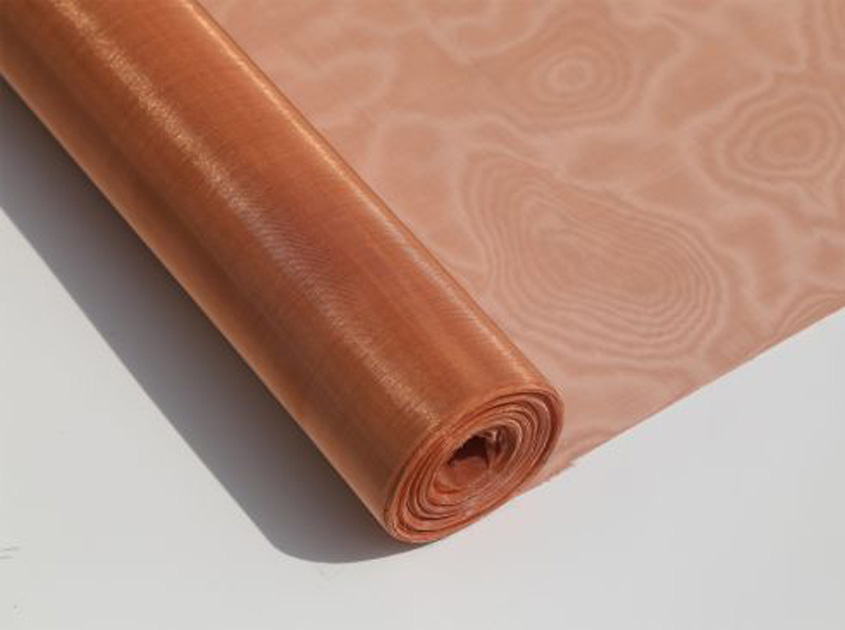

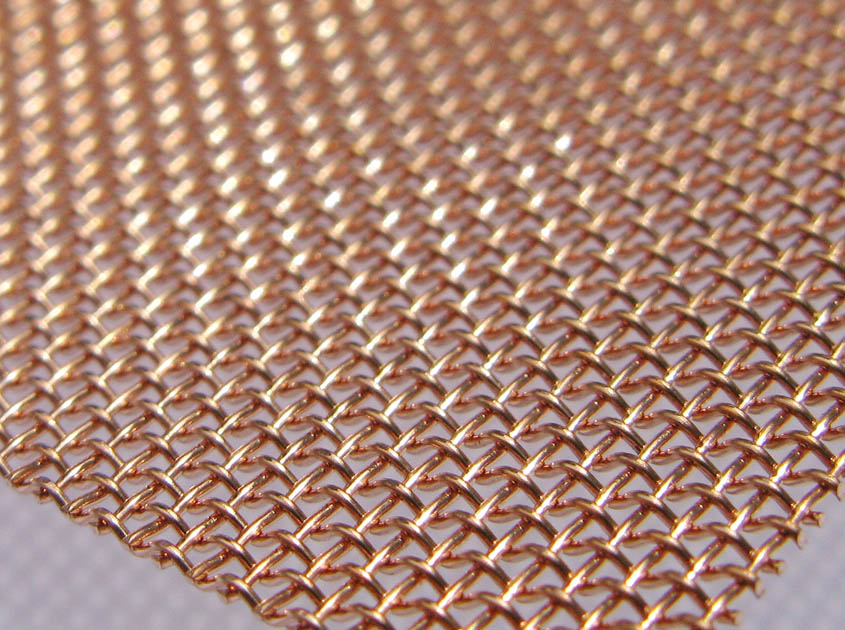

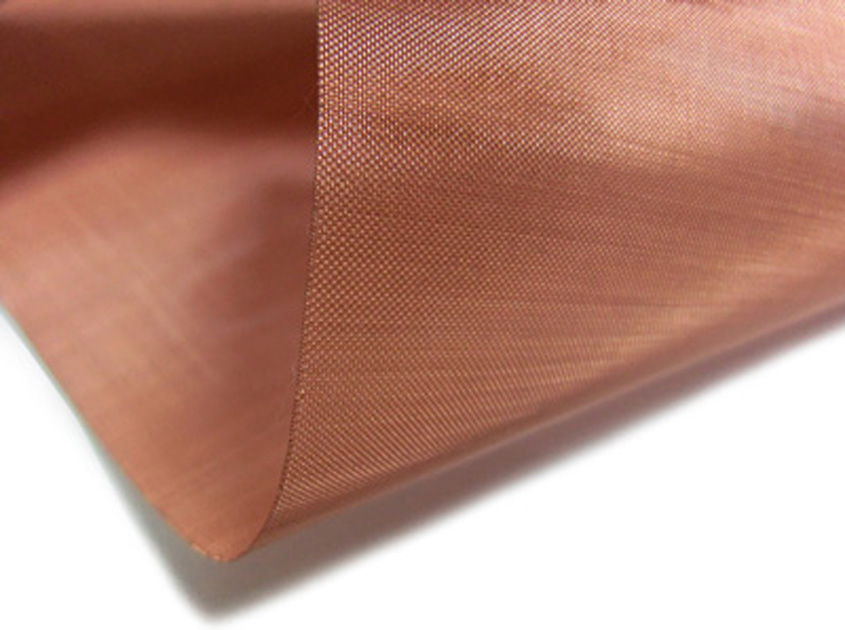

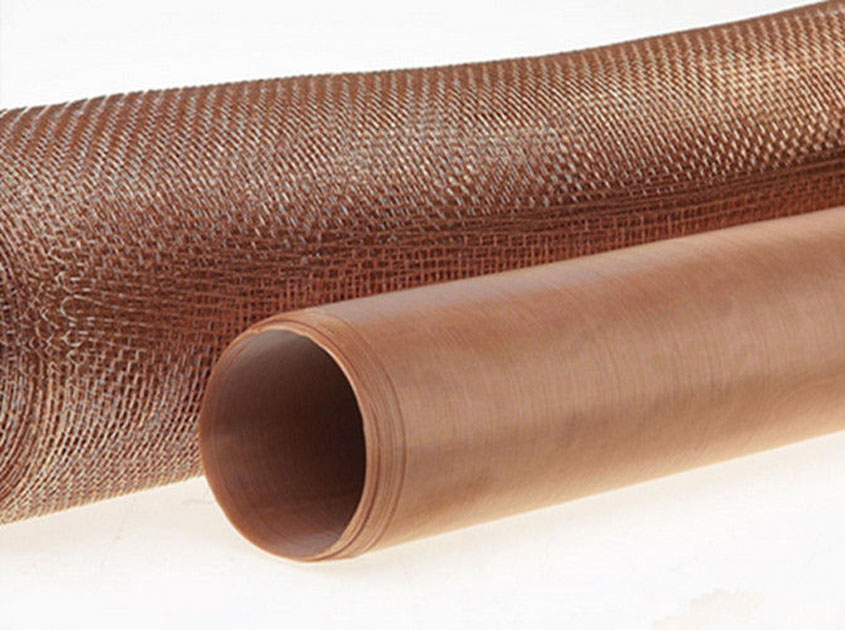

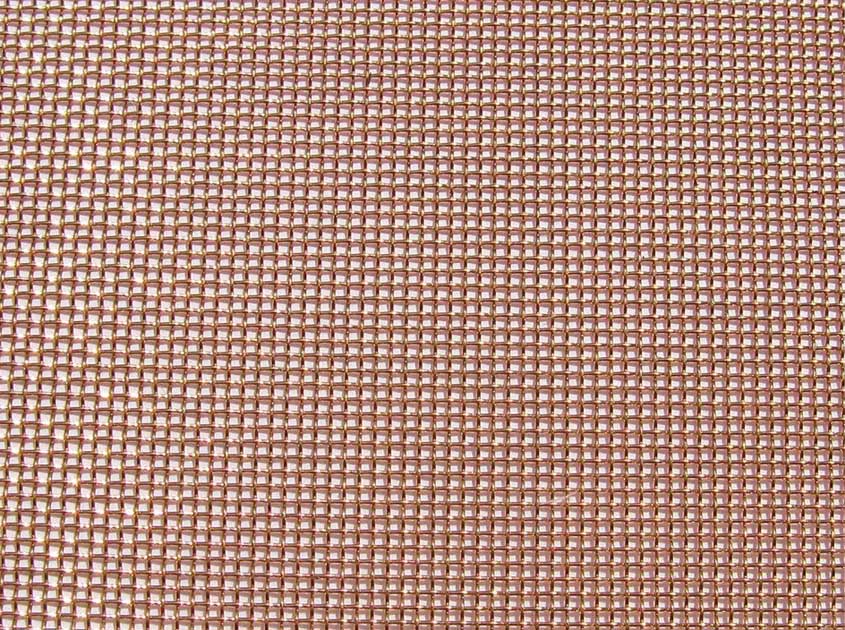

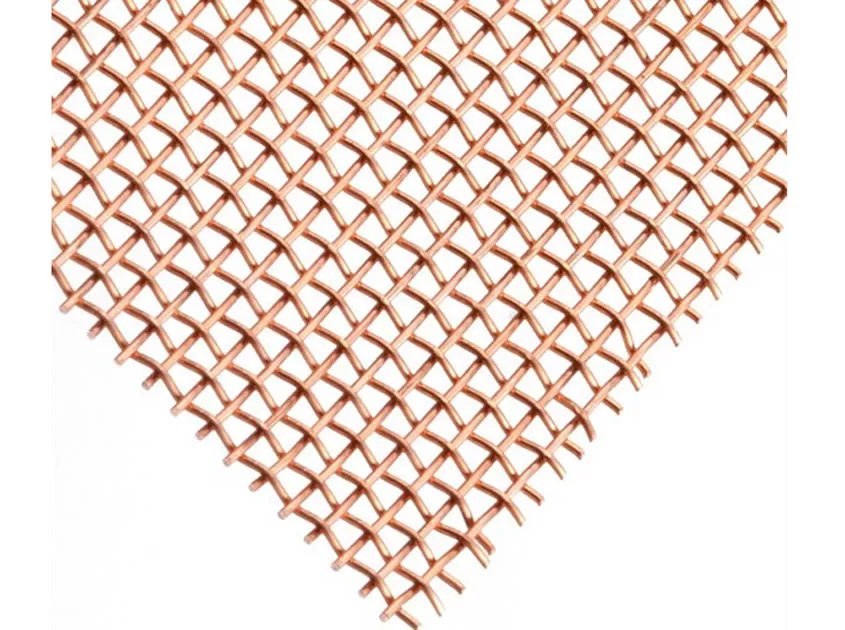

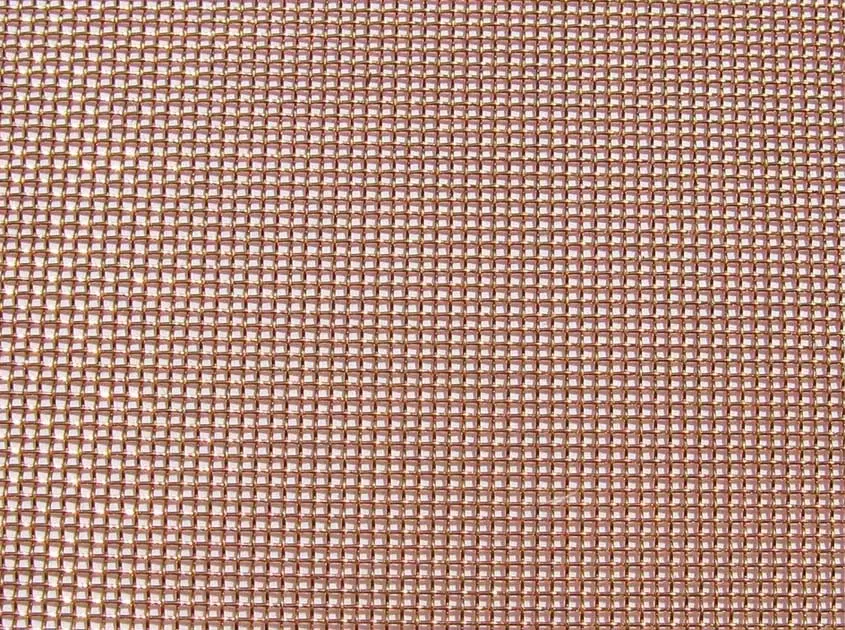

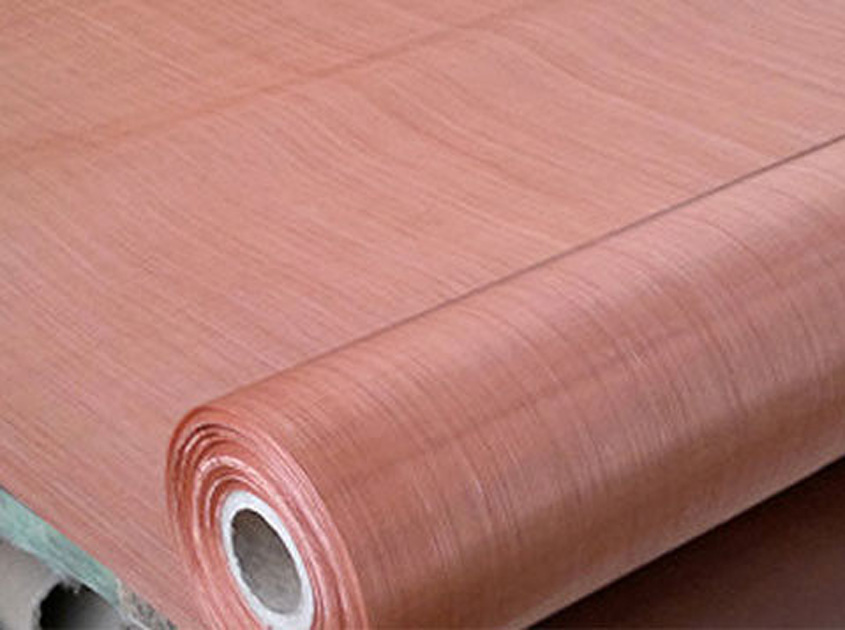

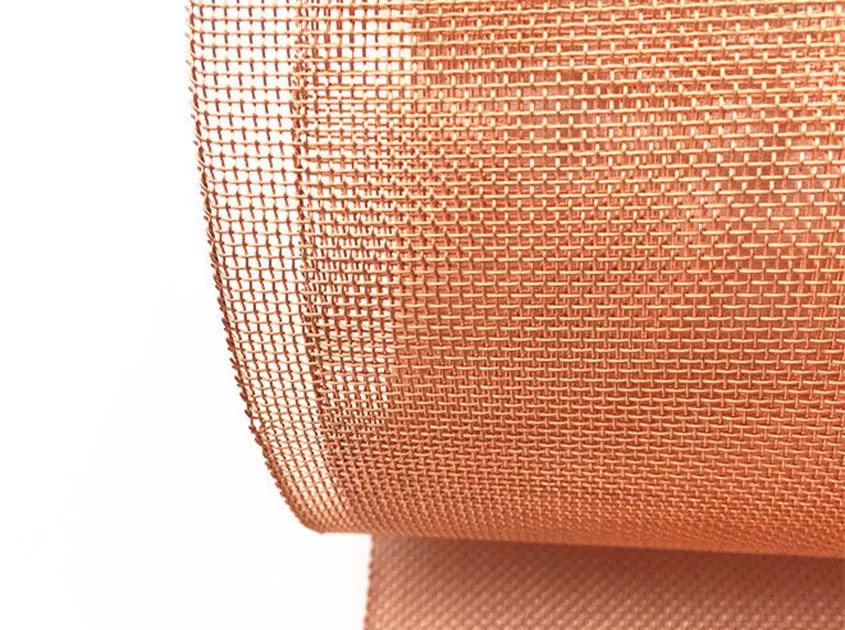

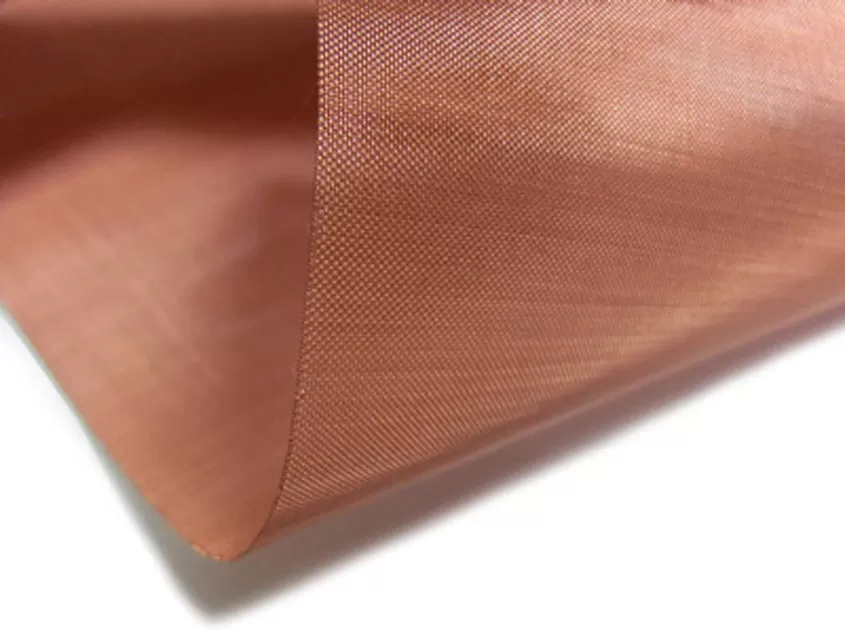

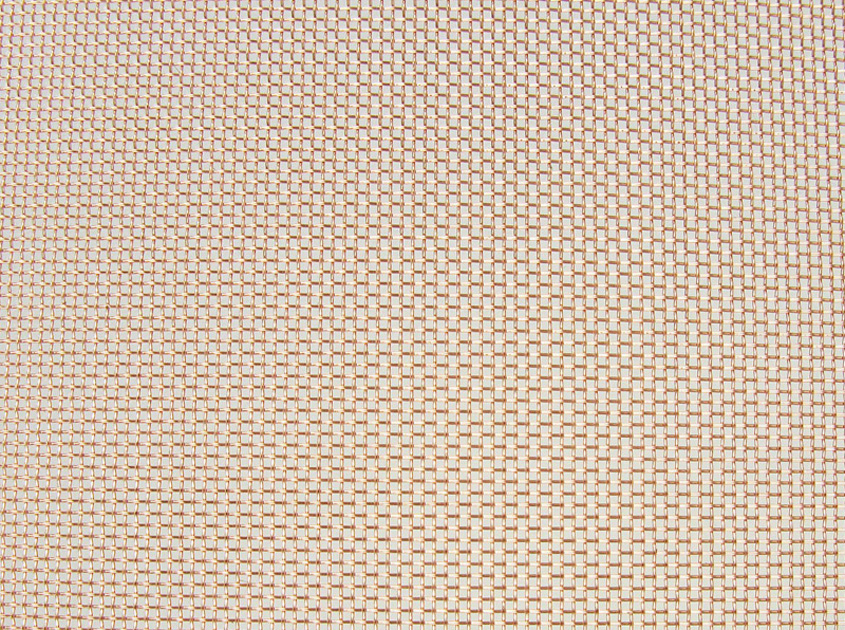

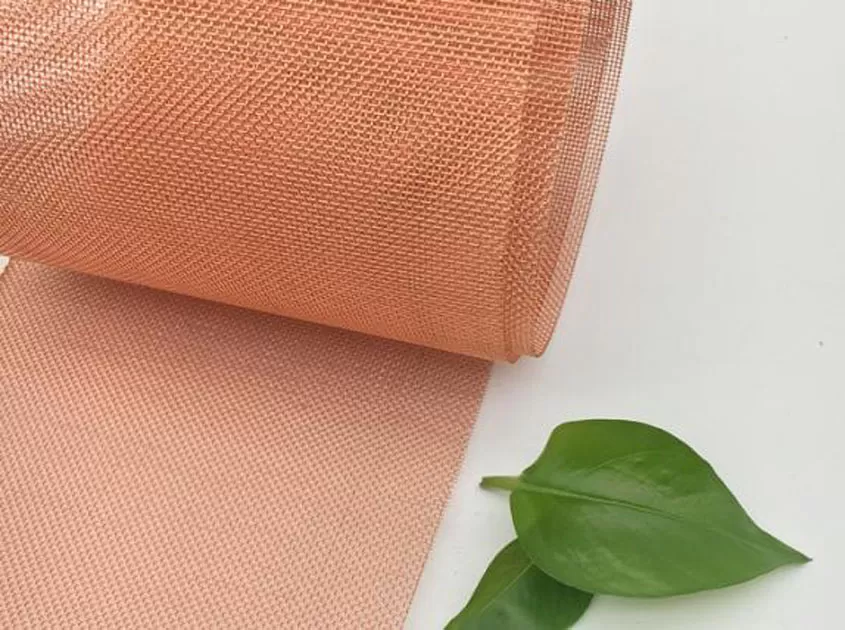

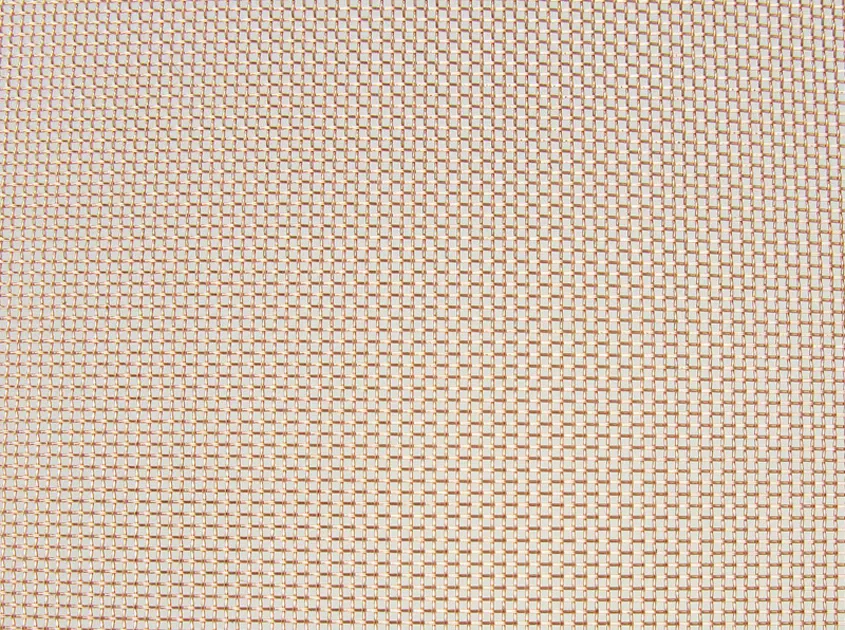

Drawing and Gallery:

Product Name: Copper Wire Mesh
