Introduction:

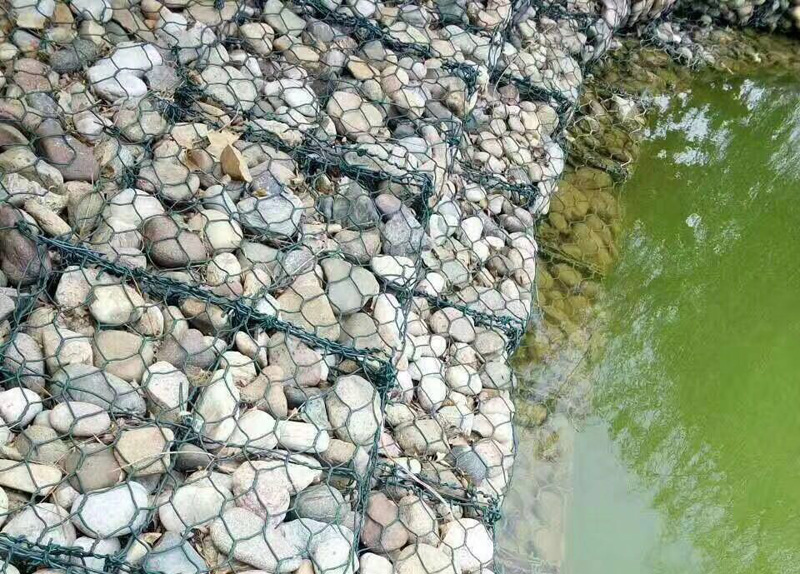

Gabion Basket are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Gabions and geotextiles are normally used together to reduce water velocities and to re-capture river bed sediment in streams. Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.
The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating. The PVC coating is UV stabilized as per ASTM A 975.
Features:
Strength and flexibility.
Good decotative,not only used on river area,but also can used on decorative wall
The double twisted hexagonal mesh means that the wire will not unravel when cut which allows the gabions to be easily cut and shaped to suit project requirements.
Strong anti-corrosion:heavy galvanized wire or Galfan wire,or glued PVC coated wire,PE coated wire to make the Gabion Basket can more improve capacity of anti-corrosion,can adapted to sea environment.
Economy: Wire mesh gabions are less expensive than most construction materials. Graded stone fill is usually locally available. Waste materials such as crushed concrete may be specified in place of stone.
Specifications:
Gabion Basket | |||
Gabion size(m) | Mesh opening | Wire diameter | Surface treatment |
2×1×0.5 | 60x80mm 80x100mm 80x120mm 100x120mm 120 x 150mm | 2.2-4.0mm | Galvanized Galfan PVC coated PE coated |
2×1×1.0 | 2.2-4.0mm | ||
3×1×0.5 | 2.2-4.0mm | ||
3×1×1.0 | 2.2-4.0mm | ||
4×1×1.0 | 2.2-4.0mm | ||
6×1×1.0 | 2.2-4.0mm | ||
Note: Special size and specifications can be made according to customers requires.
Technology:
Wire used low carbon steel wire,wire diameter2.2-4.0mm
Surface:Galvanized or Galfan or PVC coated and PE coated finished
The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating.

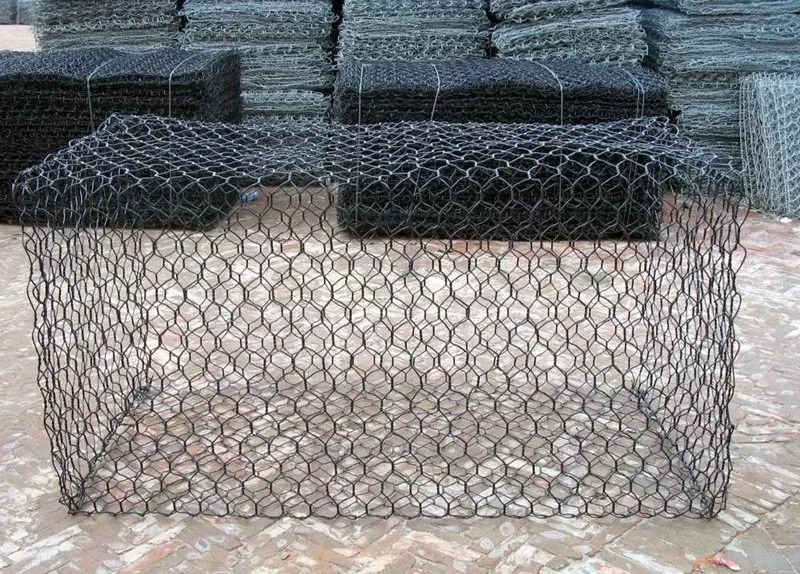

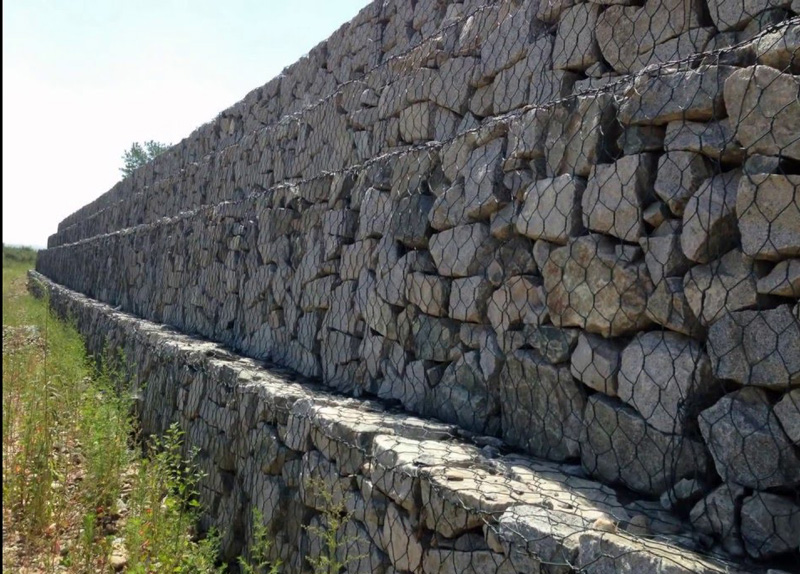

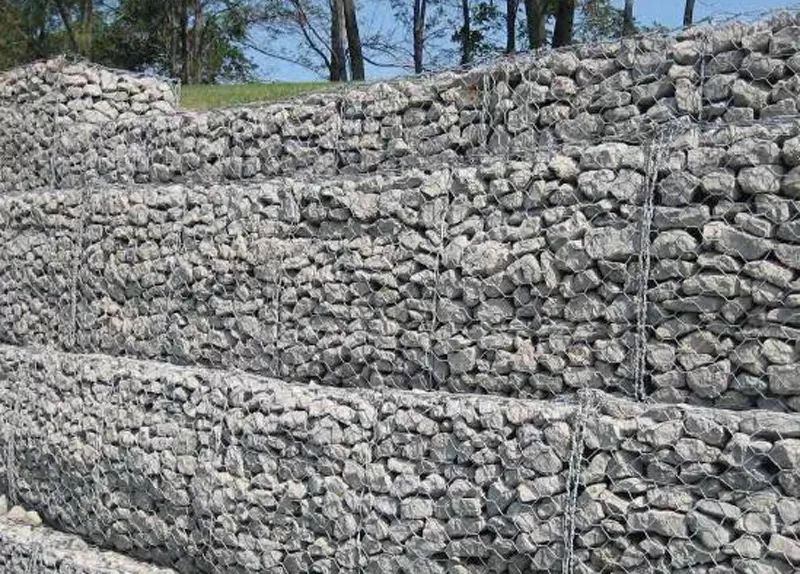

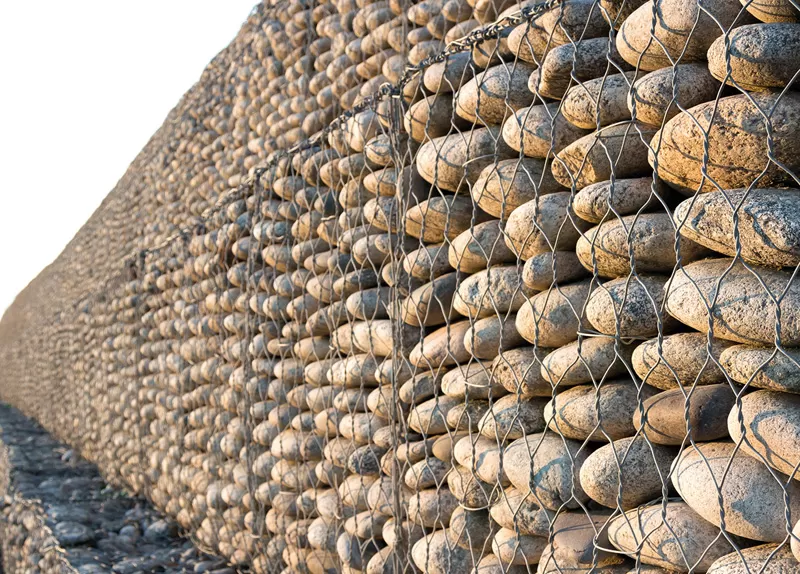

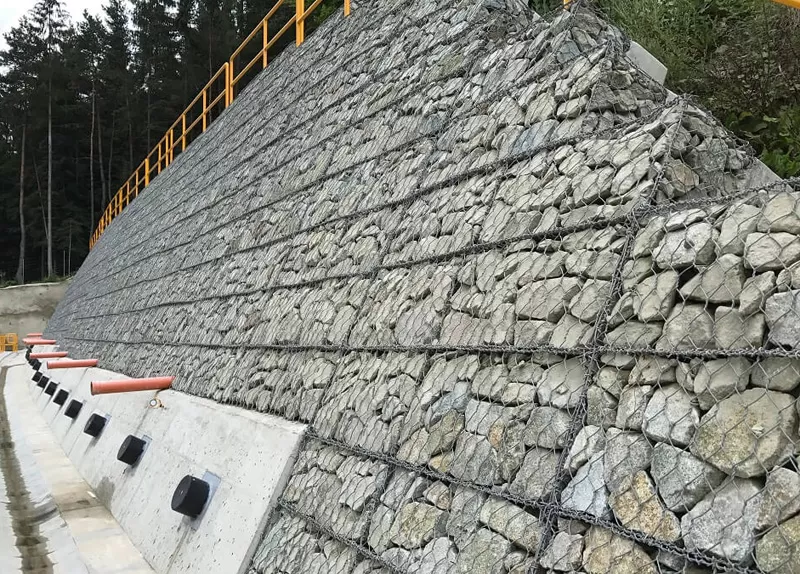

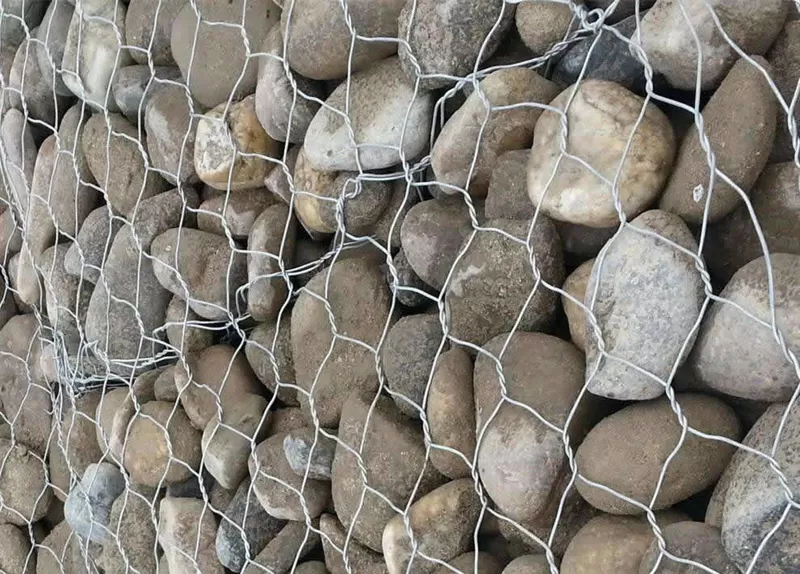

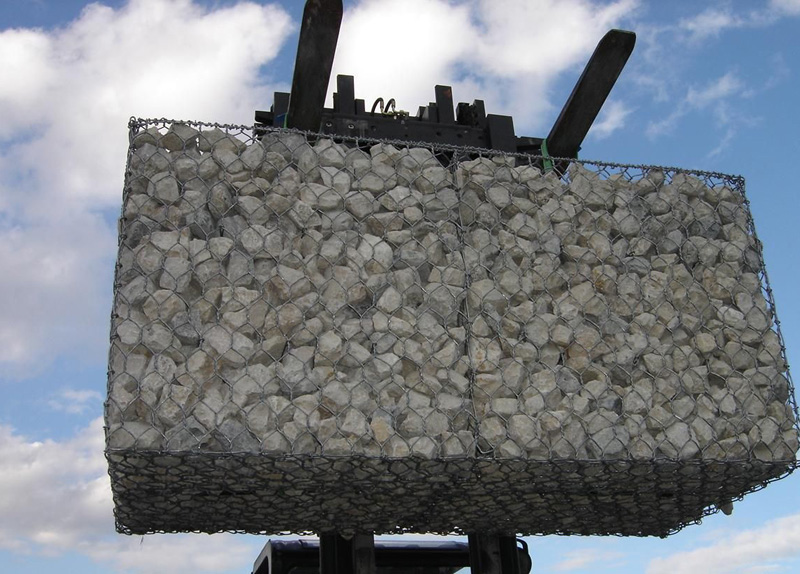

Drawing and Gallery:
Product Name: Gabion Basket
