Introduction:
Product name: PPGI Prepainted Galvanized Steel coil for roof sheet usage
Standard: AISI, ASTM, BS, DIN, GB, JIS
Grade: SGCC/DX51D, SGCC/SGCH/SGHC/DX51D/CS-B
Type: Steel Coil, Color Coated Steel Sheet
Technique: Cold Rolled
Surface Treatment: Coated
Thickness: 0.12-2.0mm
Width: 600mm-1250mm, 600-1250mm
Length: Customers' Requirement
Tolerance: ±1%
Colour: Ral Color Chat
Coil ID: 508/610MM
Features:
| Commodity | PPGI |
| Standard | AISI, ASTM, BS, DIN, GB, JIS,etc. |
| Steel Grade | CGLCC,DX51D+Z/DX53D+Z/S220GD-550GD,CS-B/SS255-550 |
| Nominal Thickness | 0.13mm-1.5mm |
| Nominal Width | 600-1250mm |
| Tolerance | Thickness:+/-0.02mm, Width: +/-3mm |
| Zinc Coating | zinc 40-275 |
| Color System | Produce according to RAL Color System or as per buyer’s color sample. |
| Surface treatment | Chromated/Un-oiled/oiled/Dry |
| Inner Diameter of Coil | 508mm/610mm |
| Coil Weight | 3-8mt |
| Application | Roofing sheet ,PPGI base plate , Build materials, Household application |
| Delivery Time | 20 days after T/T prepayment or L/C date |
| Price Term | FOB,CIF,CFR,EX Works |
| Sample Free sample will be sent as your requirement | |
Specifications:
1) Material thickness: 0.3-1.0mm
2) Material width: max 1250mm
3) Core material: EPS board/Rockwool Board
4) Line speed:3-6 m/min
5) Power supply: 380V/ 50Hz/ 3Phase
6) Total power: 45kw
7) Dimension: about 40m*2.2m*2.8m
8) Product width: 1000mm/ 1200mm
9) Product thickness: 50-200mm
10) Annual output: 600,000 m2
Note:Special specification can be customized
Note: Special size and specifications can be made according to customers requires.
Technology:
GI and GL as the substrate, after surface pre-treatment, paint coating, baking and cooling, an organic protective film is formed on the steel substrate. It has strong durability, corrosion resistance, decoration and formabilit.

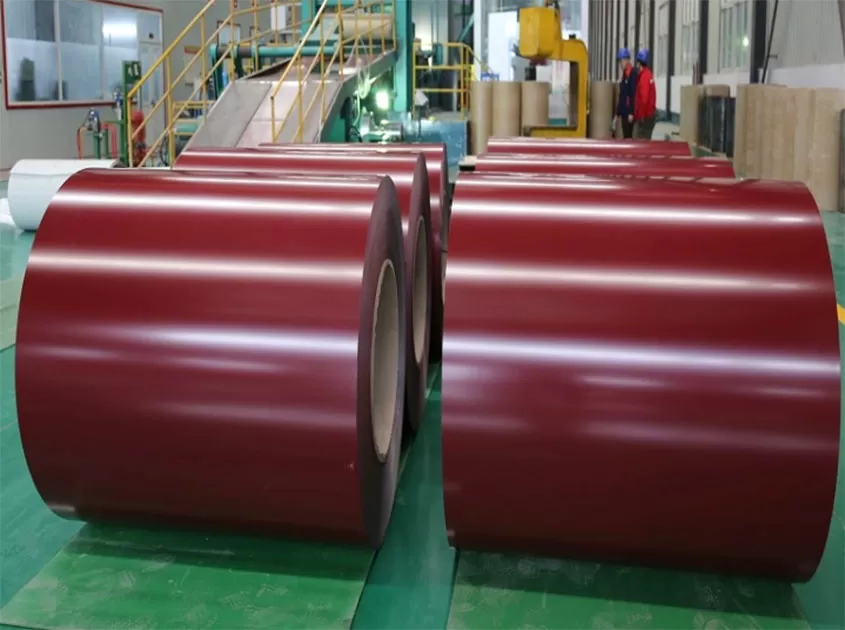

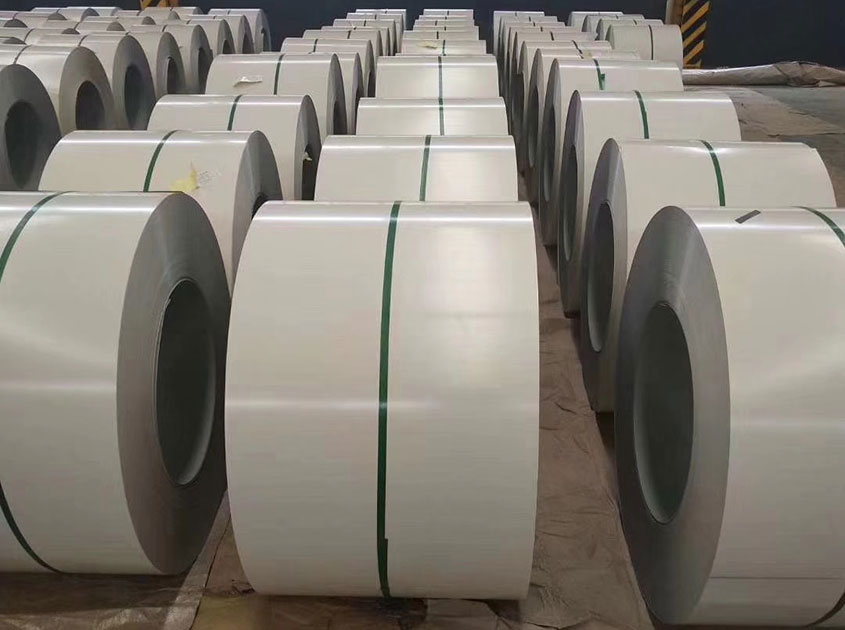

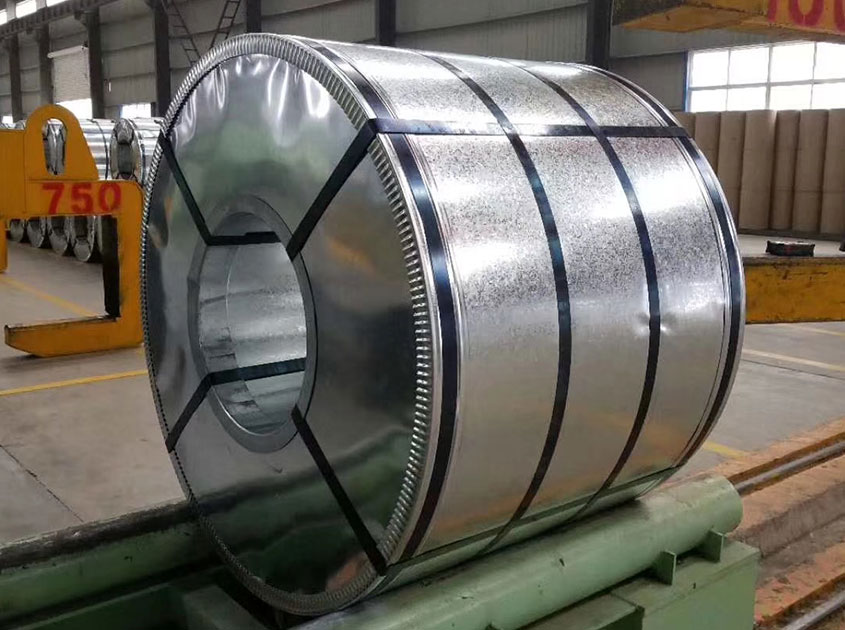

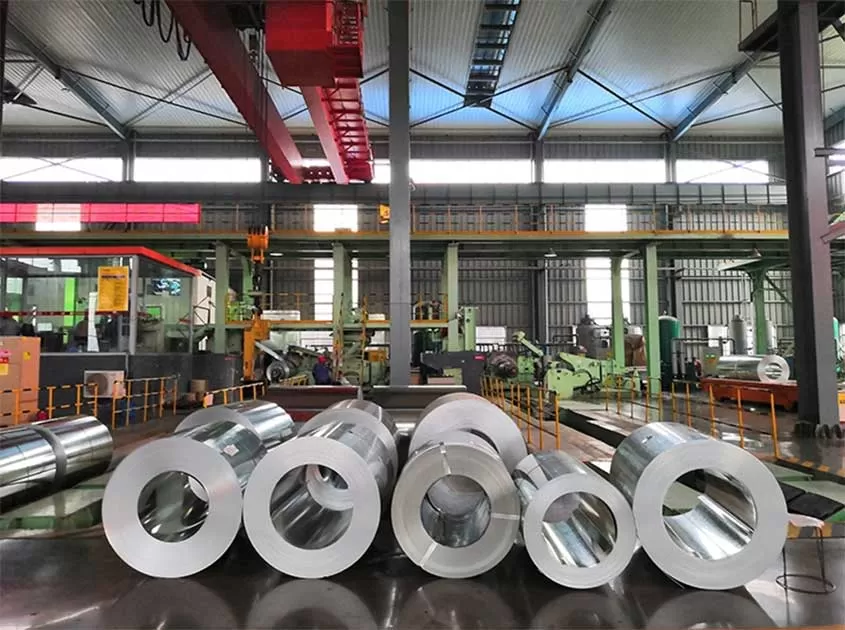

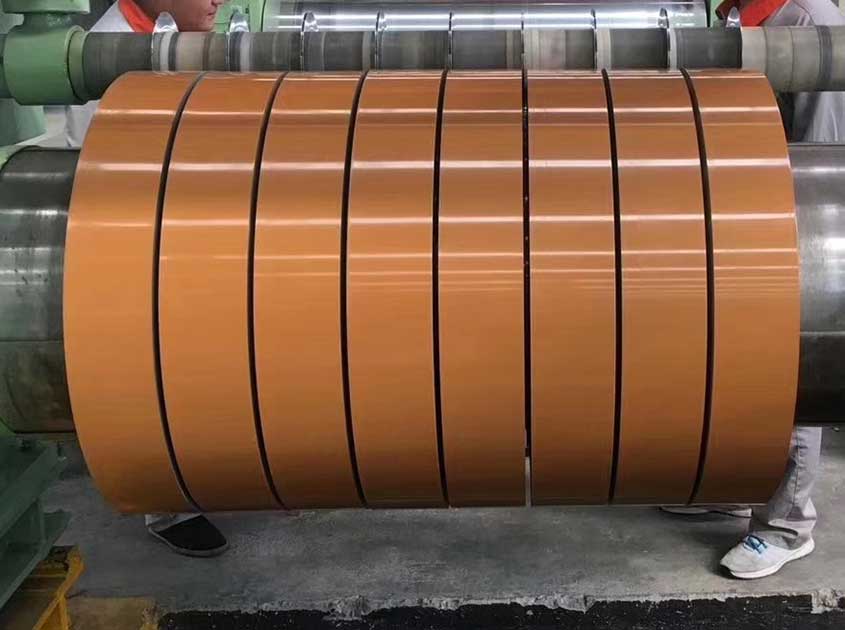

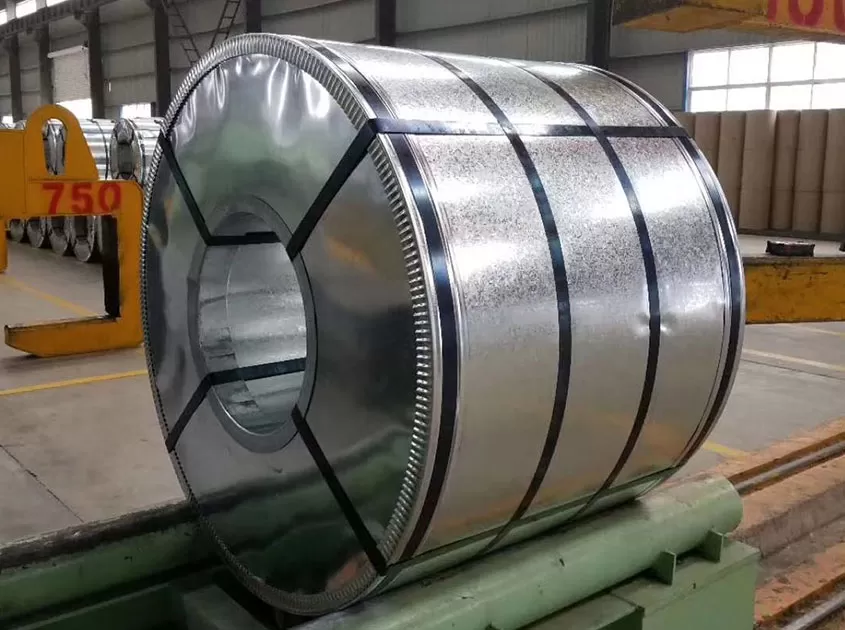

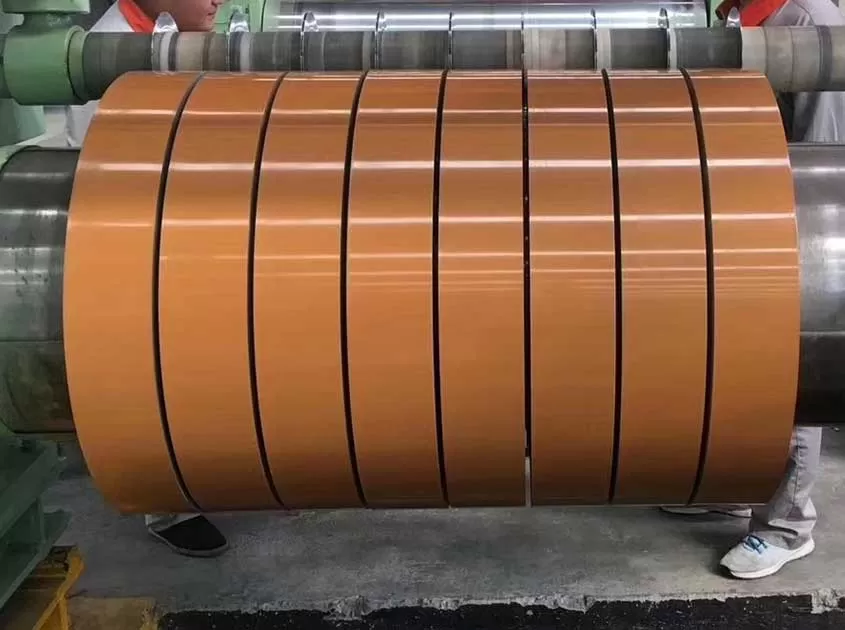

Drawing and Gallery:
Product Name: PPGI/PPGL
