Introduction:
PVC Coated Wire is manufactured with quality iron wire. PVC is the most popular plastic for coating wires, as it is relatively low in cost, resilient, fire retardant and possesses good insulating properties.Common colors available for PVC coated wire are green and black. Other colors also available on request.
PVC Coated Wire Application:
the most popular use for PVC coated wire is in the construction of chain link fences for
industrial security fences, freeways and tennis courts, and constructions.
It is also used in other applications such as coat hangers and handles.
Features:
1. Flexibility
2. Different color
3. Different diameter
4. Different weight of box or carton
5. Different shape or length
6. Rust-resistant
Specifications:
| Specification of PVC Coated Wire | |
| Inner Core wire: Galvanized wire, black iron wire, Stainless steel wire, etc | |
| Core wire diameter | Diameter after coated |
| 0.5mm | 1.0mm |
| 1.0mm | 1.5mm |
| 1.5mm | 2.0mm |
| 2.0mm | 3.0mm |
| 2.5mm | 3.5mm |
| 3.0mm | 4.0mm |
| 3.5mm | 4.5mm |
| 4.0mm | 5.0mm |
| Packing: | |
| 1. lined with P.V.C strips and wrapped with PVC or hessian cloth | |
| 2. small coils of 50m, 100m, 150m, 200m, and so on | |
| 3.Color: RAL 6005, 6009 etc. | |
| 4.Diameters: many others available as per buyers' request. | |
Note: Special size and specifications can be made according to customers requires.
Technology:
| Wire gauge | 8#-24#, 4mm-0.55mm |
| Plastic thickness | 0.4mm-1.0mm |
| Wire tolerance | +0.05mm/-0.05mm Max |
| Coat | PVC, vinyl or PE (on request) |
| Color | green, black, white, grey and etc (on request). |
| Tensile strength | 350N/MM2-550N/MM2(soft)600N/MM2-900N/MM2(hard); |
| Elongation | 8%-15% |

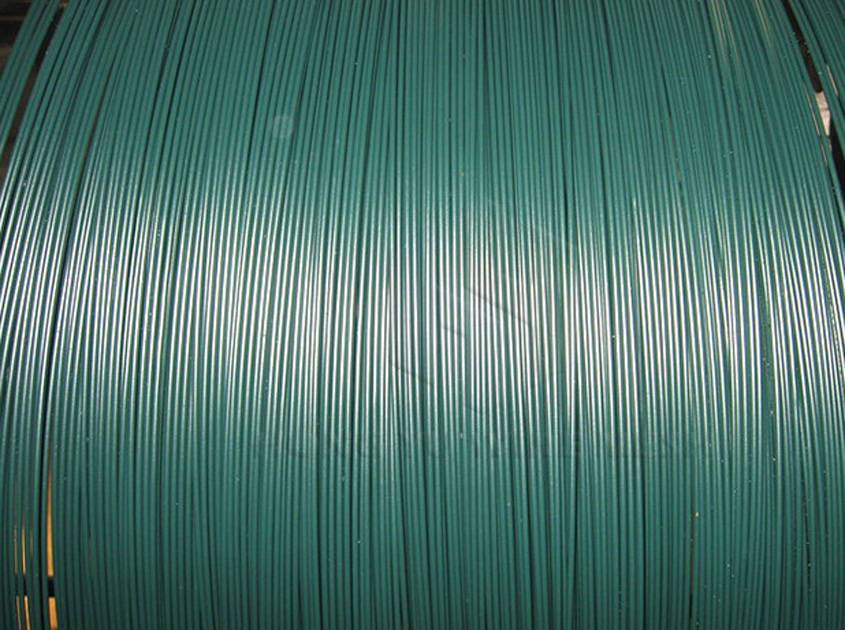

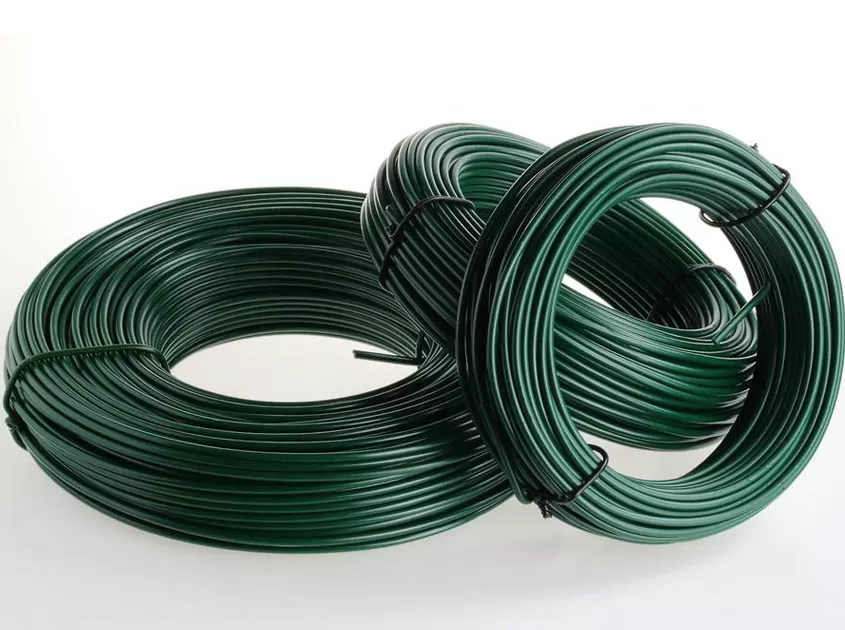

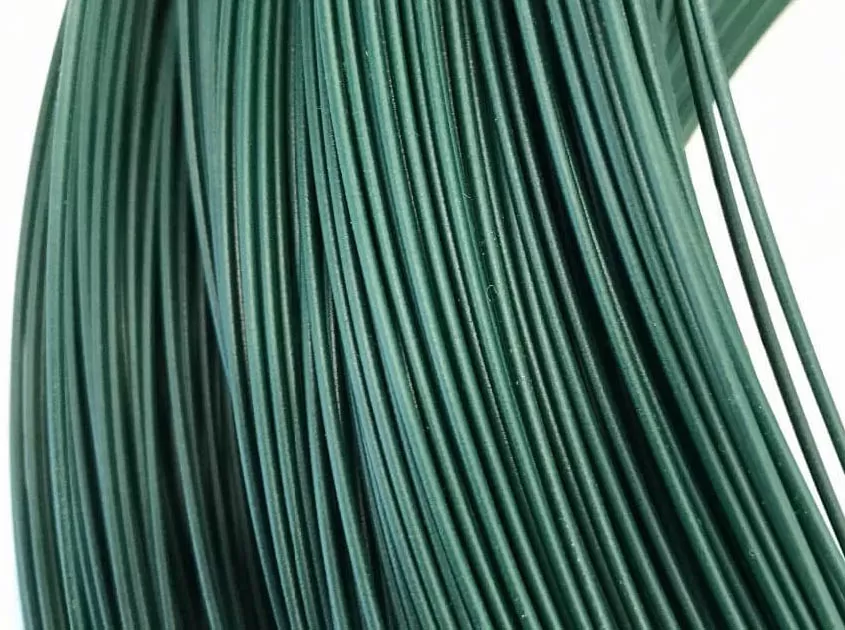

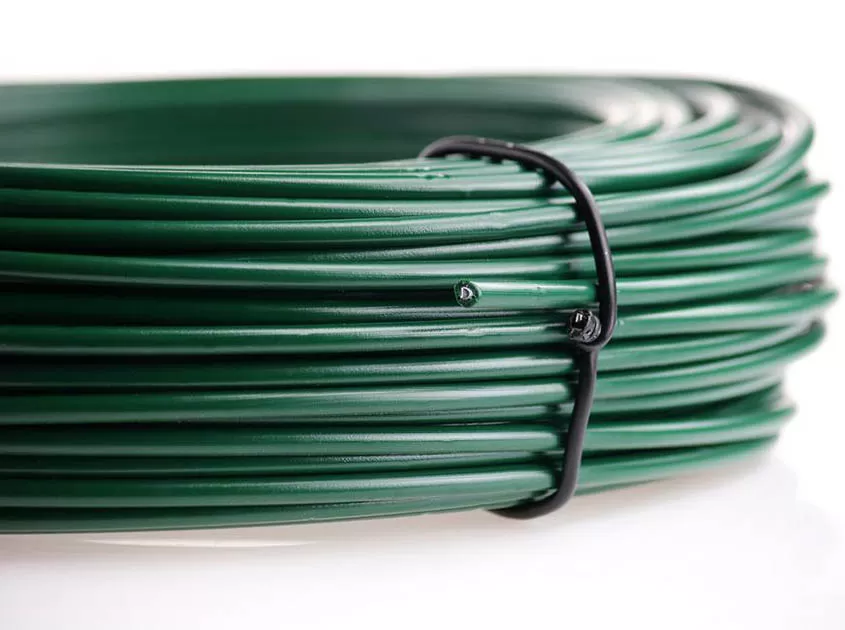

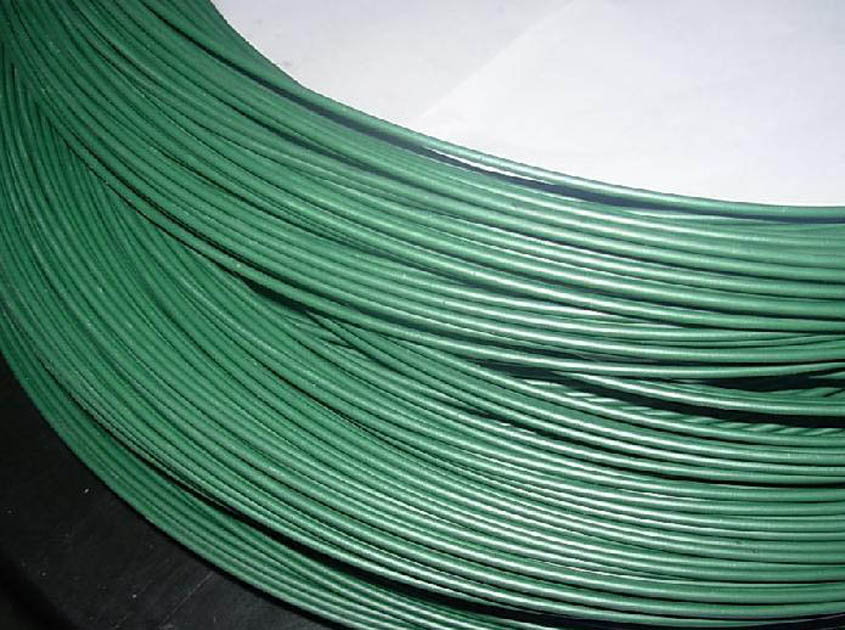

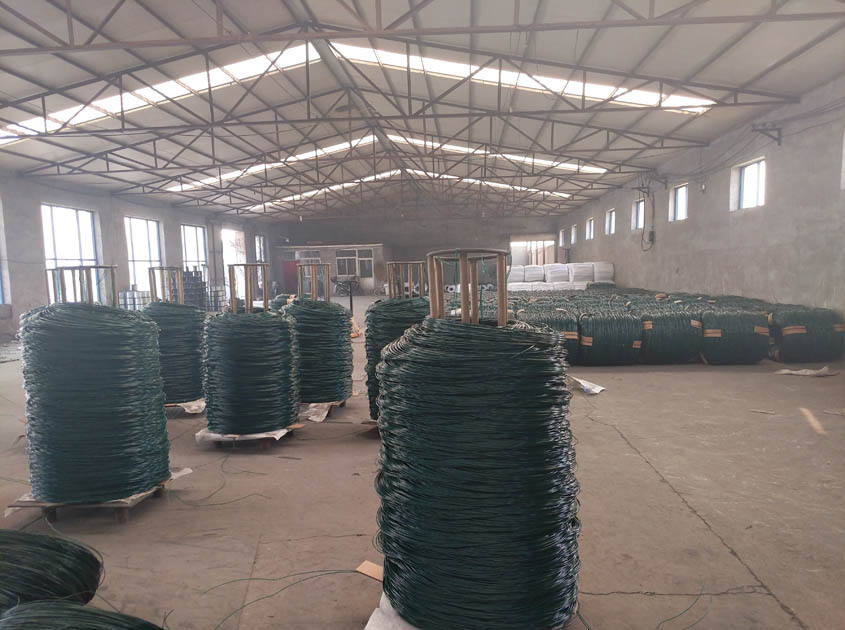

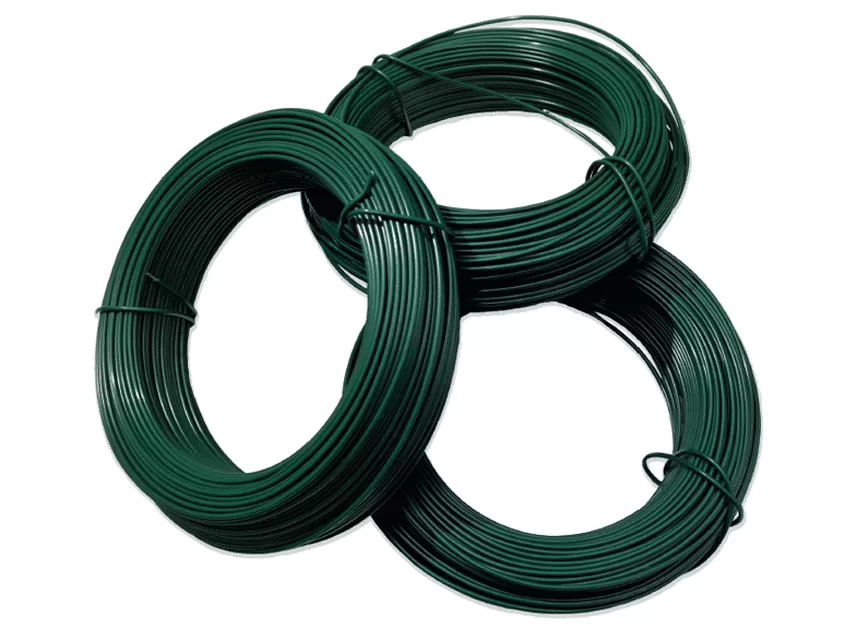

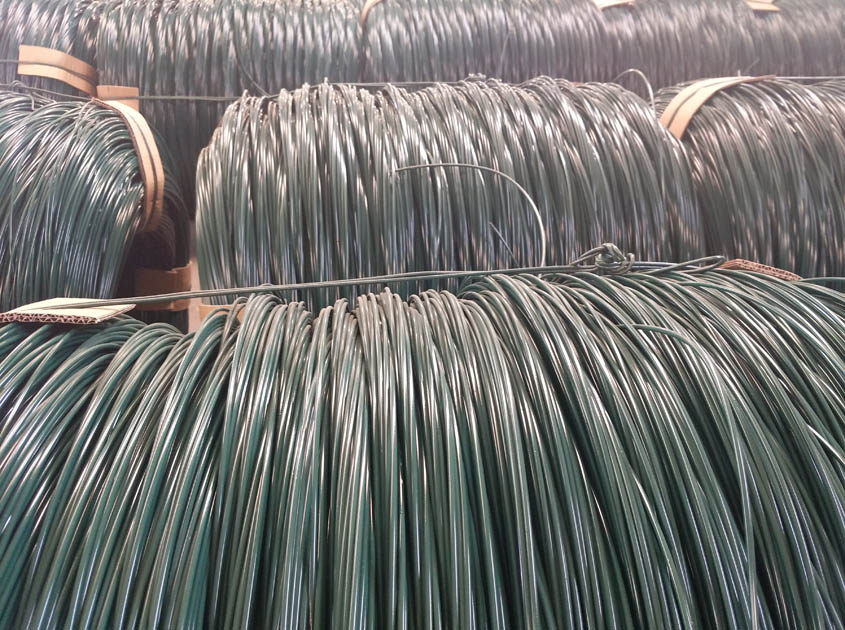

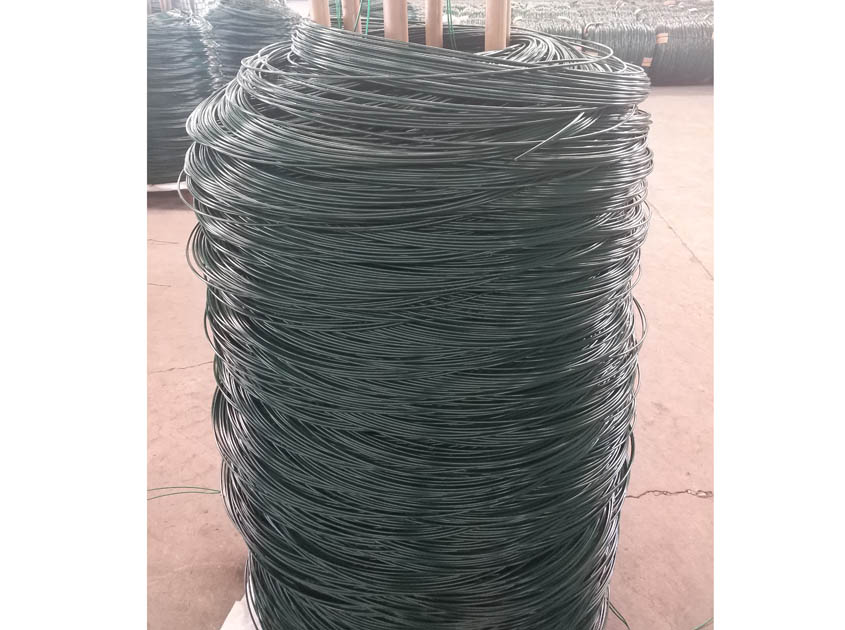

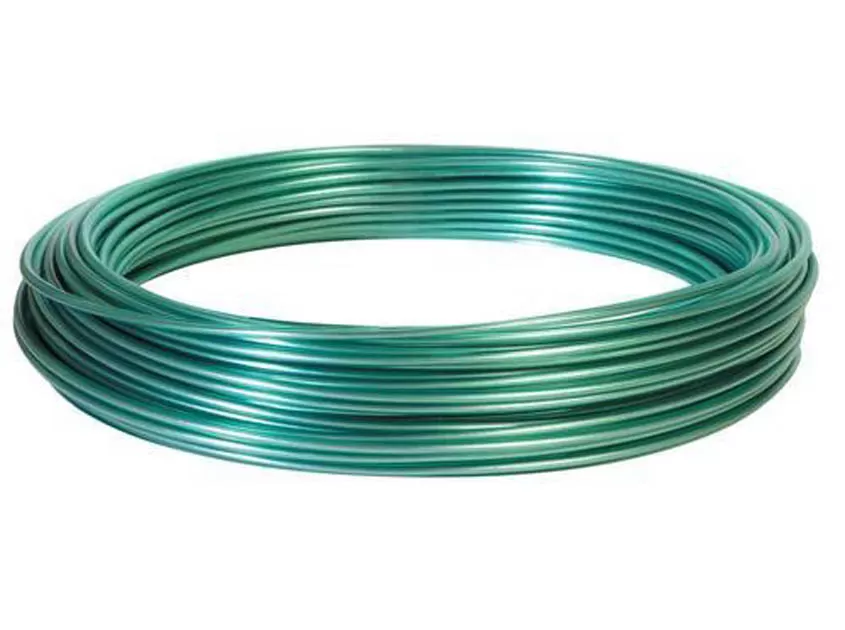

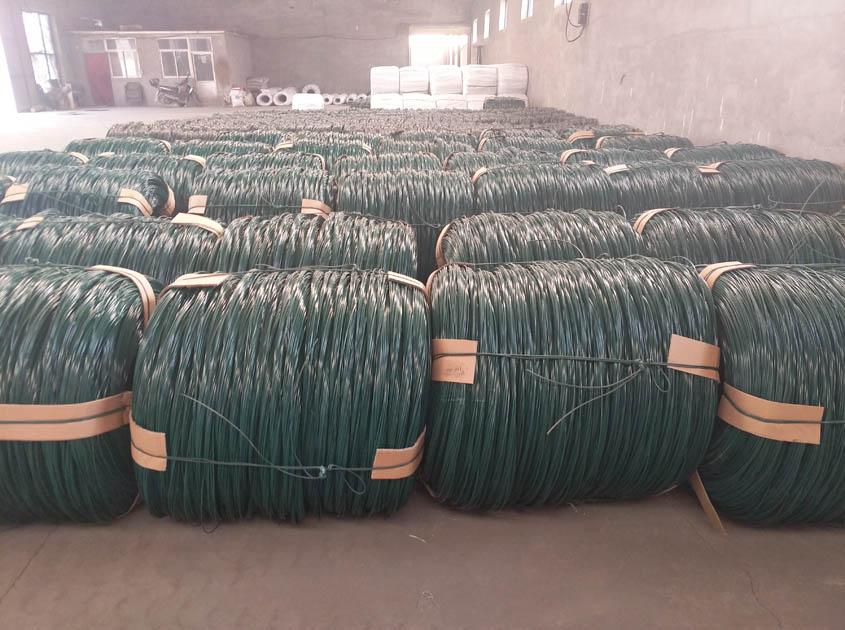

Drawing and Gallery:
Product Name: PVC Coated Wire
