Introduction:
The plate mould pellet machine also named as poultry feed pellet machine, it enables you to make feed material into pellets easily. Generally, the diameter of pellets produced will be between 2 and 10 mm. Pellets make ideal fodder for chickens, rabbits, ostriches, and even fish.
Plate mould pellet machine is widely used for maize straw, peanut shell, rice husk, corncob, cotton seed hull, wheat-straw, sunflower seed shell, sawdust, cotton stalk, weeds, etc. And this equipment is also suitable for raw materials which are difficult to form with low bonding ratio.
The application of plate mould pellet machine:
1.Plate mould pellet machine is widely used for maize straw, peanut shell, rice husk, corncob, cotton seed hull, wheat-straw, sunflower seed shell, sawdust, cotton stalk, weeds, etc.
2.This equipment is also suitable for raw materials which are difficult to form with low bonding ratio.
3.Furthermore, organic bacterial manure, organic fertilizer and compound fertilizer are applicable to process under low temperature.
Features:
1) Table performance, low energy consumption
2) Convenient repairing and maintenance
3) Low failure rate, easy operation
4) High pellet forming rate
5) Pellet with high density
6) The length of pellets can adjust by change cutter's position.
7) Widely use to press fuel /feed/fertilizer pellets.
8) The flat die pellet machine is a tried and tested machine and has been in operation for over a decade. The simple design means there is no complicated control panels or fancy design.
9) It can process the oil cake and other mixed waste material to granule at one time. And it is columned granule Feed and have slippery firm.
Specifications:
| Model | Size | Capacity | Weight | Power |
| QK-ZL001 | 63x27x75cm | 80-100kg/h | 35kg | 220v/380v |
| QK-ZL002 | 65x27x78cm | 90-150kg/h | 40kg | 220v/380v |
| QK-ZL003 | 85x35x91cm | 200-300kg/h | 110kg | 380v |
| QK-ZL004 | 98x38x94cm | 350-450kg/h | 150kg | 380v |
| QK-ZL005 | 108x42x104cm | 400-500kg/h | 190kg | 380v |
| QK-ZL006 | 130x51x121cm | 500-700kg/h | 400kg | 380v |
Note: Special size and specifications can be made according to customers requires.
Technology:
1.Discharge outlet：Stainless steel discharge outlet.Antirust with long lifespan.
The base

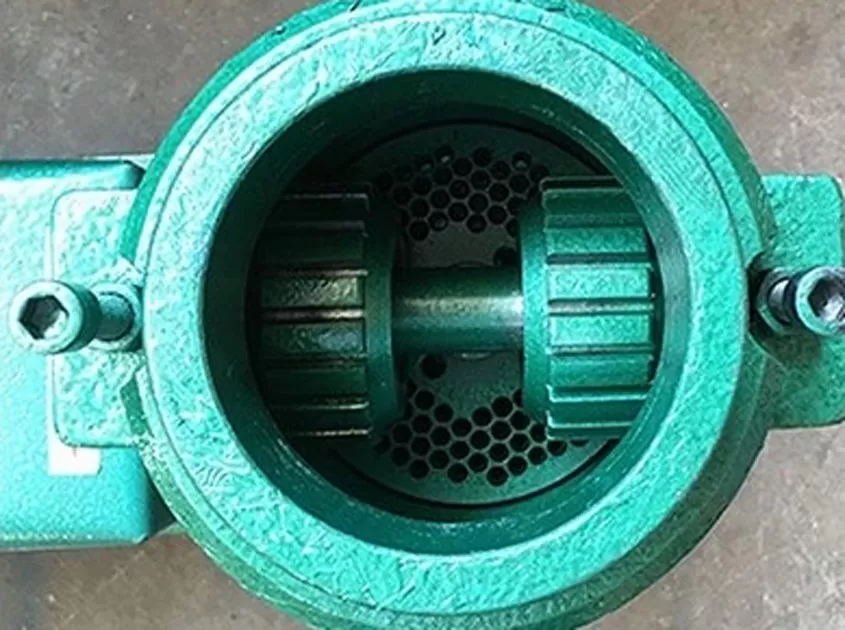

2.The grinding chamber：Hot quenching makes the wearing strength 10-20 times stronger.

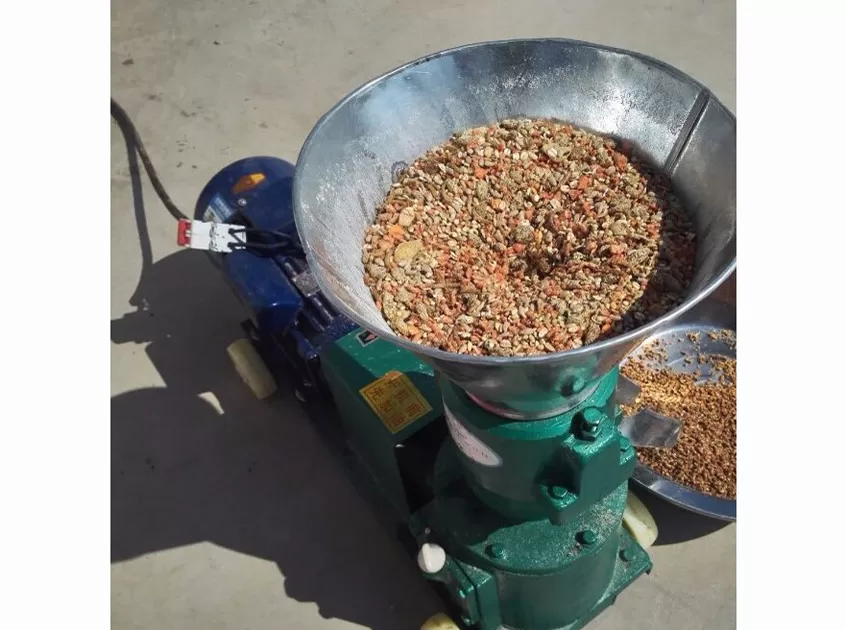

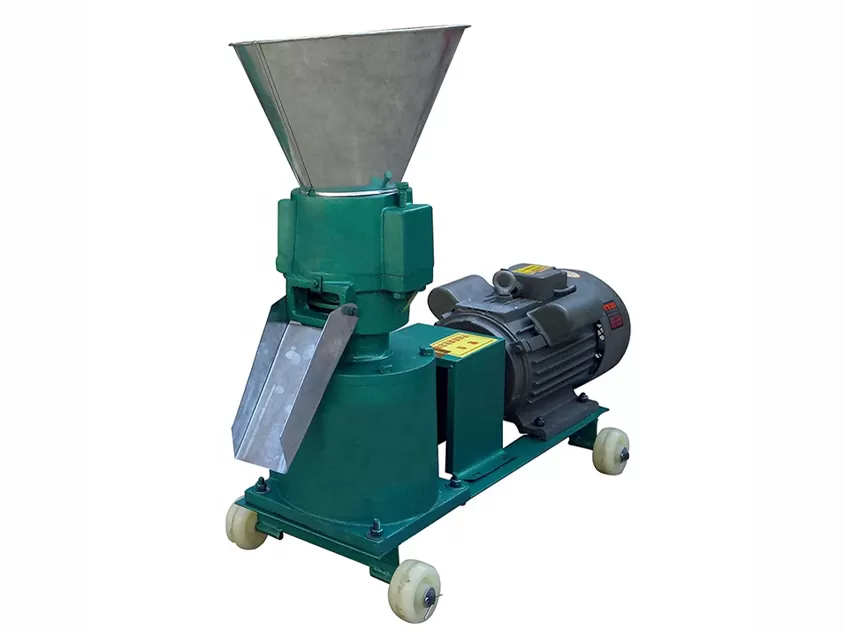

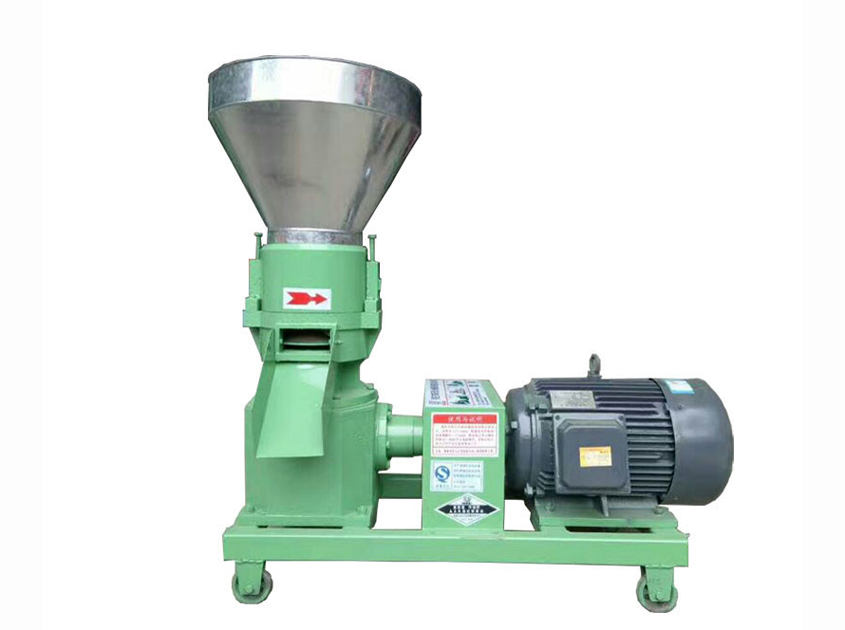

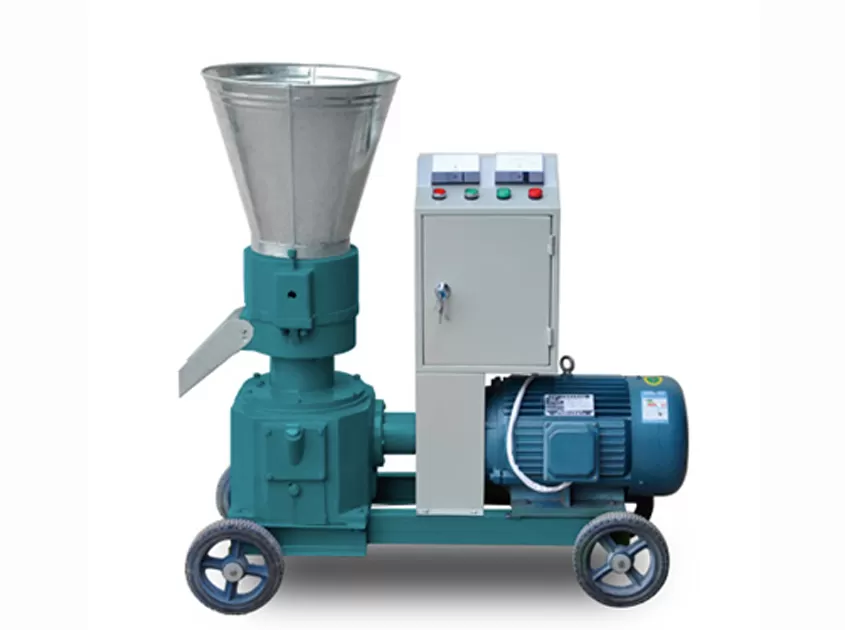

Drawing and Gallery:
Product Name: Plate Mould Pellet Machine
