Layer Chicken Cages

Layer cage is also known as battery cage or poultry cage, which is used for rearing egg-laying chickens after growing up to 12 weeks or 16 weeks . The biggest advantage of layer cages is increasing egg production to 98%, and its very easy to handle chicken waste and reduce disease transmission.


Our Advantages:

Supply samples for FREE

Free Design

Quality Guaranteed By SGS

Fast reply within 24 hours

Reasonable price directly from Our own Factory

Detailed Information For Layer Chicken Cages
  • Introduction
  • Features
  • Specifications
  • Technology
  • Drawing and Gallery
  • Inquiry

Introduction:

Layer chicken cage is producing by low carbon steel wire, it can be arranged different according to different requirements

1.If you have less than 2,000 chickens we advise you to only buy poultry cage. Drinking system is automated, but workers need to feed the chicken manually, as well as collect the eggs, and remove the droppings.

2.If you have between 5,000 and 10,000 chickens we suggest you purchase the manure removal machine as well as layer cages. By removing the droppings timely, you will reduce the possibility of disease and improve the egg production rate, at the same time saving even more time and labor costs. The scraper type manure removal machine is the most economical type. A semi-automatic feeding machine is also necessary for this quantity of chickens. It is small and costs less than a fully automatic machine, and because it uses a battery, you will avoid the inconvenience of power failures. You can feed 10,000 chicken in just half an hour, and save a lot on labor.

3.If you have more than 10,000 chickens, you may need to get fully automated machines including one that does automatic feeding, another for automatic egg collection, as well as an automatic manure removal machine. If the scale of your operation exceeds 50,000 chickens, you will need a feed silo. For less than 50,000 chickens you can just use one screw conveyor to convey the food to the hopper. If you want to build a closed system, you need to know that an exhaust fan and cooling pad are necessary environment control equipment items. If you use an open system and the weather is hot, you can use a fogger


Features:

Special Advantages Of Qunkun Chicken Cage System

1.The chicken house is designed full automatic operation with auto feeding system, auto nipple drinking system, auto egg-collection system, auto manure removing system, cooling and ventilation systems, etc.

2.Nipple drinkers: stainless steel nipple drinkers, The professional poultry water pipe is made of good PVC material ,Length 2m/pc.,guaranty is more than 15 years, without leakag and long service life.+图饮水器

3.the silver white feeding trough length is 2m/ pc, made from concentrate pure PVC, Loading capacity is more than 60kg/ pc+图食槽

4.Excellent farm design and build experience for your special layout design requirements, IT IS FOR FREE !+图设计3

5. Easy to install and operate - No need professional technicians service, we will provide the installing videos for your reference.we will teach you step by step.


Specifications:

“A” Type Chicken Cage Specifications
TypeTier & NestSize (L x W x H)Nos of cells per TierNos of cells per SetNos of hens per NestNos of hens per Set
A Type3 Tiers, 4 cells1.88 x 2.1 x 1.5m824496
3 Tiers, 4 cells2.0 x 2.1 x 1.5m824496
3 Tiers, 5 cells1.95 x 2.1 x 1.5m10303 or 490 or 120
3 Tiers, 5 cells2.15 x 2.1 x 1.5m10304120
4 Tiers, 4 cells1.88 x 2.4 x 1.95m8324128
4 Tiers, 5 cells1.95 x 2.4 x 1.95m10403 or 4120 or 160
4 Tiers, 5 cells2.15 x 2.4 x 1.95m10404160
Not Recommended, because the cage is very high and not convenient to manage.
5 Tiers, 5 cells1.95 x 2.8 x 2.5m10503 or 4150 or 200
Fitting and AccessoriesPvc feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings ( 建议配图, 更直观) Pvc feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings

 Note: Special size and specifications can be made according to customers requires


Note: Special size and specifications can be made according to customers requires.

Technology:

MaterialHigh quality low carton steel wire (Q195/Q235)
 Surface Treatment And Service LifeCold galvanized chicken cage  (6-year to 10-year)   Zinc coated 60g
Hot galvanized chicken cage  (20-year to 30-year)   Zinc coated 500g
Green PVC coated chicken cage  (20-year to 30-year)
Connection:welding

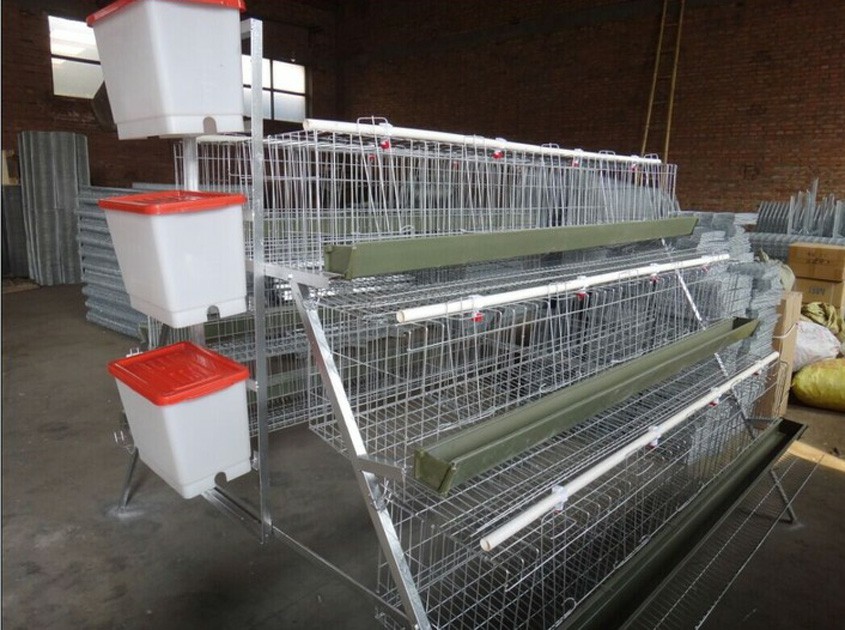

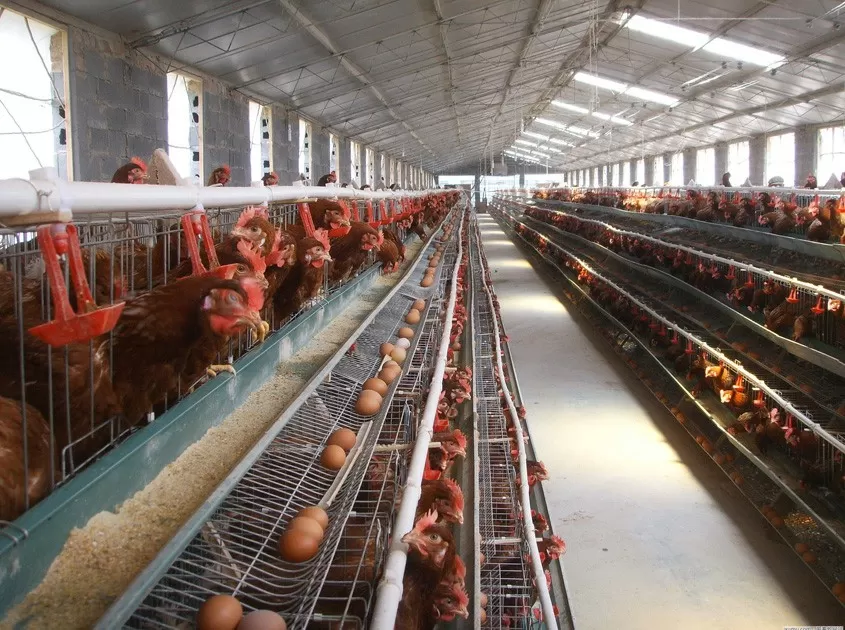

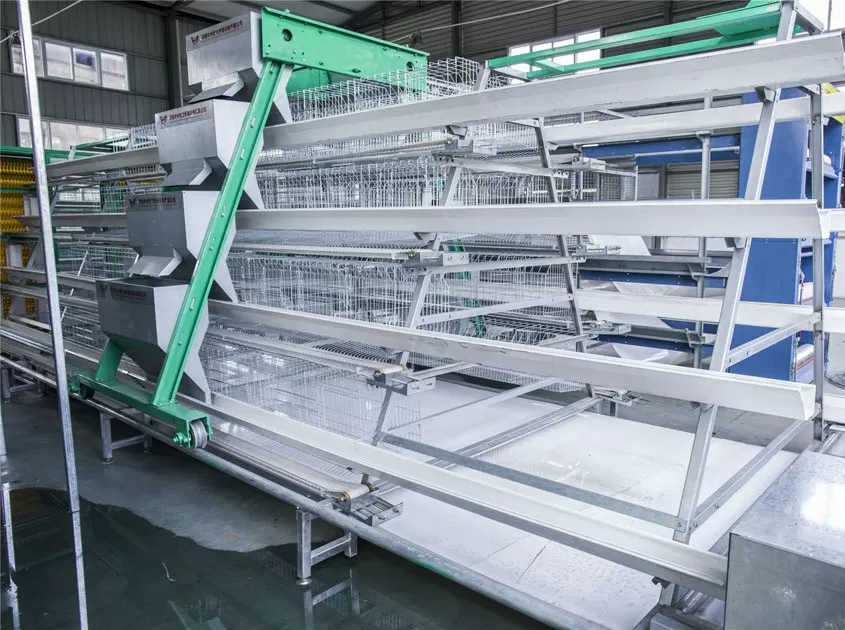

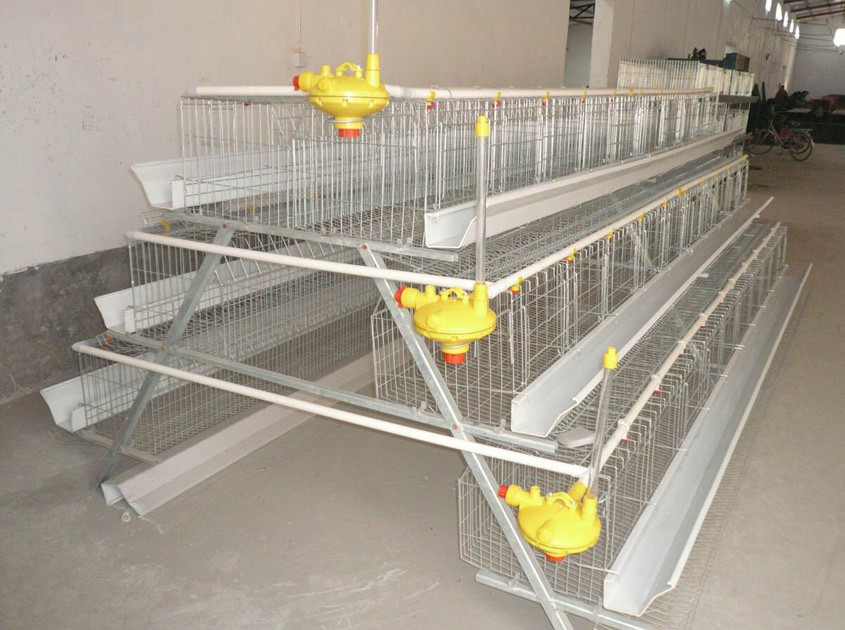

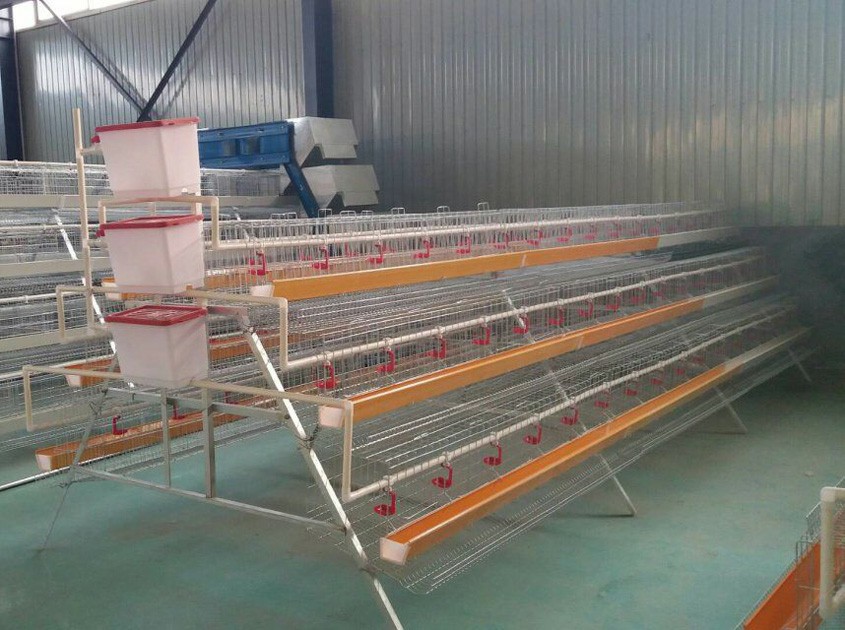

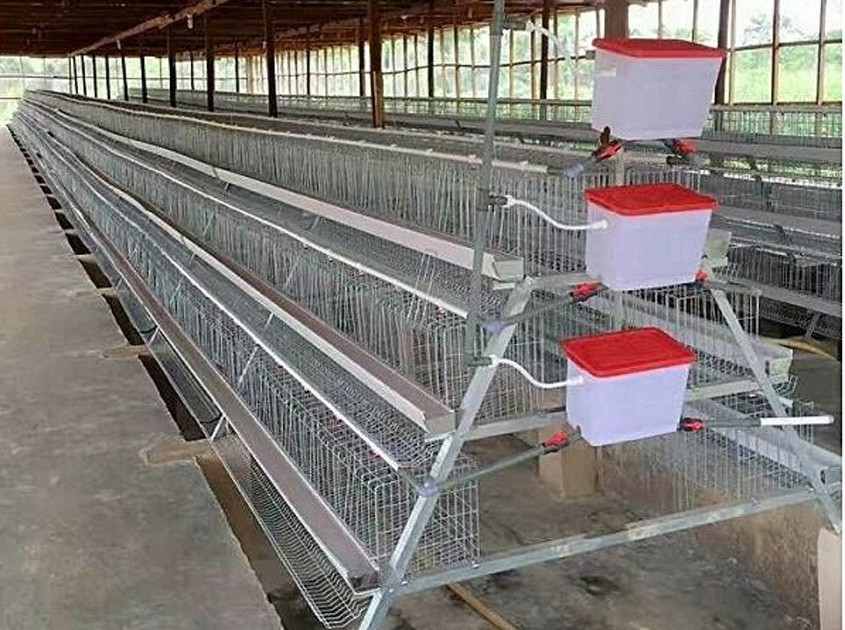

Drawing and Gallery:

  • Layer Chicken Cages
    Layer Chicken Cages
  • Layer Chicken Cages
    Layer Chicken Cages
  • Layer Chicken Cages
    Layer Chicken Cages
  • Layer Chicken Cages
    Layer Chicken Cages
  • Layer Chicken Cages
    Layer Chicken Cages
  • Layer Chicken Cages
    Layer Chicken Cages

Product Name: Layer Chicken Cages
