Introduction:
Nichrome is the alloy of nickel and chrome. According to different chemical composition, nichrome can be divided into Cr20Ni80, Cr15Ni60 and Cr20Ni35.
Nichrome wire mesh is made of the nichrome wire. Nichrome wire mesh has outstanding ductility, high tensile strength, oxidation resistance, sulfur resistance and other features.
Nichrome wire mesh has a wide range of applications, including the aerospace, shipbuilding, military industry, chemical and other fields.
Nichrome wire mesh has outstanding oxidation and sulfur resistance.
Features of Nichrome Wire Mesh:
Nichrome wire mesh has following features: Good ductility. High tensile strength. Oxidation resistance. Sulfur resistance. Permeability resistance. Superior elongation. Non-magnetic. High temperature resistance.
Chemical Composition:
| Grade | % | Ni | Cr | Fe | Al | Mn | Si | C | P | S |
| Cr20Ni80 | Min | Bal | 20 | - | - | 0.6 | 0.75 | 0.08 | 0.02 | 0.08 |
| Max | 23 | 1.0 | 0.2 | 1.6 | ||||||
| Cr15Ni60 | Min | 55 | 15 | Bal | - | - | 0.75 | 0.08 | 0.02 | 0.15 |
| Max | 61 | 18 | 0.5 | 0.6 | 1.6 | |||||
| Cr20Ni35 | Min | 34 | 18 | Bal | - | 1.0 | 1 | 0.1 | 0.03 | 0.025 |
| Max | 37 | 21 | 0.5 | 3 |
Applications of Nichrome wire mesh:
Nichrome wire mesh is widely used in the aerospace, shipbuilding, war industry, chemical machinery, electric power, desalination, medical apparatus and instruments.
Features:
1. Good ductility.
2. High tensile strength.
3. Oxidation resistance.
4. Sulfur resistance.
5. Permeability resistance.
6. Superior elongation.
7. Non-magnetic.
Specifications:
| Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
| 4 × 4 | 0.063 | 0.1870 | 56.00 |
| 8 × 8 | 0.047 | 0.0780 | 38.90 |
| 8 × 8 | 0.025 | 0.1000 | 64.00 |
| 10 × 10 | 0.035 | 0.0650 | 42.30 |
| 16 × 16 | 0.020 | 0.0430 | 46.20 |
| 20 × 20 | 0.020 | 0.0300 | 36.00 |
| 20 × 20 | 0.013 | 0.0370 | 54.80 |
| 20 × 20 | 0.016 | 0.0340 | 43.20 |
| 26 × 26 | 0.013 | 0.0260 | 44.00 |
| 40 × 40 | 0.010 | 0.0150 | 36.00 |
| 40 × 40 | 0.0070 | 0.0180 | 51.80 |
| 80 × 80 | 0.0055 | 0.0070 | 31.40 |
| 200 × 200 | 0.0021 | 0.0029 | 33.60 |
| 325 × 325 | 0.0014 | 0.0017 | 29.70 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Material: Nichrome wire Cr20Ni80, Cr15Ni60, Cr20Ni35
Mesh Count: 1-100MESH
Width: 0.1m-1.5m Length: 30m, special sizes can be customized
Weave: Plain weave, Twill weave
Features of Nichrome Wire Mesh:
Nichrome wire mesh has following features: Good ductility. High tensile strength. Oxidation resistance. Sulfur resistance. Permeability resistance. Superior elongation. Non-magnetic. High temperature resistance.
Chemical Composition:
| Grade | % | Ni | Cr | Fe | Al | Mn | Si | C | P | S |
| Cr20Ni80 | Min | Bal | 20 | - | - | 0.6 | 0.75 | 0.08 | 0.02 | 0.08 |
| Max | 23 | 1.0 | 0.2 | 1.6 | ||||||
| Cr15Ni60 | Min | 55 | 15 | Bal | - | - | 0.75 | 0.08 | 0.02 | 0.15 |
| Max | 61 | 18 | 0.5 | 0.6 | 1.6 | |||||
| Cr20Ni35 | Min | 34 | 18 | Bal | - | 1.0 | 1 | 0.1 | 0.03 | 0.025 |
| Max | 37 | 21 | 0.5 | 3 |
Applications of Nichrome wire mesh:
Nichrome wire mesh is widely used in the aerospace, shipbuilding, war industry, chemical machinery, electric power, desalination, medical apparatus and instruments.

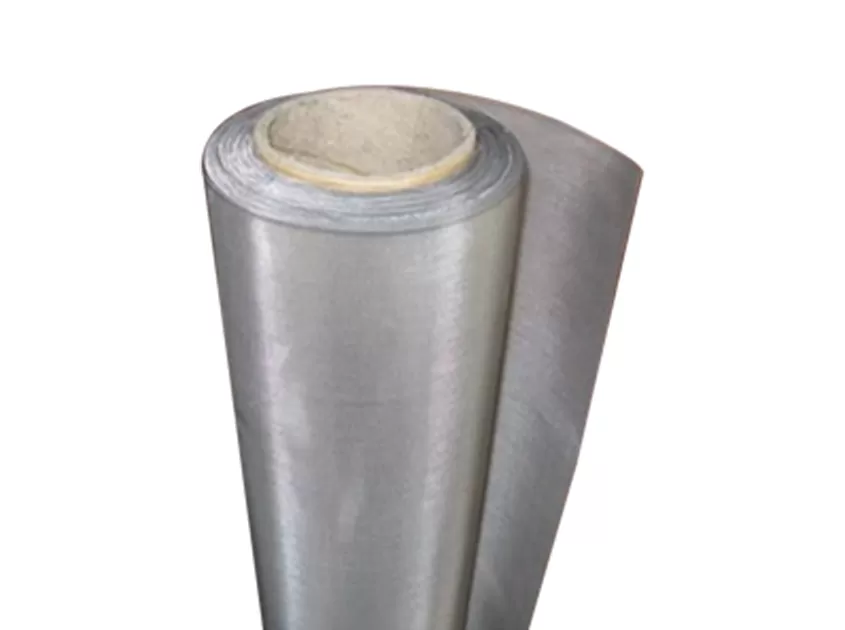

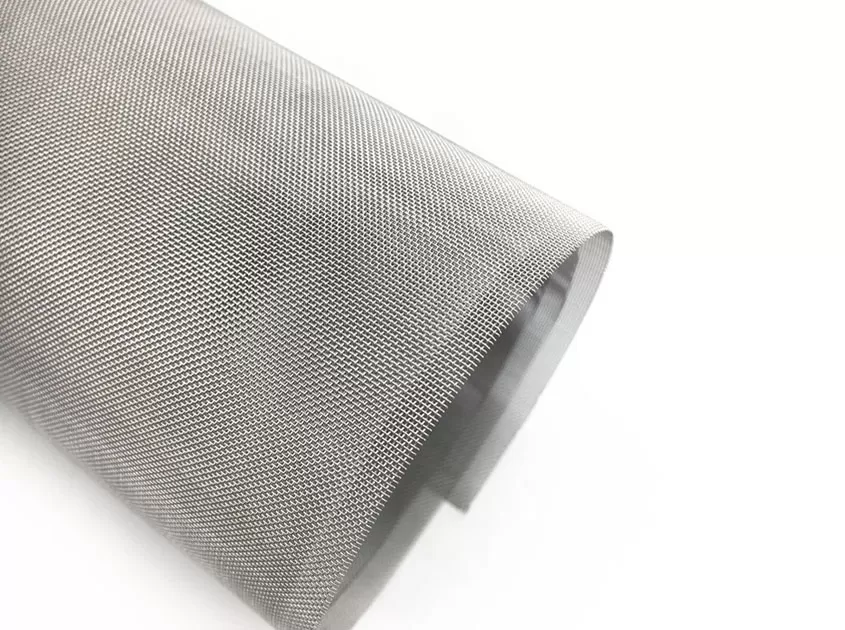

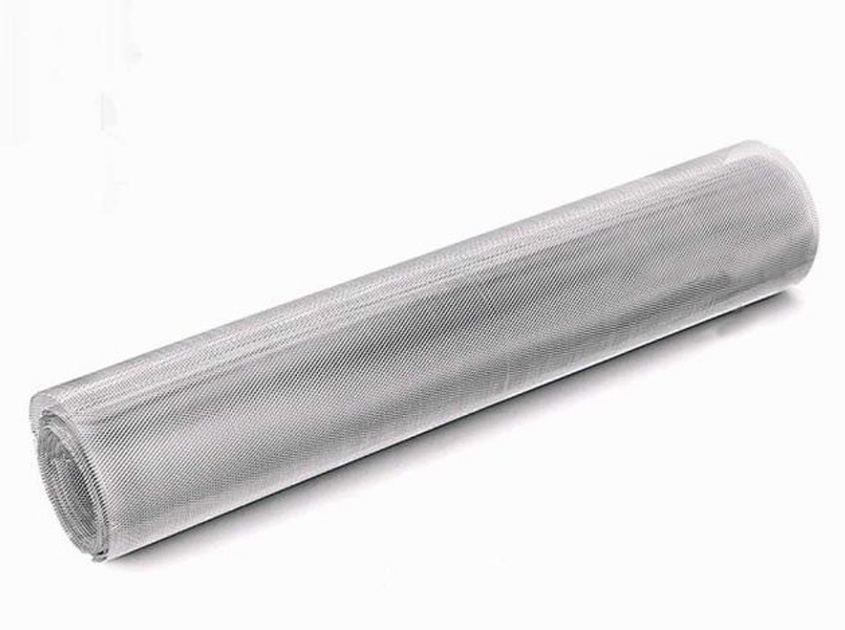

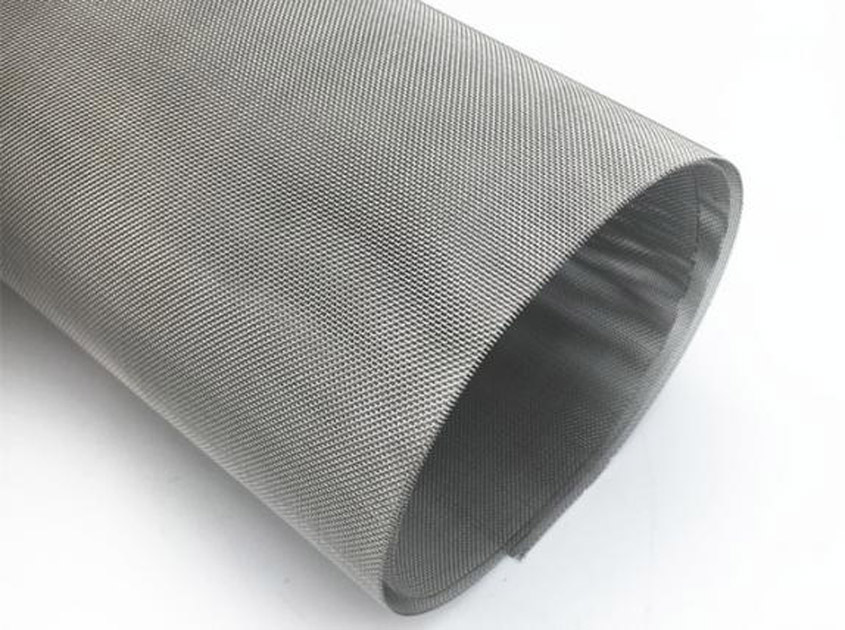

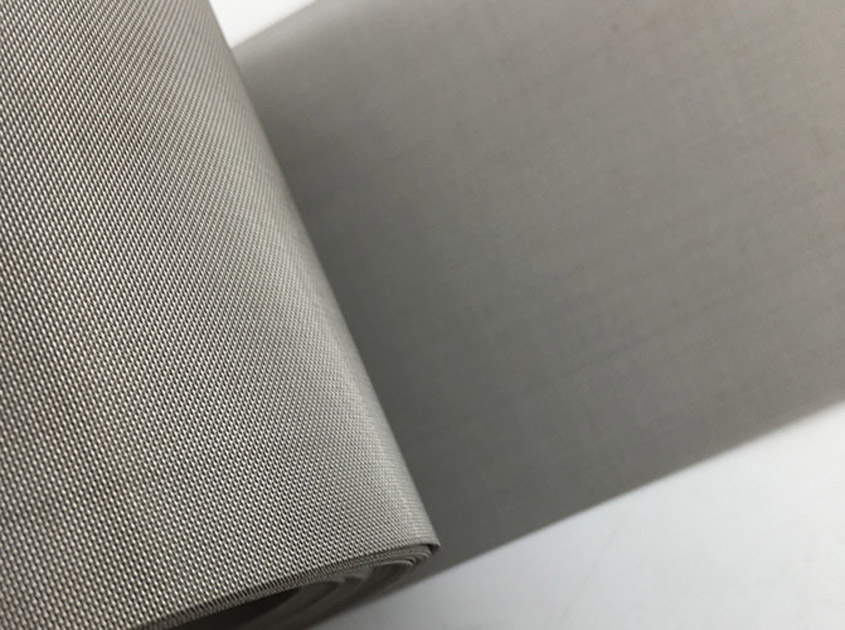

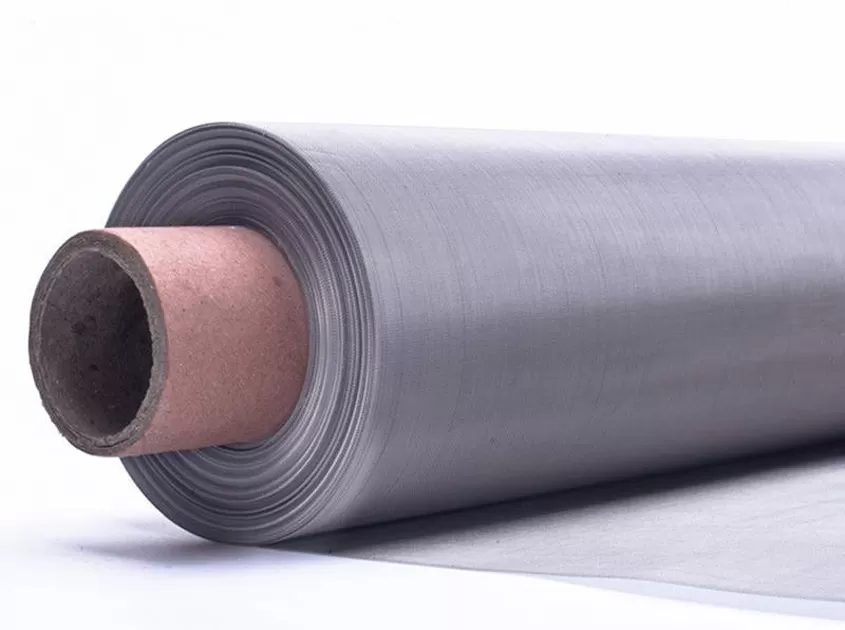

Drawing and Gallery:
Product Name: Nichrome Wire Mesh
