Introduction:
Hastelloy wire mesh is another nickel-based alloy wire mesh except for the monel wire mesh and nichrome wire mesh. The hastelloy is the alloy of nickel, molybdenum and chromium. According to the different chemical composition of material, the hastelloy can be divided into hastelloy B, Hastelloy C22, Hastelloy C276 and Hastelloy X.
Hastelloy wire mesh is the best corrosion resistant material among all of the metal materials. It is corrosion resistant in the acid, oxidizing, salt and other corrosion environments.
Hastelloy B standard wire mesh is the most widely used type in all types of hastelloy materials. It is resistant to hydrochloric acid at all concentrations, temperature and condition. That is, the hastelloy wire cloth can work well in high temperature even in the boiling point. It can also play a good performance in the hydrogen chloride gas. The Hastelloy B-3 is more excellent than the B-2, because it is less cracking and has higher chemical stability.
Features of Hastelloy Wire Mesh:
Hastelloy wire mesh features corrosion reistance; acid and alkali resistance; high temperature resistance; salty resistance; chemical stability; outstanding filtering performance
Applications of Hastelloy Wire Mesh:
Hastelloy wire mesh has various application: Chemical industry; Petrochemical industry; Flue gas desulfurization; Pulp and paper; Environment protection industry.
Features:
1. Corrosion reistance
2. Acid and alkali resistance
3. High temperature resistance
4. Salty resistance
5. Chemical stability
6. Outstanding filtering performance
Specifications:
Specifications of Hastelloy B wire mesh:
| Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
| 16 × 16 | 0.0140 | 0.0490 | 60.20 |
| 30 × 30 | 0.0085 | 0.0250 | 55.40 |
| 30 × 30 | 0.0106 | 0.0227 | 46.50 |
| 60 × 60 | 0.0072 | 0.0090 | 30.50 |
| 200 × 200 | 0.0020 | 0.0030 | 36.00 |
Specifications of Hastelloy C276 wire mesh:
| Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
| 6 × 6 | 0.0470 | 0.1200 | 51.80 |
| 8 × 8 | 0.0320 | 0.0930 | 55.40 |
| 10 × 10 | 0.0250 | 0.0750 | 56.30 |
| 12 × 12 | 0.0230 | 0.0600 | 51.80 |
| 12 × 12 | 0.0160 | 0.0670 | 64.50 |
| 12 × 12 | 0.0150 | 0.0680 | 66.60 |
| 14 × 14 | 0.0200 | 0.0510 | 51.00 |
| 16 × 16 | 0.0180 | 0.0450 | 50.70 |
| 16 × 16 | 0.0090 | 0.0535 | 73.27 |
| 20 × 20 | 0.0230 | 0.0270 | 29.20 |
| 20 × 20 | 0.0160 | 0.0340 | 46.20 |
| 20 × 20 | 0.0090 | 0.0410 | 67.20 |
| 24 × 24 | 0.0140 | 0.0280 | 44.20 |
| 30 × 30 | 0.0130 | 0.0200 | 37.10 |
| 30 × 30 | 0.0090 | 0.0240 | 53.10 |
| 40 × 40 | 0.0100 | 0.0150 | 36.00 |
| 40 × 40 | 0.0090 | 0.0160 | 41.00 |
| 40 × 40 | 0.0075 | 0.0180 | 49.00 |
| 50 × 50 | 0.0090 | 0.0110 | 30.30 |
| 60 × 60 | 0.0072 | 0.0090 | 30.50 |
| 60 × 60 | 0.0044 | 0.0123 | 54.20 |
| 80 × 80 | 0.0070 | 0.0060 | 19.40 |
| 80 × 80 | 0.0010 | 0.0085 | 46.20 |
| 100 × 100 | 0.0010 | 0.0060 | 36.00 |
| 120 × 120 T | 0.0040 | 0.0043 | 27.0 |
| 180 × 180 | 0.0020 | 0.0036 | 41.00 |
| 200 × 200 | 0.0023 | 0.0027 | 48.00 |
| 200 × 200 | 0.0020 | 0.0030 | 36.00 |
Specifications of Hastelloy X wire mesh:
| Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) | Open area (%) |
| 10 × 10 | 0.0250 | 0.0750 | 56.30 |
| 18 × 18 | 0.0090 | 0.0470 | 70.40 |
| 20 × 20 | 0.0160 | 0.0340 | 46.20 |
| 50 × 50 | 0.0030 | 0.0170 | 72.30 |
| 60 × 60 | 0.0075 | 0.0090 | 30.50 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Material: Hastelloy wire B-2, B-3, C-22, C-276.
Mesh Count: 2-200
Features of Hastelloy Wire Mesh:
Hastelloy wire mesh features corrosion reistance; acid and alkali resistance; high temperature resistance; salty resistance; chemical stability; outstanding filtering performance
Chemical Composition:
| Type | C | Co | Cr | Cu | Fe | Mn | Mo | Ni | P | S | Si | Sn | V | W |
| H-B | 0.12 | 2.5 | 1.00 | - | 6.0 | 1.0 | 26.0-30.0 | Rem | 0.01 | - | 0.03 | - | 0.6 | - |
| H-C22 | 0.015 | 2.5 | 14.5 - 20.0 | - | 2.0-6.0 | 0.5 | 12.8-14.5 | Rem | - | 0.02 | 0.08 | - | 0.35 | - |
| H-C276 | 0.02 | 2.5 | 14.5 - 16.5 | - | 4.0-7.0 | 1.0 | 15.0-17.0 | Rem | 0.03 | 0.03 | 0.08 | - | 0.35 | 3.0 - 4.5 |
| H-X | 0.08 | - | 17.0 - 20.0 | 1.0 | Rem | 2.0 | - | 34.0-37.0 | 0.03 | 0.03 | 0.75- .50 | 0.025 | - | - |
Applications of Hastelloy Wire Mesh:
Chemical industry; Petrochemical industry; Flue gas desulfurization; Pulp and paper; Environment protection industry.

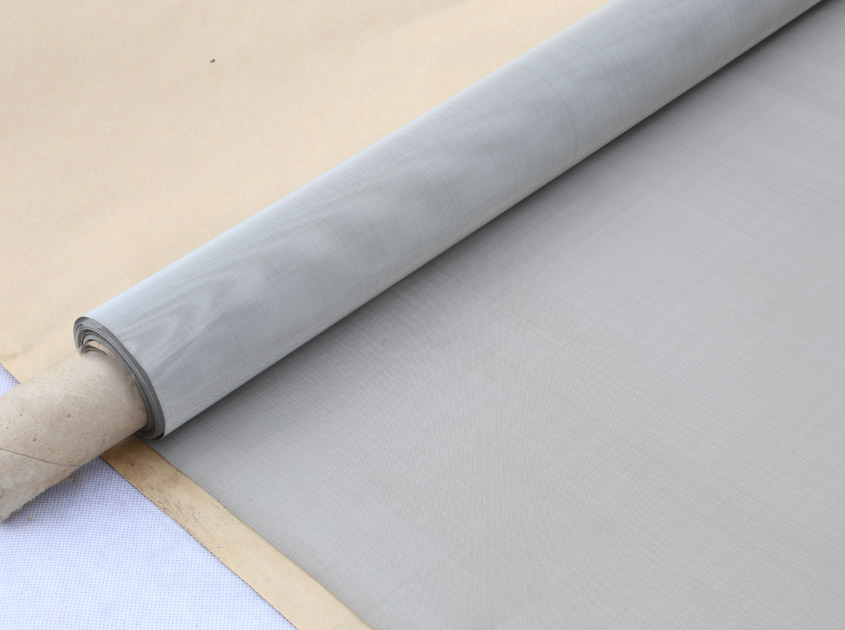

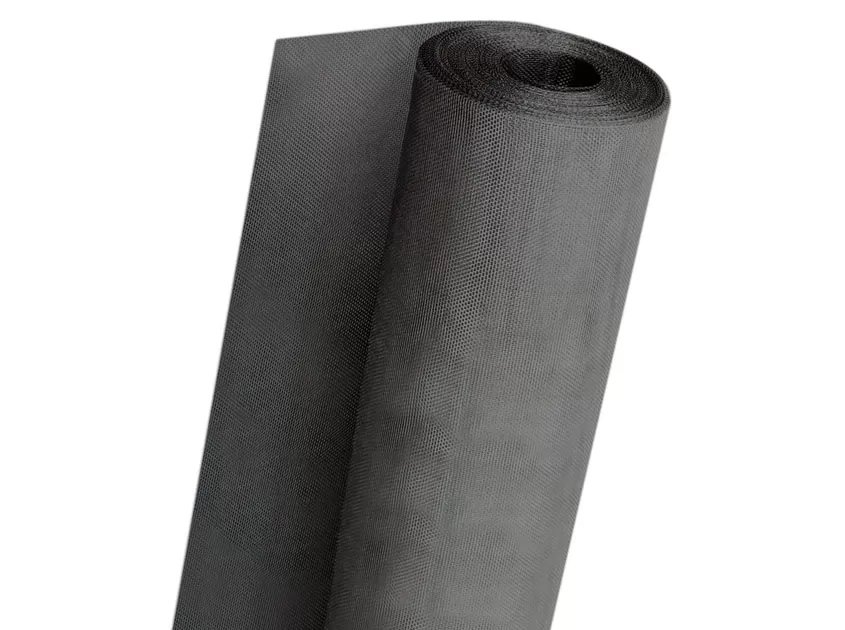

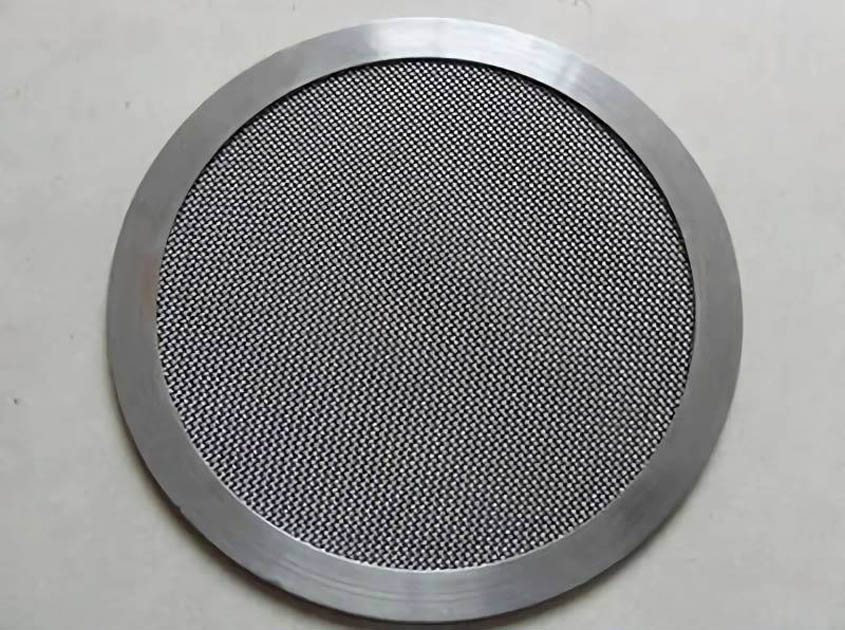

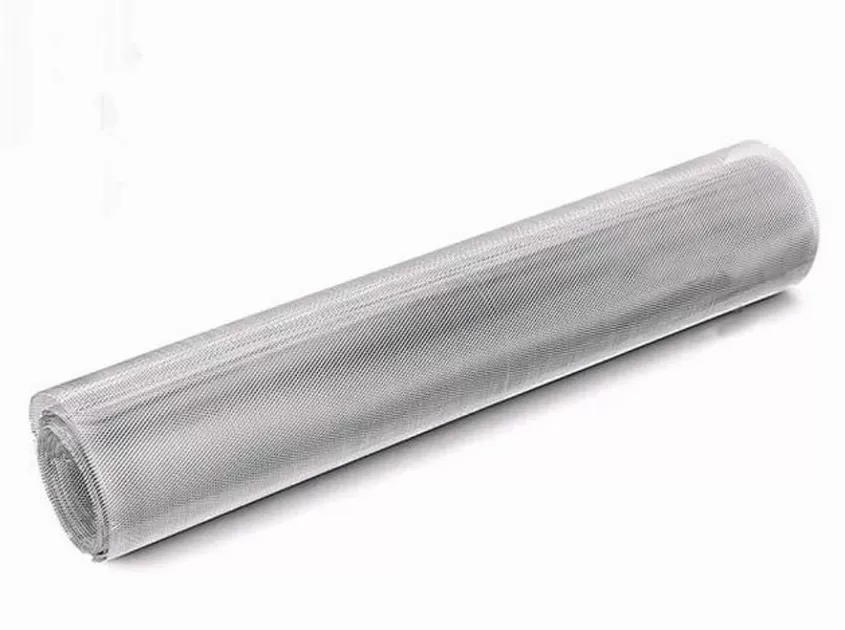

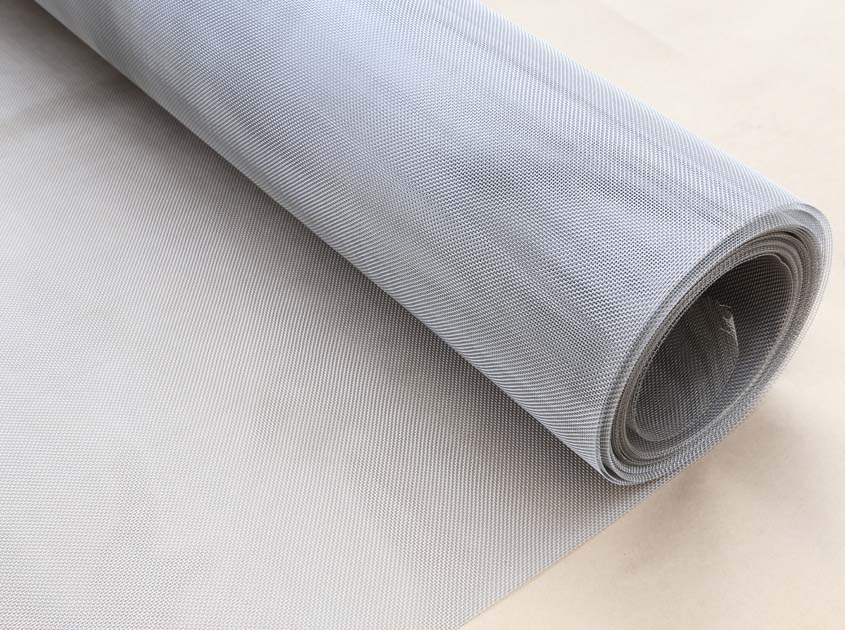

Drawing and Gallery:
Product Name: Hastelloy Wire Mesh
