Introduction:
The complete debeaking machine is composed of transformer, motor and cooling exhaust fan. The debeaking machine head is equipped with motor starting boat-shaped switch and voltage-adjusting multistage switch of electric heating movable knife.
In addition, bench electric beak cutter has the electronic circuit of automatic stopping knife and stanching blood, the machine head is equipped with time adjusting button of stopping knife and stanching blood; It can be adjusted randomly within 0-4 seconds.
The working process of the debeaking machine:
1.Quickly place the chick on the debeaking machine, adjust the temperature of movable blade
2. Wait till the chicken debeaker mouth cutting machine for sale is hot enough or become reddish.
3. When the movable blade glows,start motor switch and both-shaped switch.
4. According to chicken beak size to adjust the aperture of micro cutter blade.

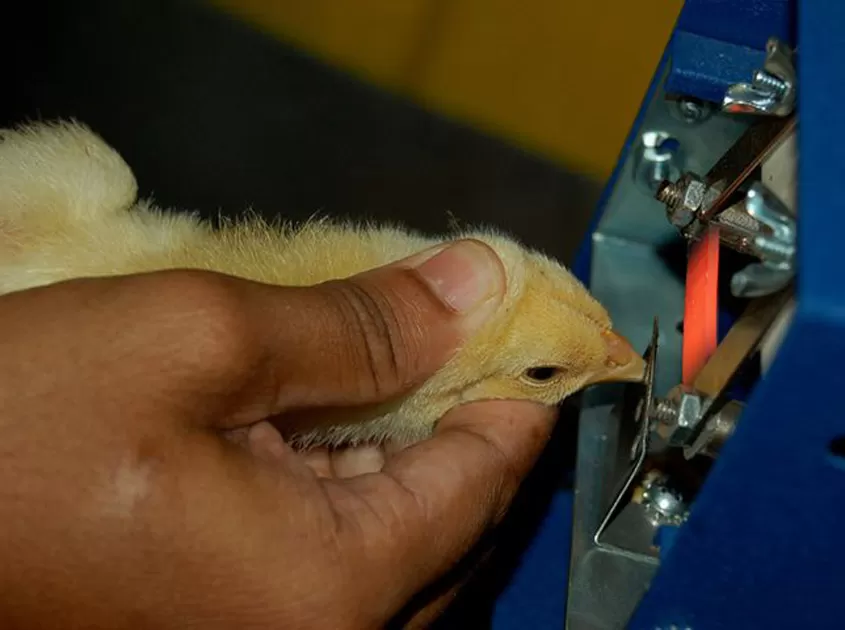

5. Hold chicken with a right position; Usually hot chicken feet with left hand,chicken neck with right thumb,and pin chicken throat with right-hand forefinger.
6. Stick chicken beak into the aperture.When the movable blade drops,stop bleeding with 1-4 seconds.
Features:
1) Shutter:With a centrifugal system which can ensure the shutter open and close automatic, and makes it dustproof, waterproof.
2)Motor: the high efficient and energy-saving motor with protection grade: IP55 , insulation class: F grade
3)Belt: Automatic tensioner to prevent the belt loosing and dropping off .
4)Fan housing made from highly galvanized Steel sheets in order to assure highest strength and strong resistance to corrosion
5) 6 pieces stainless steel blades and the fan translations have all passed the experiment of homeostasis with big air volume, without deformation, no breaking, attractive and durable
6)Belt Pulley: The V type belt pulley is aluminium magnesium alloy injection moulding, light weight, high-strength.
7)Bearing:High intensity, low noise, long service life
Specifications:
| The size of debeaking machine | 27*16*14cm(L*W*H) |
| Voltage applicable | 220V± 10% |
| Power consumption | 200-250W |
| Temperature of movable knife | 600-800°C |
| Red-heat time of movable knife | <30 seconds |
| Time of stopping knife and stanching blood | 0-4 seconds |
| Weight of complete machine | 8.5kg |
Note: Special size and specifications can be made according to customers requires.
Technology:
Blade's Material：304 stainless steel.
This chicken beak cutting machine use low-speed motor to drive electric heating movable knife to do the up -and -down movement by chain bar driving part, and it can automatically set the knife with micro-moving chicken beak positioning blade to quickly finish cutting beak and stanch blood.

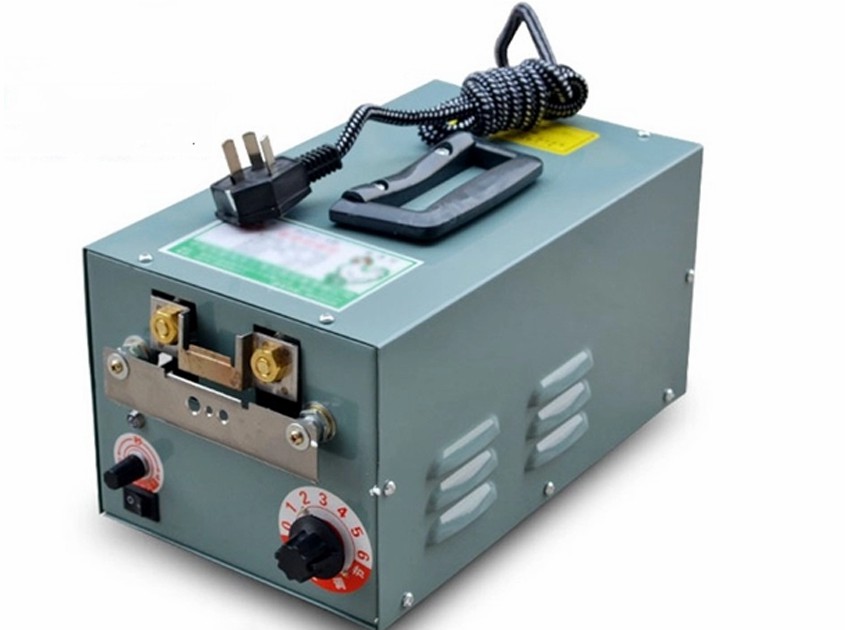

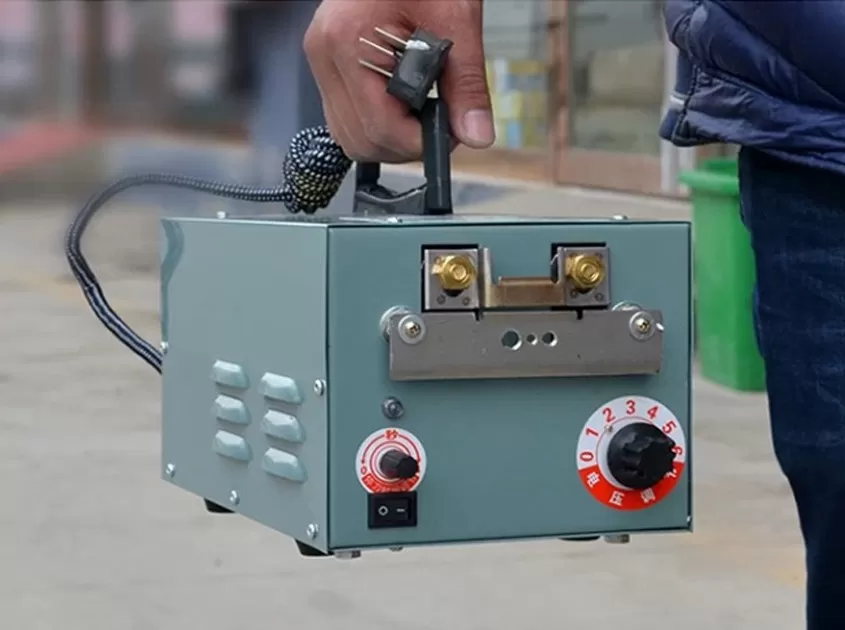

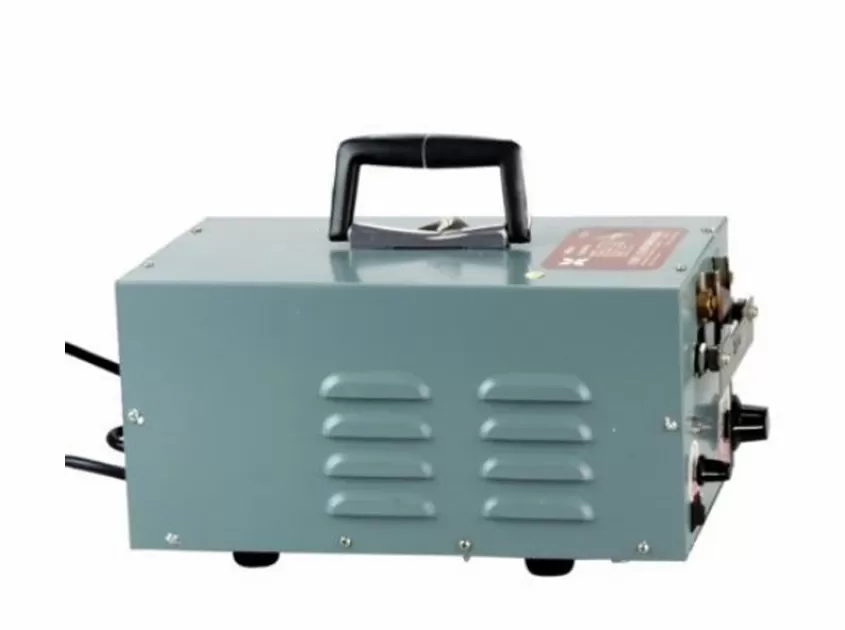

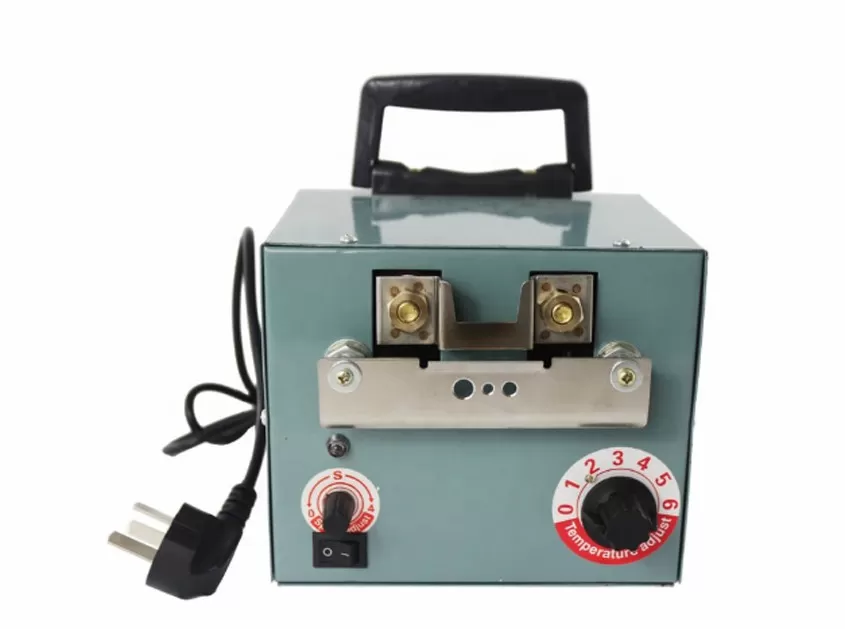

Drawing and Gallery:
Product Name: Debeaking Machine
