Introduction:

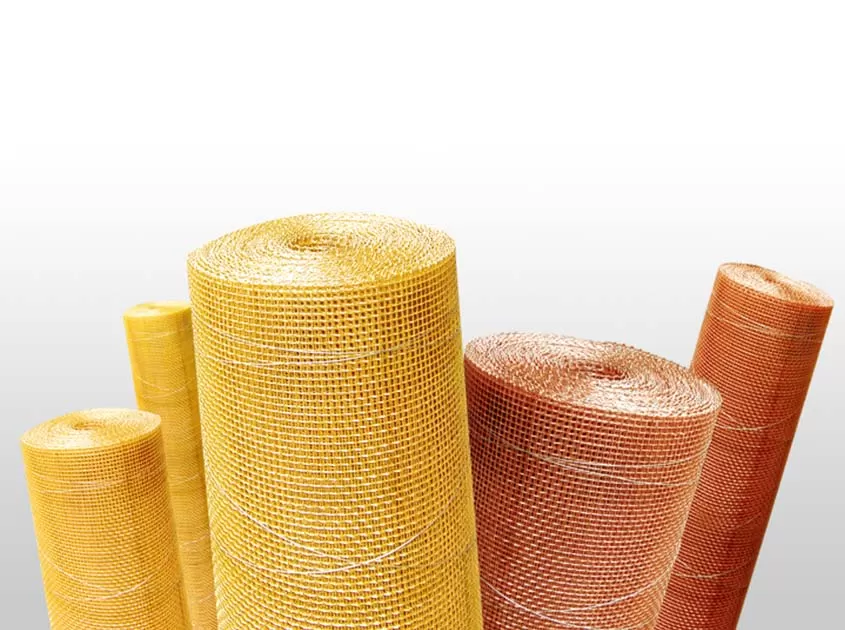

Brass wire mesh, also known as brass woven wire cloth or screen, is a versatile material used in various applications due to its strength, flexibility, and corrosion resistance. Brass, an alloy of copper and zinc, provides the mesh with a golden color and good mechanical properties.
We can provide brass wire mesh with a width from 0.6m to 1.3m, and a length from 15m to 100m. For more information on brass wire mesh, brass EMI shielding, and brass filter mesh, please contact us.
Brass wire mesh options:
● 1*1 to 10*10 mesh
● 12*12 to 40*40 mesh
● ...
Customize your brass wire mesh size, contact us.
Types of Brass Wire Mesh

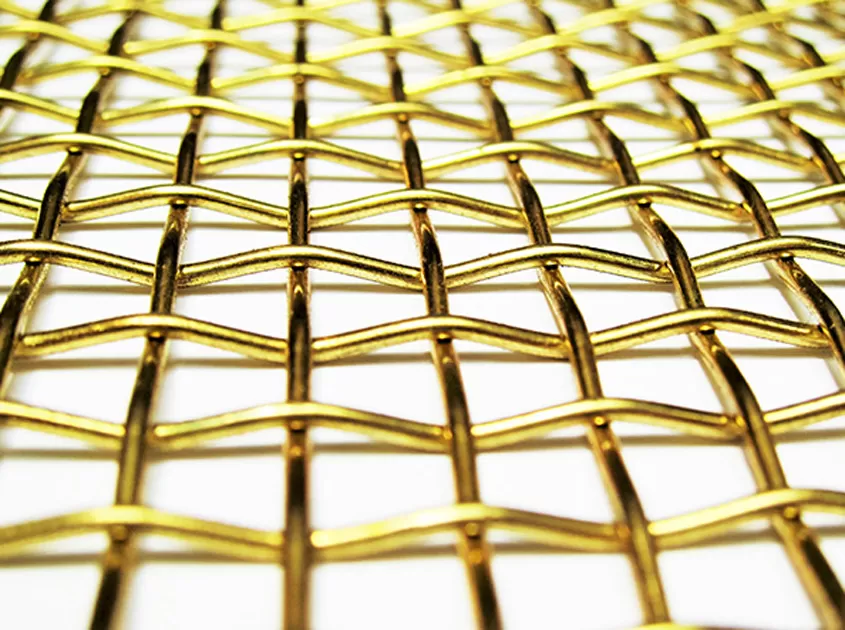

Woven Mesh: The most common type, where wires are interwoven in a pattern similar to fabric. This can be plain weave, twill weave, or Dutch weave.
Welded Mesh: Where individual wires are welded at their intersections, creating a rigid structure.
Perforated Sheets: Brass sheets with holes punched or laser-cut into them, offering different hole patterns and sizes.
Features:
1. Acid and alkali resistance.
2. Outstanding filtration performance.
3. Good tension stress.
4. Excellent extensibility.
5. Bright color.
6. Smooth surface.
7. Conductivity: Brass has moderate electrical and thermal conductivity.
8. Machinability and Workability: It is relatively easy to machine and form, which facilitates its use in various manufacturing processes.
9. Corrosion Resistance: Brass offers good resistance to atmospheric corrosion and marine environments, making it suitable for outdoor and marine applications.
Specifications:
Brass Woven Wire Mesh Specifications
Wire Diameter: Can range from very fine to thick, depending on the intended use.
Mesh Size: The number of wires per inch in both directions affects the mesh's openness.
Openness Factor: The percentage of open area versus the area covered by the wire, influencing flow rates and visibility.
Finishing may include coatings or plating for added corrosion resistance or aesthetics.
| Mesh/Inch | Wire Diameter(mm) | Aperture(mm) | Open Area % |
| 4 | 1.2 | 5.15 | 65.8 |
| 5 | 1 | 4.08 | 64.5 |
| 6 | 0.71 | 3.52 | 69.2 |
| 8 | 0.5 | 2.67 | 70.7 |
| 10 | 0.5 | 2.04 | 64.5 |
| 12 | 0.45 | 1.66 | 61.5 |
| 14 | 0.4 | 1.41 | 60.4 |
| 16 | 0.3 | 1.28 | 65 |
| 18 | 0.25 | 1.16 | 67.6 |
| 20 | 0.25 | 1.02 | 64.5 |
| 30 | 0.21 | 0.64 | 57.1 |
| 40 | 0.19 | 0.45 | 50.2 |
| 50 | 0.15 | 0.36 | 50.1 |
| 60 | 0.15 | 0.27 | 40.7 |
| 70 | 0.13 | 0.232 | 40.8 |
| 80 | 0.12 | 0.197 | 39 |
| 90 | 0.11 | 0.172 | 37.2 |
| 100 | 0.1 | 0.154 | 37 |
| 110 | 0.09 | 0.141 | 37.2 |
| 120 | 0.09 | 0.122 | 33.2 |
| 130 | 0.07 | 0.125 | 41 |
| 140 | 0.07 | 0.111 | 37.6 |
| 150 | 0.06 | 0.109 | 41.5 |
| 160 | 0.06 | 0.098 | 38.1 |
| 180 | 0.053 | 0.088 | 41.6 |
| 200 | 0.05 | 0.077 | 36.7 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Material: brass wire.
Low brass – 65% copper and 35% zinc
Red brass – -80% copper and 20% zinc

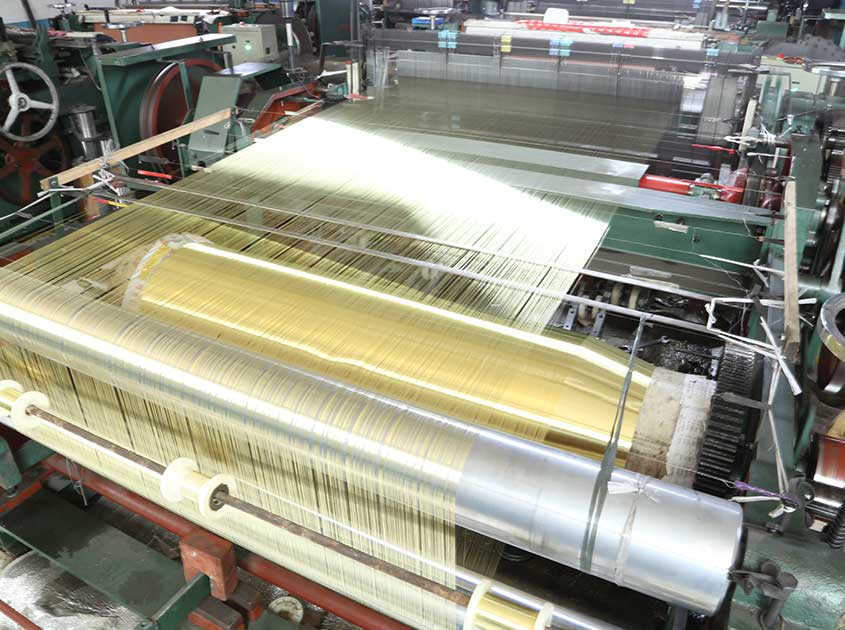

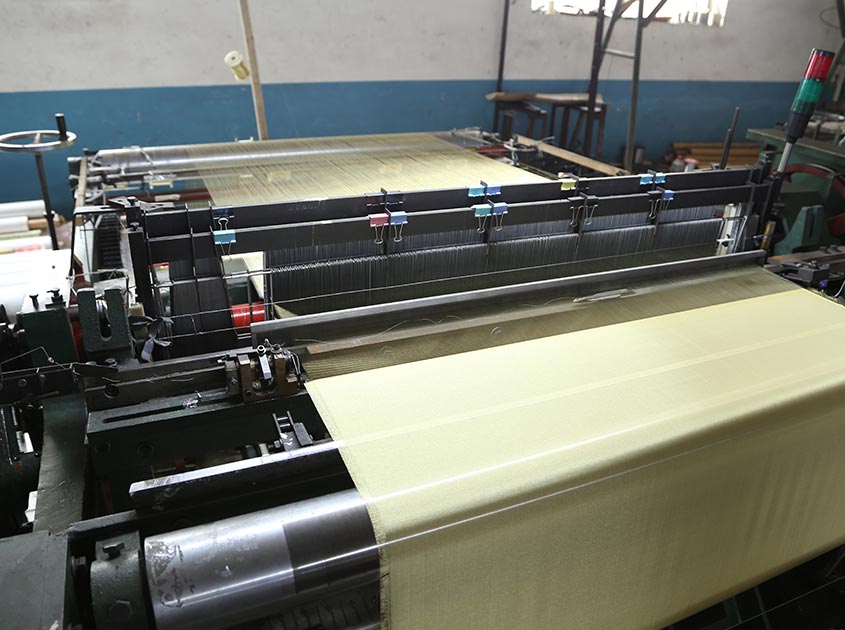

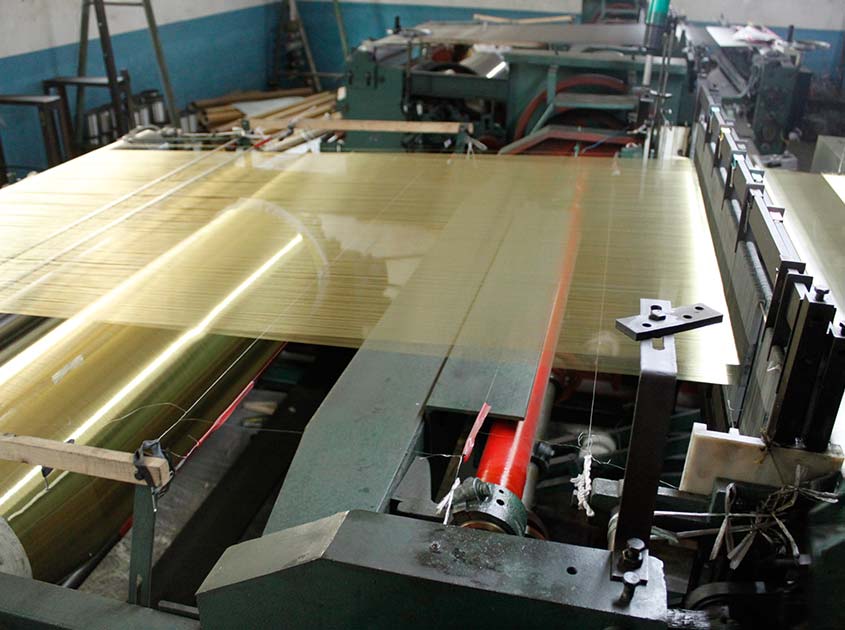

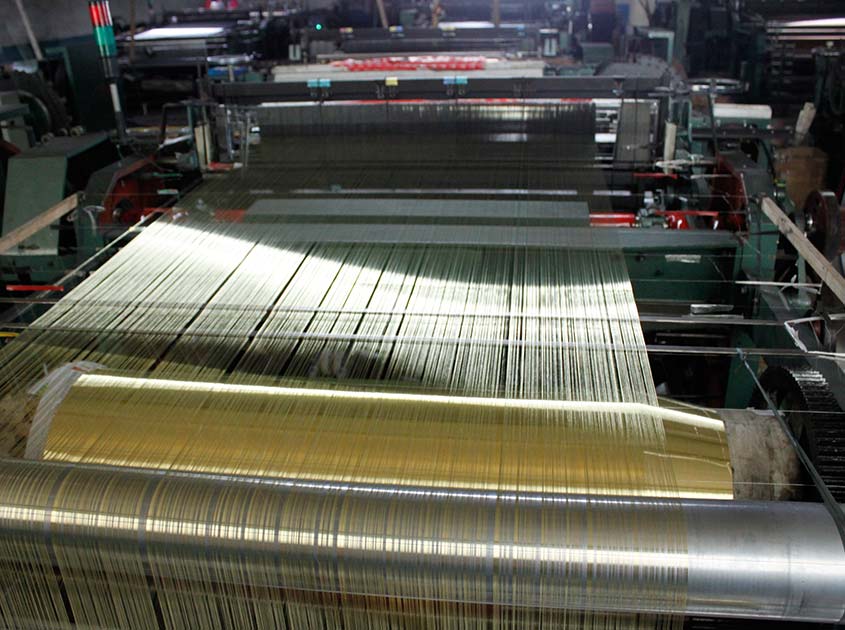

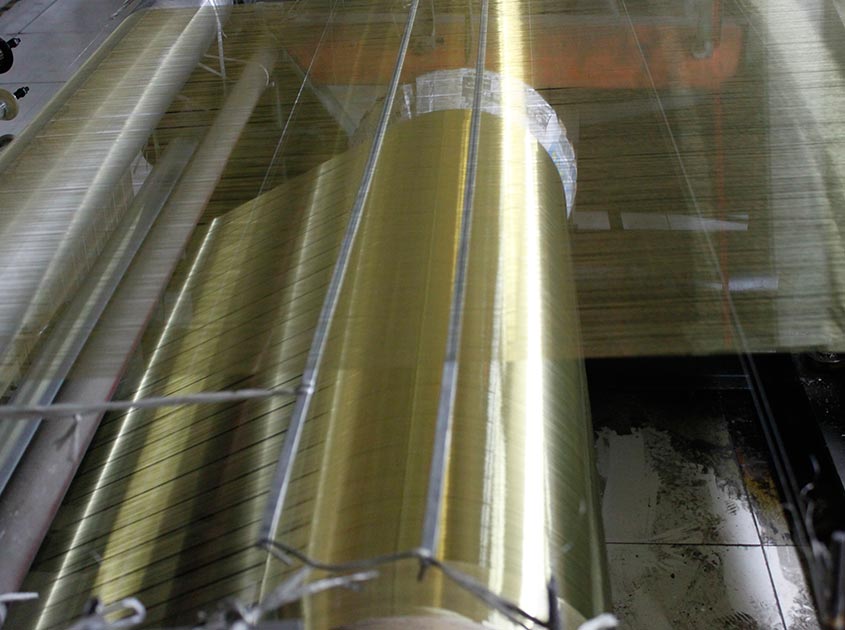

Weaving type: plain weave.
Wire diameter: 0.0045" - 0.063".
Mesh sizes: 2 mesh - 100 mesh.
Newsprint and printing paper for 60 mesh - 70 mesh.
Typing paper for 90 mesh - 100 mesh.
Color: yellow.
Drawing and Gallery:

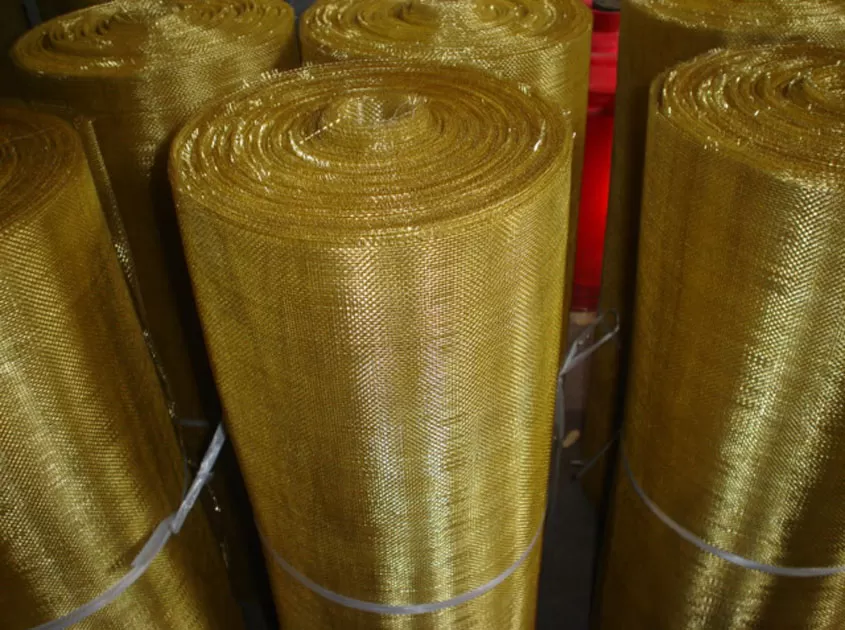

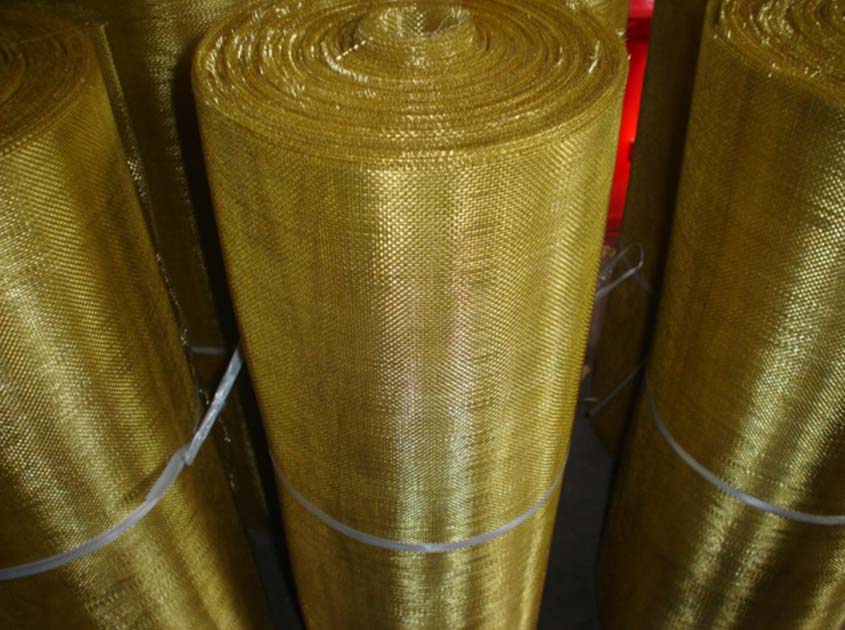

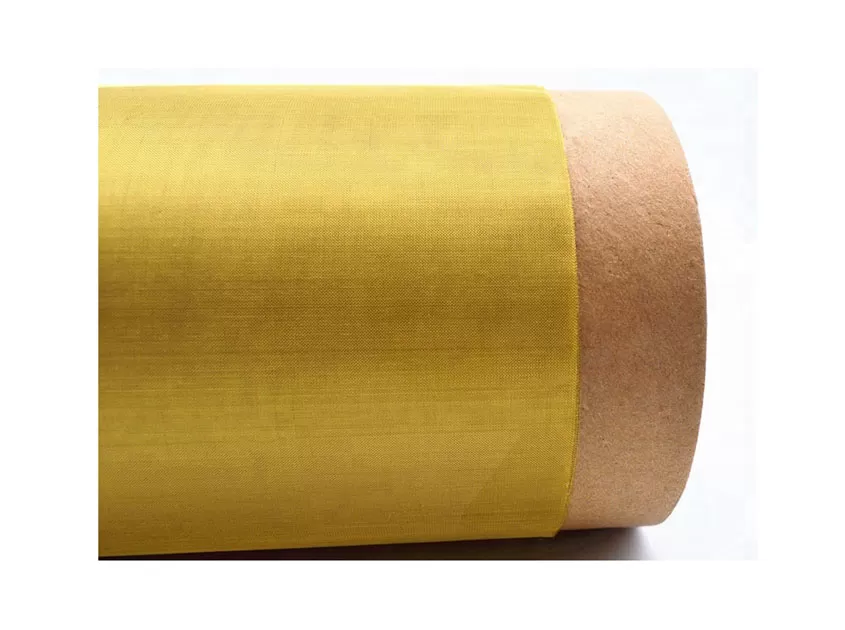

Product Name: Brass Wire Mesh
