Introduction:

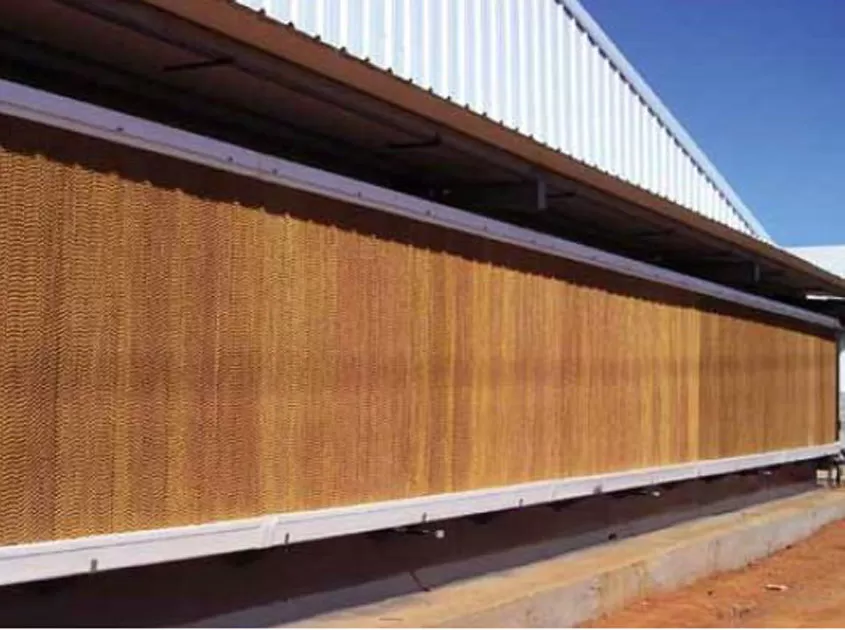

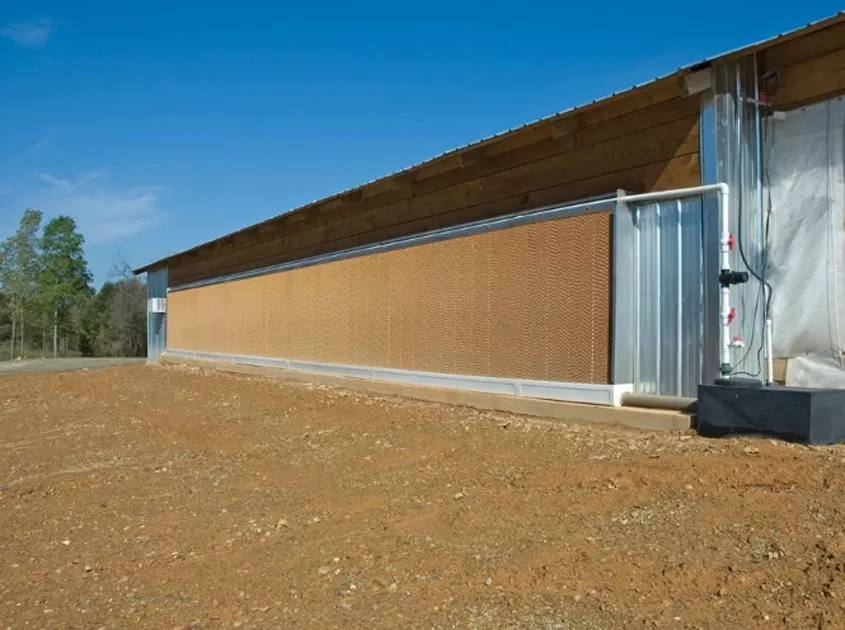

Evaporative cooling pads-exhaust fan of the vertical ventilation cooling combination is the most economical and effective measures to cool the greenhouse in summer. Years from the application of a real show, even in the heat of the day reported, the rational design and installation of a fan of wet curtain cooling system can still control the greenhouse temperature at 30 °C, in order to heat the greenhouse to reduce the adverse effects minimum.In the summer, your chicken house needs evaporative cooling pads to help.
What kind of evaporative cooling pads do we have：

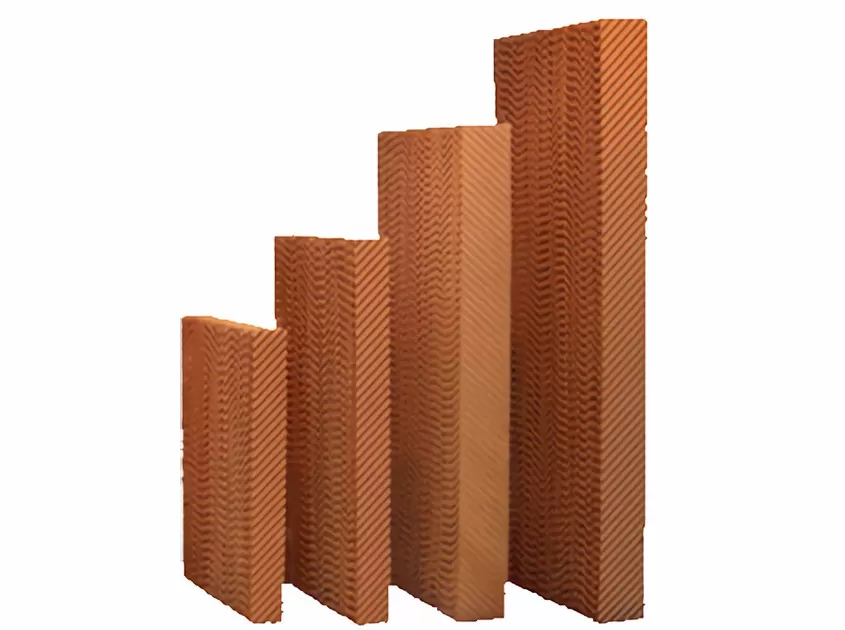

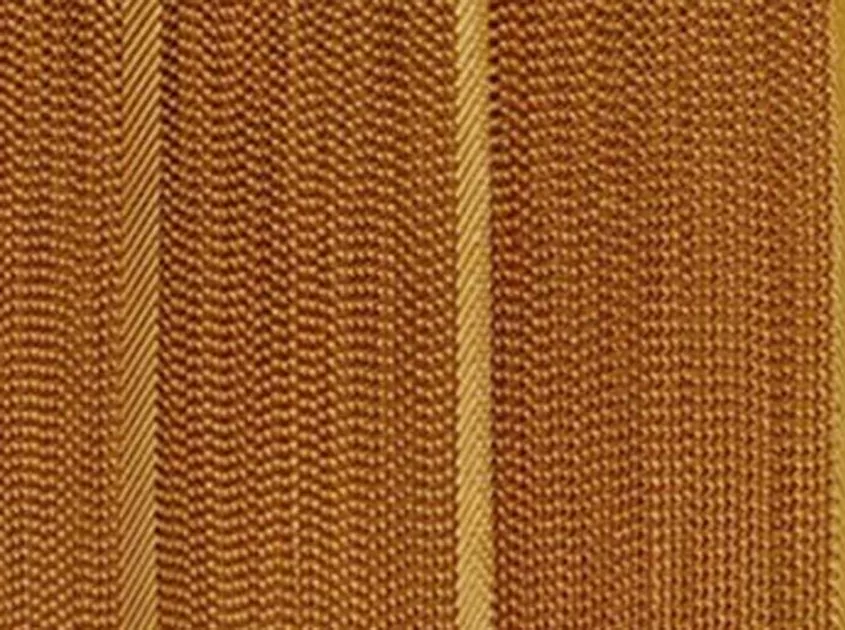

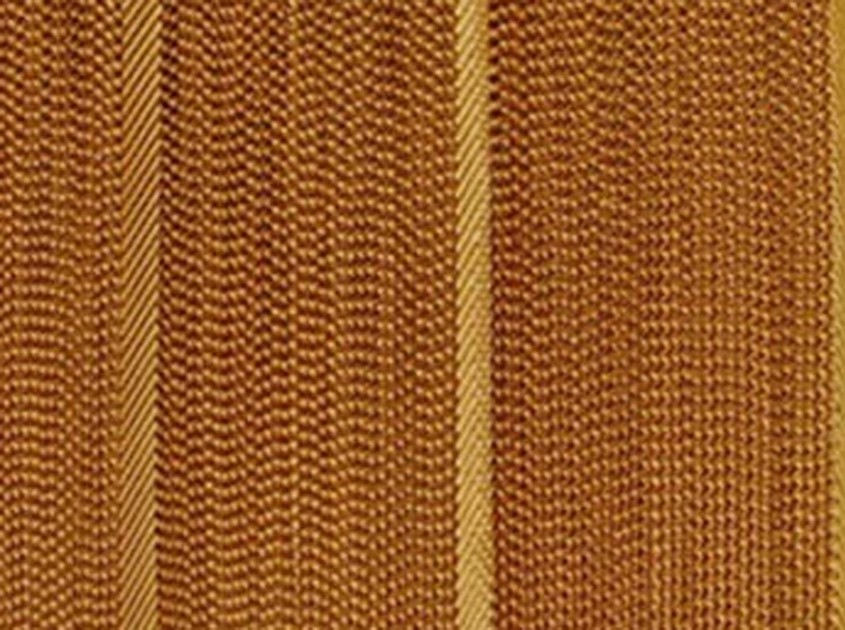

The corrugated fiber structure with some angle, it can provide enough surface area for air and water heat exchange, and purify the air from outside, has the filter performance.
2.Made of absorbent brown paper,strong water absorption ,corrosion resistance,long usable life.Evaporation efficiency is by up to 80%.Absorbing water naturally,fast diffuse,durable efficiency.
3.Special technology,inhibiting growth of bacteria and algae.Beautiful exterior,environmental protection,no pollution.
4.Large evaporation area, cooling efficiency as high as 80%
Features:
1. Hygroscopicity: Though with the special craft processing crossing linking technology, corrugated paper has high absorbable, high water resistant, mildew proof and long service life.
2. Dry solution: When water stop flowing on the cooling pad surface, the protective coating will dry quickly,so it could prevent parasitic microbes survive on the surface, thus inhibiting the algae and other organic matter from breeding in the surface.
3. Non-porous surfaces: Prevent the algae and mineral substance from residing in the deep, and drying off the surface.
4.The product absorbs water naturally, with fast speed of penetration and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70 mm /5 minutes, as 200 mm/1.5 hours, having reached international standard.
5.Improved some shortcoming of cooling pad,fragile,inconvenient cleaning,ect.High strength,strong corrosion resistance,high impact resistance,easy cleaning.
6.Galvanized steel, an aluminum frame, and plastic-steel are optional.
7.Low energy consumption that equals just one-tenth of traditional air conditioners.
Specifications:
| Specification | QK-SL7060 | QK-SL7090 | QK-SL5090 |
| Height(mm) | 1500/1800/2000 | 1500/1800/2000 | 1500/1800/2000 |
| Width(mm) | 300/600 | 300/600 | 300/600 |
| Depth(mm) | 100/150/200/600 | 100/150/200/600 | 100/150/200/600 |
| h(mm) | 7 | 7 | 5 |
| Wave angle a | 45° | 15° | 45° |
| Wave angle b | 45° | 45° | 45° |
Note: Special size and specifications can be made according to customers requires.
Technology:
1.Edge：Stainless steel edge,scrub process,more high-end.
2.Wet curtain:Corrugated wet,curtain through special treatment,structural strength,corrosion resistance,long service life.

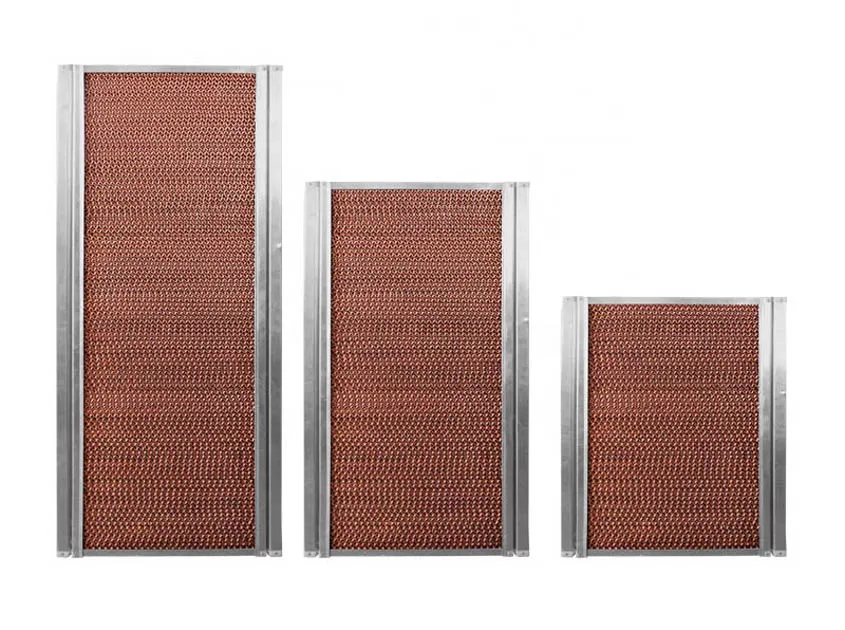

Drawing and Gallery:
Product Name: Evaporative Cooling Pads
