Introduction:
The Roofing nails also called umbrella roofing nail. The material is used by high quality Q195 and Q235 steel wire. The Finish can be galvanized, black, yellow, white, and the shank of the roofing nails can be spiral shank, plain shank, groove shank, straight shank, twisted shank.
Features:
1. Bright finished
2. Anti-rust
3. Strong and hard
4. Low cost
5. Hot sales products
6. Different diameter or length
Specifications:

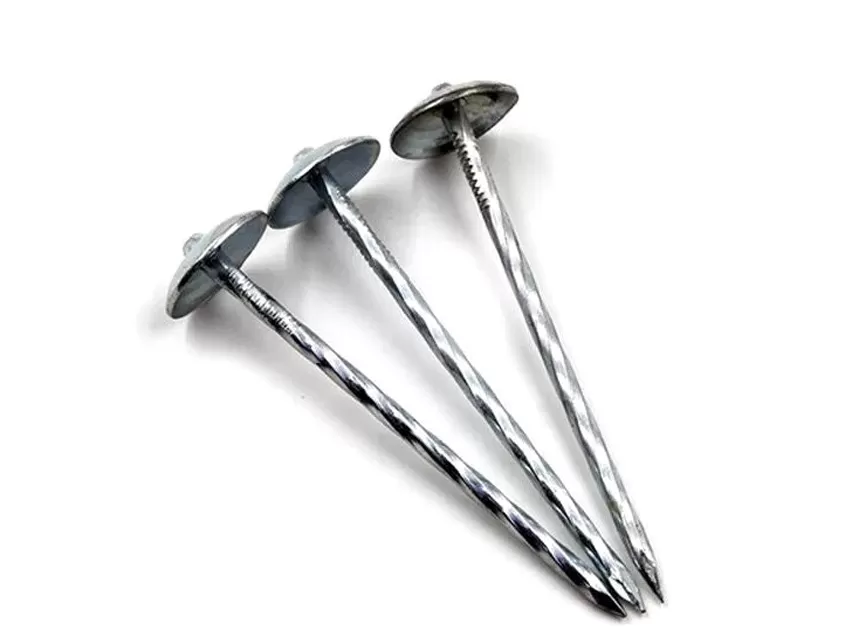

1.Twisted shank roofing nails:
| SPECIFICATONS | LENGTH (MM) | DIAMETER (MM) |
| 8GX2" | 50.8 | 4.19 |
| 8GX2.5" | 63.5 | 4.19 |
| 8GX3" | 76.2 | 4.19 |
| 9GX1.5" | 38 | 3.73 |
| 9GX2" | 50.8 | 3.73 |
| 9GX2.5" | 63.5 | 3.73 |
| 9GX3" | 76.2 | 3.73 |
| 10GX1.75" | 44.5 | 3.40 |
| 10GX2" | 50.8 | 3.40 |
| 10GX2.5" | 63.5 | 3.40 |

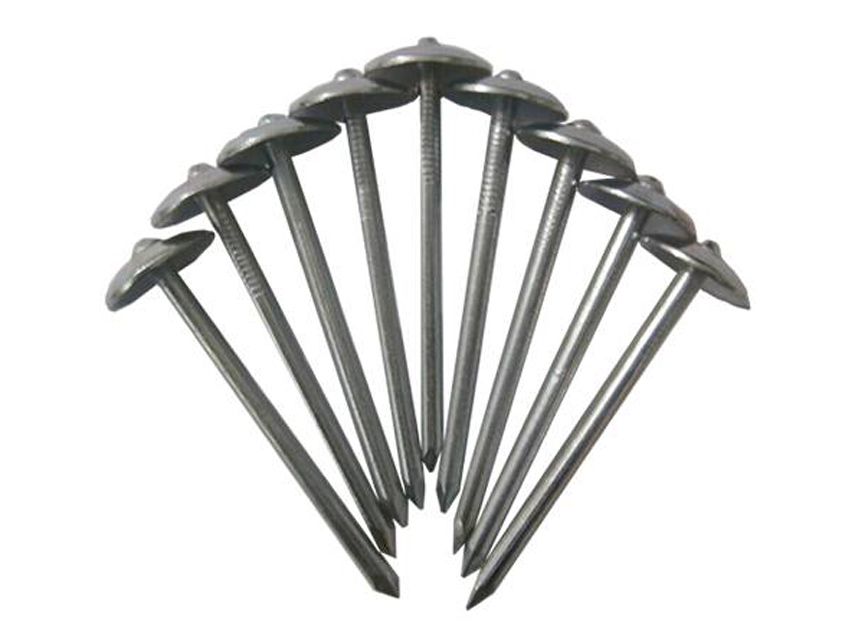

2. Plain shank roofing nails:
| SPECIFICATONS | LENGTH (MM) | DIAMETER (MM) |
| 11GX1.5" | 38 | 3.02 |
| 11GX1.75" | 44.5 | 3.02 |
| 11GX2" | 50.8 | 3.02 |
| 11GX2.5" | 63.5 | 3.02 |
| 12GX1.5" | 38 | 2.74 |
| 12GX1.75" | 44.5 | 2.74 |
| 12GX2" | 50.8 | 2.74 |
| 13GX1.5" | 38 | 2.38 |
| 13GX1.75" | 44.5 | 2.38 |
| 13GX2" | 50.8 | 2.38 |
3.(Coil) Roofing Nails
| Specifications | Shank Diameter(mm) | Cap Diameter(mm) | Length(mm) |
| 8G* 2" | 4.19mm | 20mm | 51.2mm |
| 8G* 2.5" | 4.19mm | 20mm | 64.0mm |
| 8G * 3" | 4.19mm | 20mm | 76.2mm |
| 9G *1.5" | 3.85mm | 20mm | 38.4mm |
| 9G *2" | 3.85mm | 20mm | 51.2mm |
| 9G* 2.5" | 3.85mm | 20mm | 64.0mm |
| 9G* 3" | 3.85mm | 20mm | 76.2mm |
| 10G*1.75" | 3.4mm | 20mm | 44.5mm |
| 10G*2" | 3.4mm | 20mm | 51.2mm |
| 10G* 2.5" | 3.4mm | 20mm | 64.0mm |
| 10G* 2.5" | 3.4mm | 20mm | 76.2mm |
| 11G*1.75" | 3.15mm | 18mm | 44.5mm |
| 11G* 1.5" | 3.15mm | 18mm | 38.4mm |
| 11G* 2" | 3.15mm | 18mm | 51.2mm |
| 11G* 2.5" | 3.15mm | 18mm | 64.0mm |
| 12G*1.75" | 2.80mm | 18mm | 44.5mm |
| 12G* 1.5" | 2.80mm | 18mm | 38.4mm |
| 12G* 2" | 2.80mm | 18mm | 51.2mm |
| 12G* 2.5" | 2.80mm | 18mm | 64.0mm |
| 13G*1.75" | 2.38mm | 14mm | 44.5mm |
| 13G* 1.5" | 2.38mm | 14mm | 38.4mm |
| 13G* 2" | 2.38mm | 14mm | 51.2mm |
Note: Special size and specifications can be made according to customers requires.
Technology:
1. Material: Q195,Q235 iron wire rod or according to request
2. Finish: galvanized/E.G. or hot dipped galvanized /H.D.G.
3. Head: umbrella head
4. Shank: plain shank, twisted shank
5. Point: diamond point
6. Length Available:
Roofing Nail of shank dia:2.5mm-4.0mm
Roofing nail of length:13mm-76mm
Roofing nails with umbrella head: 14mm-20mm
Length is from the point to the underside of the head.

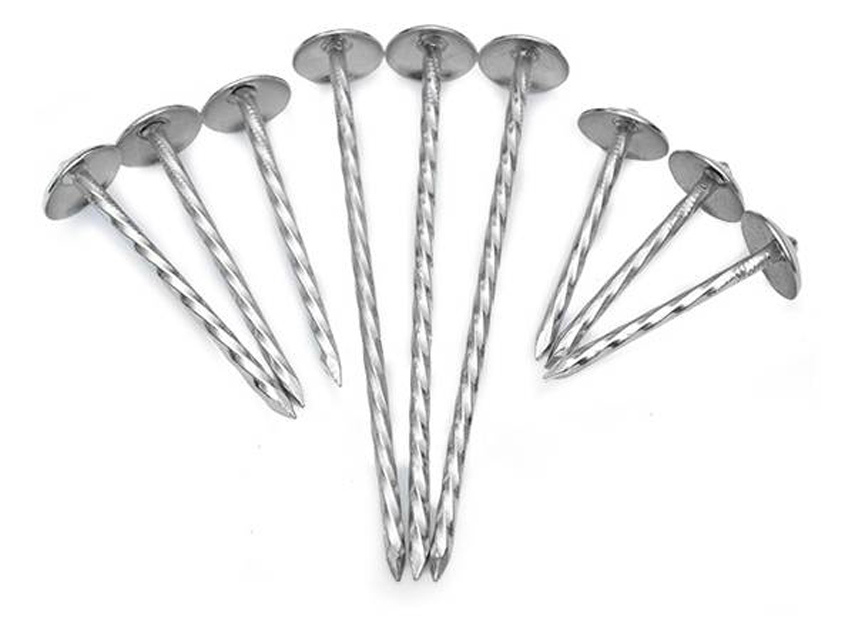

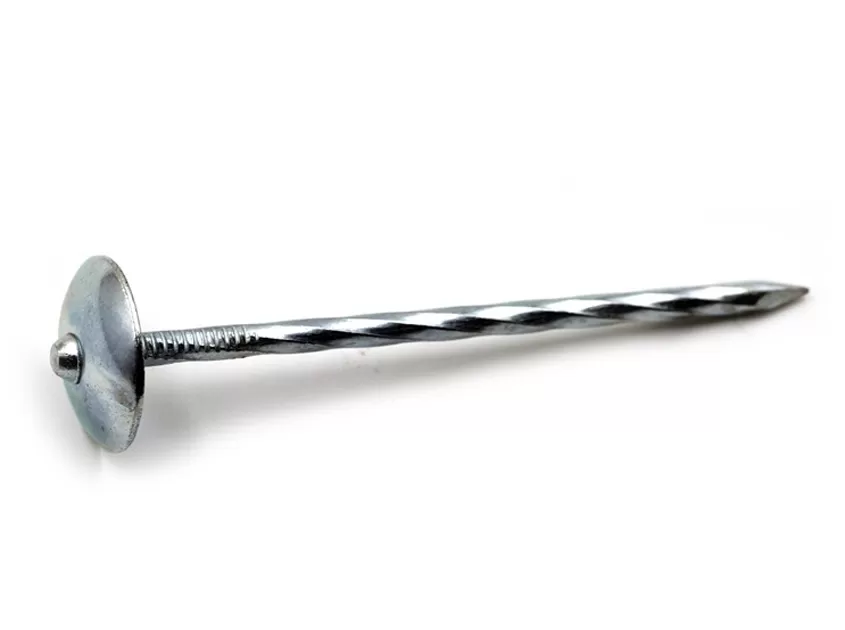

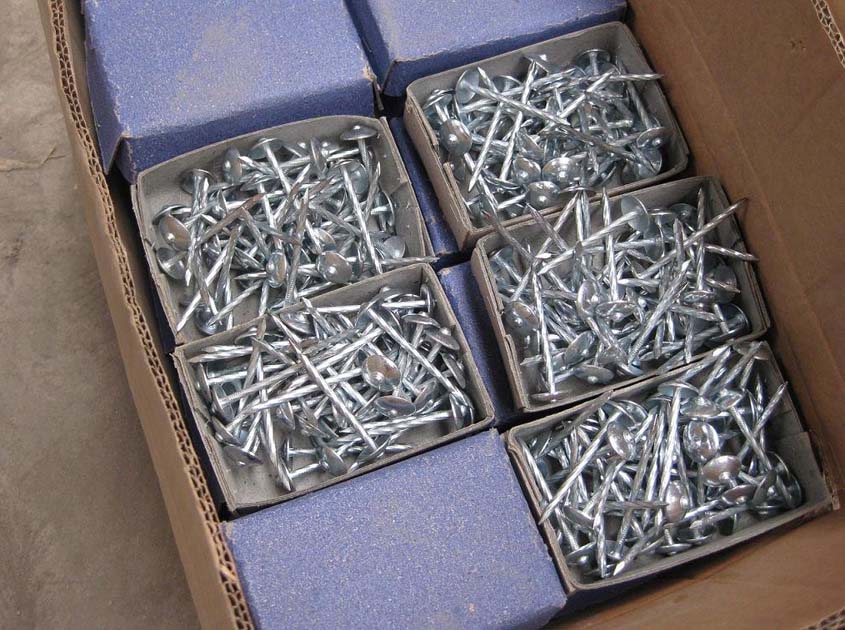

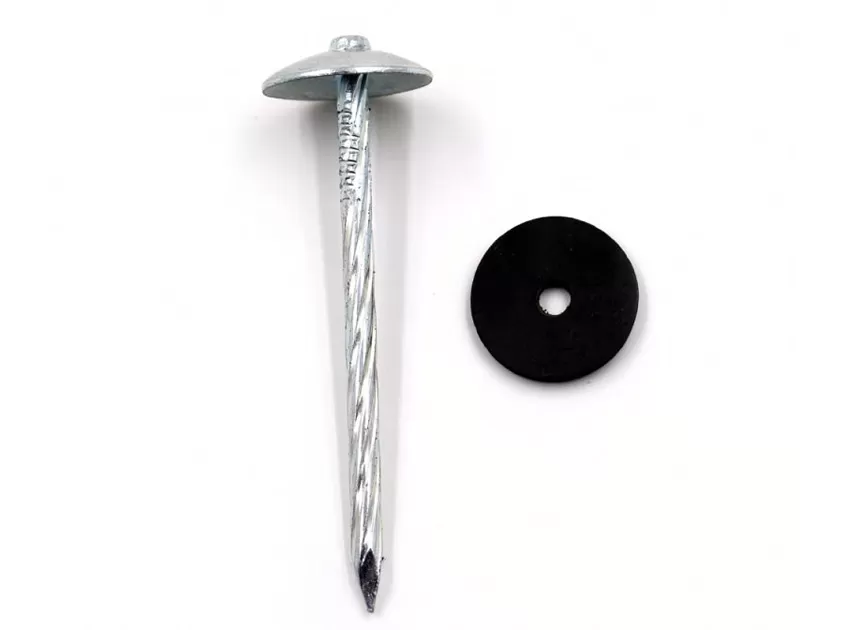

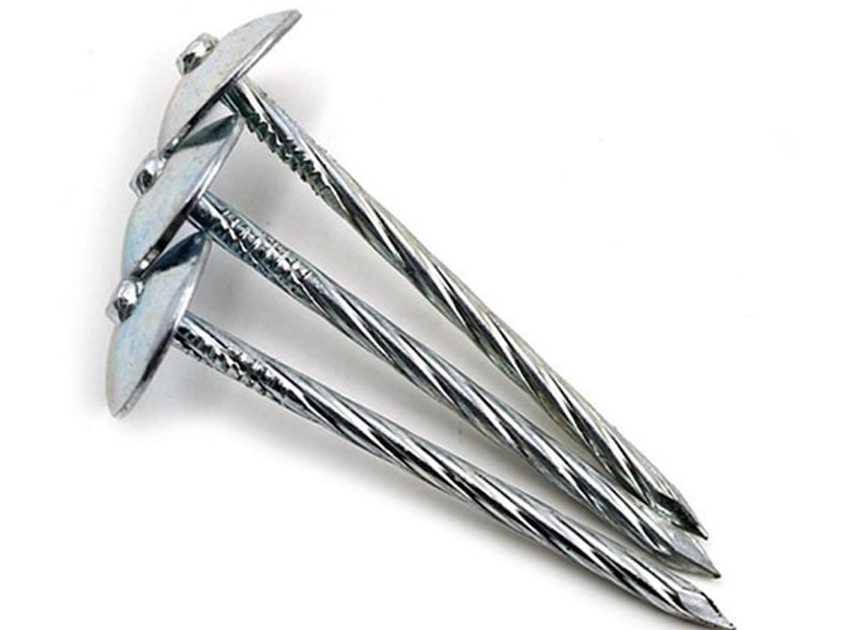

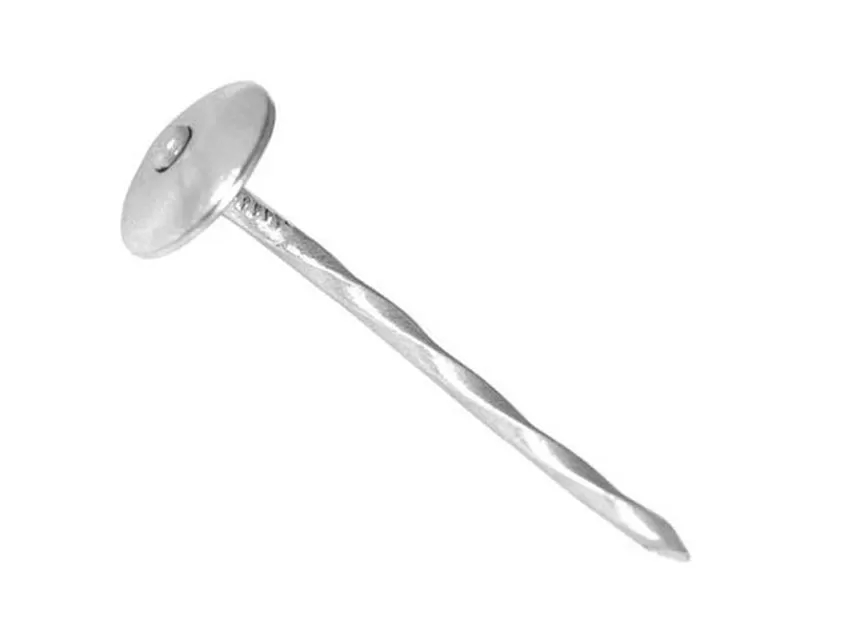

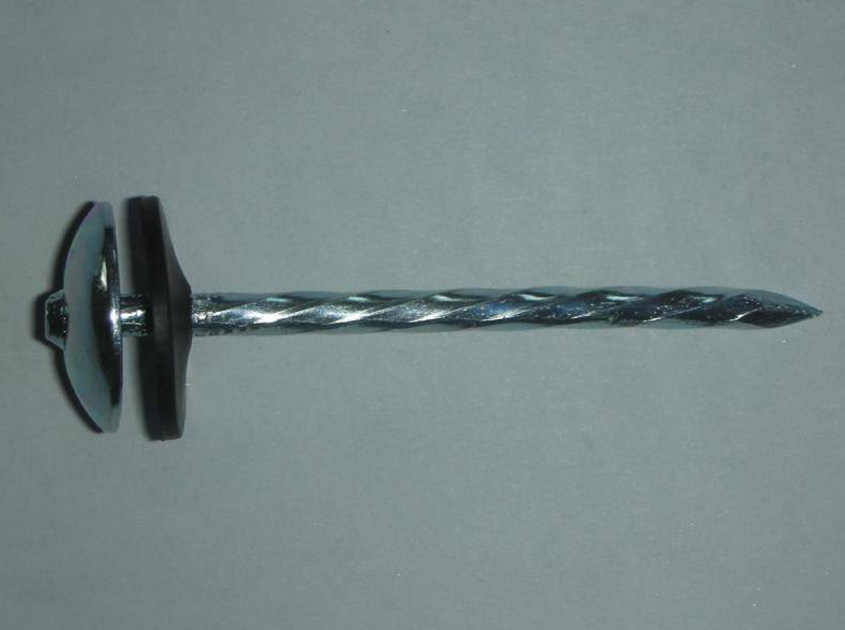

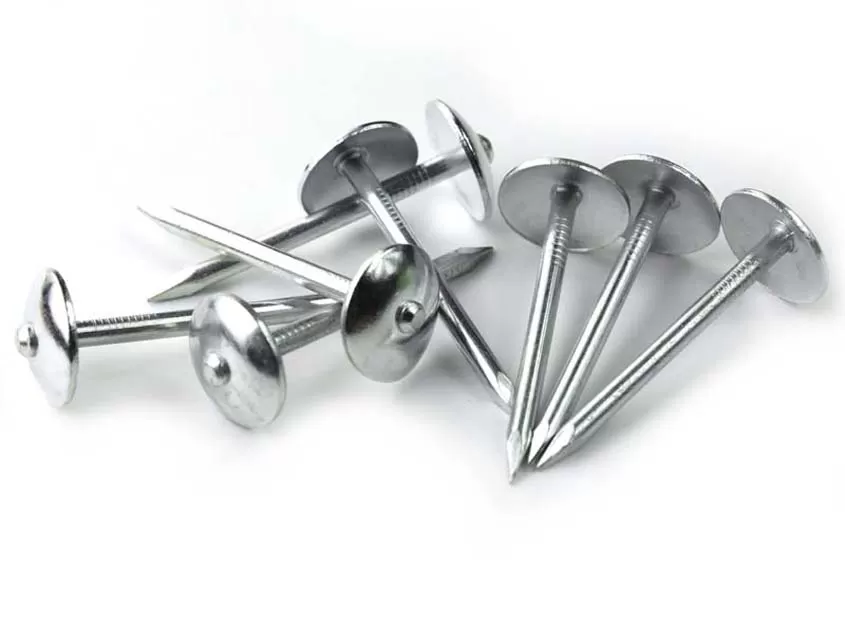

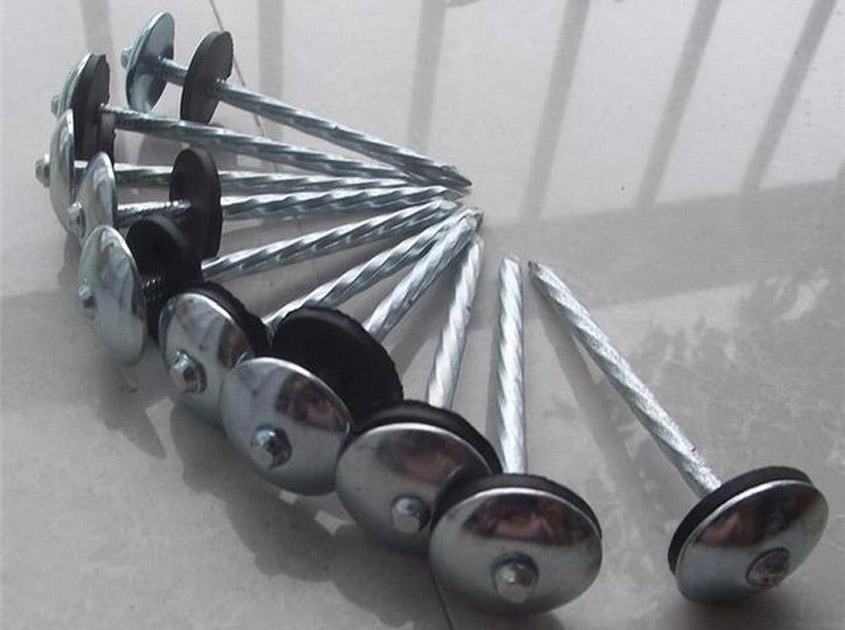

Drawing and Gallery:
Product Name: Roofing Nails
