Introduction:
Blast barrier systems are constructed from heavy-duty welded wire mesh panels made of high-strength low-carbon steel wire. Each panel is precisely welded at every intersection to ensure consistent structural integrity and long-term durability. The modules are assembled using spiral connectors or lacing wires, forming a continuous and stable wall system. Optional reinforcement such as internal diaphragms and stiffening frames further enhances rigidity, allowing the structure to maintain excellent performance even under extreme pressure conditions.
Once filled with sand, gravel, or stone, the system becomes a highly effective blast protection barrier. It is designed to absorb and dissipate explosive energy, significantly reducing shockwave transmission, impact force, and damage from flying debris or fragmentation. This makes it a reliable solution for protecting personnel, equipment, and critical infrastructure in high-risk environments.
With its modular and scalable design, the blast barrier can be quickly configured to meet different height, thickness, and layout requirements. It is widely used in military bases, field camps, oil and gas facilities, petrochemical plants, embassies, airports, and critical infrastructure security projects. Supplied in a flat-packed format, it enables efficient transportation, fast on-site assembly, and rapid deployment without specialized equipment.
Features:
Durable structure with greater strength.
Better shape control.
Utmost corrosion resistance.
Easy to assemble.
Aesthetically appearance.
Specifications:
Welded Gabion Blast Barrier | |||
Gabion size(m) | Mesh opening | Wire diameter | Surface treatment |
1×1×1 | 50 x 50mm 75 x 75mm 80 x 80mm 100 x 100mm | 3-6mm | Galvanized Galfan PVC coated |
2×1×1 | 3-6mm | ||
3×1×1 | 3-6mm | ||
0.5×0.5×0.5 | 3-6mm | ||
1×0.5×0.5 | 3-6mm | ||
1×1×0.5 | 3-6mm | ||
2×1×0.5 | 3-6mm | ||
Note: Special size and specifications can be made according to customers requires.
Technology:
Material: low carbon steel wire
Wire diameter:3.0-6.0mm
Surface: passivation and plasticization of electro-galvanized, hot-dip galvanized, plastic coated, dip-coated or Galvan
Color: silver, green. etc
The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating.

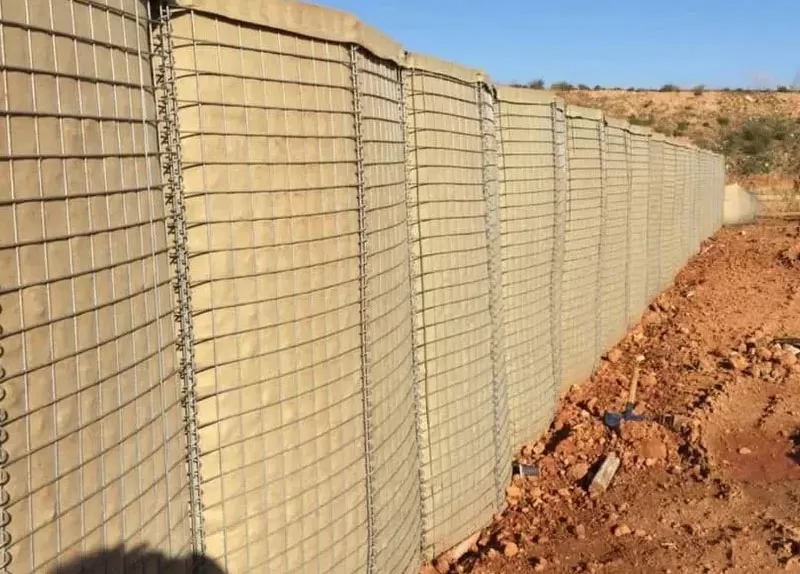

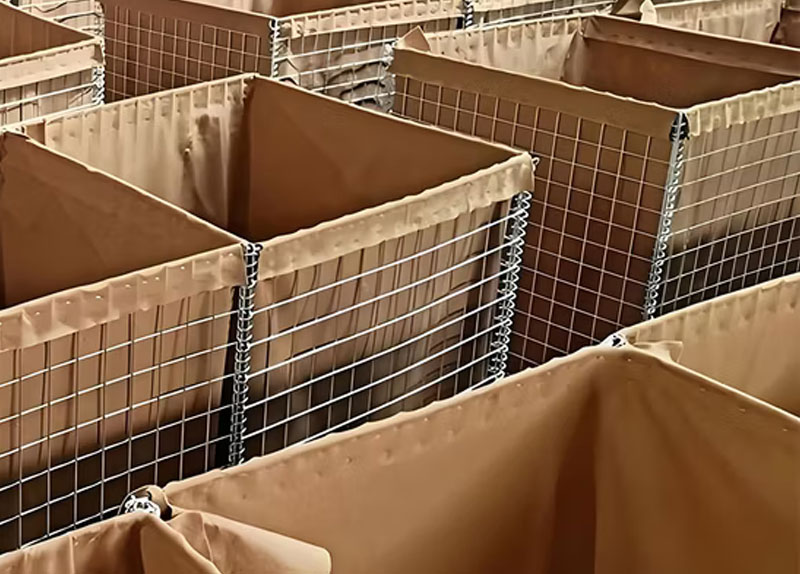

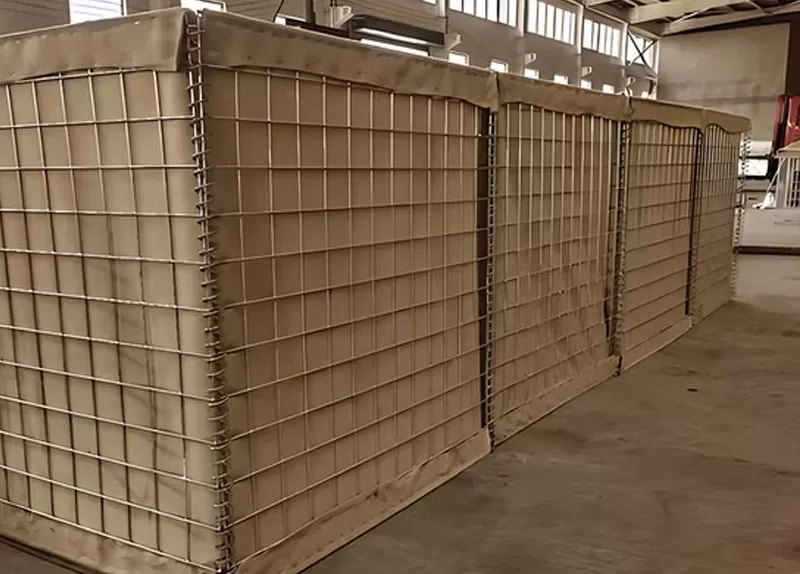

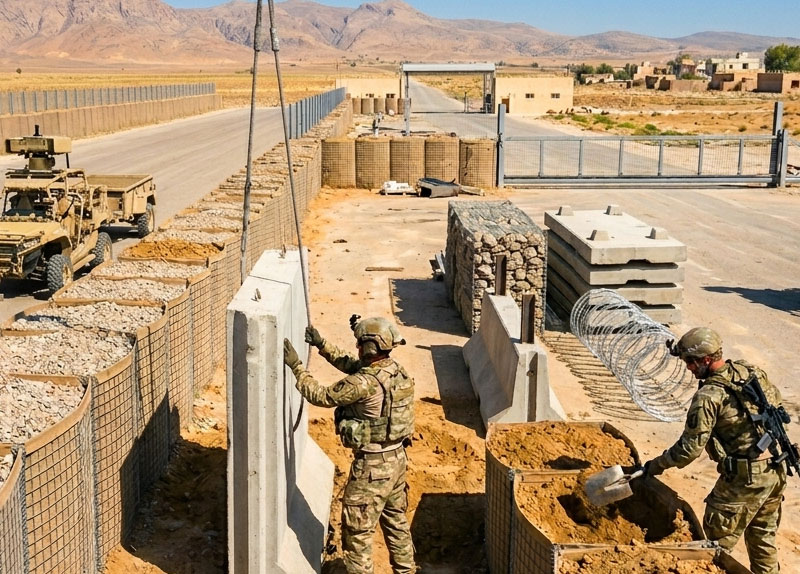

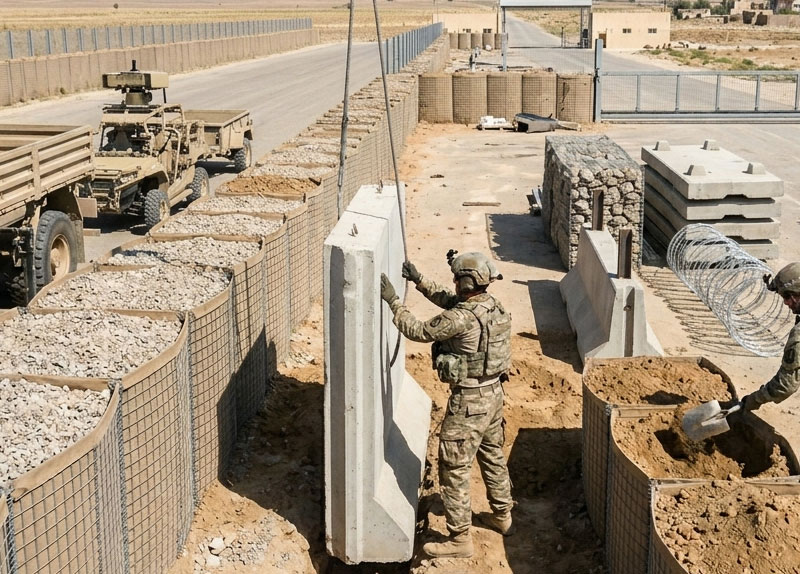

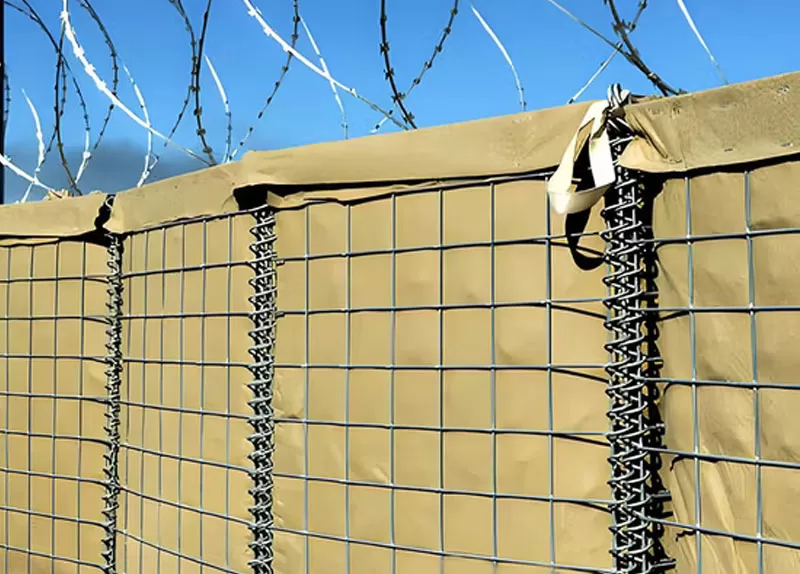

Drawing and Gallery:
Product Name: Blast Barrier
