Introduction:
Pleated filter also named stainless steel pleated filter made of pleated stainless steel sintered fiber web and stainless steel weaving wire cloth. Pleated filter enjoy the characteristics of long life span, easy cleaning, low cost, etc. It is widely used in chemical fiber, petroleum, chemical industry, electric powder filtration.
Features:
Large filtration area and particle holding capacity;
High porosity rate, good air permeability and filtration ability;
Suitable for viscous liquid filtration, recycled using after cleaning;
Workable in High temperature or and high pressure.
Specifications:
| Material | ss304 wire mesh,ss316 wire mesh,ss316l wire mesh,brass wire mesh, hastelloy sintered wire mesh, nickel wire mesh, monel wire mesh, FrCrAl wire mesh etc |
| Filter precision | 1 - 2000μm |
| Working temperature | -50°C -800°C |
| Working pressure | 30Mpa |
| Filtration area | 0.01-0.2m2 |
| Rated flow | 80-200L/min |
| length | 5", 10", 20", 30", 40" or as needed. |
| Diameter | 60 mm, 64 mm, 69 mm, 83 mm, 131 mm, or as needed. |
| Inner diameter | 28–40 mm, or as needed. |
| Main filter media | stainless steel sintered fiber web and stainless steel wire woven cloth. |
| Installing form | standard (using o-ring to seal), thread, tie rod, flange, fast interface |
Note: Special size and specifications can be made according to customers requires.
Technology:

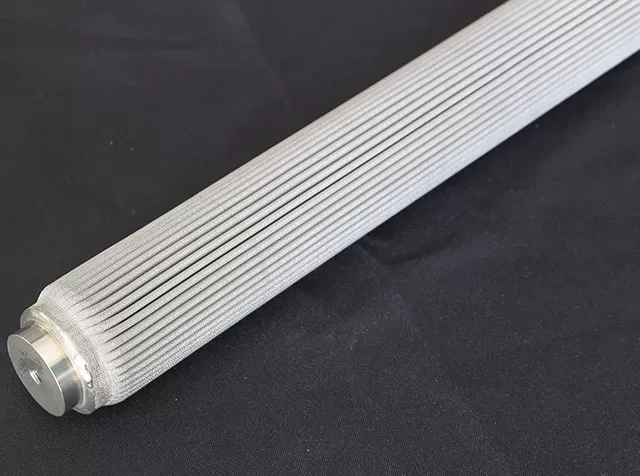

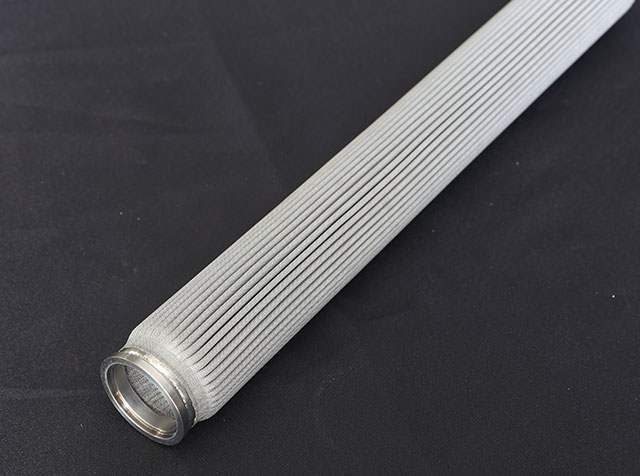

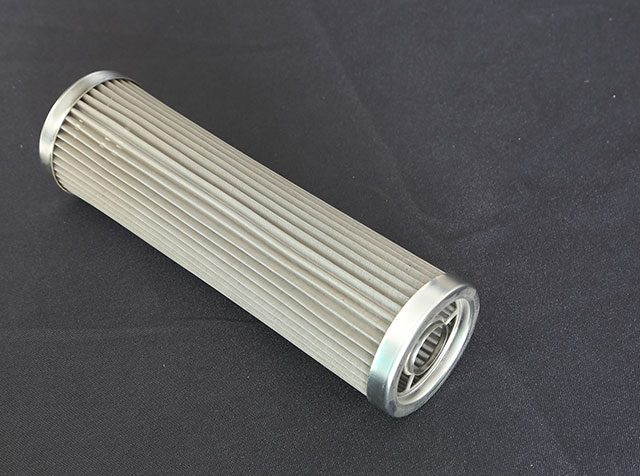

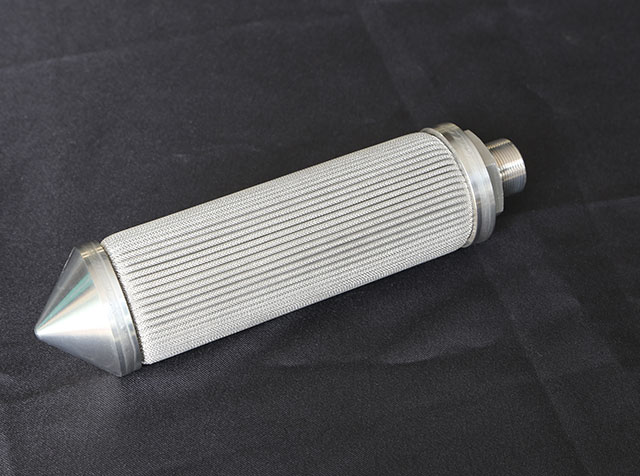

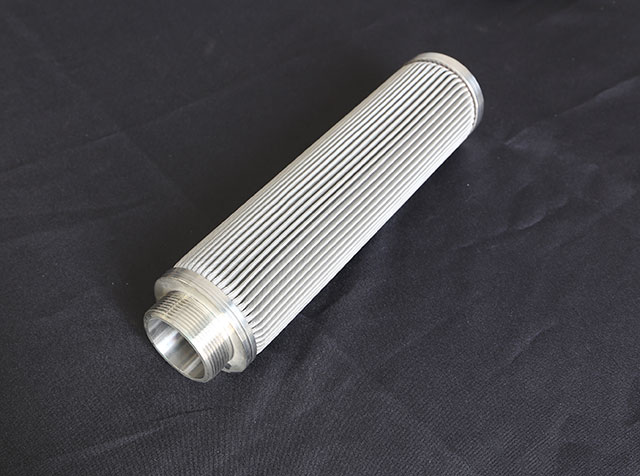

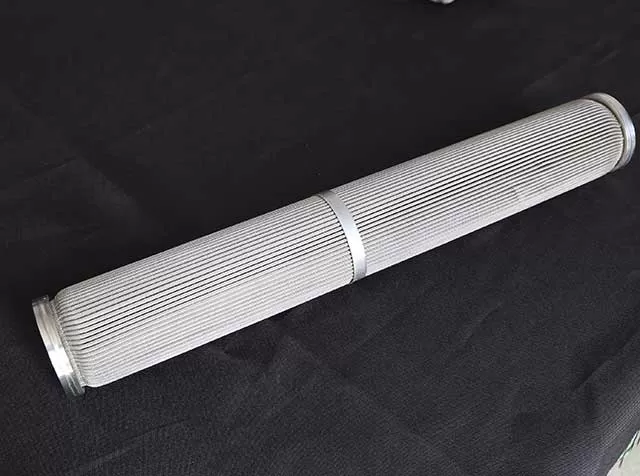

NoneDrawing and Gallery:
Product Name: Pleated filter
