Introduction:

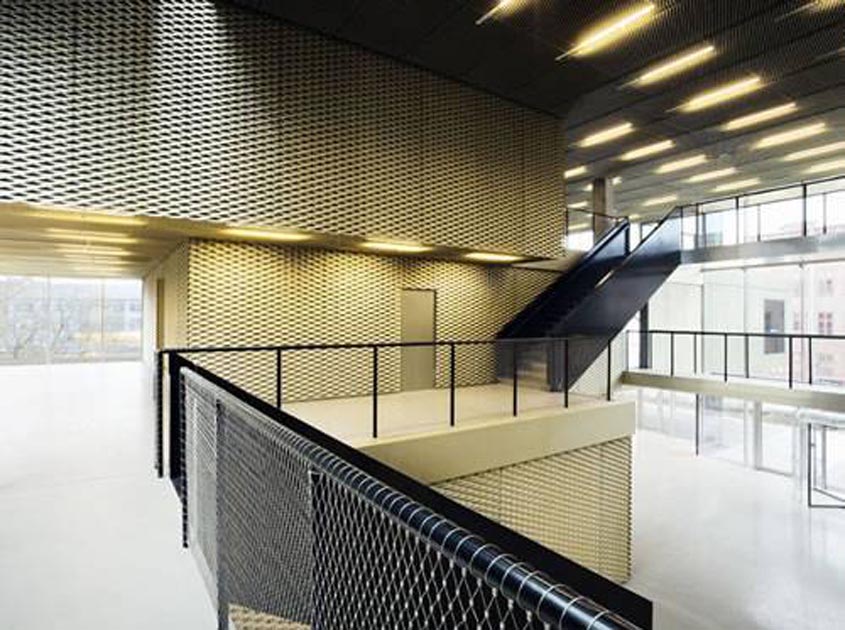

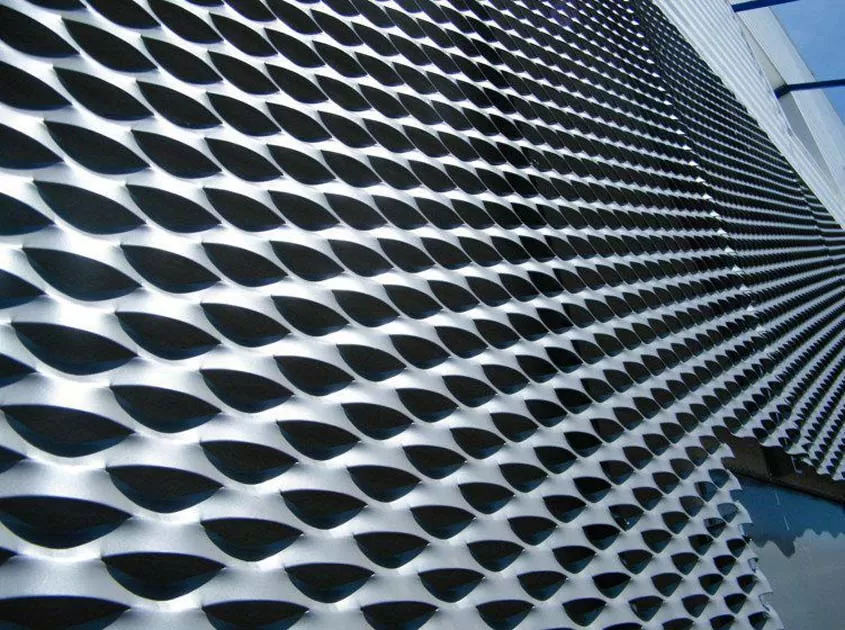

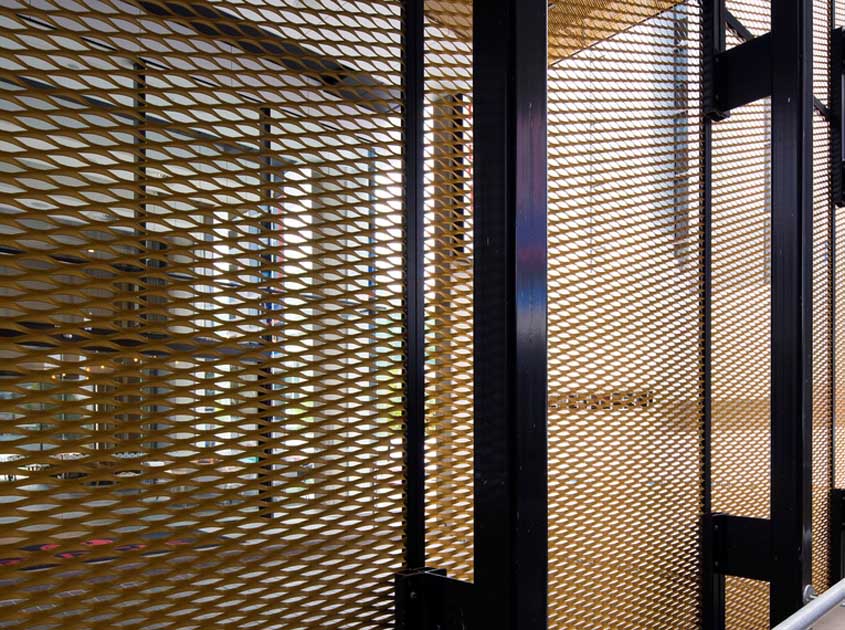

Decorative expanded metal mesh is one of the most important fashionable elements in civil buildings .The specially designed decorative expanded wire mesh is widely used in architectural and decorative applications. The Expanded metal design can be used to provide privacy and to control light and air while still allowing visibility. Sun screens, room dividers, and building facades are only a few of the possible design possibilities.We can make the decorative expanded metal mesh as your request according to the various application . Just provide the design ,we can make the Expanded metal become reality.
Decorative Expanded Steel Sheet Materials is available in aluminum plate, thin low carbon steel plate, stainless steel plate, AL-Mg alloy plate, Copper plate, nickel plate,etc .
The aluminum decorative expanded metal is more popular .
Decorative Metal Sheet Features: Decorative expanded mesh has various ornamental patterns, strong and beautiful appearance, and good ventilation, etc.

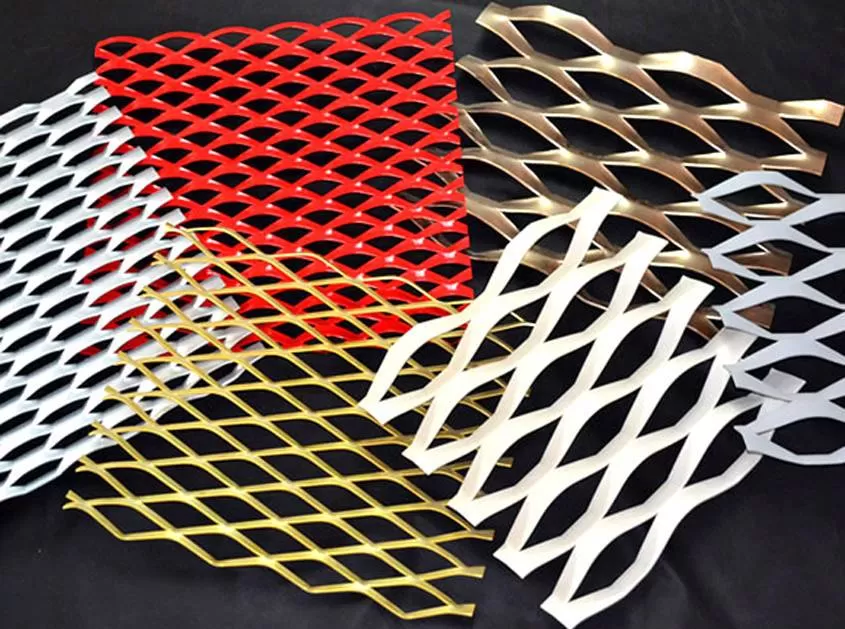

Decorative expanded metal panel can have the various surface treatment ,such as powder coating ,galvanized ,anodized and PVDF. These treatment can make the expanded metal screens anti-corrosion and more ornamental.

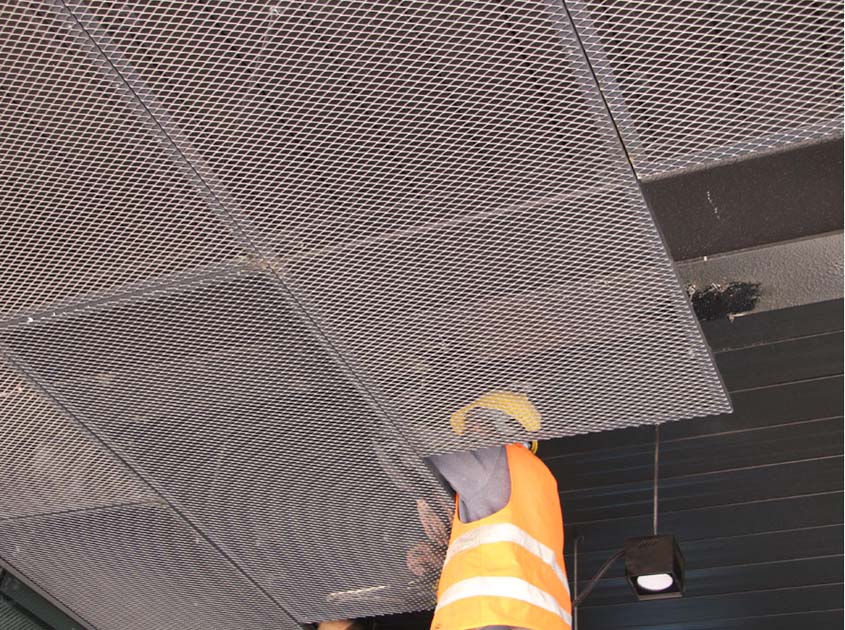

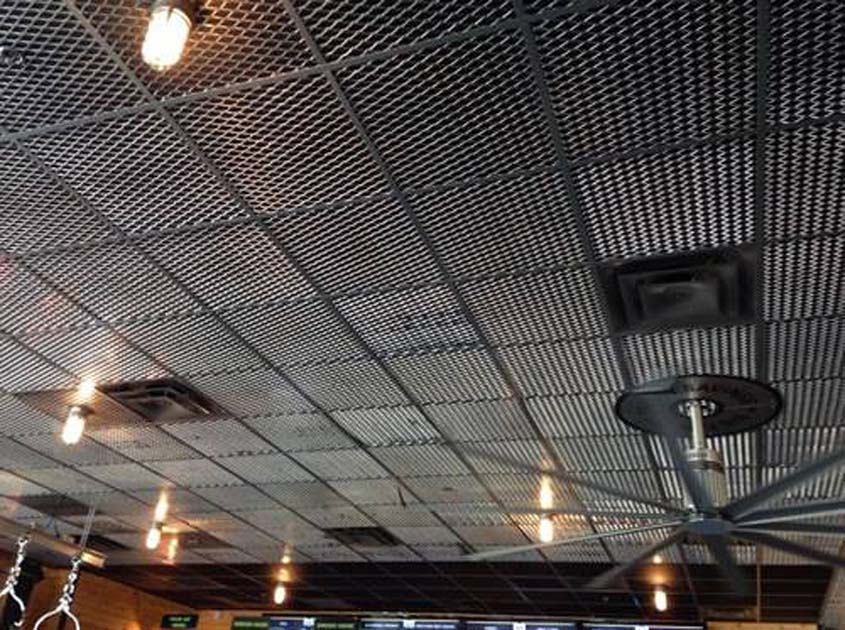

Decorative Expanded Metal finds a range of applications in manufacturing and designs including: Chairs back sheet; Security windows; Decorative metal mesh curtain; Wall and ceiling decorative panels; Stairs parts.
Features:
Corrosion resistance
Durable
Easily Assembled
Beautiful looking
anti-skid
wear-resistance
strong tensile strength with less heavier
Specifications:
| Sheet Thickness (mm) | Opening in Width (mm) | Opening in Length (mm) | Stem (mm) | Roll Width (mm) | Roll Length (mm) | Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Material:
stainless steel, carbon steel, brass , aluminum , titanium ,
nickel , Al-Mg alloy
Strand and Bond
Expanded metal is composed of strands and bonds. Strands form the sides of the expanded metal openings. Bonds are where the strands intersect. In other words, the bond is where each diamond shaped opening is connected with the next opening.
SWD
SWD (Short Way of the Diamond) is the distance from the middle of the bond on one side to the middle of the bond on the opposite side.
LWD
LWD (Long Way of the Diamond) is the distance across the largest dimension of the diamond measured halfway between the diamonds.
SWO
SWO (Short Way of the Opening) is the width of the opening of the shortest side of the diamond. SWO does not include the strand width, where SWD (Short Way of the Diamond) does.
LWO
LWO (Long Way of the Opening) is the length of the opening of the longest side of the diamond. LWO does not include the strand width, where LWD (Long Way of the Diamond) does.
Open Area
Expanded metal contains open spaces (the diamond-shaped openings) and material. Open area is the total area of the diamond openings divided by the total area of the sheet or roll of expanded metal and is expressed as a percent. In other words, open area describes how much of the expanded metal is open space. If expanded metal has a 60 percent open area, then 60 percent of the expanded metal is open space and 40 percent is material.
Gauge or Thickness
Thickness is the measurement from the top surface to bottom surface of the expanded metal piece. Gauge is the most common measurement, but thickness can also be measured in fractional inches or millimeters.
Width and Length
Length is the measure of the longest side of the expanded metal sheet or cut-to-size piece. Width is the measure of the shortest side of the sheet or cut-to-size piece.
Determining SWD, LWD Direction
The illustration to the right shows the correct way to designate SWD and LWD dimensions in relation to the length or width.
Stock sheets are like the one shown above
LWD Direction
Parallel to Length

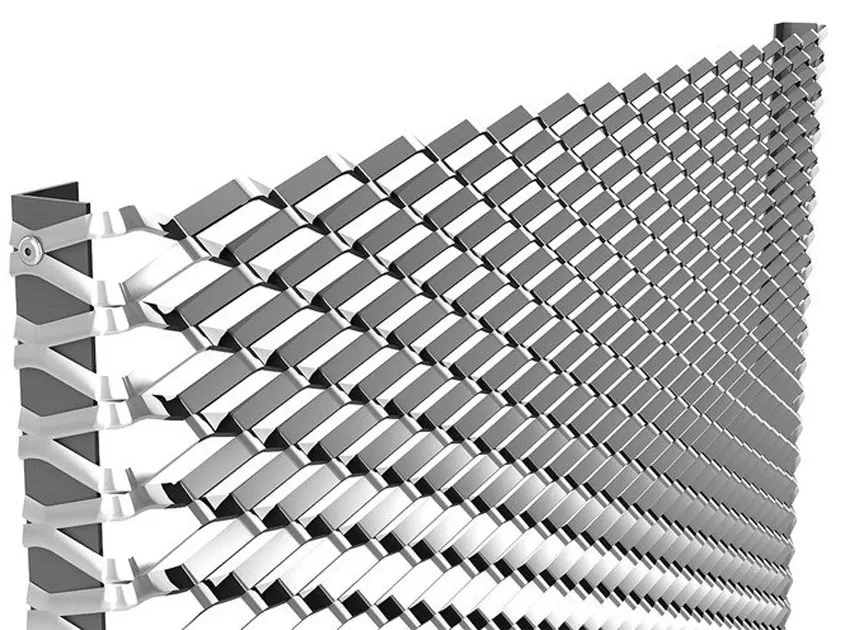

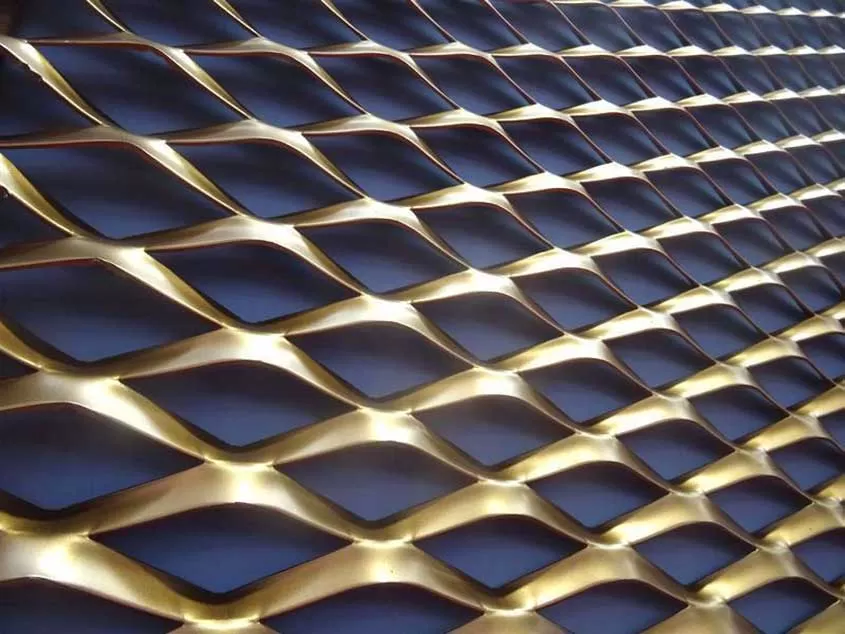

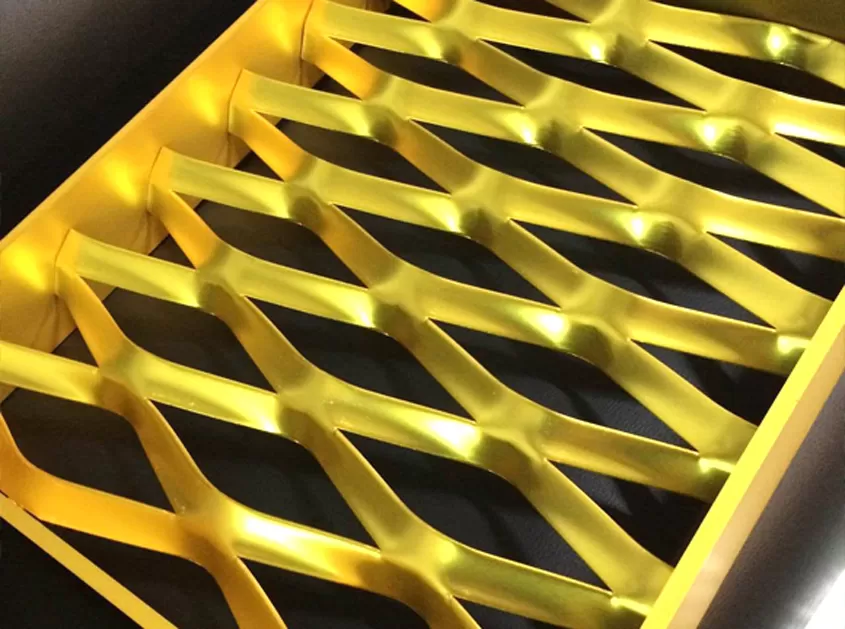

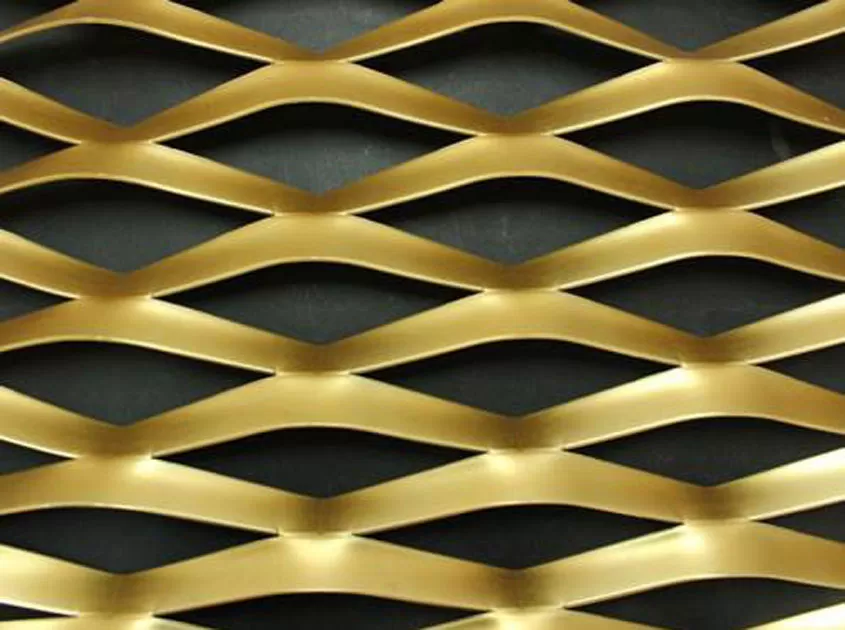

Drawing and Gallery:
Product Name: Decorative Expanded Metal
