Silver Wire Mesh

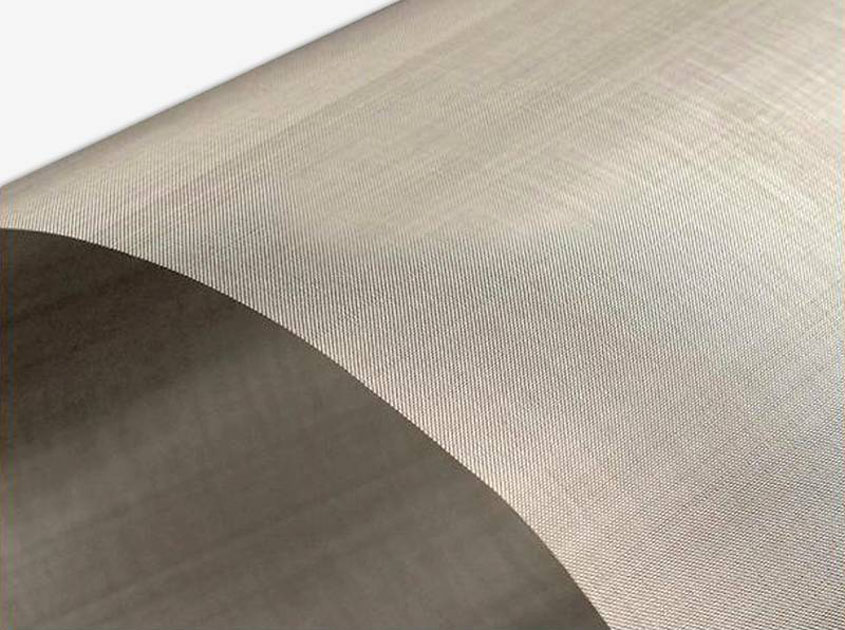

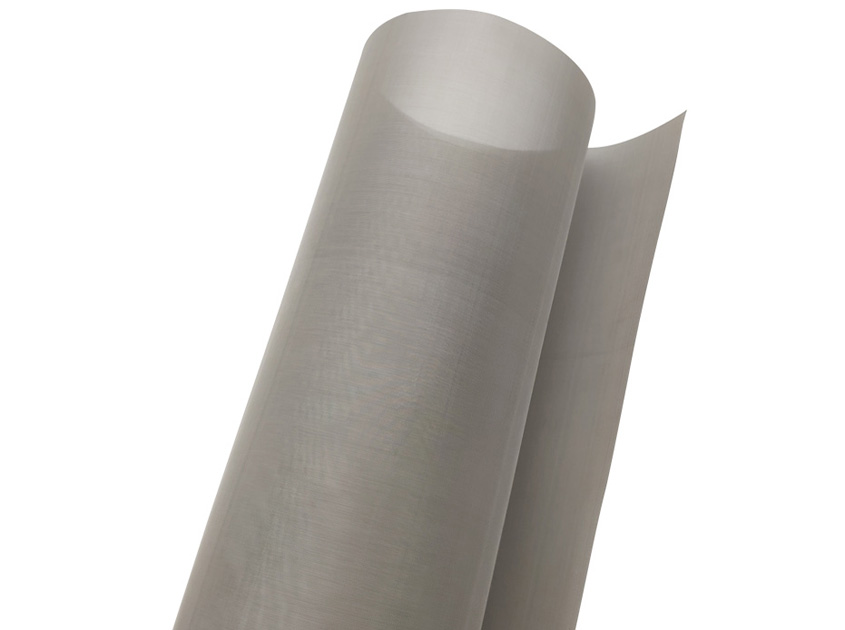

Silver wire mesh is manufactured from pure silver wire. The silver mesh is weaved through plain weave and twill weave into square meshes. Silver woven wire mesh has outstanding electric and heat transfer conductivity. It is better than the nickel wire mesh and any other metal woven wire mesh. Silver wire mesh has a widely application in electronic industry, electric power industry, aerospace and other industries.

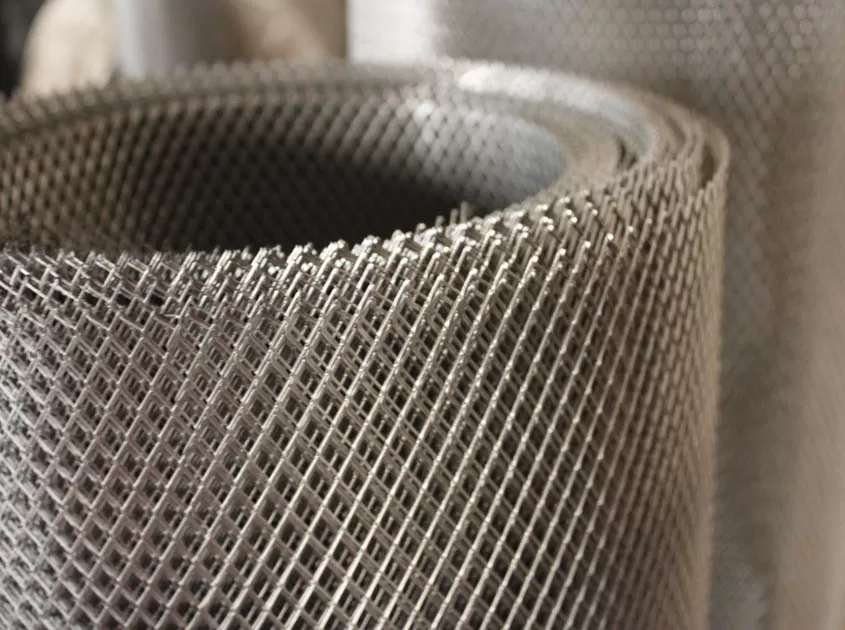

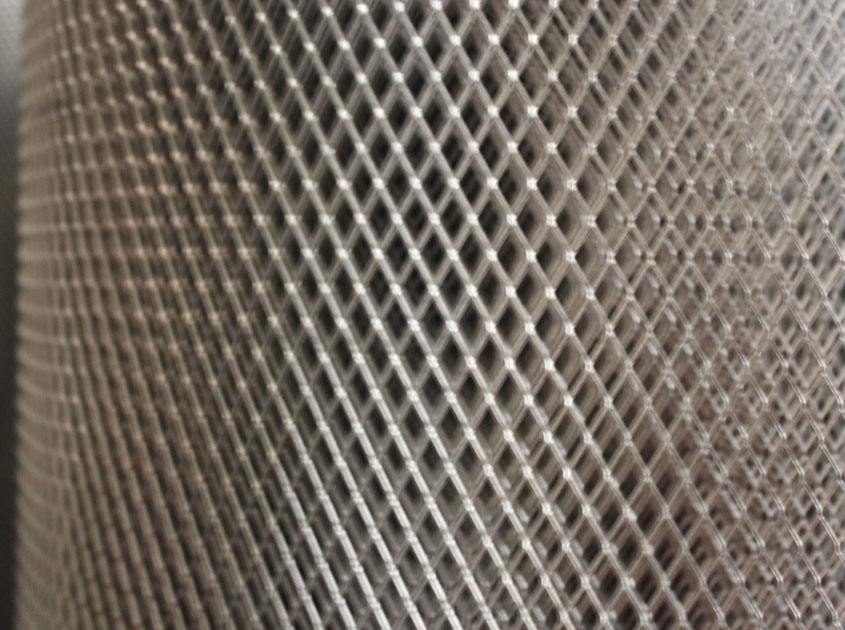

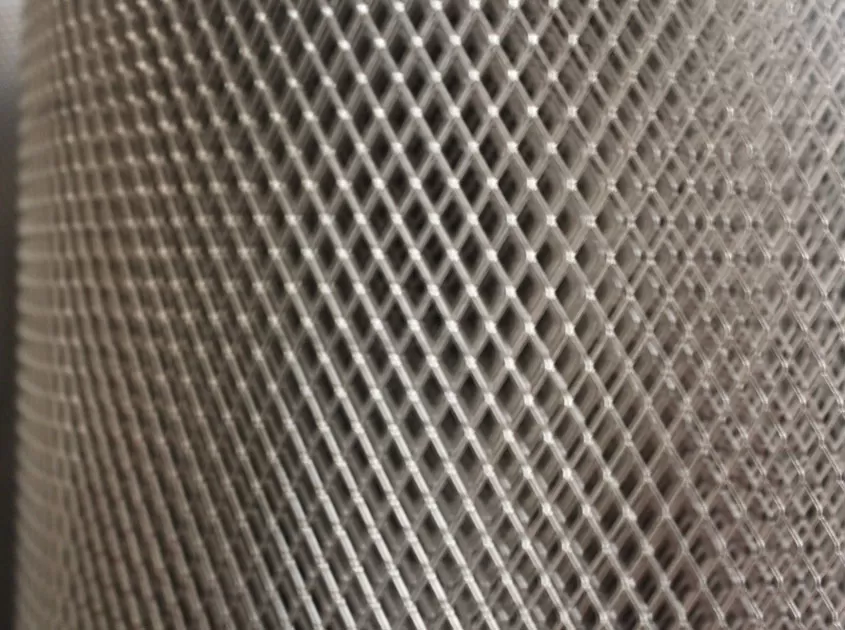

Silver wire mesh can also be expanded into diamond meshes to form silver expanded metal mesh.

Introduction:

Silver woven wire mesh is also called silver mesh, silver wire mesh, pure silver mesh, pure silver woven wire mesh. It is with good electric conductivity, thermal conductivity and ductility.
Silver mesh can be used as battery collector mesh, electrodes and battery skeleton mesh,
Also as filtration material in the high precision filtration equipment.

Silver wire mesh Chemical Composition:

Ag – 99.95%

Cu – 0.05%

P – 0.002%

Features:

1. Lightweight than titanium woven wire mesh and FeCrAl woven wire mesh.

2. Best electric conductivity.

3. High thermal conductivity and good heat transfer performance.

4. Good ductility.

Specifications:

Mesh	Wire Diameter		Opening		Opening
Mesh	inch	mm	inch	mm	Area %
20 mesh	0.014	0.35	0.036	0.91	51.8
20 mesh	0.009	0.23	0.041	1.04	67.2
24 mesh	0.014	0.35	0.028	0.71	44.2
28 mesh	0.01	0.25	0.026	0.66	51.8
30 mesh	0.011	0.28	0.022	0.55	44.8
30 mesh	0.0065	0.16	0.027	0.68	64.8
35 mesh	0.012	0.3	0.017'	0.43	33.8
35 mesh	0.01	0.25	0.019	0.48	42.4
40 mesh	0.01	0.25	0.015	0.38	36
40 mesh	0.0095	0.24	0.016	0.4	38.4
50 mesh	0.009	0.23	0.011	0.28	30.3
50 mesh	0.008	0.20	0.012	0.3	36
60 mesh	0.0075	0.19	0.009	0.22	30.5
60 mesh	0.0059	0.15	0.011	0.28	40.2

Specifications of silver expanded metal mesh.

Material: 99.9% pure silver sheet.

Technique: Expanded.

Aperture size: 1mm × 2mm, 1.5mm × 2mm, 1.5mm × 3mm, 2mm × 2.5mm, 2mm × 3mm, 2mm × 4mm, 3mm × 6mm, 4mm × 8mm, etc.

Thickness: 0.04mm - 5.0mm.

Length and width customized.

Note: Special size and specifications can be made according to customers requires.

Technology:

1. Chemical Composition:

Ag – 99.95%

Cu – 0.05%

P – 0.002%

2. Purity: 99.99%
3. Wire diameter: 0.08-0.3mm
4. Mesh Count: 10mesh,18mesh,20mesh,40mesh,60mesh,80mesh and 100mesh
5. Mesh Width: 1200mm、1000mm、600mm、400mm、200mm、100mm、50mm、20mm, can customized mesh count, width and length according to customer’s requirement.
6. Features:
Silver woven wire mesh is also called silver mesh, silver wire mesh, pure silver mesh, pure silver woven wire mesh. It is with good electric conductivity, thermal conductivity and ductility.
7. Application:
Silver mesh can be used as battery collector mesh, electrodes and battery skeleton mesh,
Also as filtration material in the high precision filtration equipment.

Drawing and Gallery:

Product Name: Silver Wire Mesh
