Introduction:
What kind of automatic manure cleaning system we have:
①Our automatic manure removal machines are essentially robotic, and they do not need to be manned. The time can be set according to the needs of the farmer, ensuring automatic timing for manure cleaning keeps any chicken house clean 24/7, 365 days of the year.
②Automatically cleans manure as often as you require. The operation is simple and quick, and of course automatic. The timer may be changed manually when required, at the discretion of the farmer or his workers.
③The design of the scraping manure plate features eight wheels. The scraper itself retracts automatically and the plate can be adjusted manually. There is very little friction during operation.
④The trough can be cleaned thoroughly, with ease.
⑤We supply 220 V single-phase power and 380 V three-phase power, to meet the needs of all farmers.
⑥We design standardized chicken farms for our customers free of charge according to different climate and environment, breeding conditions, breeding varieties and management modes.
If you are interested, please feel free to contact us directly. We can tailor-made solutions for you.
Features:
1. Using the the most advanced international cycloid reducer is to ensure the output drive ratio of rationality.Motor and reducer has the advantages of small volume,simple operation.
2.Special transmission chain is highly wear resistance,corrosion resistance and long service life.
3.Thick scraper of the automatic manure cleaning system:To ensure the long life of the manure cleaning machine.Scraper is made by high-precision CNC production molding,never deformation.The guide wheels of the scraper ensure the system run smoothly.
4.Traction rope of the automatic manure cleaning system:High strength,wearing resistance and anti-corrosion,soft,smooth and easy for operation
5.Control panels:Easily to operate
Specifications:
| Rated power | 1.5 or 3KW |
| Rated voltage | 220V or 380V |
| Walking speed | 6-10m/min |
| Maximum traction work force | 28000-32000N |
| Wiper clean rate | ≥95% |
| The size of motor | 90cm*70cm（L*W） |
| The scraper size | 208cm*93cm*23cm(L*W*H) |
| Structure weight | 350kg |
| The product type | One machine with one scraper;One machine with two scrapers;One machine with three scrapers |
| Scraper dimension | Customize according to your poultry farm manure pit width |
Note: Special size and specifications can be made according to customers requires.
Technology:
1.Electric control box: electronic control original, with time control can realize manual or fully automatic unmanned management
2.Scraping manure hot galvanized steel plate, high corrosion resistance.Or paint spraying scraper
3.Linen rope: Diameter 16mm, 18mm；Length about 340 m. about250 meters

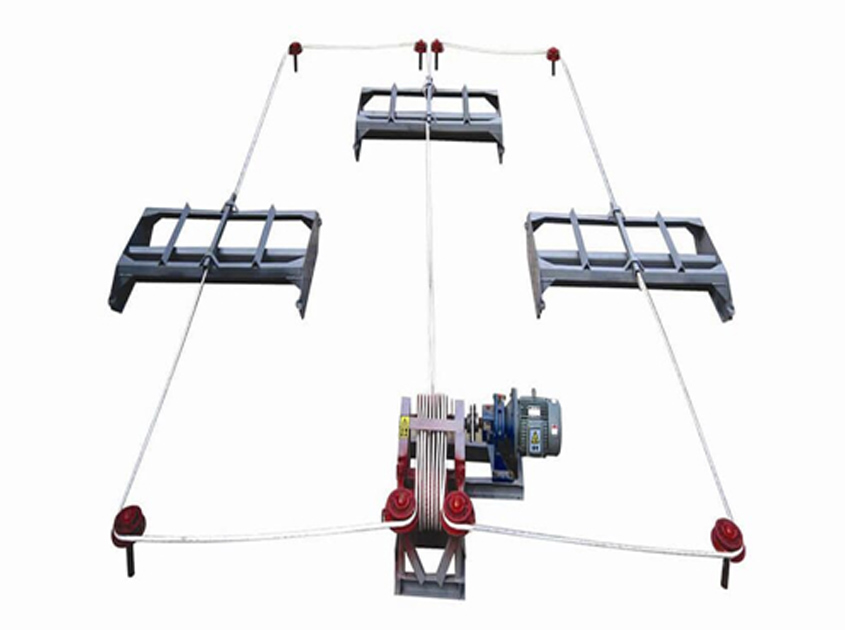

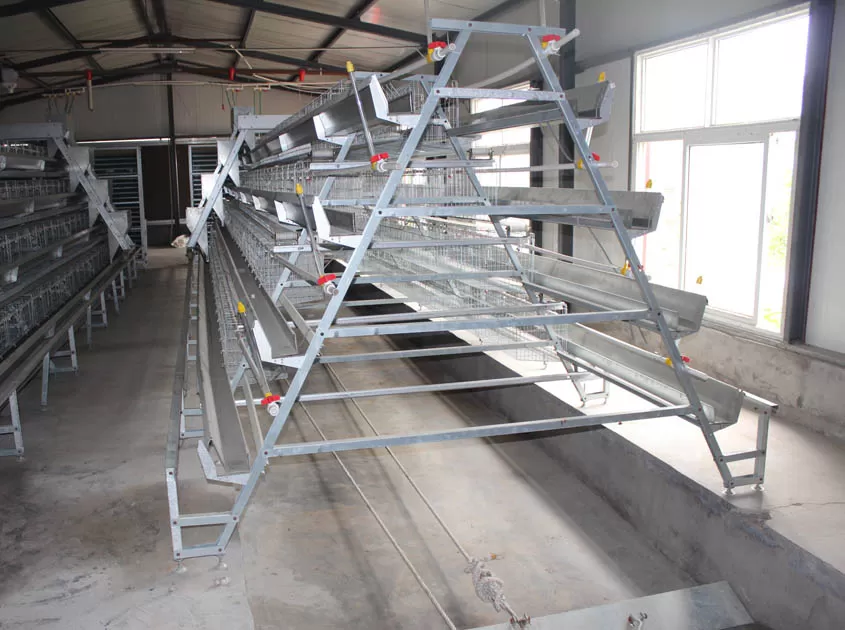

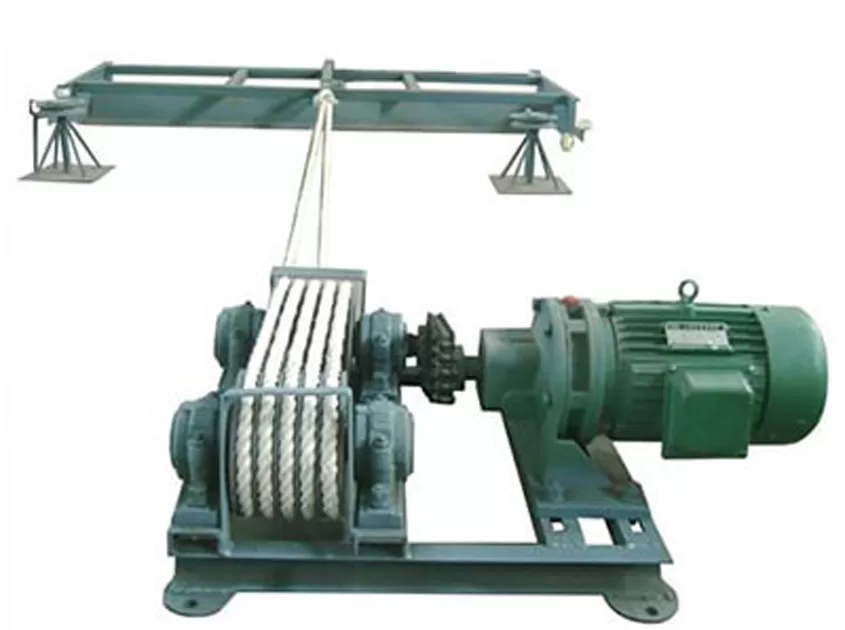

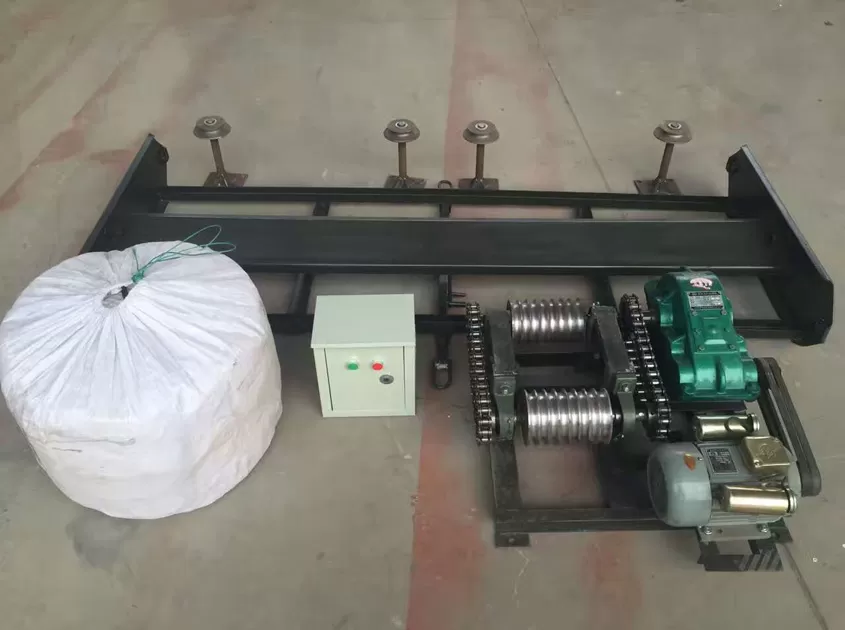

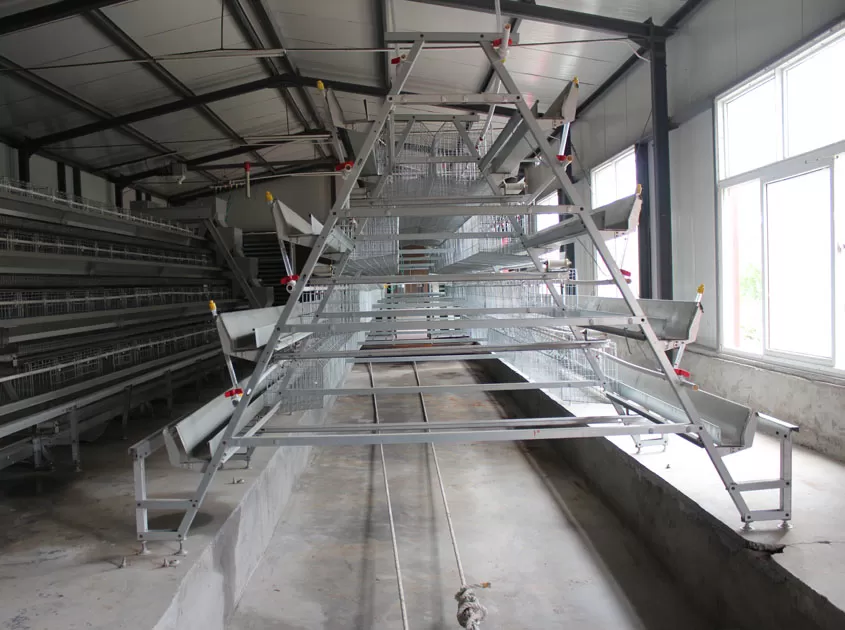

Drawing and Gallery:
Product Name: Automatic Manure Cleaning System
