Introduction:
The harder you make it for intruders to break through or climb over your fencing system, the less likely they are to try. So we offer a range of security toppings to make even the smallest of fence lines formidable barriers against wouldbbe intruders.
You can extend the height of your fencing with a range of vertical, T-shaped or Y-shaped cranked top security extensions. This gives you the perfect platform on which to fit your choice of barbed wire, razor wire, anti-climb rotating spikes or saw tooth spikes.
This high Security fencing is made of high quality hot dipped galvanized steel wire, then go to powder coated or PVC coating. It looks modern and attractive. Mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area,railway station, etc. They can effectively protect above place against vandals and intruders.
We mainly offer two following types of this combination high degree protection fencing as below pictures:

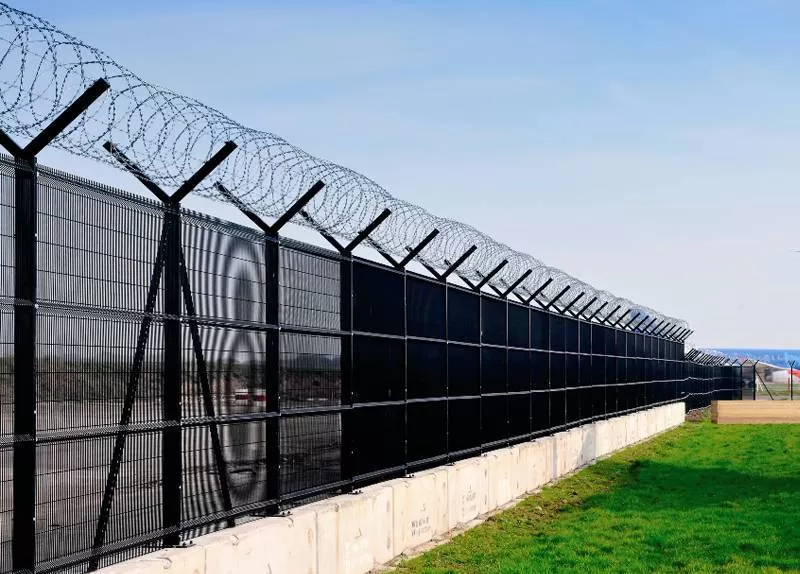

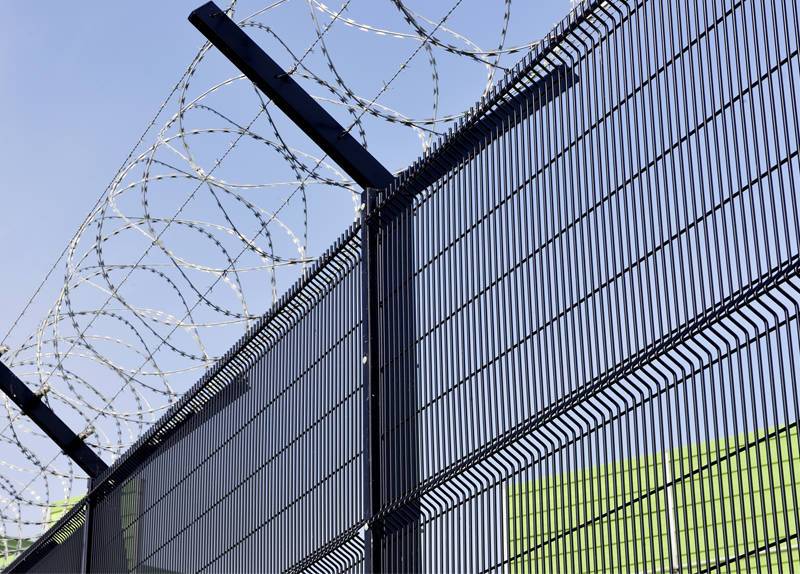

Razor barbed wire mounted on welded wire mesh panels

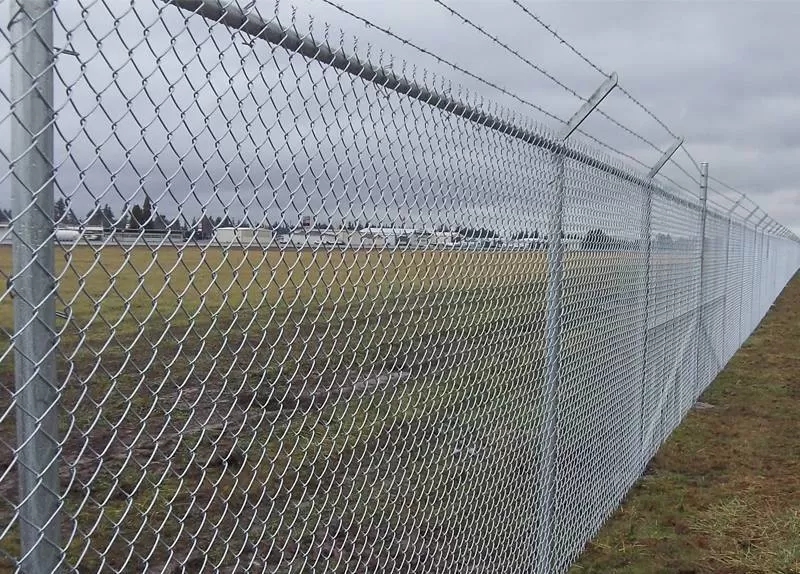

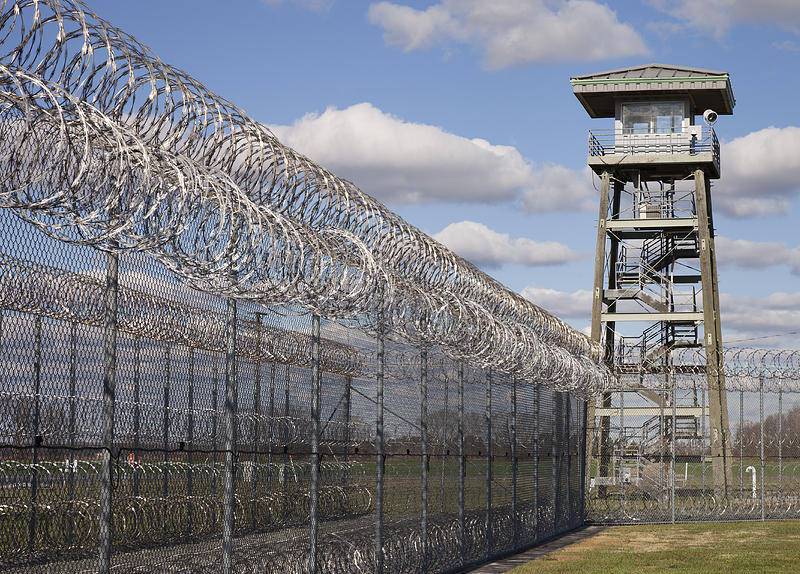

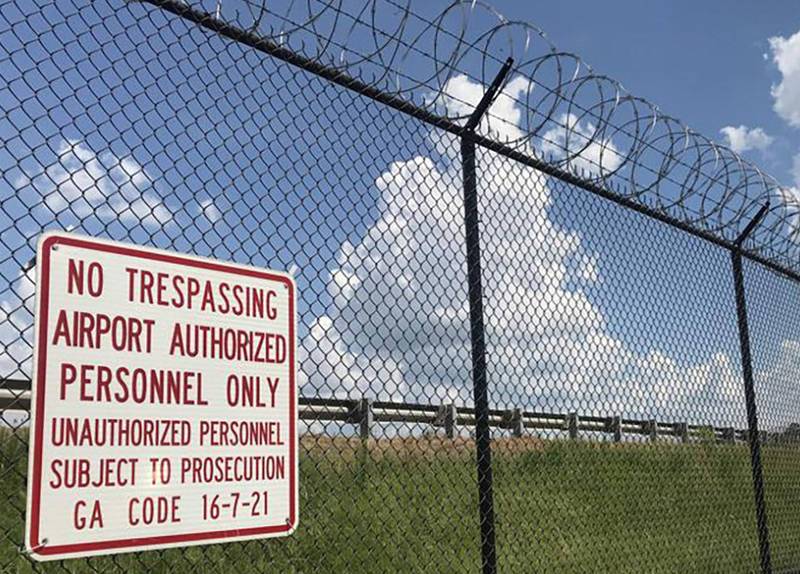

Razor barbed wire mounted on chain link fence.
Features:
Attractive and cost effective solution.
Panels have a high level of rigidity
Qucik and Easy install
Anti-rust and anti-corrosion.
Durable and well structured.
Suitable to all kinds of surrounding
10-Year limited warranty
Customisation options
Specifications:
| Panel Size | Post | |||||
| Panel height | Panel Width | Wire | Mesh Holes | V Beam | Height(mm) | Post Section |
| 2000mm | 2.5m&3.0m | 4.0-5.0mm | 50×100mm 50x150mm | 4 | 2400 | 60×60mm |
| 2500mm | 2.5m&3.0m | 4.0-5.0mm | 4 | 3000 | ||
| Fence install height | Razor wire diameter | |||||
| 2500mm | φ500mm, φ600mm | |||||
| 3000mm | φ500mm, φ600mm | |||||
| Above are general specification, others are available. | ||||||
Note: Special size and specifications can be made according to customers requires.
Technology:
Post
Posts are manufactured from steel tubular section with threaded inserts for fixing the steel mesh clips. Additional fixings are provided to accommodate stepping of panels where the fence is installed on a gradient. The general post section are 60×60mm,others are available.

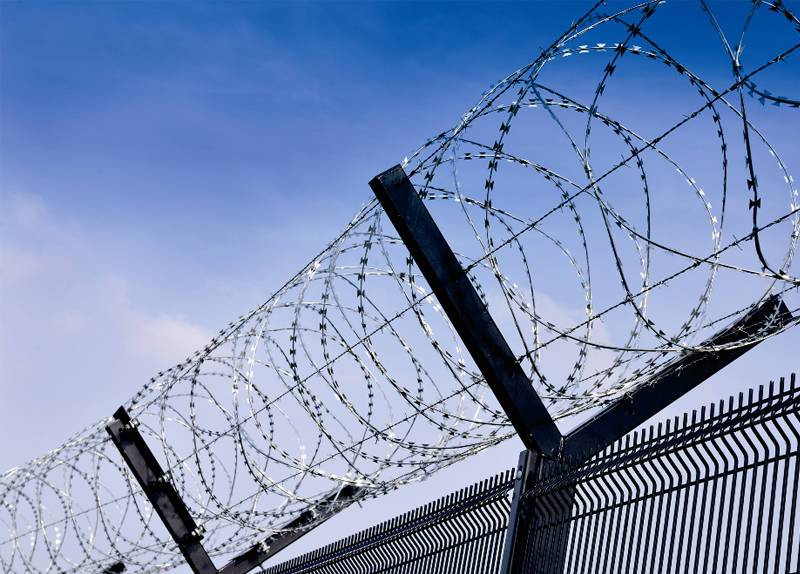

Concertina razor wire
Razor wire can be in concertina coils or straight razor lines.
Materials: Galvanized wire and galvanized metal sheet.
Razor barbed type: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-25, BTO-28, BTO-30, CBT-60, CBT-65.
Razor coil diameter:450, 500, 600 700, 800, 900, 960, 980mm.
Coating and Warranty
The High security fence are manufactured using galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's Highest Weather-ability and Gloss Retention in U.V. exposure.
Drawing and Gallery:

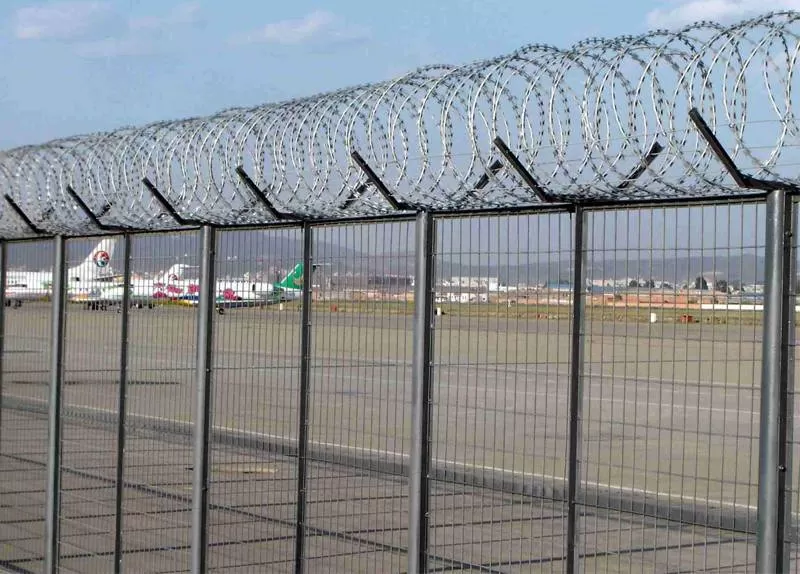

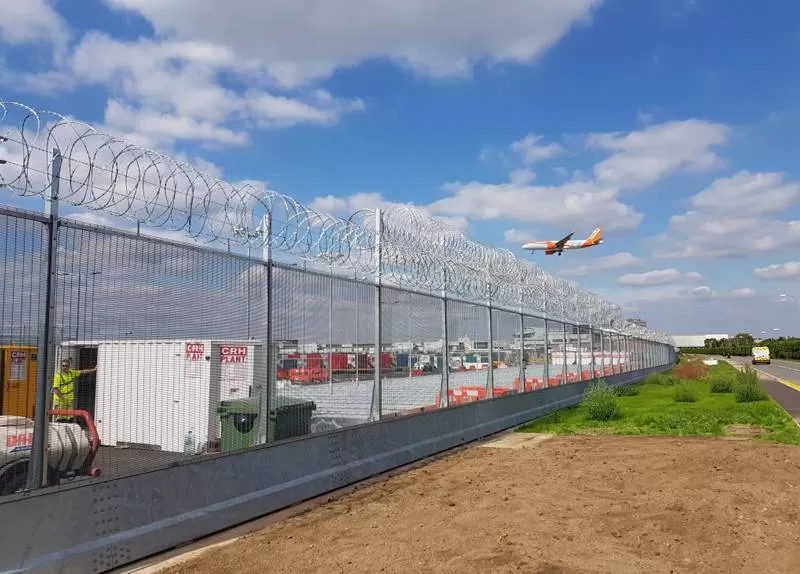

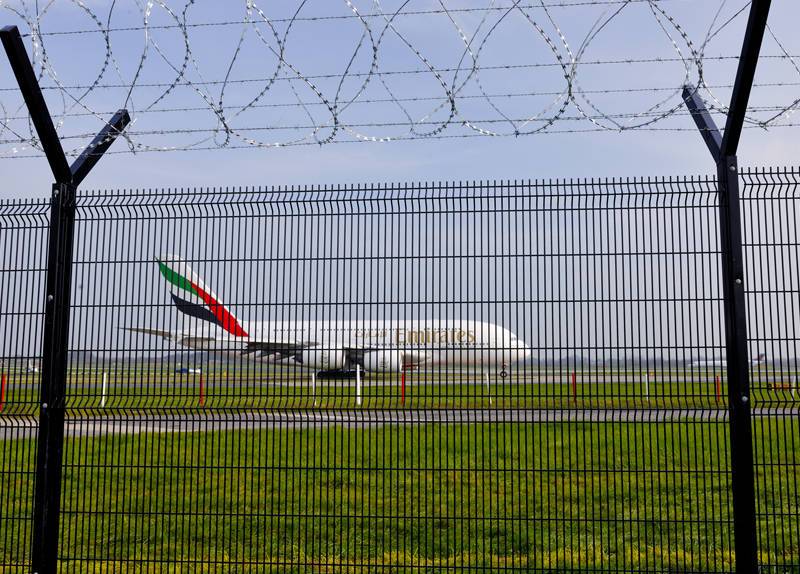

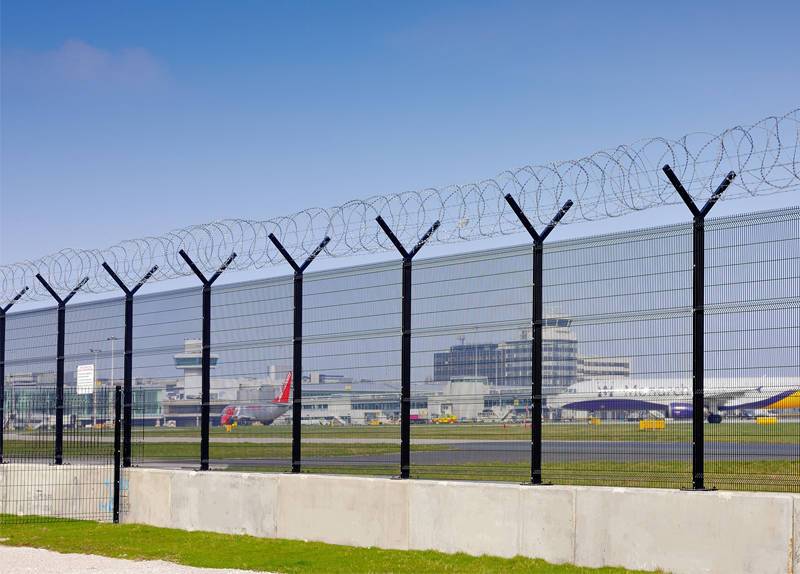

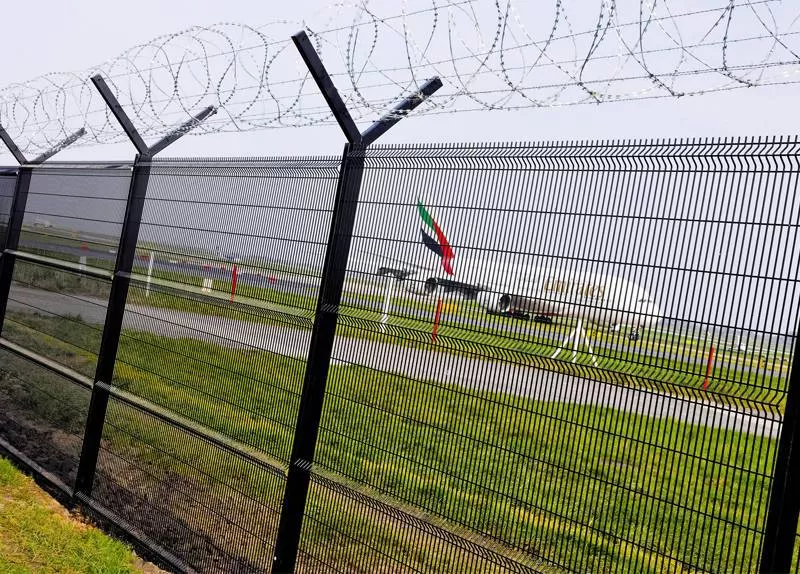

Product Name: Airport Fence
