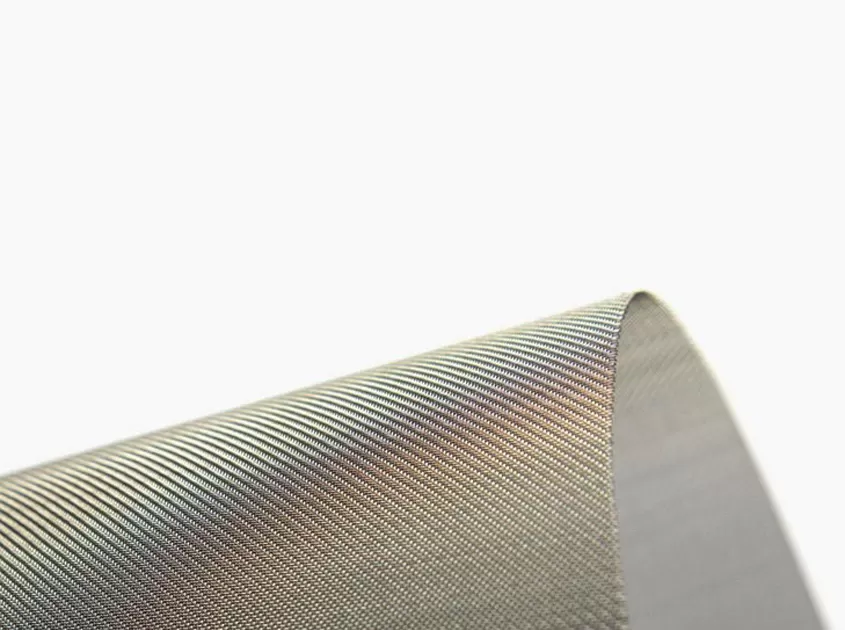

Plain or Twill Weaved Stainless Steel Wire Mesh

Plain or twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anti-corrosion.High strength, good tension\toughness and abrasion performance, durable in use.

Resistance to high temperature oxidation, 304 stainless steel wire mesh nominal resistance temperature is 800 degree Celsius, 310S stainless steel wire mesh nominal resistance temperature can reach 1150 degrees Celsius.

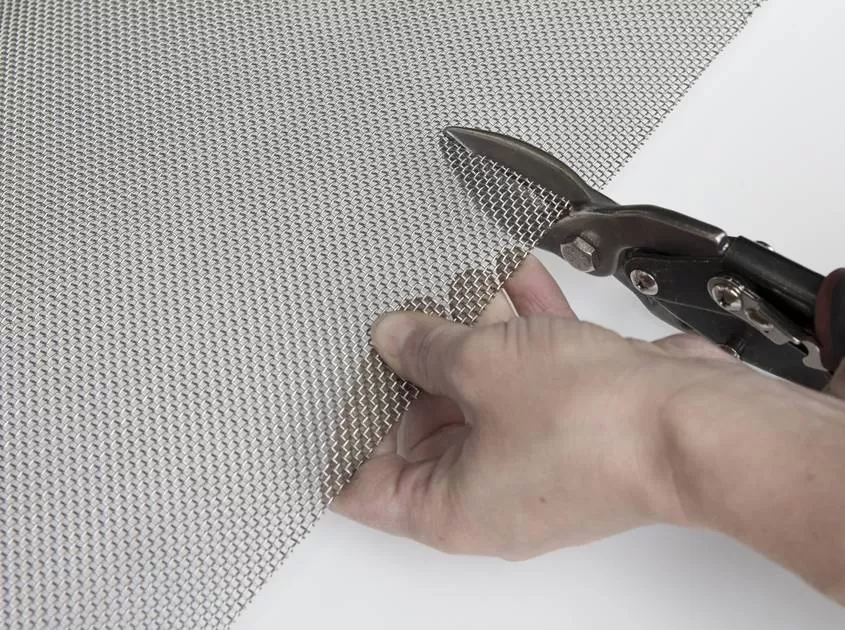

Room temperature processing, easy to do plastic processing, make the possible use of stainless steel wire mesh diversified.Good surface finish, no need to do any surface treatment, with convenient and simple maintenance.

INQUIRY

Our Advantages:

Supply samples for FREE

Free Design

Quality Guaranteed By SGS

Fast reply within 24 hours

Reasonable price directly from Our own Factory

Detailed Information For Plain or Twill Weaved Stainless Steel Wire Mesh

Introduction
Features
Specifications
Technology
Drawing and Gallery
Inquiry

Introduction:

Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

Features:

1. Excellent resistance to the rust and corrosion.

2. Resistance to the acid and alkali.

3. Resistance to the chemical and harsh weather.

4. Cleaner and brighter appearance.

5. High strength and durable.

Specifications:

MESH	WIRE DIAMETER		APERTURE/OPENING		%OPEN AREA
MESH	INCH	MM	INCH	MM	%OPEN AREA
1x1	.080	2.03	.920	23.37	84.6
2X2	.063	1.60	.437	11.10	76.4
3X3	.054	1.37	.279	7.09	70.1
4X4	.063	1.60	.187	4.75	56.0
4X4	.047	1.19	.203	5.16	65.9
5X5	.041	1.04	.159	4.04	63.2
6X6	.035	.89	.132	3.35	62.7
8X8	.028	.71	.097	2.46	60.2
10X10	.025	.64	.075	1.91	56.3
10X10	.020	.51	.080	2.03	64.0
12X12	.023	.584	.060	1.52	51.8
12X12	.020	.508	.063	1.60	57.2
14X14	.023	.584	.048	1.22	45.2
14X14	.020	.508	.051	1.30	51.0
16X16	.018	.457	.0445	1.13	50.7
18X18	.017	.432	.0386	.98	48.3
20X20	.020	.508	.0300	.76	36.0
20X20	.016	.406	.0340	.86	46.2
24X24	.014	.356	.0277	.70	44.2
30X30	.013	.330	.0203	.52	37.1
30X30	.012	.305	.0213	.54	40.8
30X30	.012	.305	.0213	.54	40.8
30X30	.009	.229	.0243	.62	53.1
35X35	.011	.279	.0176	.45	37.9
40X40	.010	.254	.0150	.38	36.0
50X50	.009	.229	.0110	.28	30.3
50X50	.008	.203	.0120	.31	36.0
60X60	.0075	.191	.0092	.23	30.5
60X60	.007	.178	.0097	.25	33.9
70X70	.0065	.165	.0078	.20	29.8
80X80	.0065	.165	.0060	.15	23.0
80X80	.0055	.140	.0070	.18	31.4
90X90	.005	.127	.0061	.16	30.1
100X100	.0045	.114	.0055	.14	30.3
100X100	.004	.102	.0060	.15	36.0
100X100	.0035	.089	.0065	.17	42.3
100X100	.0035	.089	.0065	.17	42.3
110X110	.0040	.1016	.0051	.1295	30.7
120X120	.0037	.0940	.0064	.1168	30.7
150X150	.0026	.0660	.0041	.1041	37.4
160X160	.0025	.0635	.0038	.0965	36.4
180X180	.0023	.0584	.0033	.0838	34.7
200X200	.0021	.0533	.0029	.0737	33.6
250X250	.0016	.0406	.0024	.0610	36.0
270X270	.0016	.0406	.0021	.0533	32.2
300X300	.0051	.0381	.0018	.0457	29.7
325X325	.0014	.0356	.0017	.0432	30.0
400X400	.0010	.0254	.0015	.370	36.0
500X500	.0010	.0254	.0010	.0254	25.0
635X635	.0008	.0203	.0008	.0203	25.0

Note: Special size and specifications can be made according to customers requires.

Technology:

Name: Stainless Steel Wire Mesh, Stainless Steel Mesh Screen, Stainless Steel Filter Wire Mesh, Metal Wire Mesh, Stainless Steel Square Wire Mesh.

Material: SS wire 201, 304, 304L, 316, 316L, 431, 321 etc.

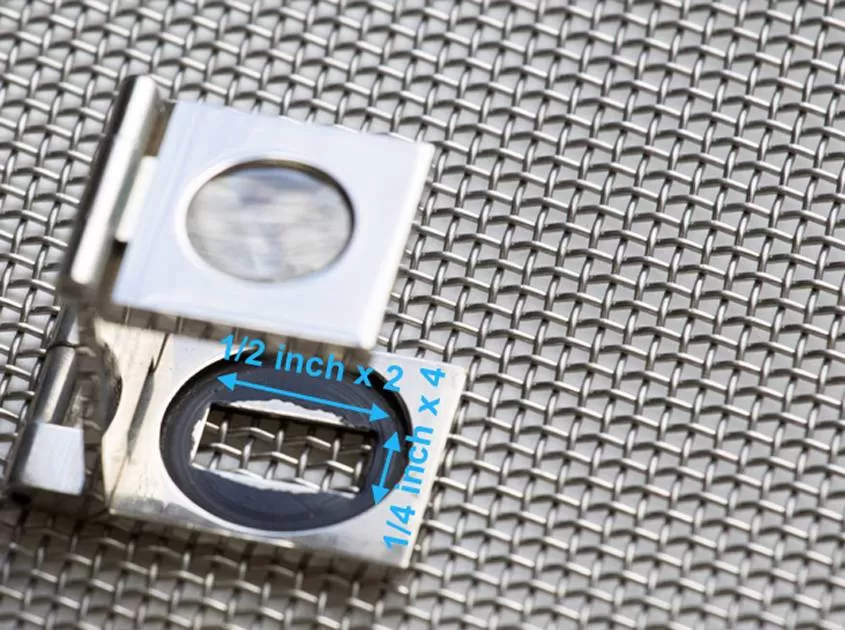

Mesh Count, Wire Diameter& Width

Plain weave wire mesh can be woven up to 400 mesh.

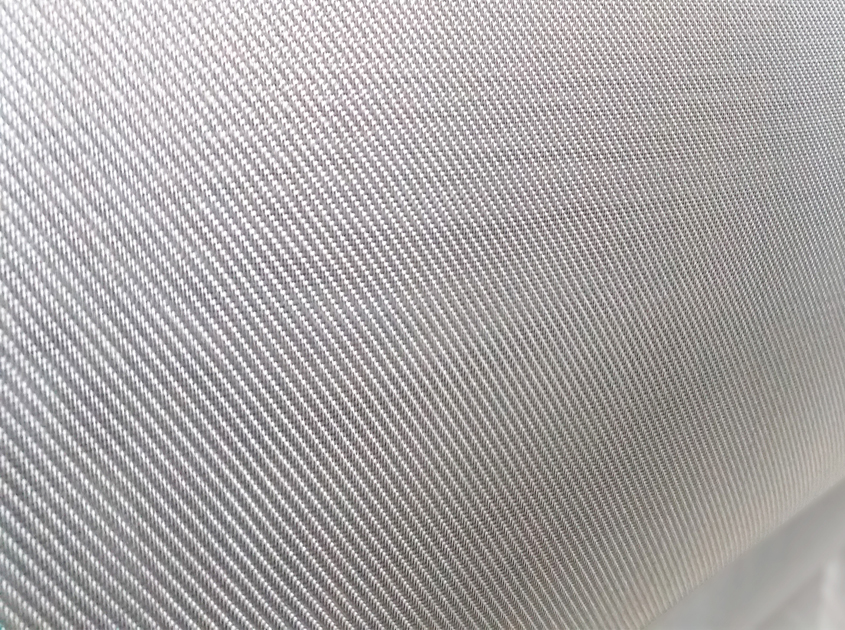

Twill weave wire mesh can be woven from 30 to 635 mesh.

Wire diameter: 0.018-2.03mm

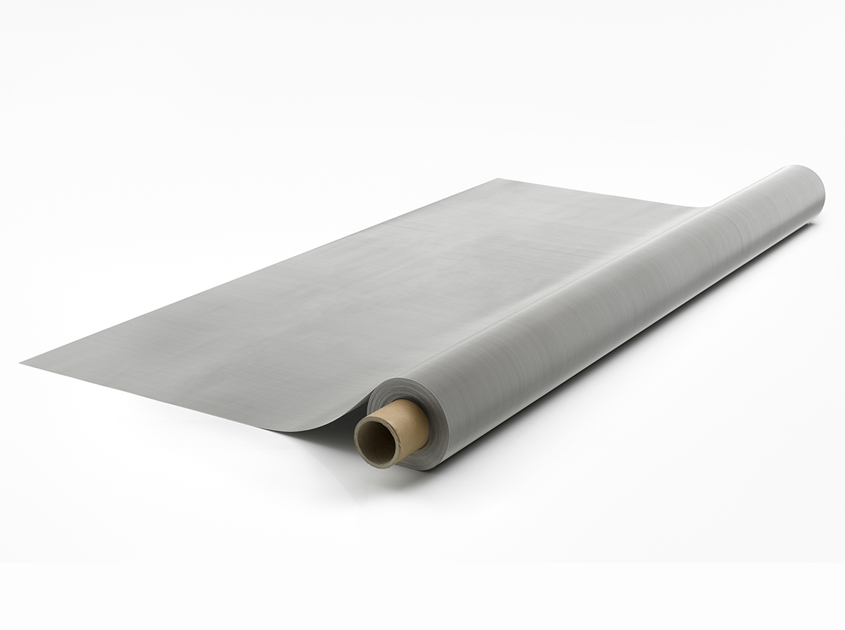

Common Width: 0.914m, 1.0m, 1.22m, 1.5m, special requirement can be customized.

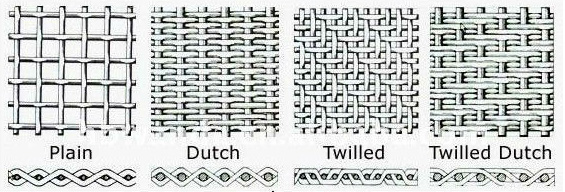

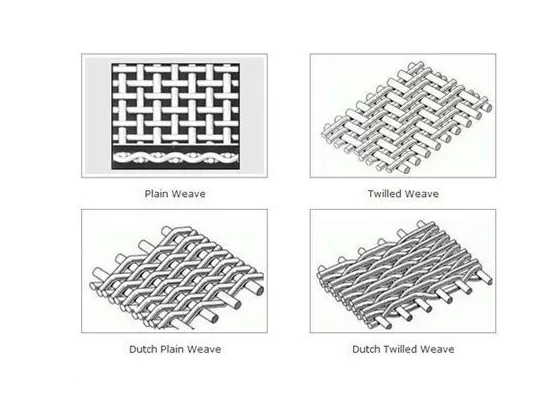

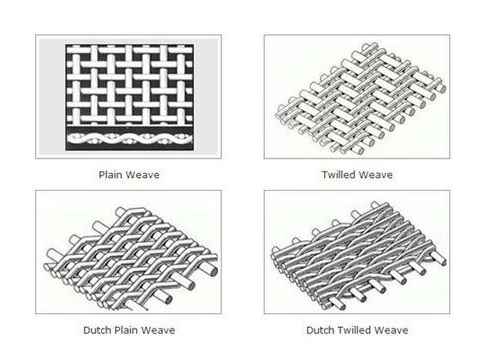

Weave Pattern:

Plain or Twill Weaved Stainless Steel Wire Mesh
