Introduction:
Knitted Mesh as its name implies, is a metal wire or plastic strand knitted into an interlocking looped mesh structure, the same way as stockings and should not be confused with woven mesh, which is the form of rectangular openings of parallel wires. The knitted mesh has a flexibility not possessed by the woven mesh, due to the loops being able to move relative to each other thereby giving a two-way stretch. This flexibility gives knitted mesh a unique advantage for many industrial uses.
Features:
High strength and stability.
High filtration efficiency.
Good shielding performance.
Corrosion and rust resistance.
Durable and long service life
Specifications:
| Specification of Knitted mesh | ||
|---|---|---|
| Material | stainless steel wire 304, 304L, 316, 316 L, galvanized wire, brass wire, copper wire, titanium wire, alloy wire, nickel wire, nylon wire, PE wire, fiberglass wire, etc | |
| Wire Diameter | Round wire | 0.08-0.55mm |
| Flat wire | 0.1*0.4mm,0.1*0.3mm,0.2*0.4mm | |
| Hole Size | 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc. | |
| Width | 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc. | |
| Length | 30-200m | |
| Wire Number | Single wire , double wires, several wires. | |
| Mesh type | Standard type | 40-100 60-150 105-300 140-400 |
| Highly efficiency type | 60-100 80-100 80-150 90-150 150-300 200-400 | |
| Damping type | 30-50 48-50 30-60 30-80 50-120 | |
| Packing | With carton or wooden box | |
Note: Special size and specifications can be made according to customers requires.
Technology:
Knitted mesh has both a large surface area of wire.
knitted mesh is its inherent resiliency.
The knitted mesh has a flexibility.

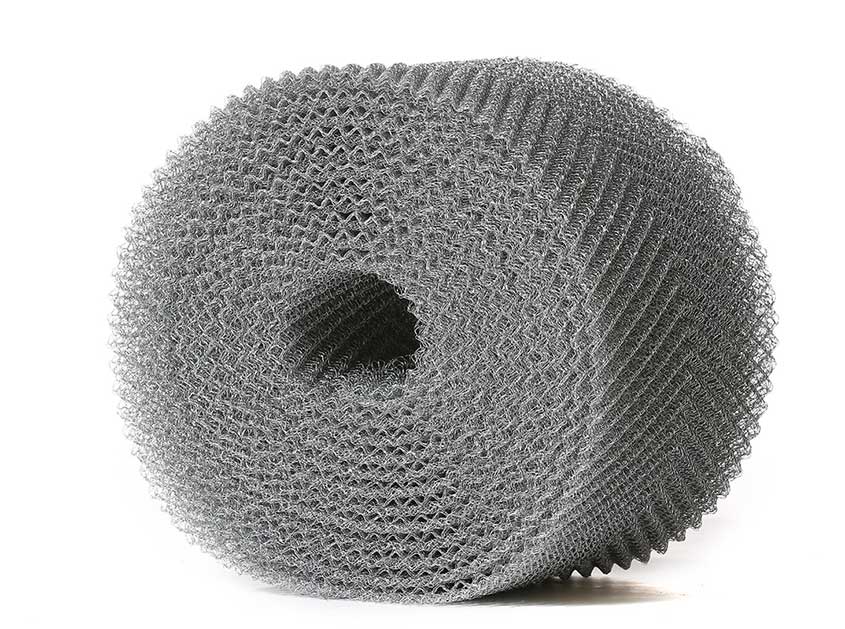

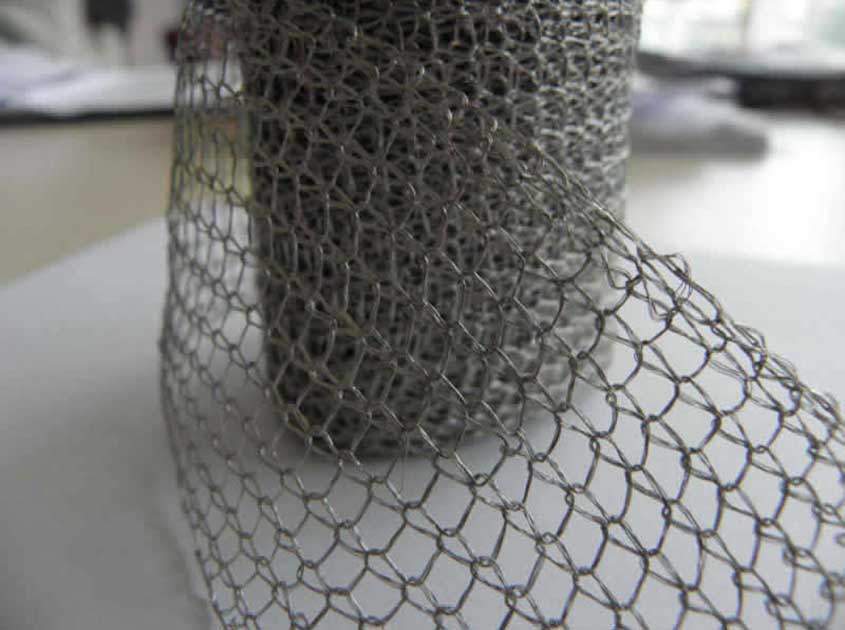

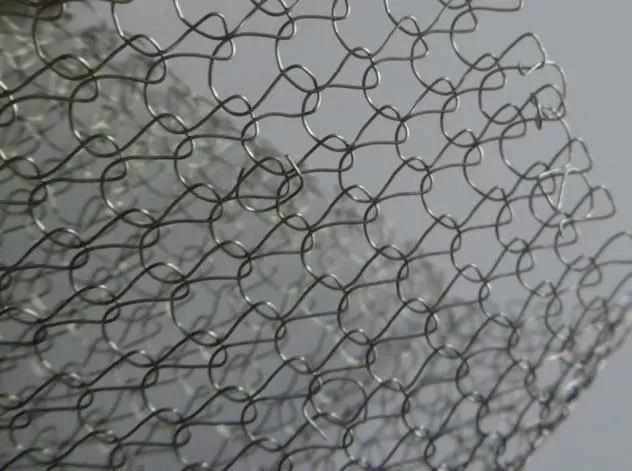

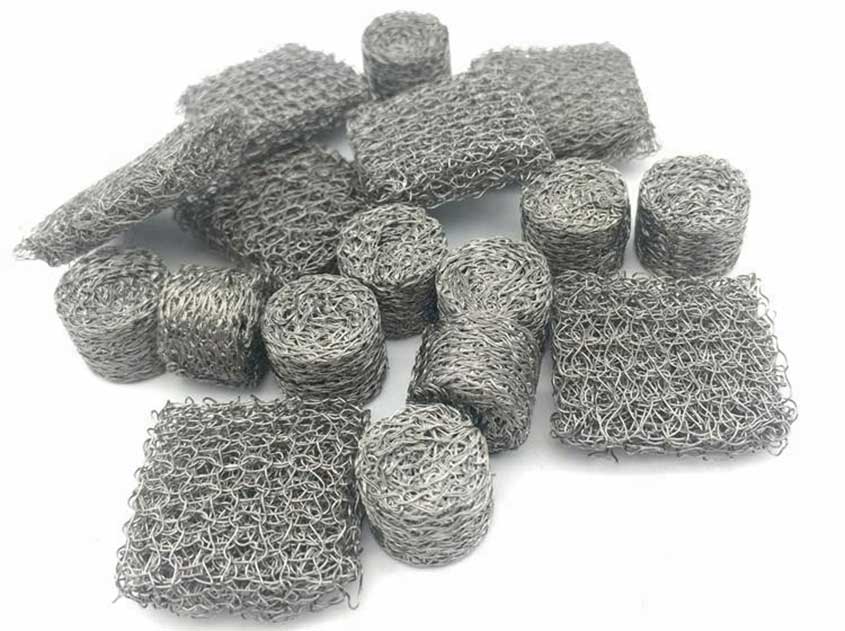

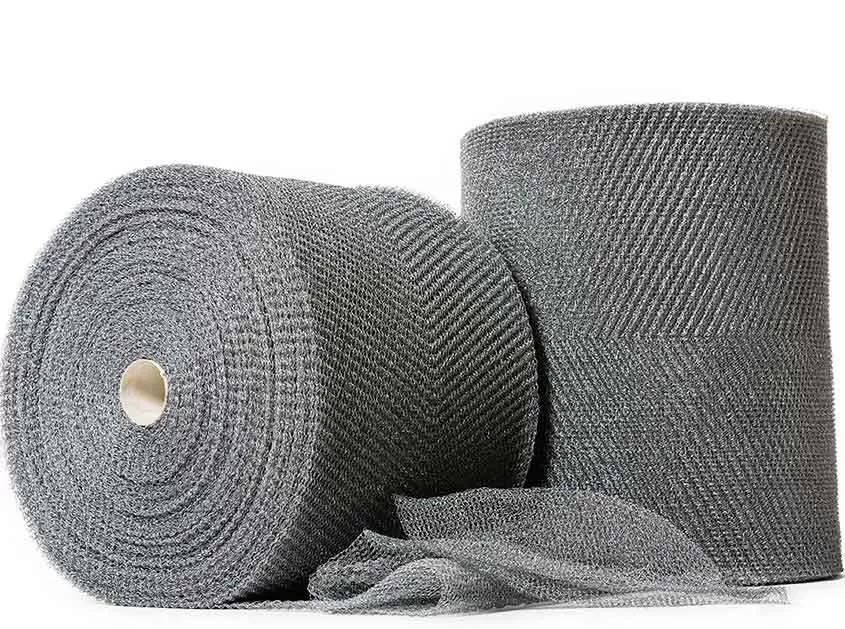

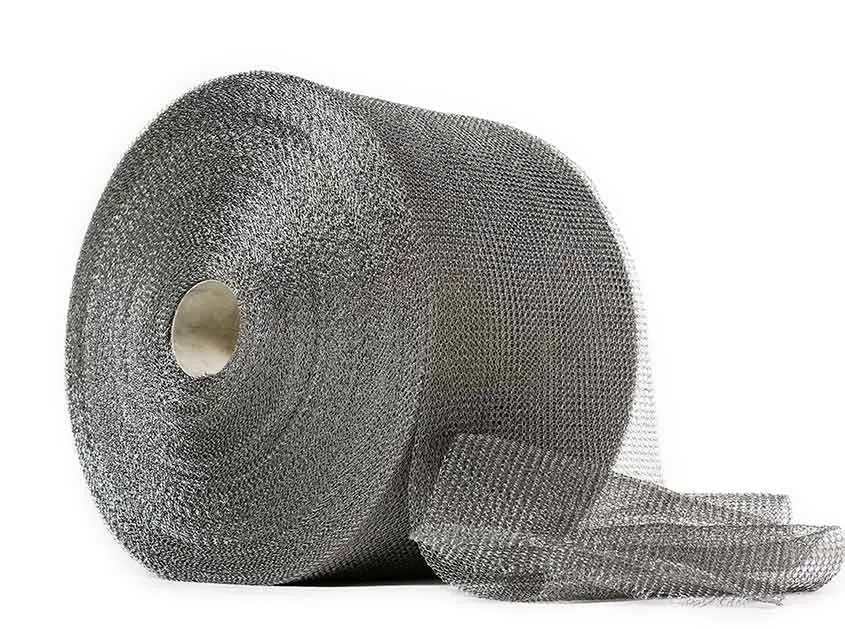

Drawing and Gallery:
Product Name: Knitted Wire Mesh
