Introduction:
Crimped wire mesh is a square mesh made by rolling mill and then weaving wire of different materials and specifications. It has a variety of uses. It is beautiful and durable. Crimped wire mesh is valued for its combination of strength and flexibility, making it suitable for a wide range of industrial, agricultural, and decorative applications. If you need specific details about types, materials, or suppliers, feel free to ask!
Types of Crimped Wire Mesh
● According to different materials, crimped wire mesh can be made by galvanized mesh, white steel mesh, black steel mesh, stainless steel mesh, wire mesh, copper clad steel mesh.
● According to different uses, the flower-rolling mesh can also be used as ore-sieve flower-rolling mesh, pig flower-rolling, barbecue flower-rolling, barn flower-rolling, and decorative flower-rolling mesh.
● According to the form, it can also be called a knot net, a web of ginning, and a web of ginning. Rolling mesh is a square mesh made by a rolling mill and then weaving wire of different materials and specifications by a new loom. It has a variety of uses.
Features:
1. Strong structure and durable
2. Beautiful Looking
3. Different material
4. Different color
5. Different shape
6. Widely applications
Crimped Wire Mesh Screen Key Features
Durability: Resistant to wear and corrosion.
Strength: High tensile strength and load-bearing capacity.
Flexibility: Adaptable to various shapes and sizes.
Customizability: Available in different wire diameters, crimp patterns, and mesh sizes.
Specifications:
| Product name | Square Crimped Wire Mesh |
| Material | stainless steel wire, Low carbon wire, High Carbon steel wire, Aluminium wire, etc. |
| Wire diameter | 0.5mm to 20mm |
| Mesh | 1 to 30 mesh |
| Width | 1m, 1.5m, 2m, etc. |
| Length | 2m, 3m, 15m, 30m, etc. |
| Weaving type | First crimped then woven. Plain crimped, intermediate crimped, lock crimped, flat top crimped, etc. |
| Surface treatment | Galvanized, PVC Coated, Painting, Powder coating, etc |
| Characteristics | Firm structure, good wallop-resisting, hard wearing, low cost, high strength. |
| Application | Square crimped wire mesh can be used in mining, construction, petroleum, chemical, ocean industry, kitchen, and refrigerator, roasting flour food and meat. |
| Package | First with plastic film, then with cross straps and pallets. |
Note: Special size and specifications can be made according to customers requires.
Technology:
| Parameter | Crimped Woven Wire Mesh Specification |
| Material Options | Stainless Steel (304, 316), Galvanized Steel, Copper, Brass, Aluminum, Carbon Steel |
| Wire Diameter | 0.5 mm to 12 mm (custom sizes available) |
| Mesh Size | 1 mm to 100 mm (custom sizes available) |
| Opening | Square, Rectangular, Custom Shapes |
| Crimp Types | Double Crimp, Intercrimp, Lock Crimp, Flat Top |
| Tensile Strength | Varies by material and wire diameter<br>Example for Stainless Steel 304: 550-750 MPa |
| Yield Strength | Varies by material and wire diameter<br>Example for Stainless Steel 304: 205 MPa |
| Elongation at Break | Varies by material<br>Example for Stainless Steel 304: 40% |
| Hardness | Varies by material<br>Example for Stainless Steel 304: 70-90 HRB |
| Density | Varies by material<br>Example for Stainless Steel 304: 8.0 g/cm³ |
| Melting Point | Varies by material<br>Example for Stainless Steel 304: 1400-1450°C |
| Chemical Composition (Example: Stainless Steel 304) | Carbon: ≤ 0.08%, Manganese: ≤ 2.0%, Silicon: ≤ 0.75%, Phosphorus: ≤ 0.045%, Sulfur: ≤ 0.03%, Chromium: 18-20%, Nickel: 8-10.5%, Iron: Balance |
| Width | Standard: 1.0 m to 2.0 m<br>Custom sizes available |
| Length | Standard: 10 m to 30 m rolls<br>Custom lengths available |
| Tolerance | Wire Diameter: ± 0.05 mm<br>Mesh Size: ± 0.5 mm |
| Surface Treatment | Galvanized, PVC Coated, Epoxy Coated, Polished, Uncoated (Plain) |
| Applications | Industrial: Screening, Sieving, Filtering, Separation<br>Agricultural: Fencing, Grain Handling, Livestock Enclosures<br>Architectural: Facades, Partitions, Security Screens<br>Other: BBQ Grills, Protective Screens, Construction Support |
| Standards and Certifications | ASTM A580 (Stainless Steel Wire), ISO 9044 (Industrial Wire Mesh), DIN 43125 (Wire Mesh Specifications) |
| Packaging | Rolls wrapped in waterproof paper and plastic film<br>Palletized for bulk orders<br>Custom packaging available |

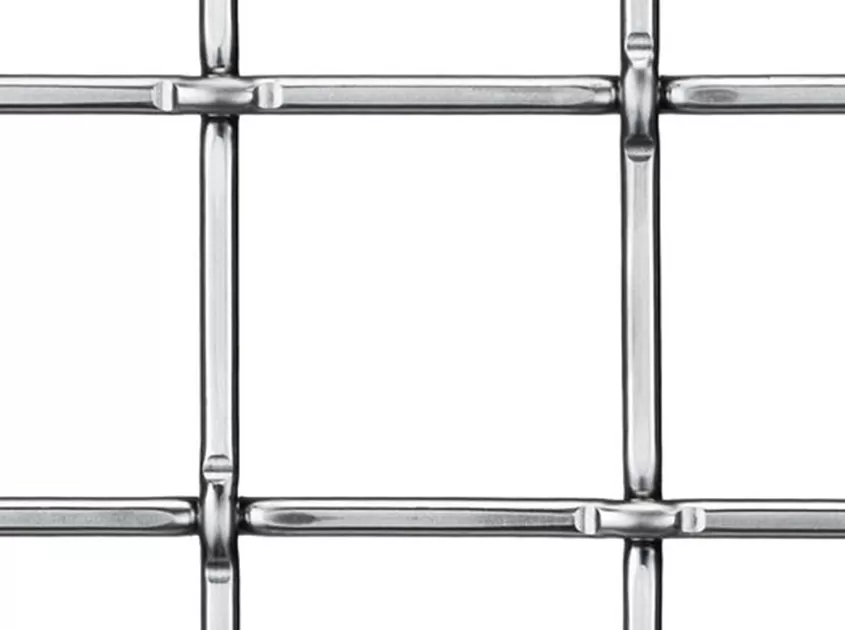

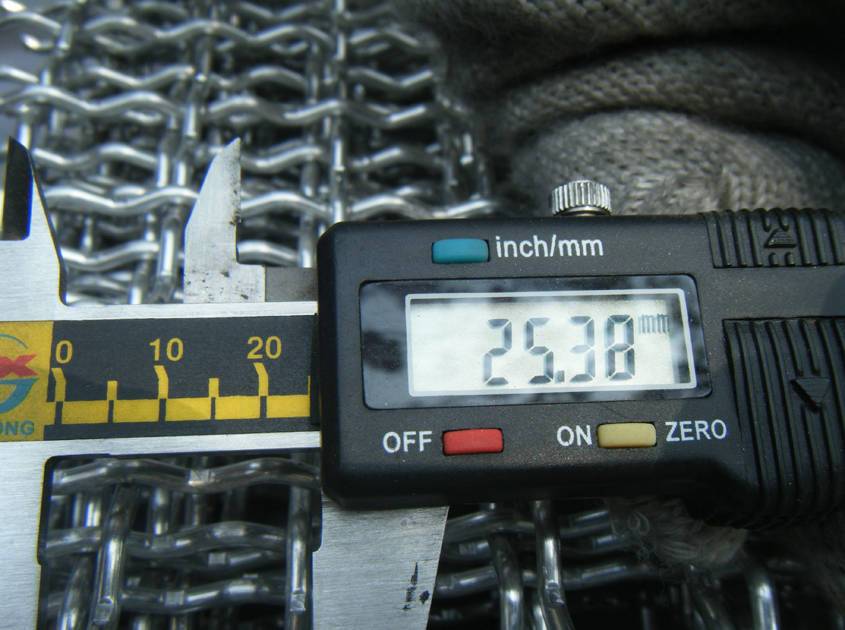

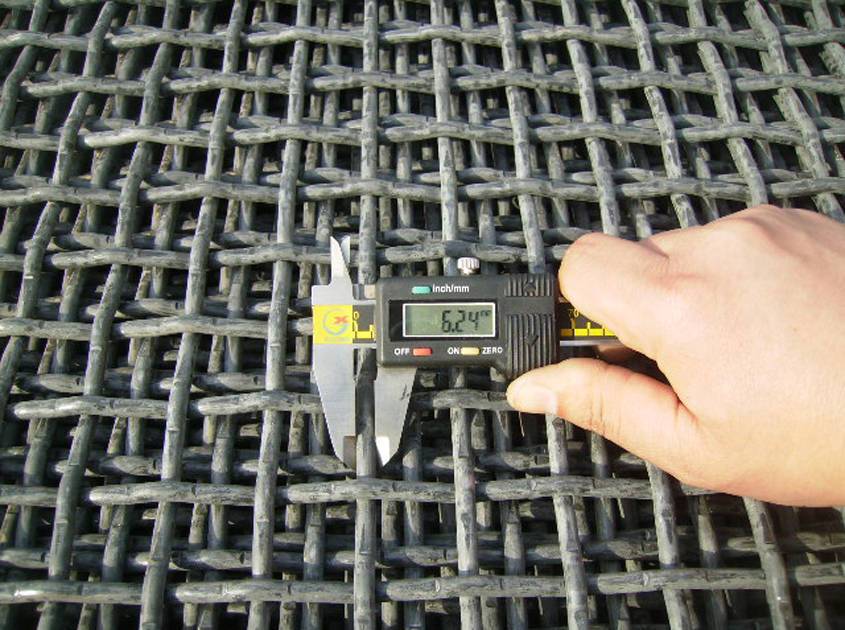

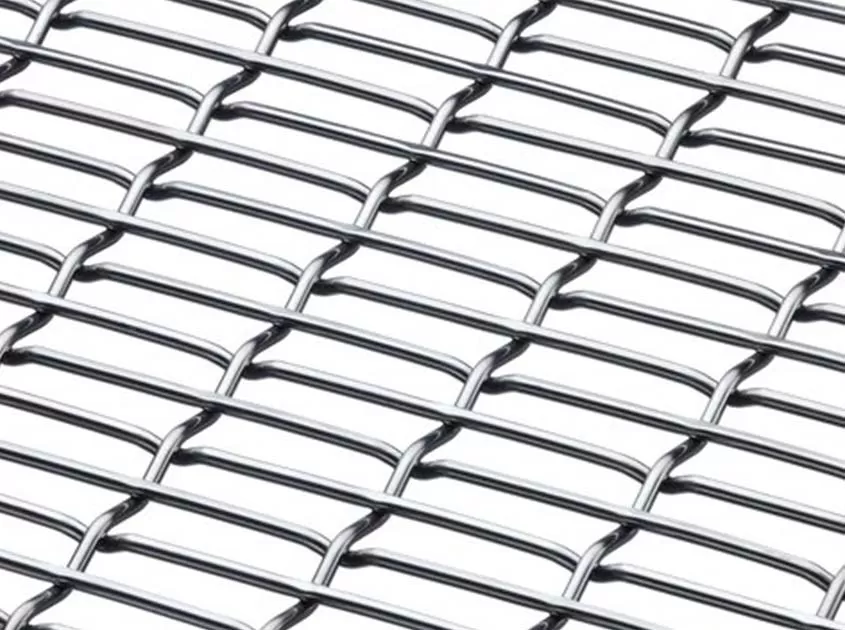

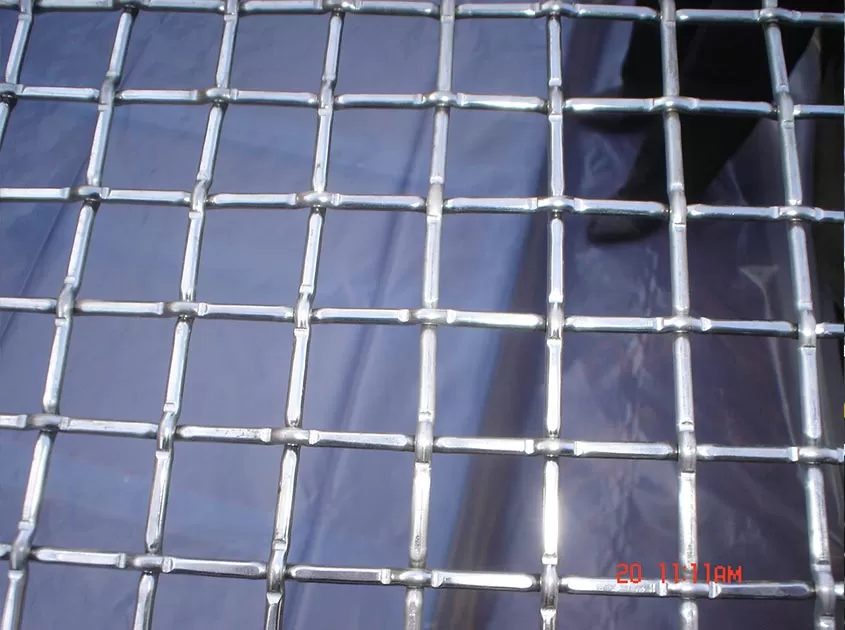

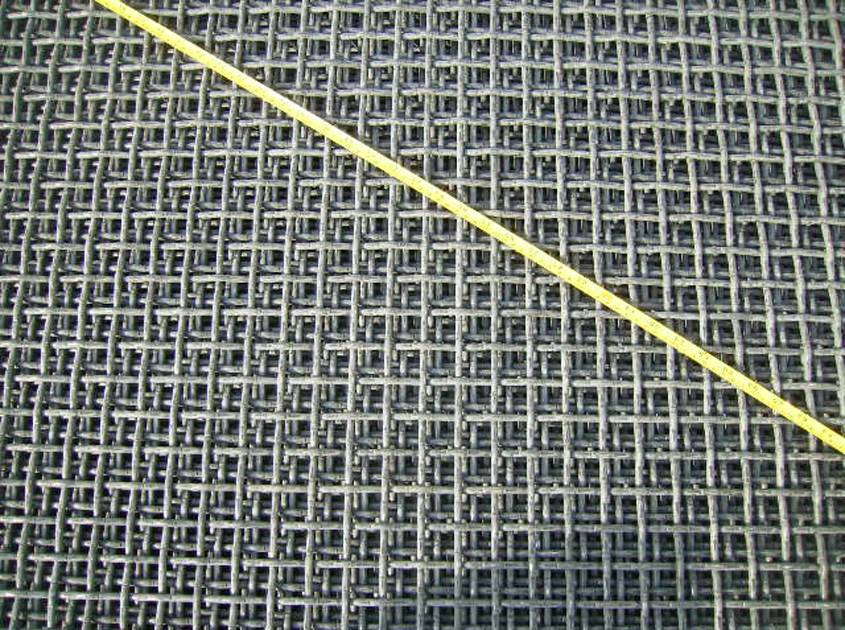

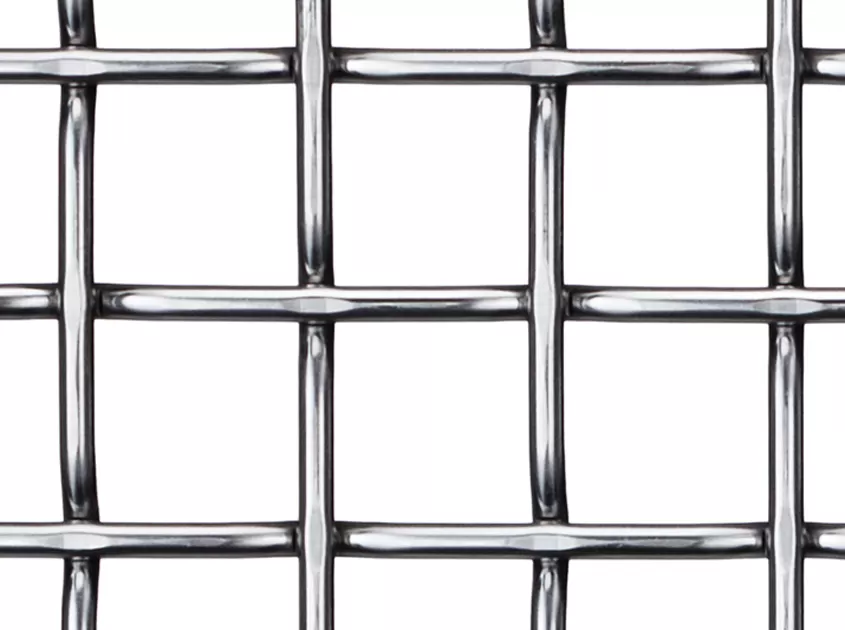

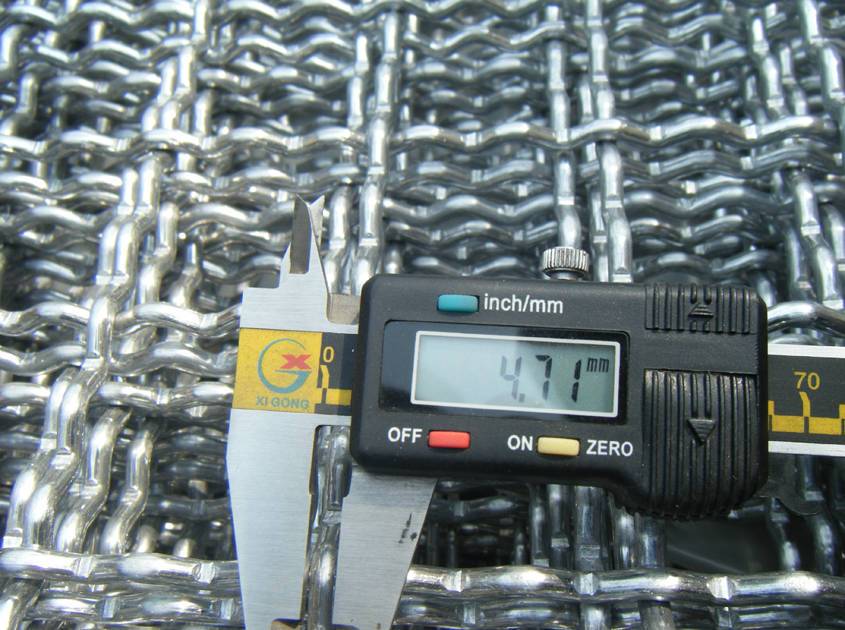

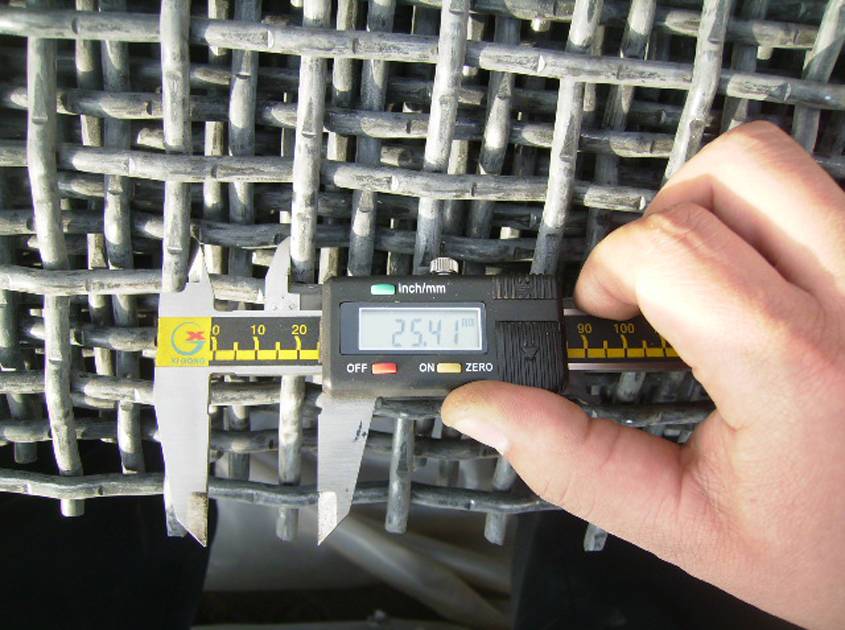

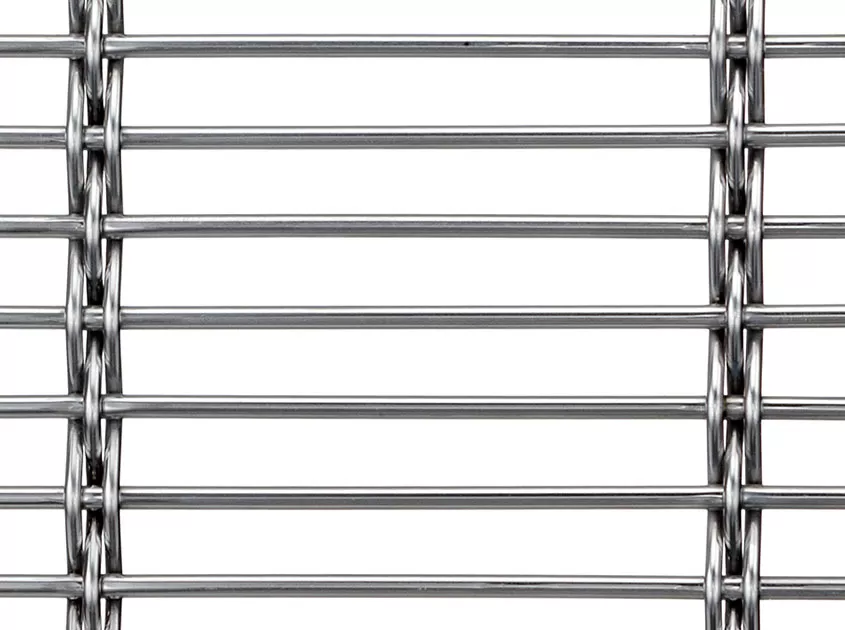

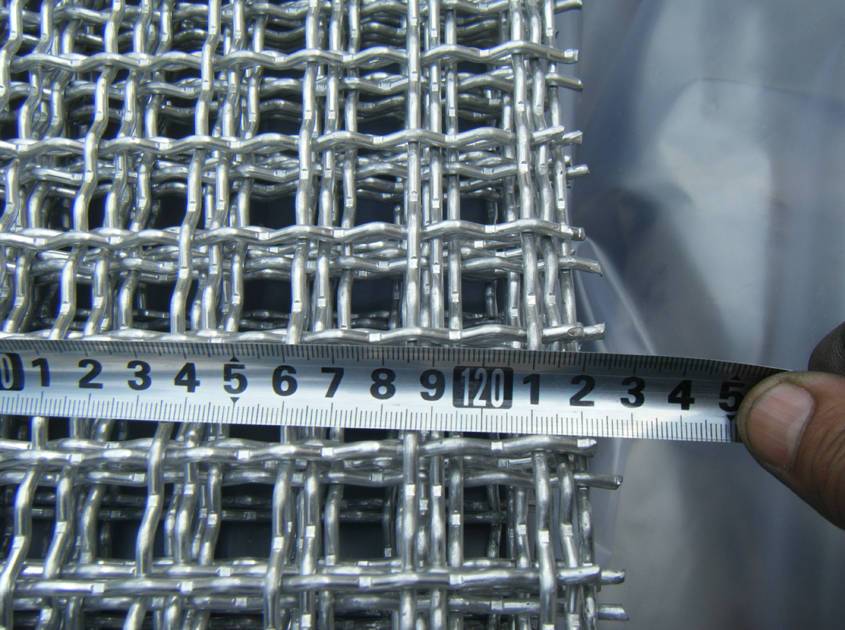

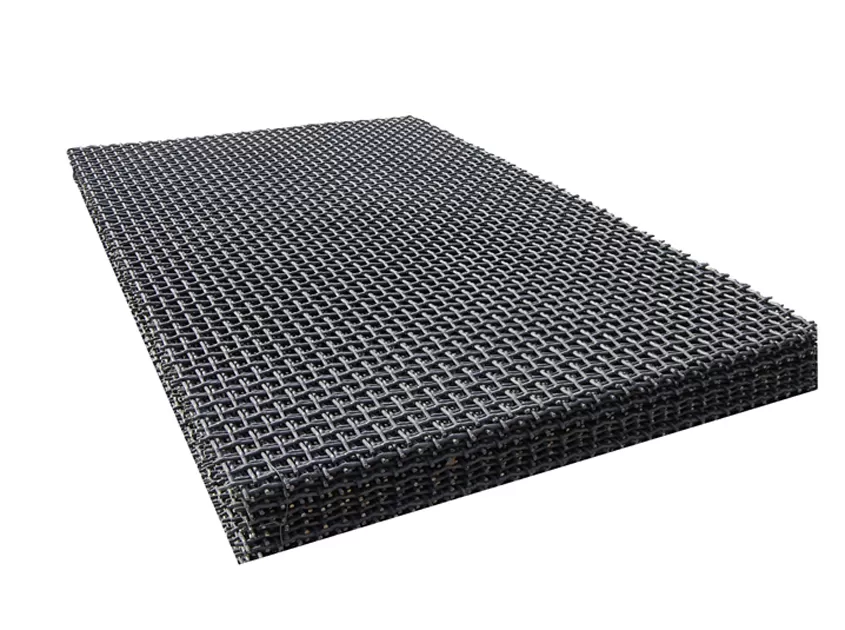

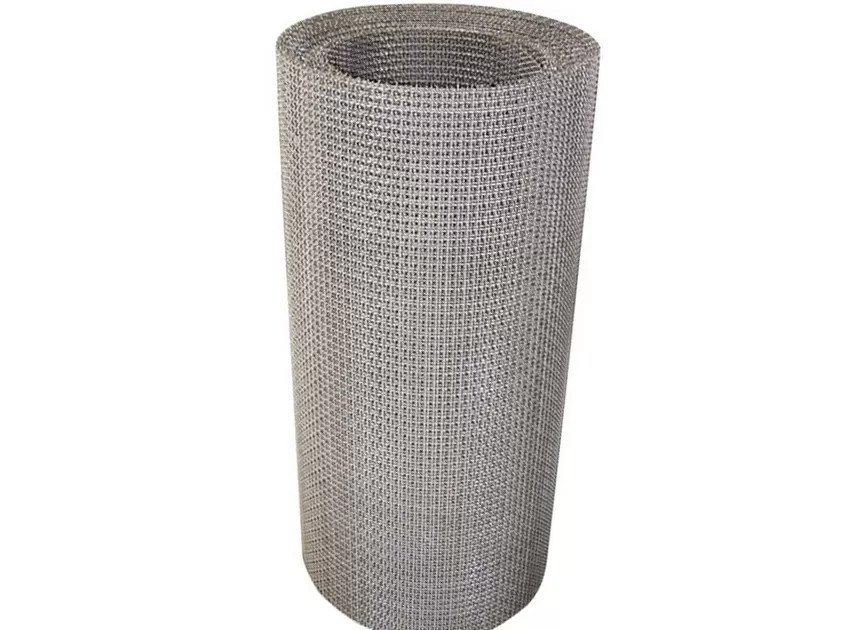

Drawing and Gallery:
Product Name: Crimped Wire Mesh
