Introduction:
Qunkun Metal products offers a wide range of galvanized or PVC-coated welded wire mesh rolls which are ideal for fencing. These welded mesh rolls are commonly used as garden fencing or agricultural field and border fencing. The strong wire is able to enclose and protect animals and livestock as well as restrict access.

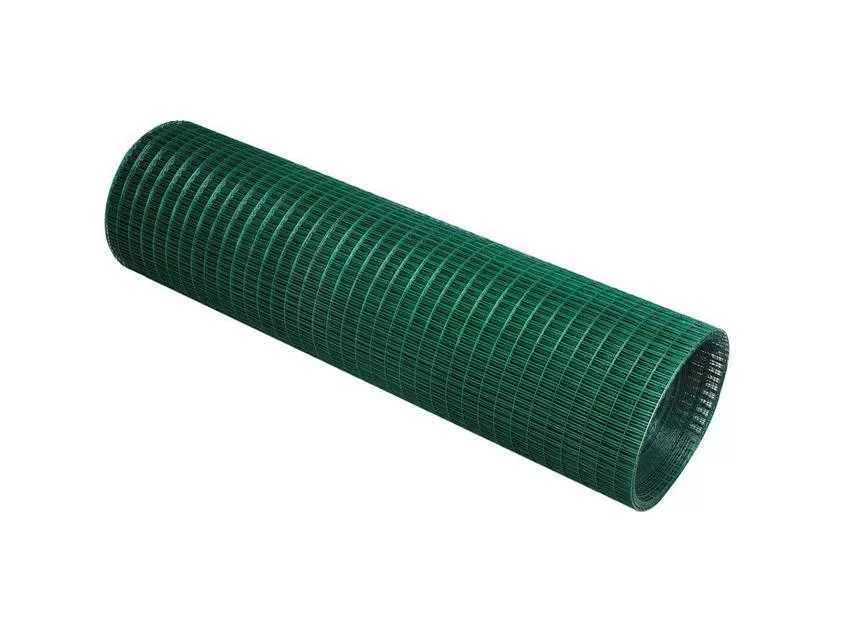

Our green welded wire mesh is supplied in a range of different heights, lengths, gauges and hole sizes, ensuring that we have something that will fit a wide range of applications.
Both our galvanized and PVC-coated welded mesh rolls are treated and fully protected against rust and corrosion. The wire is hot-dipped galvanized before welding to ensure complete coverage and protection, with the PVC-coated option being galvanized as well as coated in a smooth green plastic.
PVC-coated welded wire mesh are particularly ideal for use around children and animals as the plastic coating ensures there are no sharp barbs that could cause harm which are left over from galvanization.
Features:
1. Provided as a roll for easier transport – simply unroll and cut as required
2. Galvanized square wire mesh with a zinc coating to give it a longer life against the elements
3. Resistant to corrosion and rust
4. Welded at each mesh join to ensure it is strong, long-lasting and secure
5. Available with a galvanized steel finish or PVC-coated galvanized steel finish or stainless steel wire welded
Specifications:
| Opening | Wire Diameter BWG | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15 |
| 2” x 4" | 50.8mm x 101.6mm | 12,13,14,15 |
| 4” x 4" | 101.6mm x 101.6mm | 12,13,14,15 |
| 4” x 6" | 101.6mm x 152.4mm | 12,13,14,15 |
| 6” x 6" | 152.4mm x 152.4mm | 12,13,14,15 |
| 6” x 8" | 152.4mm x 203.2mm | 12,13,14 |
| Roll Width from 0.4M to 2M, Roll length, 5M,10M,30M,50M.etcMaterial: Galvanized, PVC coating, Stainless steel wire | ||
Note: Special size and specifications can be made according to customers requires.
Technology:
Surface finishing
Electro galvanized
Hot dipped galvanized
PVC coated
Stainless steel wire
Wire gauges explained
12 gauge wire is approx. 2.5mm thick
14 gauge wire is approx. 2mm thick
15 gauge wire is approx. 1.8mm thick
18 gauge wire is approx. 1.2mm thick
19 gauge wire is approx. 1mm thick
Hole sizes explained
25.4mm is 1” holes are perfect for small animal’s enclosures, hutches, cages, chicken coops and rabbit runs.
50.8mm is 2” holes are perfect for creating fencing for larger animals such as dogs.

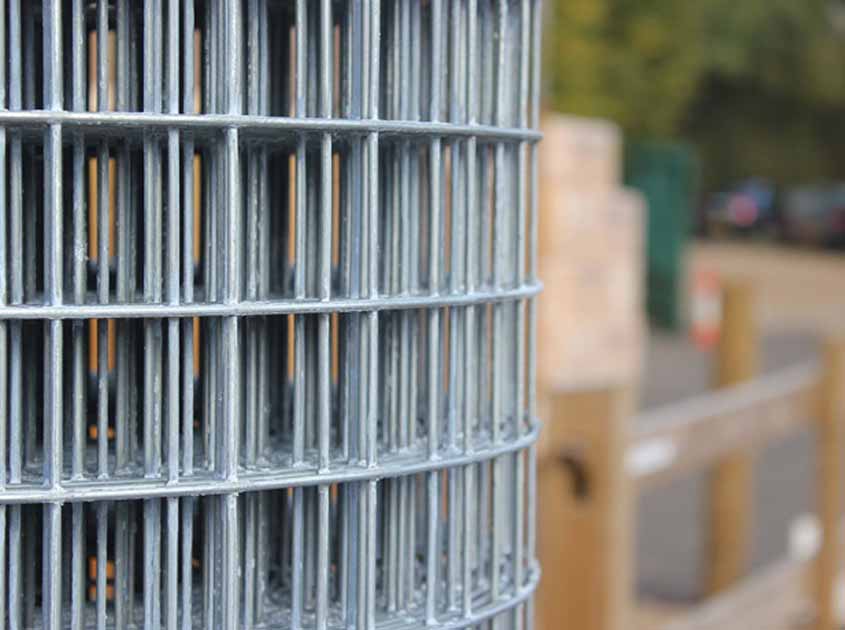

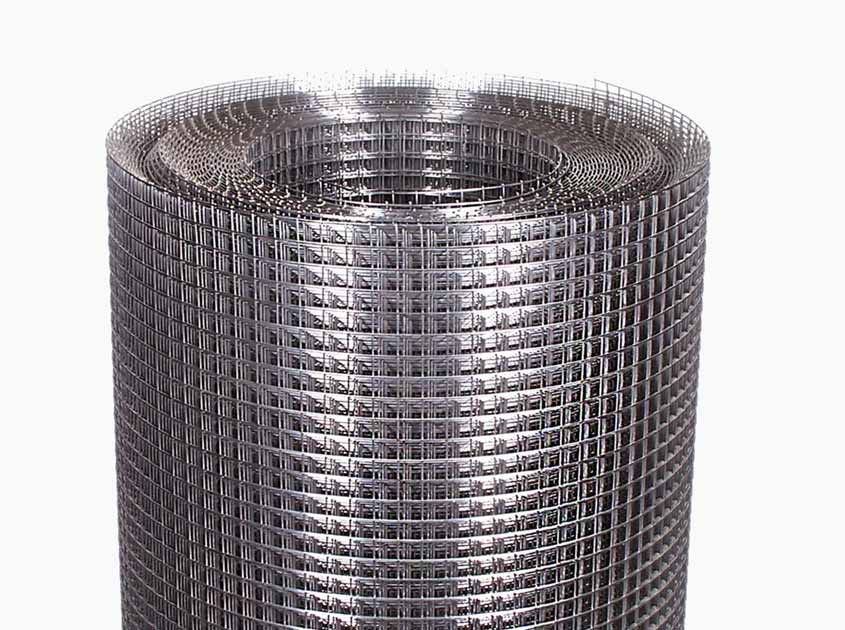

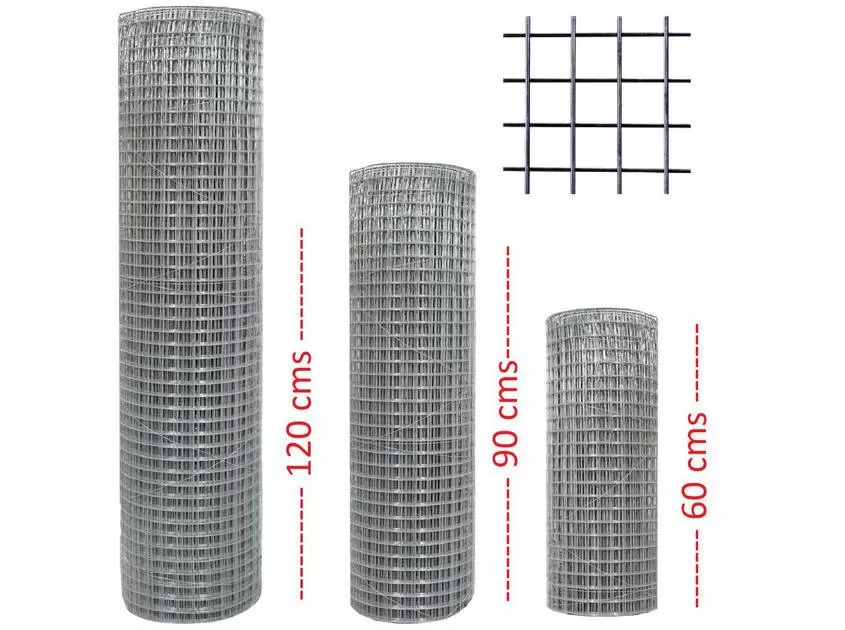

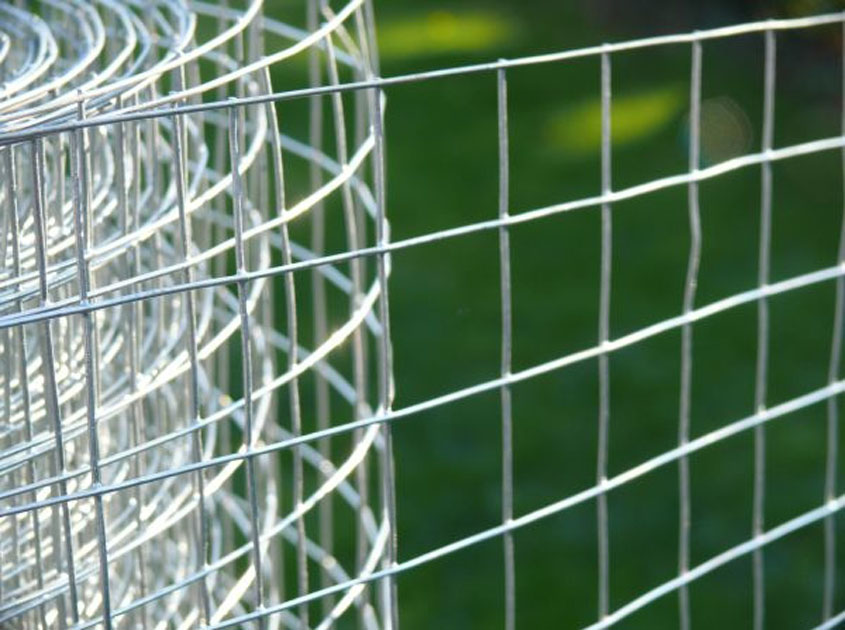

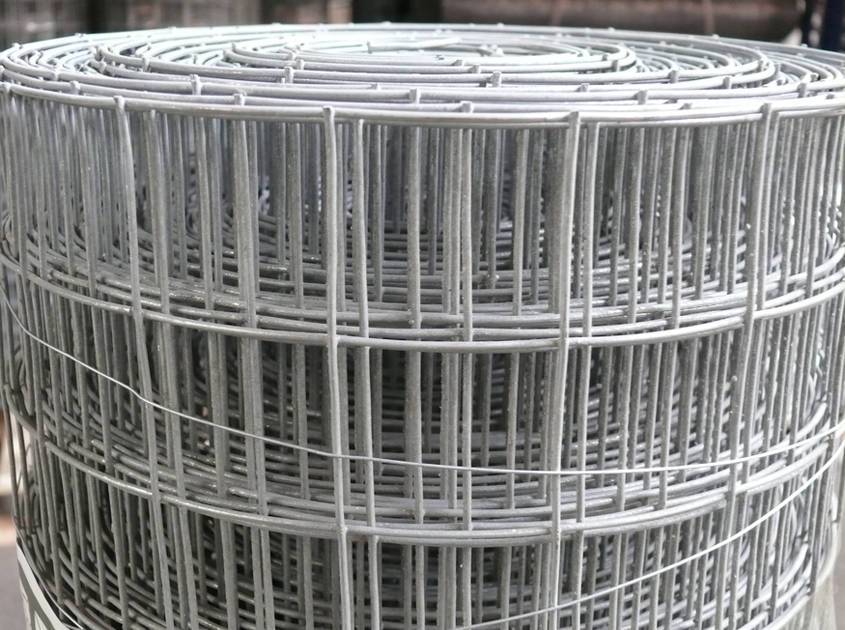

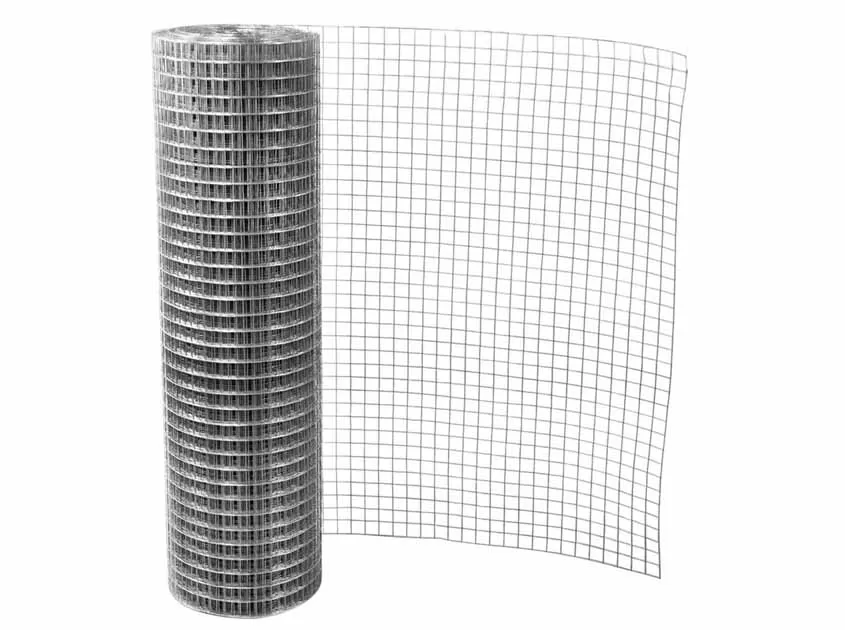

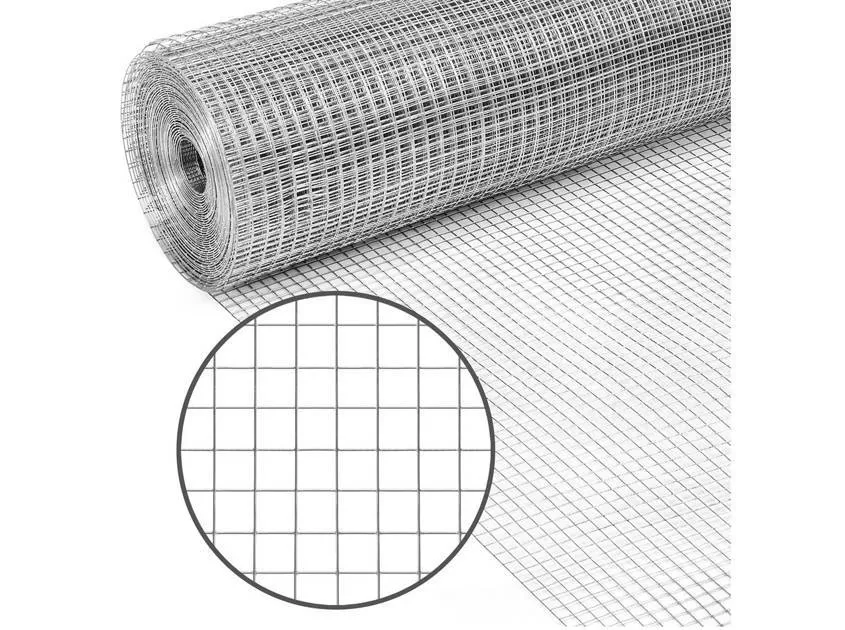

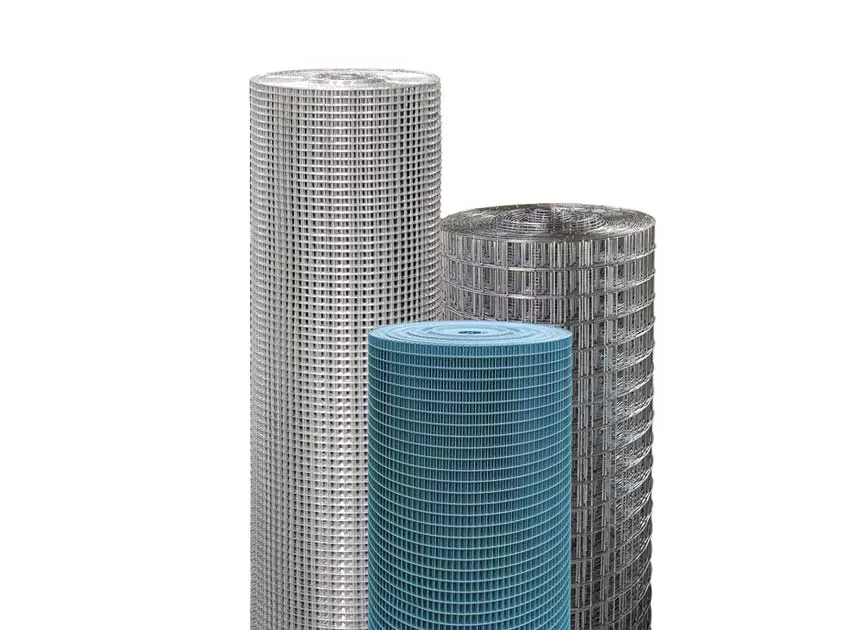

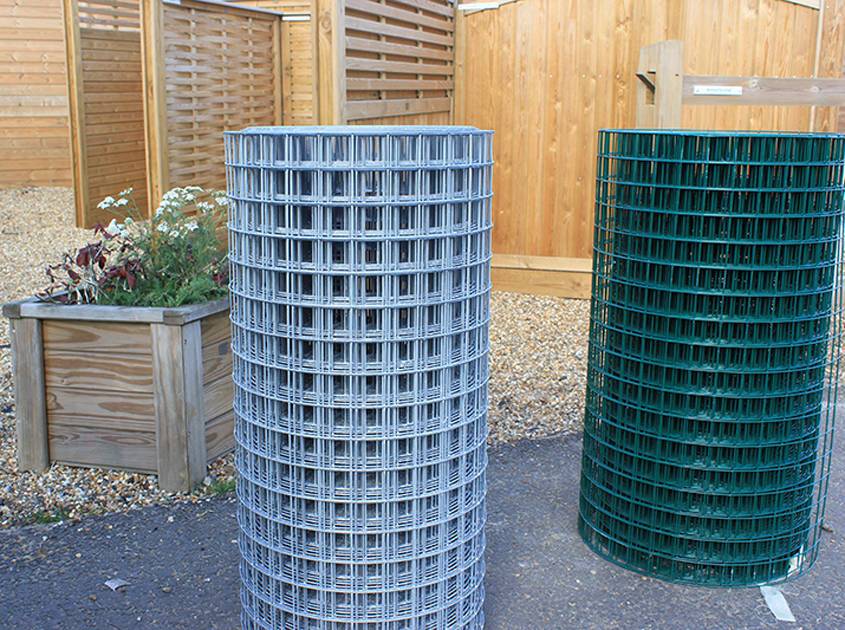

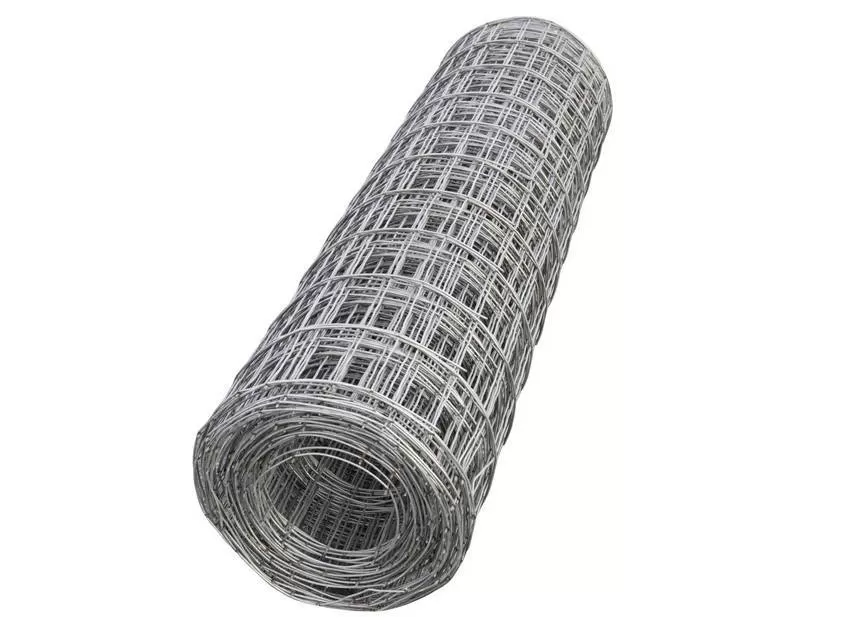

Drawing and Gallery:
Product Name: Welded Wire Mesh Roll
