Introduction:
1.Industrial fields: textile, socks/clothes making, glass, molding, rubber, coating, silk-screen printing, toy, electronics, home appliances, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.
2.Civil fields: net bars, stores, supermarkets, mess hall, food markets, waiting-rooms and recreation places and other occasions with air-conditioning.

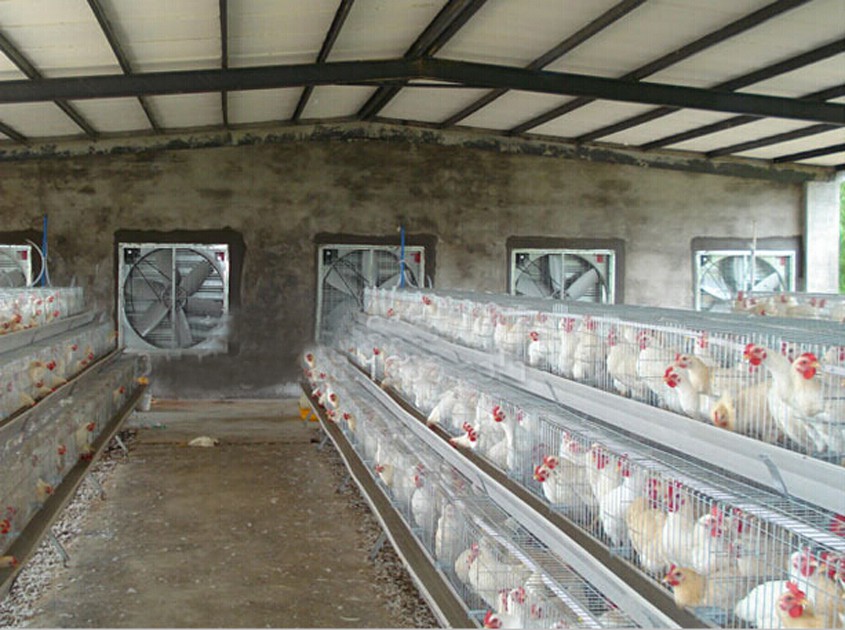

3.Agricultural fields: large farms, greenhouse and livestock farms, etc.
4.Very effective to improve the plant's high temperature and hot environment,so that plant temperature quickly decline in 10 minutes.
5.Its cooling ventilation effect,can effectively solve the plant hot and humid,air pollution problems.
6.The fan has a large air volume,low power consumption,ultra-low noise.
7.Easy installation,beautiful appearance,ventilation cooling dual function and so on.
8.Span life:More than 15-20 years.
Features:

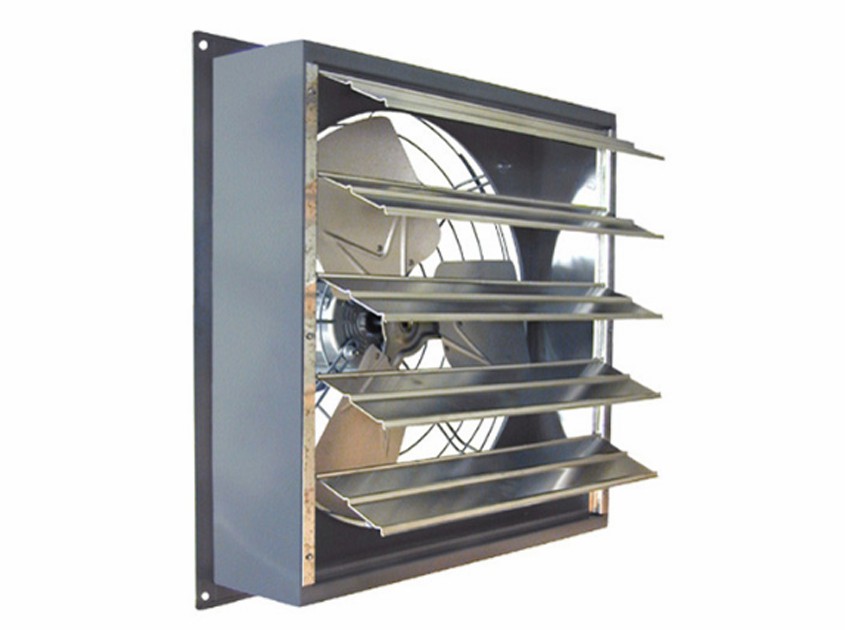

1 Shutter:With a centrifugal system which can ensure the shutter open and close automatic, and makes it dustproof, waterproof.
2)Motor: the high efficient and energy-saving motor with protection grade: IP55 , insulation class: F grade
3)Belt: Automatic tensioner to prevent the belt loosing and dropping off .

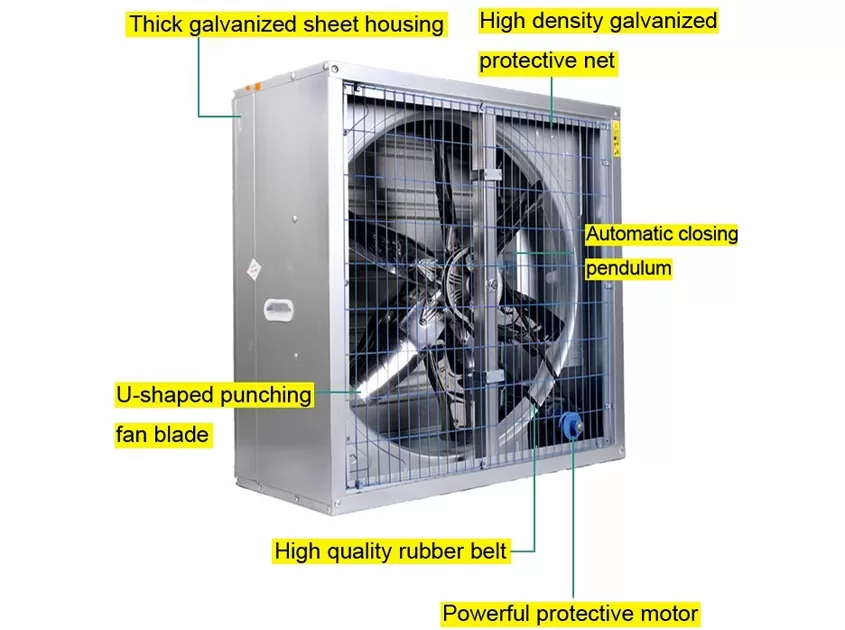

4)Fan housing made from highly galvanized Steel sheets in order to assure highest strength and strong resistance to corrosion

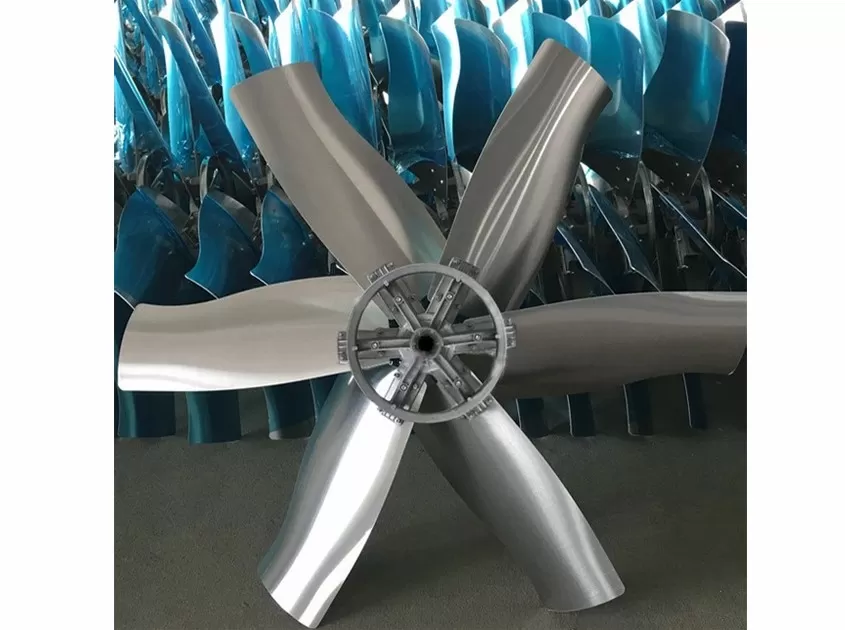

5) 6 pieces stainless steel blades and the fan translations have all passed the experiment of homeostasis with big air volume, without deformation, no breaking, attractive and durable
6)Belt Pulley: The V type belt pulley is aluminium magnesium alloy injection moulding, light weight, high-strength.
7)Bearing:High intensity, low noise, long service life
Specifications:
| Fan Specifications | ||||||
| Model | BladeDiameter(mm) | Air rate | Power rate | Voltage (V) | Frequency | Size of frame (mm) |
| QK-F710 | 710 | 18000m2/h | 0.37kw | 380/220v | 50HZ | 800×800×370 |
| QK-F1000 | 900 | 28000m2/h | 0.55kw | 380/220v | 50HZ | 1000×1000×370 |
| QK-F1100 | 1000 | 30000m2/h | 0.75kw | 380/220v | 50HZ | 1100×1100×370 |
| QK-F1380 | 1250 | 39000m2/h | 0.75kw | 380/220v | 50HZ | 1380×1380×370 |
| QK-F1530 | 1400 | 52000m2/h | 1.5kw | 380/220v | 50HZ | 1530×1530×370 |
| QK-F1750 | 1500 | 63000m2/h | 1.5kw | 380/220v | 50HZ | 1750×1750×370 |
Note: Special size and specifications can be made according to customers requires.
Technology:
| Material of blades | stainless steel |
| Aluminium magnesium alloy material | |
| Material of fan housing | highly galvanized Steel sheets |
| Material of belt pulley | high strength aluminium magnesium alloy |
Drawing and Gallery:

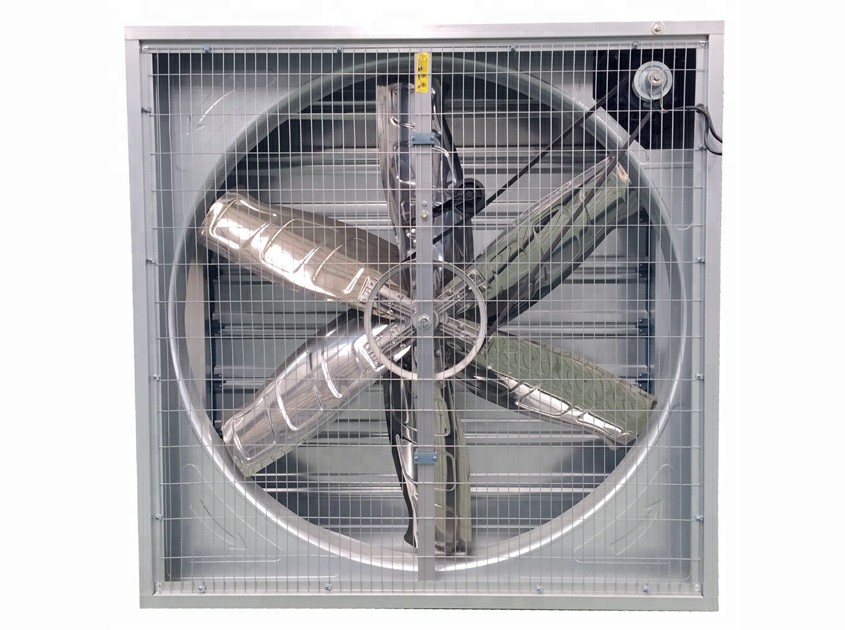

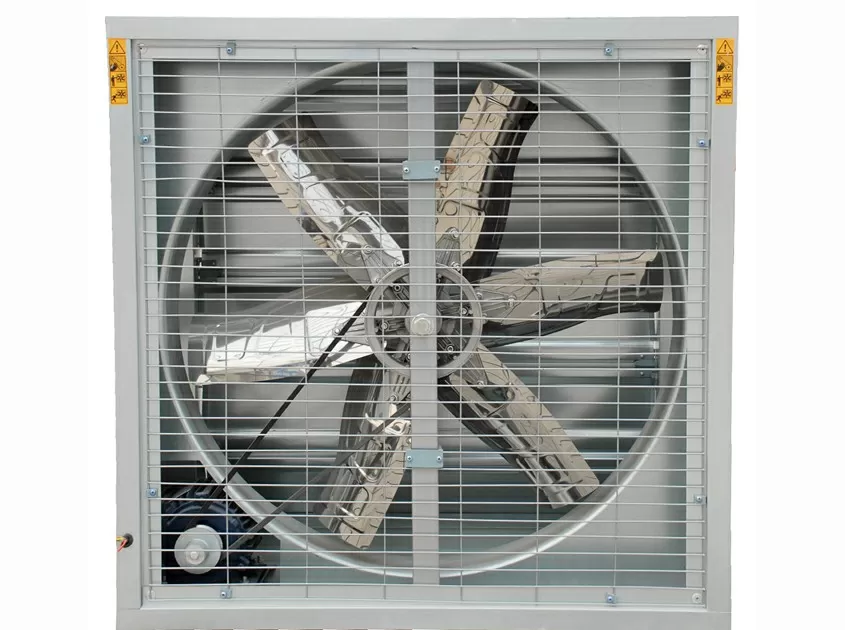

Product Name: Exhaust fan
