Introduction:

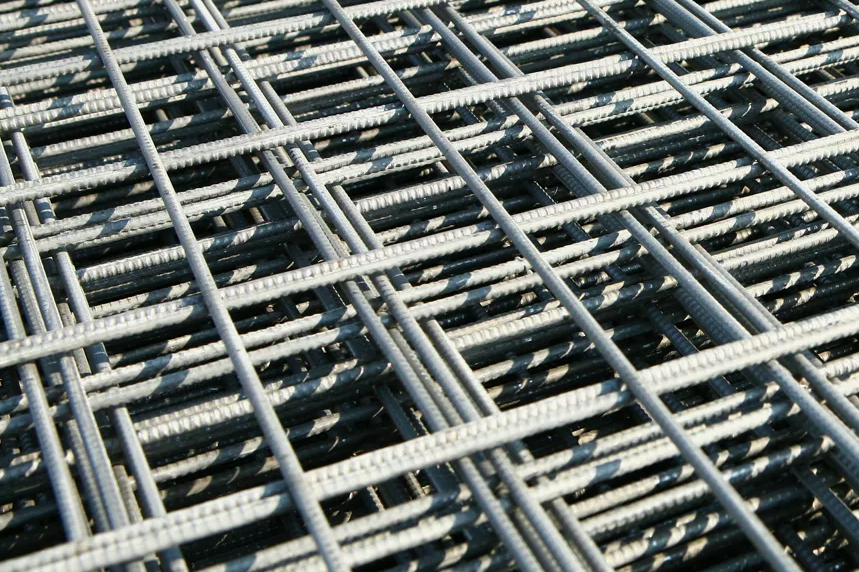

Concrete welded Reinforcing mesh is a convenient and cost effective alternative to conventional bar reinforcement for the following reasons :
The mesh is generally specified and manufactured according to standard references making for easy site identification, quality control and management.
The mesh is manufactured in sheets or rolls resulting in a quick and simple site installation process.
Although generally used in surface beds (concrete floor slabs on fill) and concrete roads, the mesh can also be used in suspended floor slabs, concrete walls, culverts/drains and composite brick / concrete retaining walls
Factors Influencing Concrete Reinforcing Mesh Prices
Material: Common materials include galvanized steel and stainless steel. Stainless steel typically costs more due to its superior durability and rust resistance.
Size and Thickness: Larger and thicker meshes are generally more expensive. Common sizes include 4x8 feet, 5x10 feet, and custom dimensions.
Wire Gauge: Thicker wire (lower gauge numbers) usually results in a higher cost.
Quantity: Buying in bulk can often reduce the per-unit price. You can place bulk orders for our concrete steel mesh for more preferential prices.
Location: Prices can vary based on regional market conditions and shipping costs. Our factory is located in China, which has a high cost-effectiveness. We reduce costs from the source and provide customers with factory-priced concrete steel mesh.
Approximate Prices (as of mid-2024)
Standard Galvanized Mesh (4x8 feet, 6-gauge): $30 - $50 per sheet.
Heavy-Duty Galvanized Mesh (5x10 feet, 4-gauge): $50 - $80 per sheet.
Stainless Steel Mesh (4x8 feet, 6-gauge): $100 - $150 per sheet.
Custom Sizes and Thicknesses: Prices can range significantly based on specifications, often $2 - $5 per square foot. You can contact us for more detailed information.
Features:
To save more than 33% of steel, reducing costs 10% -30%;
Increase the speed of construction can shorten the duration of about 80%;
To improve the quality of engineering structures, and concrete bonding anchoring reliable, smooth reinforcement bond strength equal to three times more, and the overall good, deviation is small, anti - cracking performance above 75%.
Specifications:

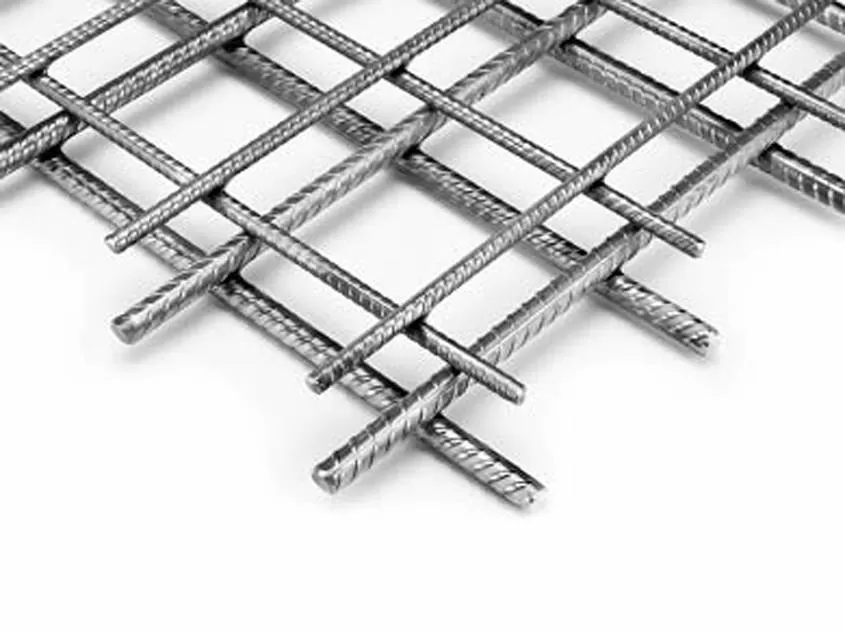

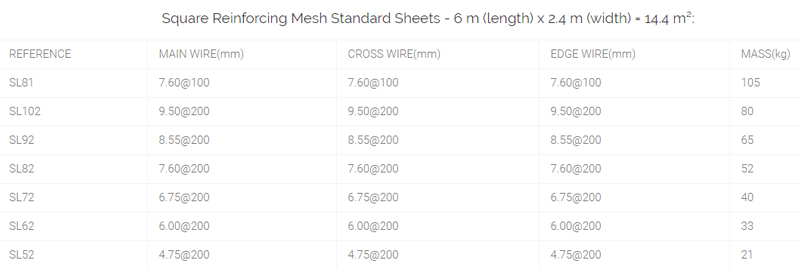

Square Reinforcing Mesh Standard Sheets

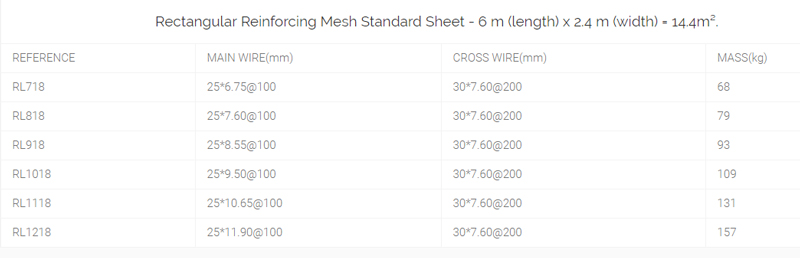

Rectangular Reinforcing Mesh Standard Sheet
Concrete Reinforcing Mesh Types and Specifications
| Type | Description | Common Sizes | Usage | Advantages |
| Square Mesh | Square openings formed by intersecting wires at right angles | 4x4 in, 6x6 in | Slabs, walls, pavements | Uniform strength, easy to handle |
| Rectangular Mesh | Rectangular openings for directional strength | 4x6 in, 6x8 in | Beams, columns | Targeted reinforcement, structural needs |
| Sheet Mesh | Pre-cut sheets of welded wire mesh | 4x8 ft, 5x10 ft | Driveways, patios | Convenient, reduces waste |
| Roll Mesh | Continuous rolls of welded wire mesh | 3-8 ft width, variable lengths | Roads, runways, large slabs | Minimizes joints, easy to lay |
| Galvanized Mesh | Coated with zinc to prevent rust and corrosion | Varies (e.g., 4x8 ft, 6x6 in) | Outdoor applications | Enhanced durability, rust-resistant |
| Stainless Steel Mesh | Made from stainless steel for superior strength | Varies (e.g., 4x8 ft, 6x6 in) | High-performance, corrosive environments | Highly resistant to corrosion, durable |
| Plastic-Coated Mesh | Welded wire mesh with a plastic coating | Varies (e.g., 4x8 ft, 6x6 in) | Moisture/chemical protection environments | Corrosion-resistant, extra protection |
| High Tensile Mesh | Made from high tensile steel wires | Varies (e.g., 4x8 ft, 6x6 in) | Structural applications | Stronger, better performance under stress |
| Expanded Metal Mesh | Cut and stretched sheet of metal forming diamond-shaped openings | Varies | Reinforcement, fencing, lath for plastering | Strong, durable, excellent bonding |
Note: Special size and specifications can be made according to customers requires.
Technology:
The Reinforcing Mesh is manufactured under strict quality controls with all standards conforming to SANS 1024:2006 standard specifications and tolerances and carries the certification mark.
Meet “GB/T1499.3-2002” standard; AS/NZS 4671; 2001,BS 4483:2005, A185-02

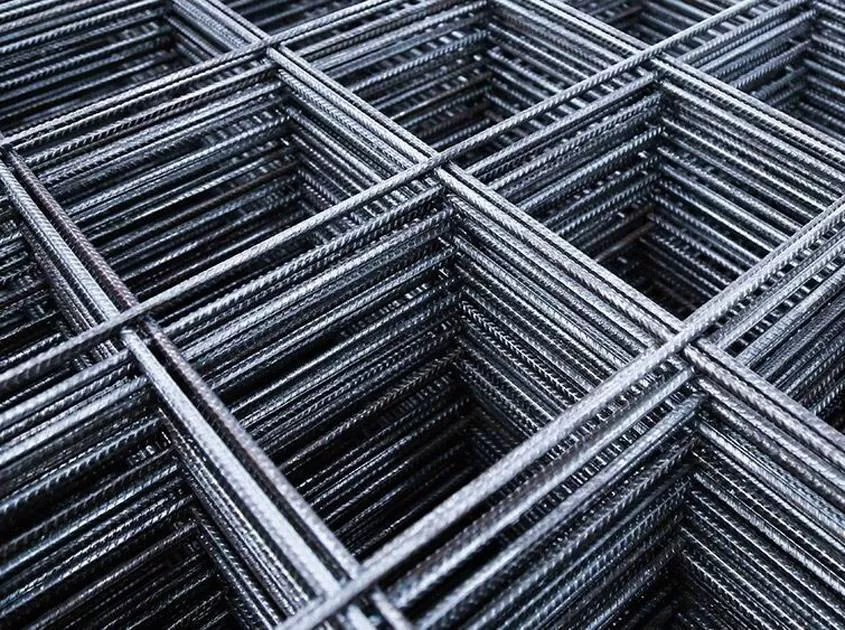

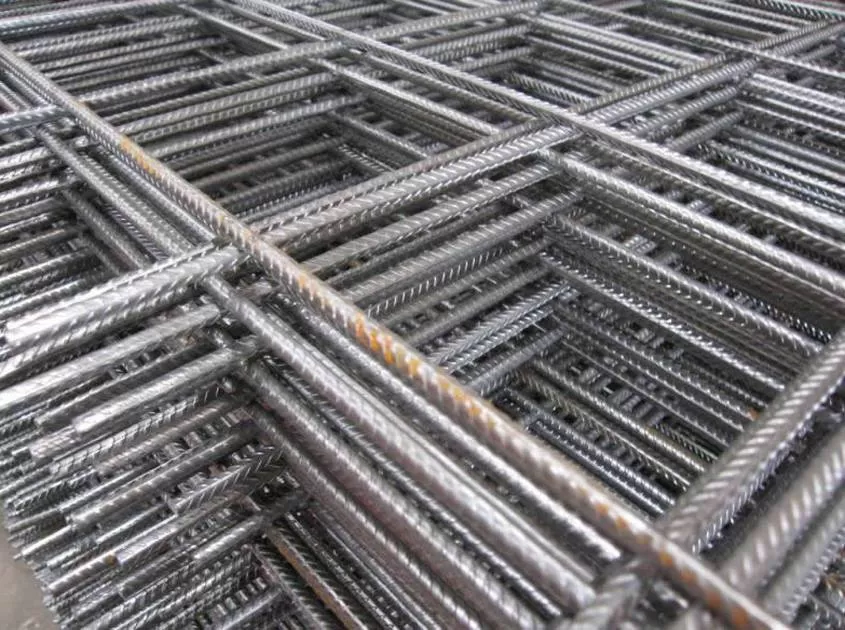

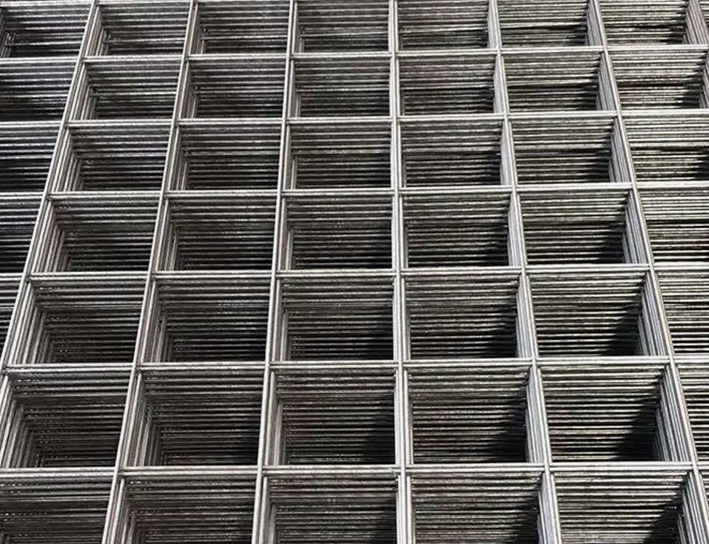

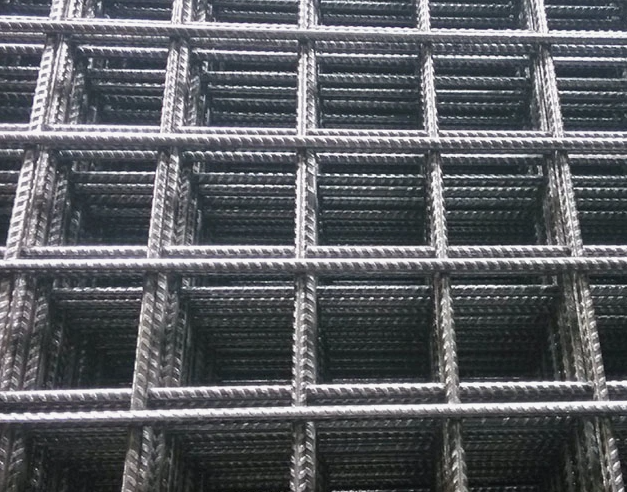

Drawing and Gallery:

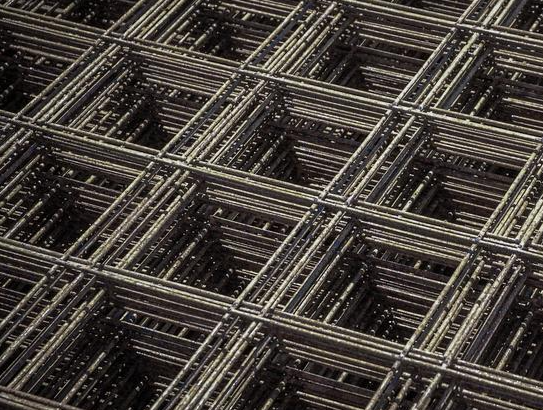

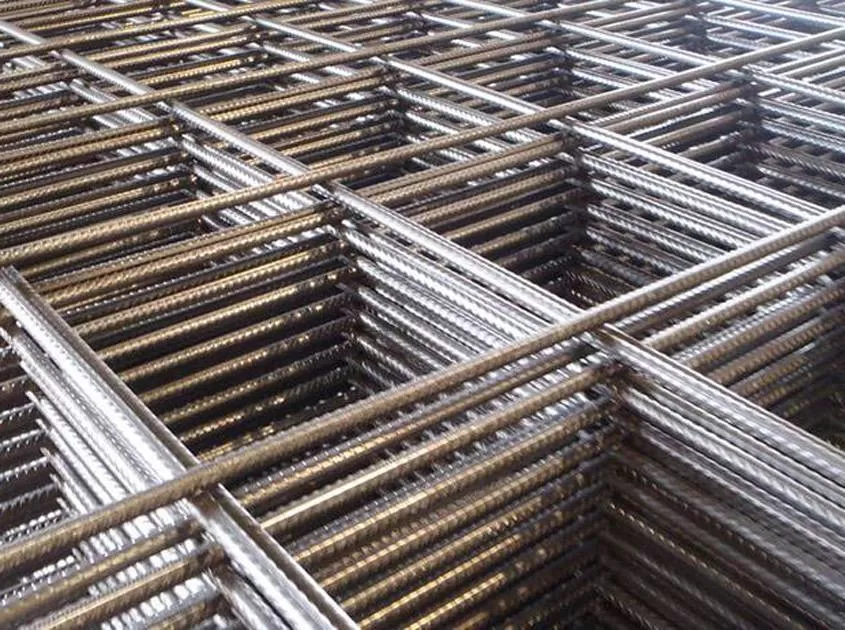

Product Name: Concrete Reinforcing Mesh
