Introduction:
Broiler chicken cage is producing by low carbon steel wire, it can be arranged different according to different requirements
1.Broilers usually need six weeks to grow up, but you need to tell us at what age you want to sell your mature broilers. We also need to know how many broilers you want to feed every month, then we can estimate how many broiler cages you need.
2.Our semi-automatic feeding machine is 0.55m wide. The minimum width to be able to use our semi-automatic feeding machine is 0.7 m, but if your area is very hot, and the scale of the chicken house is large, the width can be bigger to ensure good ventilation. Usually we design walkways to be between 0.7 m and 1.2 m.
3.The 3-tier broiler cage is 1.75 m long, so the chicken house should be about 2.5m high. This is the most common type customers adapt, because 4-tiers tend to be a little high, more than 2m.
Features:
Special Advantages Of Qunkun Chicken Cage System
1.Raising broilers in the cages is another type of broiler housing system, but yet it is not commonly used. Raising broilers in cage system has many advantages when compared to raising broilers on the floor.
2.The first obvious advantage is the better utilization of space available and that is important especially when the lands are expensive. In addition, using cage to raise broilers provide better hygienic condition that could lead to improving the health and quality of broilers.
3.However, it is not known whether or not different broiler breeds will behave similarly when are raised in cage versus floor. Therefore, the current study was conducted to compare the production performance as well as per cent carcass of broilers raised in the cage system with broilers raised on the floor.
Specifications:
| The specifications of broiler cages | ||||||
| Item No. | system | Type | Size (L x W x H) | Total Cells | Nos of Chicks/Cell | Nos of Chicks/ Set |
| H type | Without automatic manure cleaning system | 3 tiers 2 cells | 1.4 x 0.7 x 1.5m | 6 | 9-10 | 54-60 |
| 4 tiers 2 cells | 1.4 x 0.7 x 1.8m | 8 | 9-10 | 72-80 | ||
| With automatic manure cleaning system | 3 tiers 2 cells | 1.4 x 0.7 x 1.75m | 6 | 9-10 | 54-60 | |
| 4 tiers 2 cells | 1.4 x 0.7 x 2.05m | 8 | 9-10 | 72-80 | ||
| A type | 4 tiers 5 cells | 1.95*2.4*1.95m | 40 | 2 | 80 | |
Note:
The cage can use for baby chickens; it put 48 birds in top floor. 24 birds per cell.
After one week, put 24 birds to the second floor, 12 birds per cell
After 20-25 days, put 16 birds to the bottom floor, 8 birds per cell
Note: Special size and specifications can be made according to customers requires.
Technology:
| Material | High quality low carton steel wire (Q195/Q235) |
| Surface Treatment And Service Life | Cold galvanized chicken cage (6-year to 10-year) |
| Hot galvanized chicken cage (20-year to 30-year) | |
| Accessories | PVC feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings |
| Connection: | welding |

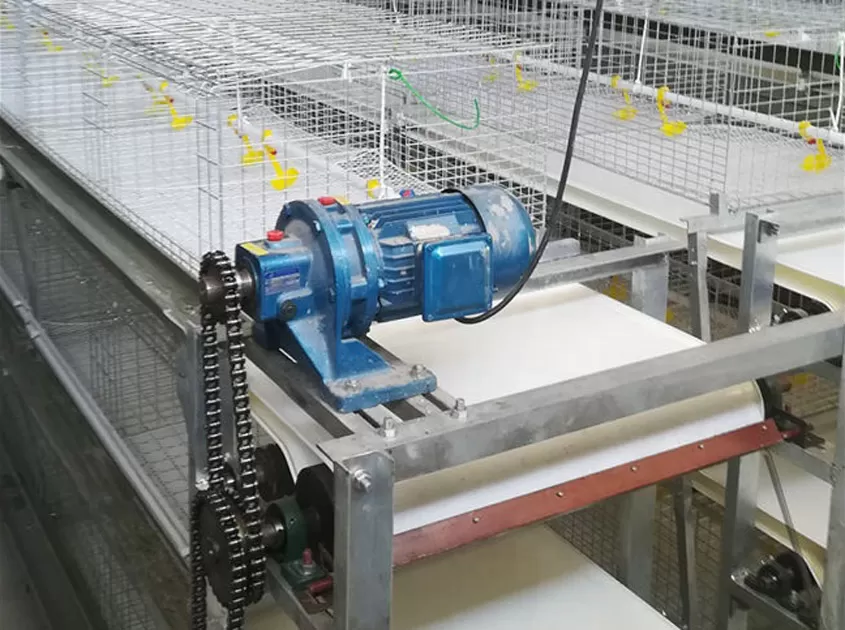

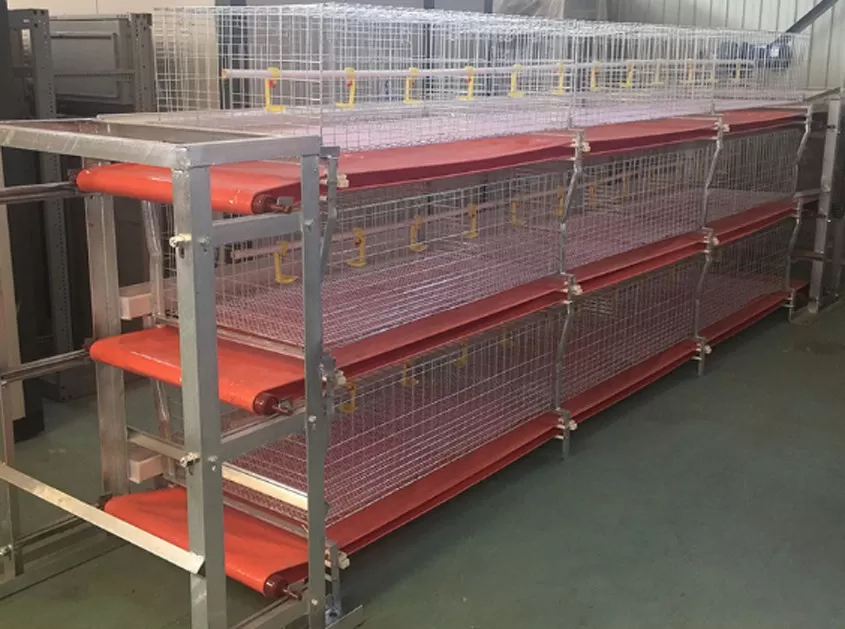

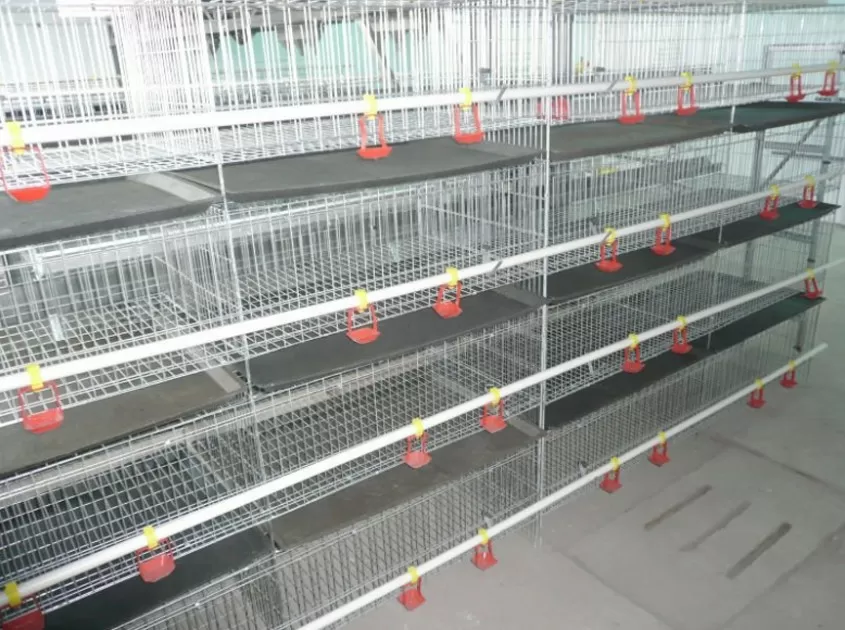

Drawing and Gallery:
Product Name: Broiler Chicken Cages
