High Rib Formwork Mesh

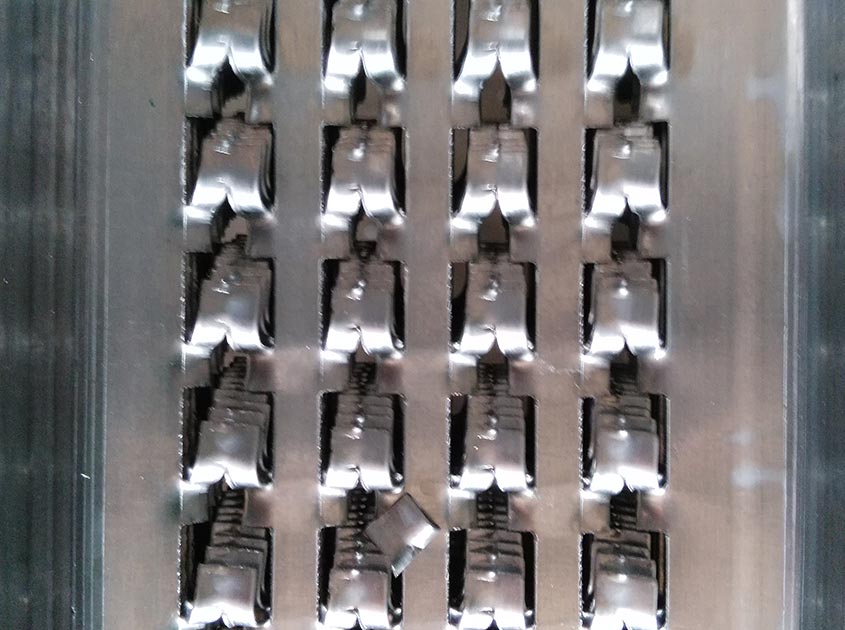

High Rib Formwork Mesh is an expanded metal sheet product, specifically developed for use as permanent formwork to concrete. The profile of the open mesh, in combination with the High rib tangs, allows the development of dense concrete nodules and indents on the face of the High rib , forming an enhanced mechanical key for the second phase pour. In the case of visible elements, the resulting High Rib surface is suitable for a rendered or tiled finish.

Introduction:

High Ribbed Formwork is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in building construction to form retaining walls, columns, stop ends, construction joints and used to support slab flooring.

Features:

1. Material of Hi Rib Mesh: hot-dipped galvanized steel sheets.

2. Technology of High Rib Mesh: its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath.

3. Feature of High Rib Mesh: Excellent engineering quality, construction security.

4. Application of High Rib Mesh: It is widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

Specifications:

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance (mm)
QKHR021	0.21	1.70	450	2200	14-20	90
QKHR023	0.23	1.90	450	2200	14-20	90
QKHR030	0.30	2.48	450	2200	14-20	90
QKHR035	0.35	2.90	450	2200	14-20	90
QKHR040	0.40	3.30	450	2200	14-20	90
QKHR045	0.45	3.70	450	2200	14-20	90
QKHR050	0.50	4.10	450	2200	14-20	90

Note: Special size and specifications can be made according to customers requires.

Technology:

High Ribbed Formwork consisting of steel sheets formed into mesh and U pattern rib bone, will produce a surface with concrete which will bond directly to the next pour without any special treatment.

High Ribbed Formwork Materials

High-Ribbed Formwork is manufactured from hot-dip zinc coated steel sheet to BS 2989 Z2 G275 standards.

High Ribbed Formwork Manufacture

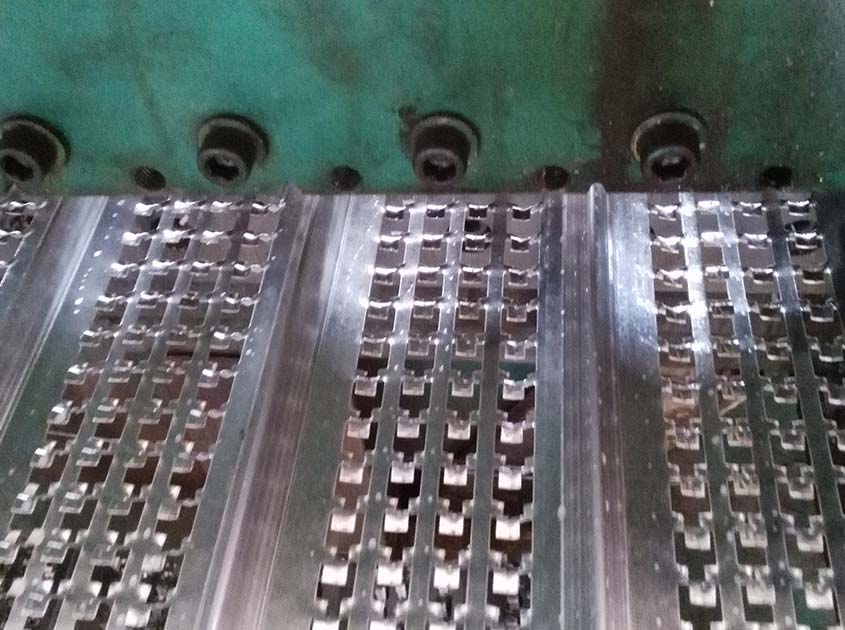

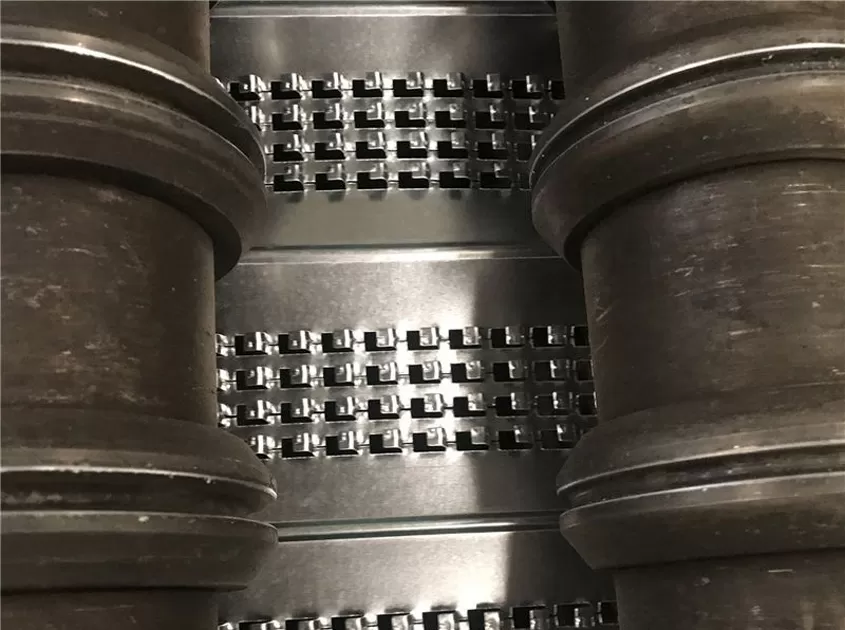

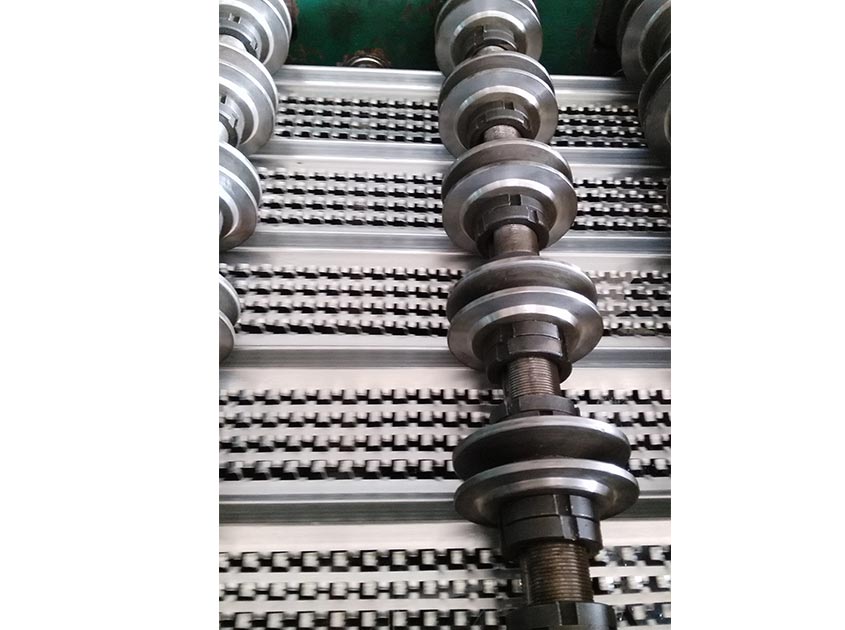

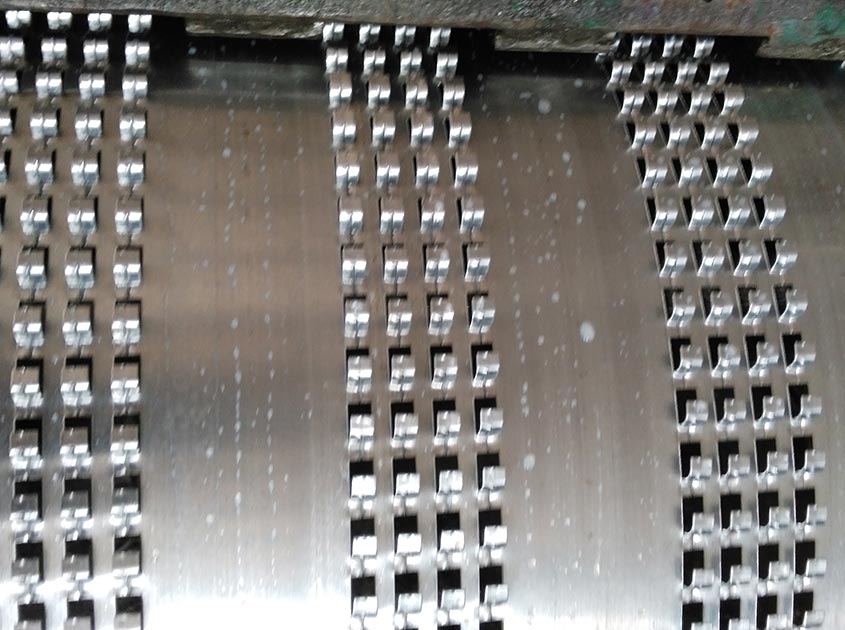

The mesh and ribs are formed on machines which first cut and press the mesh and then roll-form the ribs. At the same time the material is stretched to form an expanded mesh.

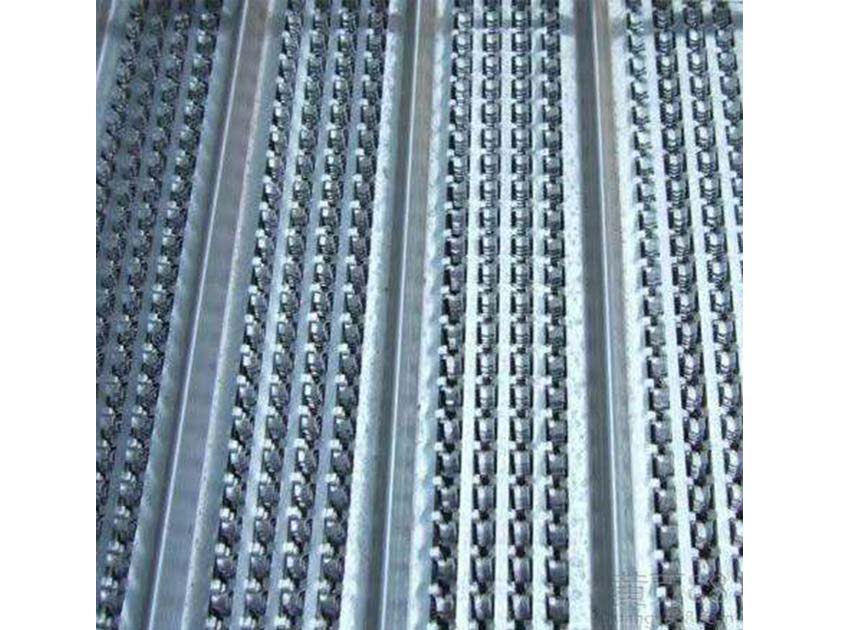

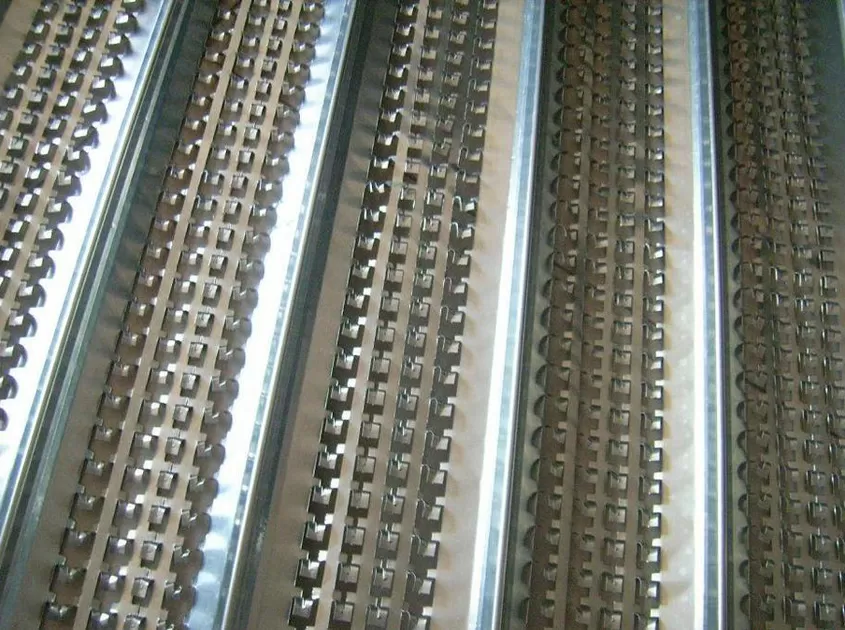

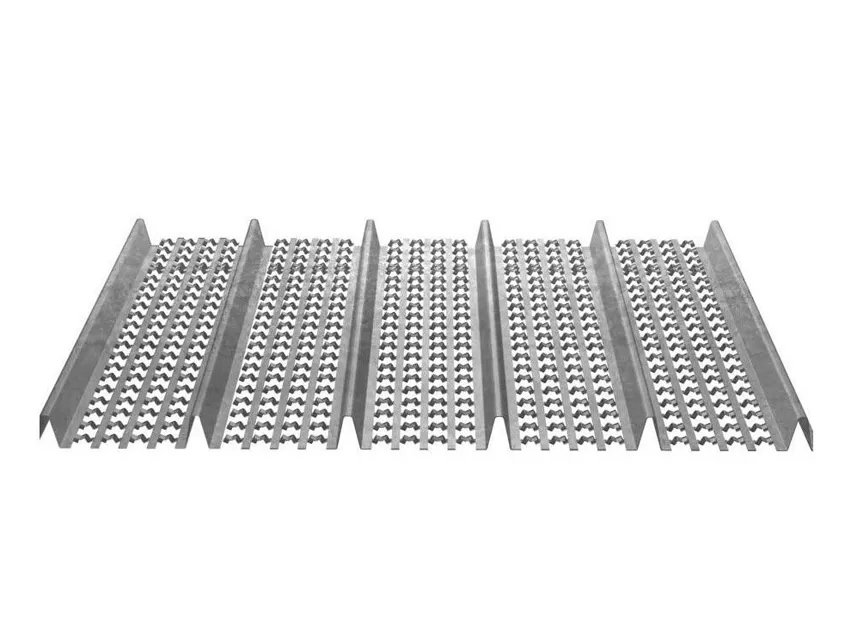

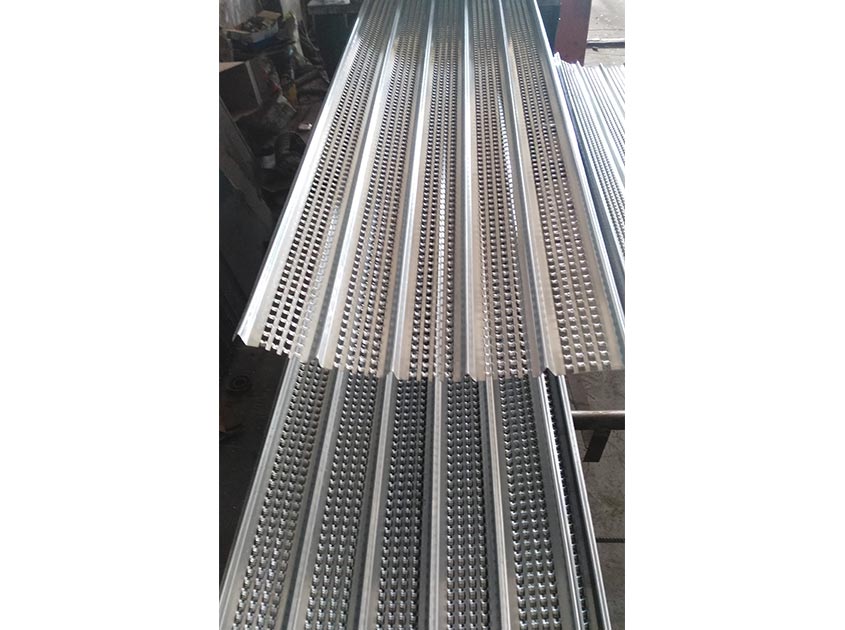

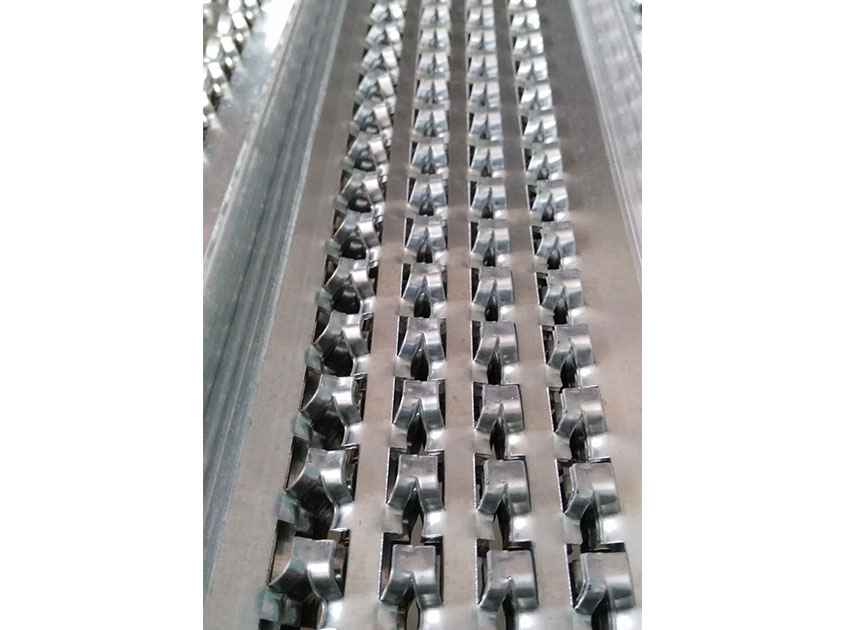

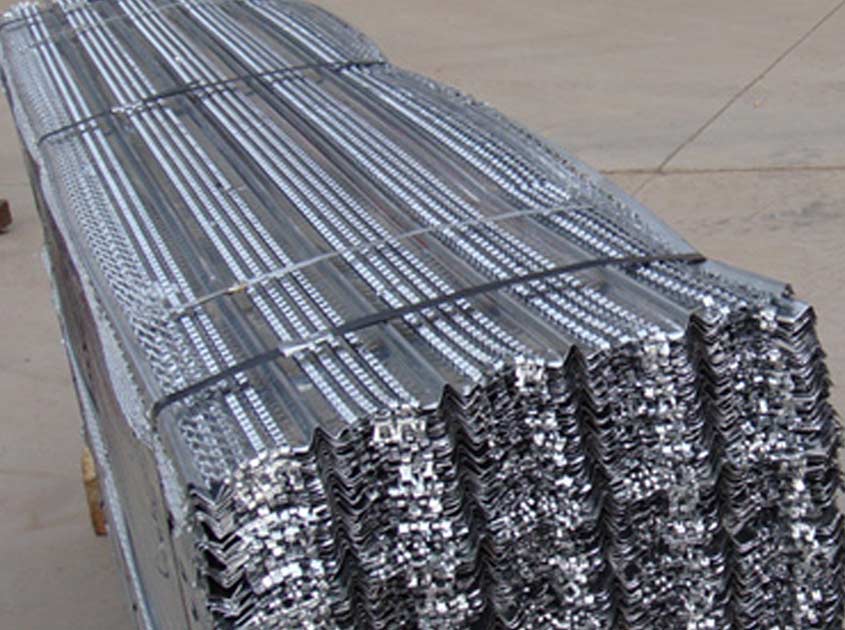

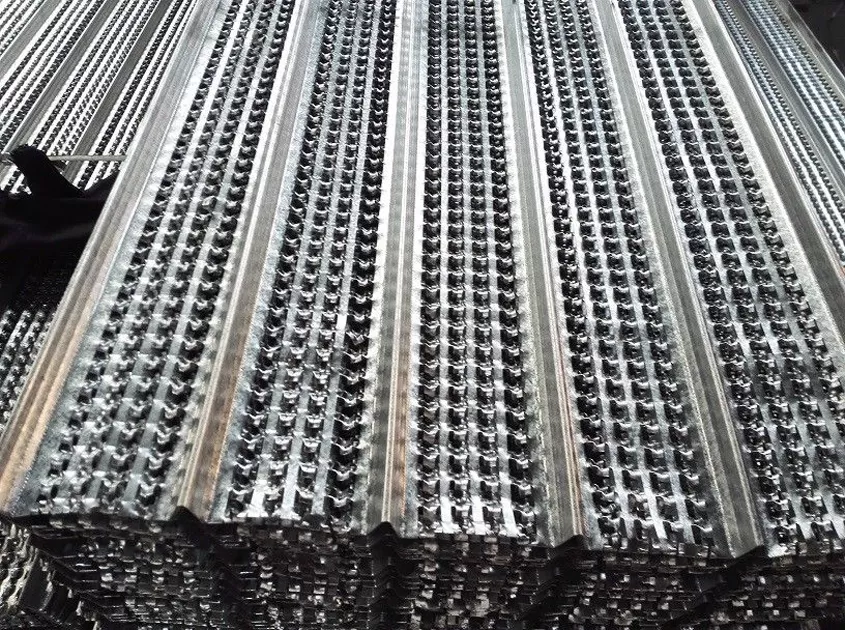

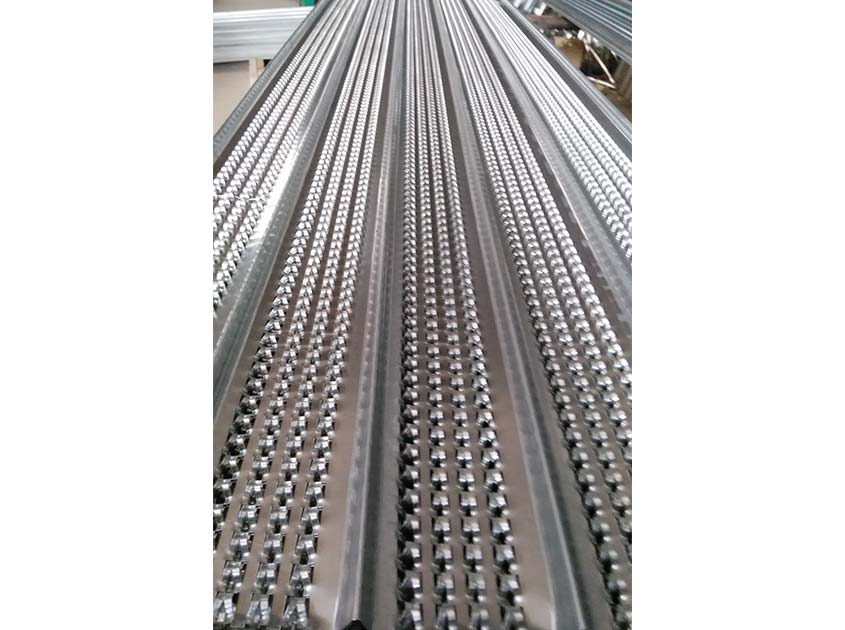

Drawing and Gallery:

Product Name: High Rib Formwork Mesh
