Introduction:
Decorative metal mesh is the new trends in building decoration of the external and internal space. Architectural decorative mesh may be new creative solutions for walls, ceilings, facades, walls and fences in modern architecture.
Our company offers decorative metal mesh in a variety of wire diameters, styles and mesh openings. They are woven into a variety of unique patterns, and have benefits of remarkably versatile, low maintenance construction, energy efficiency and material sustainability.
Materials can be uncoated cold-rolled steel, cold-rolled galvanized steel, stainless steel 304 316 316L , aluminum, copper or brass. Our decorative metal mesh in a variety weave and visual forms.
Features:
Variety of styles and mesh openings
Variety of unique patterns
Remarkably versatile
Low maintenance construction
Material sustainability.
Different Colors
Specifications:

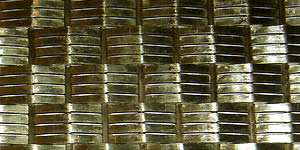

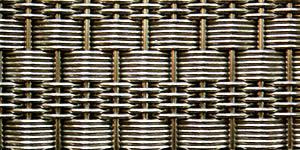

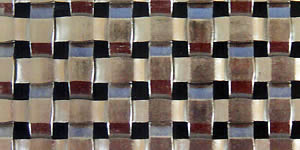

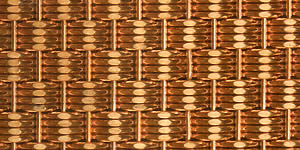

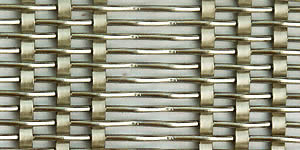

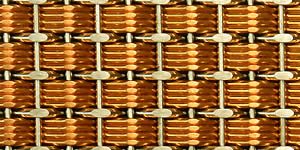

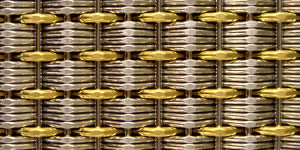

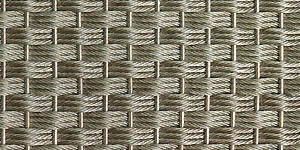

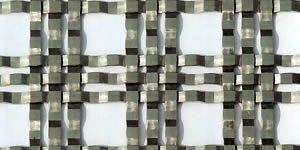

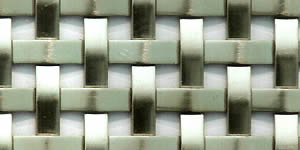

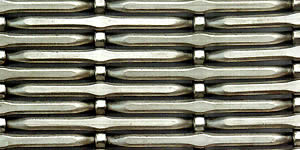

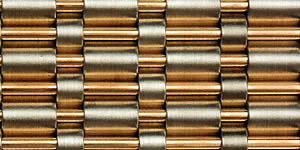

Our decorative metal mesh in a variety weave and visual forms, shows below:

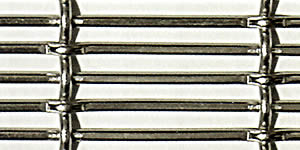

Decorative Mesh 01
Cable Diameter: 2 mm × 1.
Cable Pitch: 17.5 mm.
Rod Diameter: 1.5 mm.
Rod Pitch: 1.5 mm.

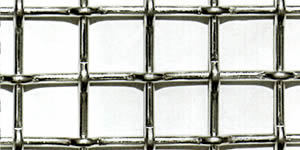

Decorative Mesh 02
Cable Diameter: 2.0 mm × 1.
Cable Pitch: 17.5 mm.
Rod Diameter: 1.5 mm.
Rod Pitch: 3.5 mm.
Decorative Mesh 03
Warp Diameter: 2.0 mm × 2.
Warp Pitch: 22.5 mm.
Weft Diameter: 2.0 mm × 2.
Weft Pitch: 22.5 mm.
Decorative Mesh 04
Warp Diameter: 4 mm × 3.
Warp Pitch: 4.95 mm.
Weft Diameter: 2.7 mm × 1.6 mm.
Weft Pitch: 2.7 mm.
Decorative Mesh 05
Warp Diameter: 2.26 mm × 3.
Warp Pitch: 33 mm.
Weft Diameter: 2.26 mm.
Weft Pitch: 33 mm.
Decorative Mesh 06
Material: 304 316 316L.
Warp Diameter: 1.2 mm ×2.
Warp Pitch: 17.5 mm.
Weft Diameter: 2.0 mm.
Weft Pitch: 4 mm.
Decorative Mesh 07
Warp Diameter: 2 mm × 1.
Warp Pitch: 32 mm.
Weft Diameter: 2 mm.
Weft Pitch: 4.5 mm.
Decorative Mesh 08
Warp Diameter: 2.5 mm × 1.
Warp Pitch: 15 mm.
Weft Diameter: 2.5 mm.
Weft Pitch: 15 mm.
Decorative Mesh 09
Warp Diameter: 3 mm ×1.5.
Warp Pitch: 25.5 mm.
Weft Diameter: 3.3 mm.
Weft Pitch: 4.04 mm.
Decorative Mesh 10
Warp Diameter: 1.2 mm × 2.
Warp Pitch: 5 mm.
Weft Diameter: 2.0 mm.
Weft Pitch: 5 mm.
Decorative Mesh 11
Warp Diameter: 1.5 mm × 6 mm.
Warp Pitch: 12 mm.
Weft Diameter: 1.5 mm × 6 mm.
Weft Pitch: 12.
Decorative Mesh 12
Warp Diameter: 3.4 mm × 1.1 mm.
Warp Pitch: 6.6 mm.
Weft Diameter: 3.4 mm × 1.1 mm.
Weft Pitch: 6.6 mm.
Decorative Mesh 13
Warp Diameter: 3.3 mm × 0.9 mm.
Warp Pitch: 16.45 mm.
Weft Diameter: 3.9 mm × 1 mm.
Weft Pitch: 5.48 mm.
Decorative Mesh 14
Warp Diameter: 1 mm × 5 mm.
Warp Pitch: 11 mm.
Weft Diameter: 2.0 mm.
Weft Pitch: 5 mm.
Decorative Mesh 15
Warp Diameter: 1.5 mm.
Warp Pitch: 4.95 mm .
Weft Diameter: 2.7 mm × 1.6 mm.
Weft Pitch: 2.7 mm.
Decorative Mesh 16
Warp Diameter: 1.5 mm.
Warp Pitch: 6.7 mm .
Weft Diameter: 2.0 mm.
Weft Pitch: 2 mm × 4.
Decorative Mesh 17
Warp Diameter: 1.5 mm.
Warp Pitch: 6.7 mm .
Weft Diameter: 1.5 mm × 4 2 mm × 1.
Weft Pitch: 8 mm.
Decorative Mesh 18
Warp Diameter: 1.5 mm.
Warp Pitch: 1.5 mm.
Weft Diameter: 2.7 mm × 1.6 mm.
Weft Pitch: 2.8 mm.
Decorative Mesh 19
Warp Diameter: 0.81 mm × 1.15 mm.
Warp Pitch: 7.6 mm.
Weft Diameter: 1 mm × 2 mm × 4.
Weft Pitch: 9 mm.
Decorative Mesh 20
Warp Diameter: 2 mm × 1.
Warp Pitch: 8 mm.
Weft Diameter: 1.5 mm.
Weft Pitch: 1.5 mm.
Decorative Mesh 21
Warp Diameter: 1.5 mm × 1.
Warp Pitch: 5 mm.
Weft Diameter: 2 mm.
Weft Pitch: 3 mm.
Decorative Mesh 22
Warp Diameter:1.5 mm.
Warp Pitch: 6.7 mm.
Weft Diameter: 2.0 mm.
Weft Pitch: 2 mm × 4.
Decorative Mesh 23
Warp Diameter: 3 mm.
Warp Pitch: 6.15 mm.
Weft Diameter: 1.2 mm × 12.6 mm, 1.2 mm × 6.3 mm.
Decorative Mesh 24
Warp Diameter: 1.5 mm.
Warp Pitch: 4 mm.
Weft Diameter: 2.0 mm.
Weft Pitch: 1.45 mm × 4.
Decorative Mesh 25
Cable Diameter: 2.5 mm × 3.
Cable Pitch: 8 mm.
Rod Diameter: 2.0 mm.
Rod Pitch: 13 mm.
Decorative Mesh 26
Warp Diameter: 1.5 mm.
Warp Pitch: 6.7 mm.
Weft Diameter: 2.0 mm × 1.
Weft Pitch: 1.5 mm × 4.
Note: Special size and specifications can be made according to customers requires.
Technology:
Due to their multiple functional and aesthetic qualities, the decorative wire mesh is suitable for various applications In architecture and interior design, metal fabrics are used for decoration as:

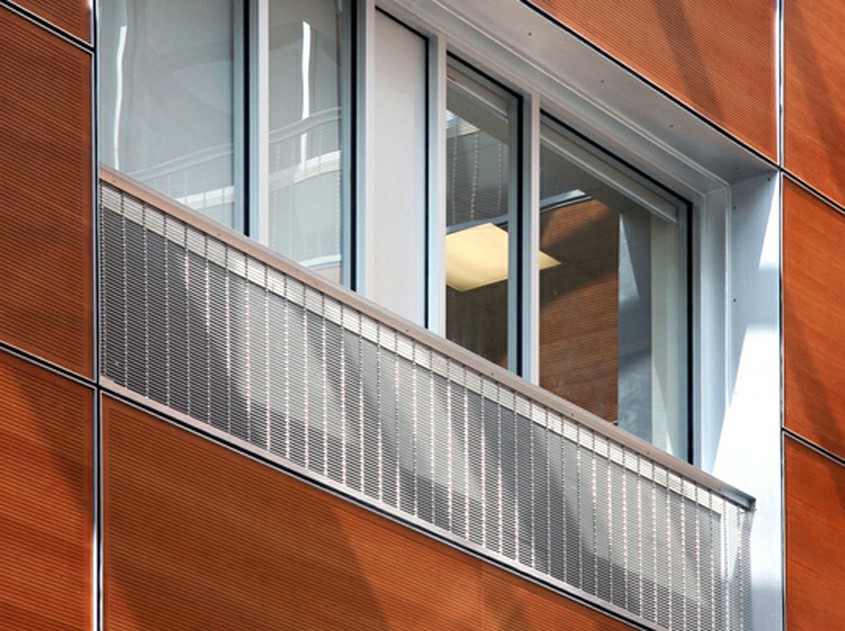

Wire mesh facades;
Shade screens;
Architecture ceilings;

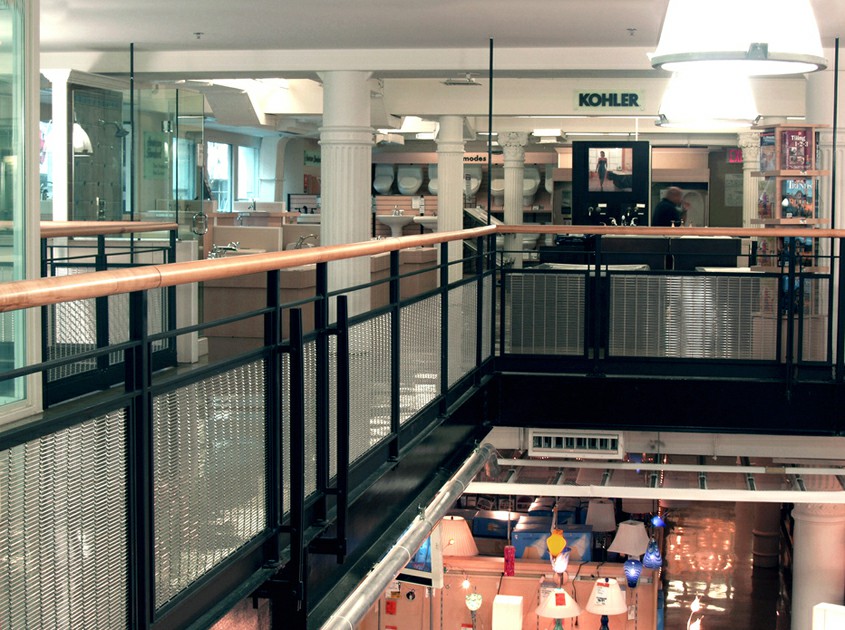

Metal draperies for walls, partition and isolation screens;

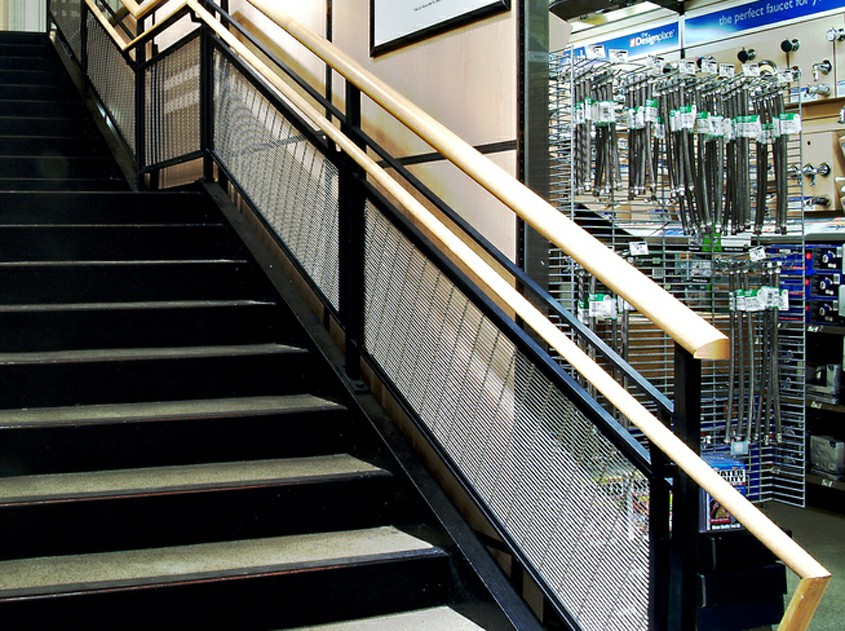

Staircases isolation screen, elevator cabins screen;
Floor covering fabric
Drawing and Gallery:

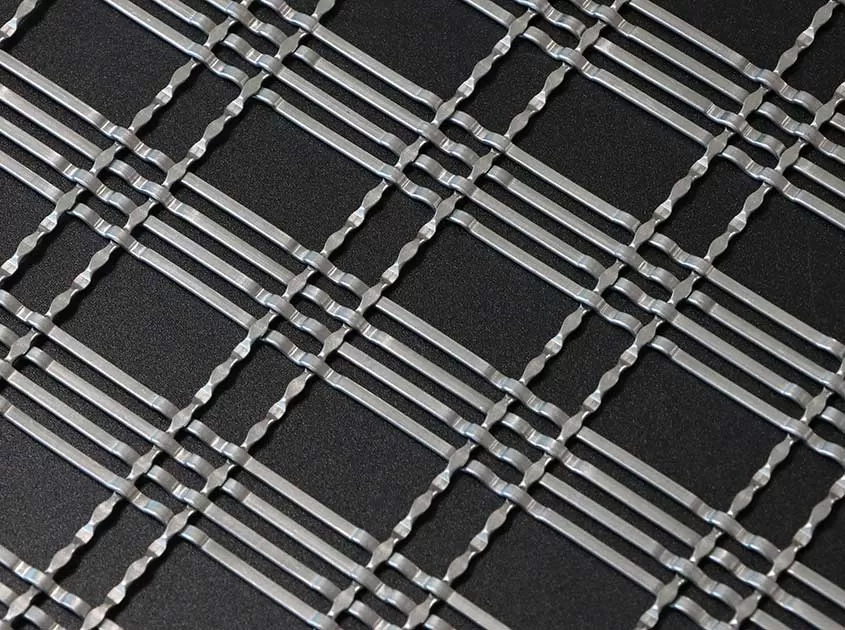

Product Name: Decorative Crimped Woven Mesh
