Introduction:
Galvanized iron wire is a type of iron wire that has been coated with a layer of zinc to protect it from corrosion. The galvanization process involves applying a zinc coating to the wire, which can be done using different methods such as hot-dip galvanization or electro-galvanization. This zinc coating provides enhanced durability and resistance to rust, making galvanized iron wire suitable for various applications, especially in outdoor or humid environments.
Galvanized Iron Wire can be divided into two categories: Electro galvanized iron wire and Hot dipped galvanized iron wire.
Our common galvanized wire diameter is:
Hot dipped Galvanized iron wire: BWG6 -BWG36( 0.19mm-5mm)
Electric Galvanized iron wire: BWG6 -BWG36( 0.19mm-5mm)
If you need a galvanized wire, please contact me without hesitation.
Galvanized Iron Wire Types
Electro Galvanized Iron Wire
Electro galvanized iron wire is also called cold galvanized iron wire or simply called galvanized iron wire. Electro Galvanized Iron Wire ranges from BWG6-BWG36, it is widely used by customers.
Materials and Processing:
This kind of galvanized wire is made of choice mild steel, hard-drawn, and then galvanized.
Characteristics:
Electro galvanized iron wire enjoys the characteristics of a smooth, bright surface, firmly zinc coating, evenly plated appearance, rust-resistant and acid-resistance, and versatile in applications.
Forms of Supply:
Electro galvanized iron wire can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire.
Applications:
This kind of product is widely used in making nails, construction, communication equipment, medical treatment instruments, express way fencing, binding of flowers, brush, wire mesh weaving, wire redrawing, sieving mesh, and craftwork.
Hot Dipped Galvanized Iron Wire
Hot dipped galvanized iron wire is also called hot-dip galvanized wire, hot dipped galvanized steel wire, and hot dipped galvanized wire.
Materials and Processing:
We use quality low carbon steel wire in producing hot-dip galvanized wire, going through wire drawing, acid washing, rust removing, annealing, and coiling.
Applications:
Hot-dip galvanized wire is extremely flexible and soft, extensively used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of products, and other daily uses.
Besides, Hot Dipped Galvanized Iron Wire is a good material for making galvanized barbed wire, heavy galvanized chain link fences, gabion baskets, and welded mesh.
Forms of Supply:
The hot-dipped galvanized steel wire can be supplied in the form of coil wire, bobbins wire, spool wire, making of wire mesh, cut wire or tie wire to satisfy our customers' specific requirements.
More info.
Galvanized Iron Wire vs. Stainless Steel Wire
Galvanized Iron Wire in Agriculture
Galvanized Iron Wire: A Guide to Maintenance and Lifespan Extension
Features:
The galvanized wire is smooth, bright surface, firmly zinc coating, evenly plated appearance, rust-resistant and acid-resistance and extremely flexible and soft. Widely applications in many different fields.
Specifications:
Diameter Range: Typically ranges from 0.5 mm to 5.0 mm.
Zinc Coating: Varies from 20 g/m² to 300 g/m² depending on the type and intended use.
Tensile Strength: Commonly between 300 and 800 N/mm².
Coil Weight: Available in various weights, typically ranging from 1 kg to 800 kg.
Wire Gauge Size | SWG(mm ) | BWG(mm) | BG(mm) |
| 6 | 4.87 | 5.15 | 5.032 |
| 7 | 4.47 | 4.57 | 4.481 |
| 8 | 4.06 | 4.19 | 3.988 |
| 9 | 3.66 | 3.76 | 3.551 |
| 10 | 3.25 | 3.40 | 3.175 |
| 11 | 2.95 | 3.05 | 2.827 |
| 12 | 2.64 | 2.77 | 2.517 |
| 13 | 2.34 | 2.41 | 2.24 |
| 14 | 2.03 | 2.11 | 1.994 |
| 15 | 1.83 | 1.83 | 1.775 |
| 16 | 1.63 | 1.65 | 1.588 |
| 17 | 1.42 | 1.47 | 1.412 |
| 18 | 1.22 | 1.25 | 1.257 |
| 19 | 1.02 | 1.07 | 1.118 |
| 20 | 0.91 | 0.89 | 0.996 |
| 21 | 0.81 | 0.813 | 0.887 |
| 22 | 0.71 | 0.711 | 0.749 |
| 23 | 0.61 | 0.025 | 0.707 |
| 24 | 0.56 | 0.022 | 0.629 |
| 25 | 0.51 | 0.02 | 0.56 |
| 26 | 0.46 | 0.018 | 0.498 |
Note: Special size and specifications can be made according to customers requires.
Technology:
1) Galvanized Wire Type: Electro galvanized and hot dipped galvanized wire
2) Material: Low carbon steel wire Q195
3) Zinc coating
Electro galvanized: zinc 10-25grams
Hot-dipped galvanized: zinc 40-350grams
4) Wire diameter: 0.2 - 5mm, 4mm galvanised wire is popular.
5) T/S: 350-550MPA
6) Features: Excellent flexibility and softness
7) Galvanized Steel Wire Production Process: Steel rod coil---wire drawing---wire annealing---rust removing---aciding washing---boiling---drying---zinc feeding---wire coiling
8) Galvanized Wire Application: Net making,binding, baling, construction, wire mesh making,barbed wire making and so on.

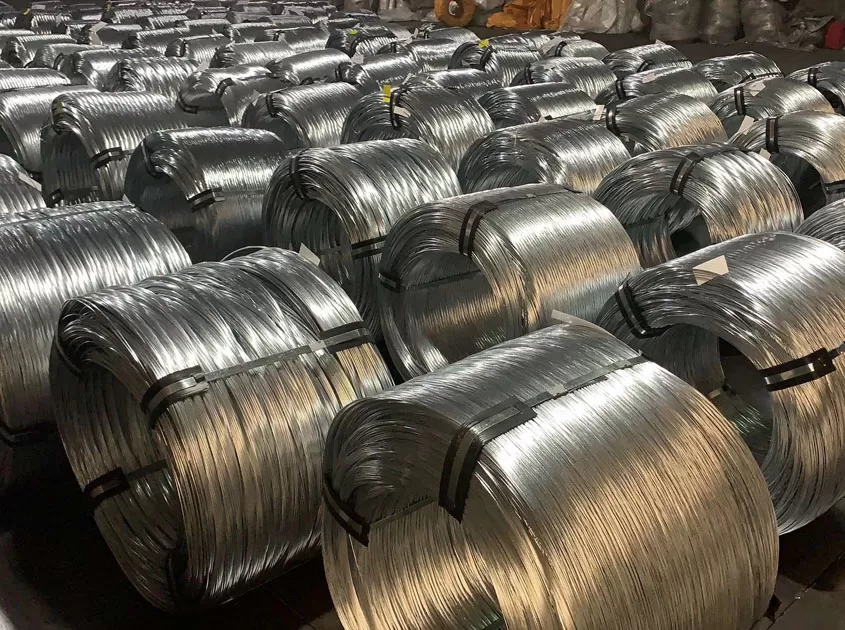

9) Standard Packing: 1-1000kgs/coil, coil with plastic film inside and hessian cloth outside or weave cloth outside.(other package is available)
Drawing and Gallery:

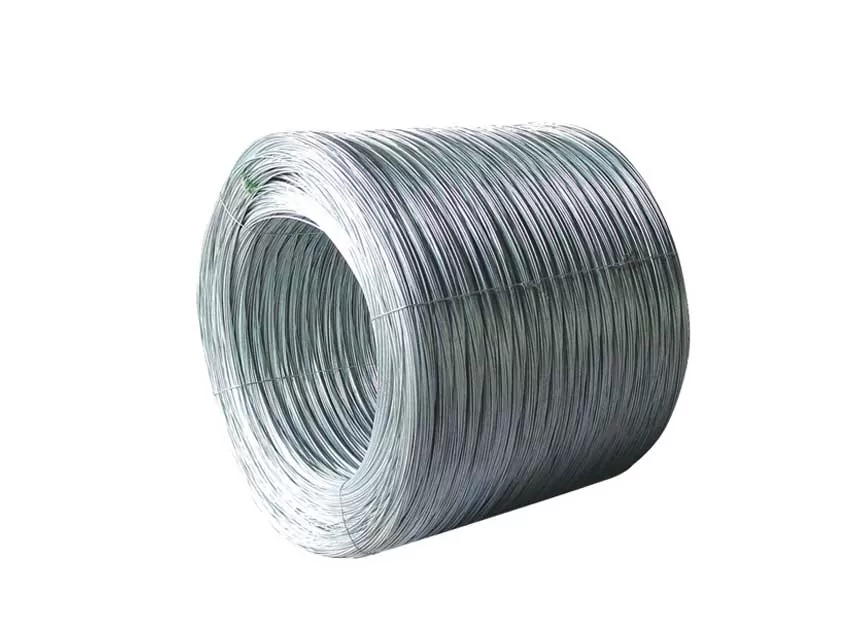

Product Name: Galvanized Iron Wire
