Introduction:
What is a Stainless Steel Wire Rope Mesh?
Stainless steel wire rope mesh is made from high-tensile, corrosion-resistant stainless steel wires that are either hand-woven or ferrule-connected into a flexible mesh grid. The structure typically forms a diamond or square-shaped pattern that can conform to a variety of shapes and surfaces. The mesh is primarily used for creating transparent barriers that combine safety, aesthetics, and durability.
Stainless steel Wire Rope Fence Mesh material is producing by high quality stainless steel wire cable, the stainless steel grade includes type 304, 304 L, 316 and 316L. The structures of Stainless Steel Wire Rope Fence Mesh have 7 x 7 and 7 x 19. The standard Stainless Steel Wire Rope Fence Mesh diameter includes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".

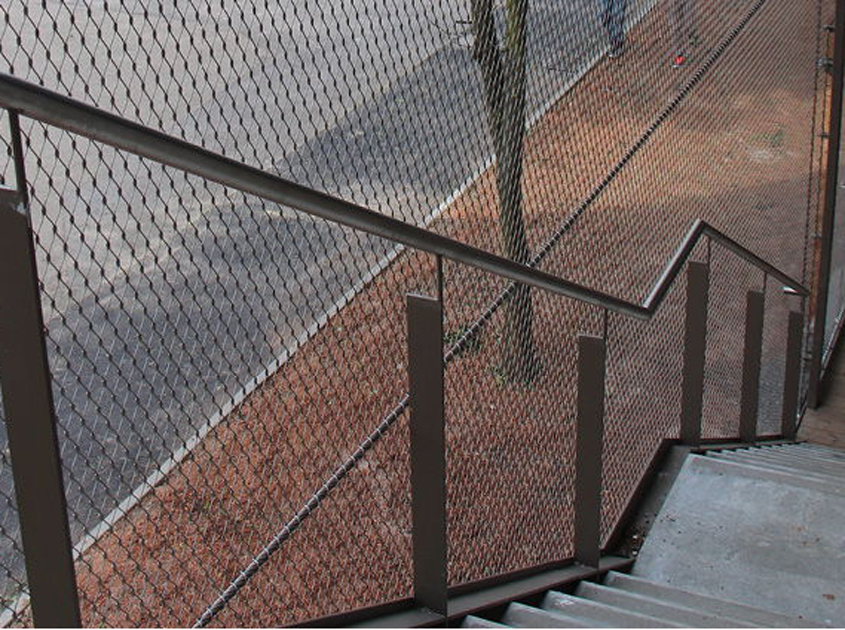

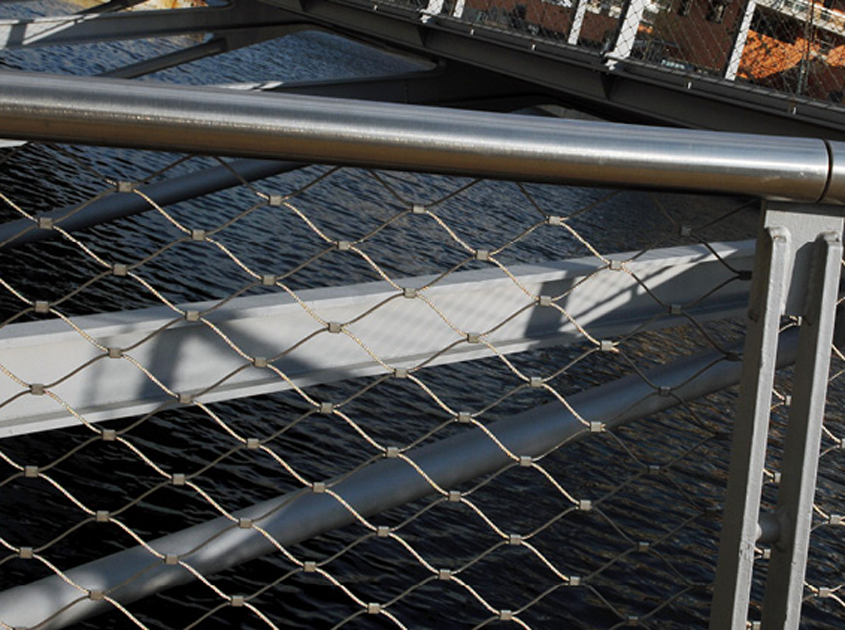

Stainless steel wire rope mesh are mainly used in the hotels, shopping malls, supermarkets, office, indoor decoration, mechanical protective cover, electrical ventilation, aquaculture and many other industries.
Stainless steel rope net products are used in animal cages, bird nets, animal fences and garden decorations in zoos, marine parks and other similar environments, parks, community protection, doors and windows, etc., and can also be applied to building reinforcement, lifting goods, car sealing and capping, high-grade decoration, sports, acrobatics, home decoration, architectural decoration, fence fence, also used in mine support, slope protection, security burglar, etc.
Features:
Key Features of Stainless Steel Wire Rope Mesh
Durability:
Stainless steel is known for its corrosion resistance, making the mesh suitable for both indoor and outdoor use, even in harsh environments such as coastal or industrial areas.
Flexibility:
The mesh is flexible enough to adapt to irregular or curved surfaces while maintaining structural integrity. This flexibility allows it to be used in a wide range of architectural designs and industrial applications.
High Tensile Strength:
The strength of the stainless steel wire ensures that the mesh can bear heavy loads and withstand strong impacts. This makes it suitable for safety barriers and enclosures where strength is essential.
Transparency and Visual Appeal:
The mesh provides a high degree of transparency, offering unobstructed views while maintaining safety. This characteristic makes it popular for use in architectural applications where aesthetics and functionality must be balanced.
Low Maintenance:
Stainless steel wire rope mesh is highly resistant to rust, chemical exposure, and weathering, meaning it requires minimal maintenance over time, even in exposed environments.
Specifications:
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
Note: Special size and specifications can be made according to customers requires.
Technology:
The type of Stainless Steel wire rope mesh

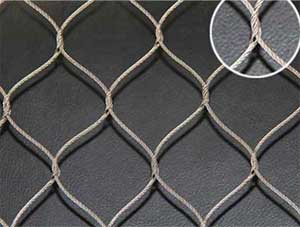

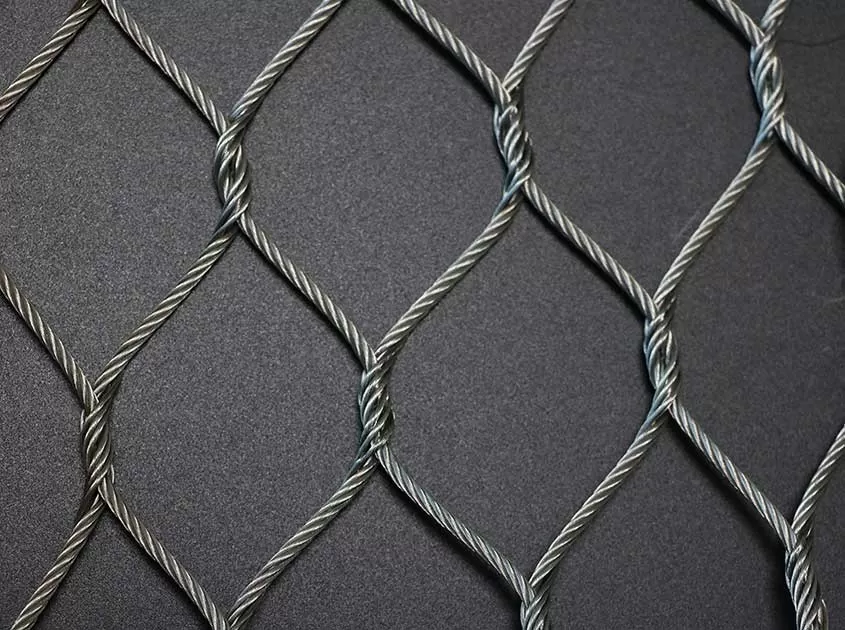

1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

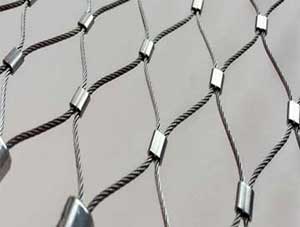

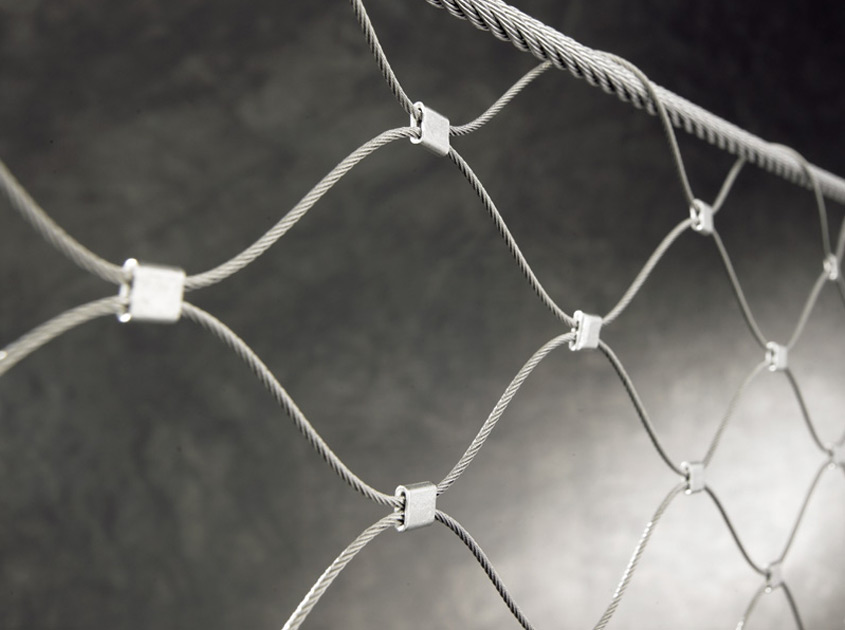

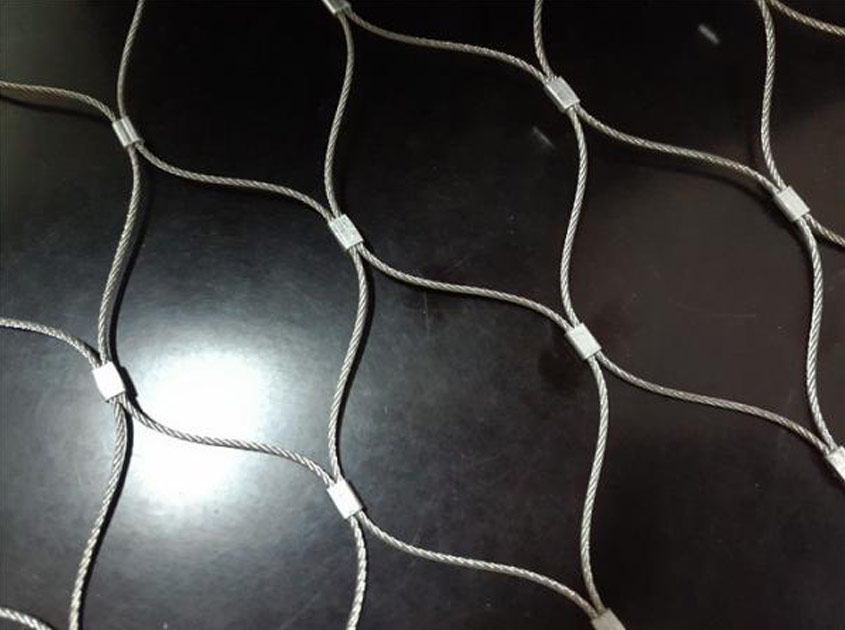

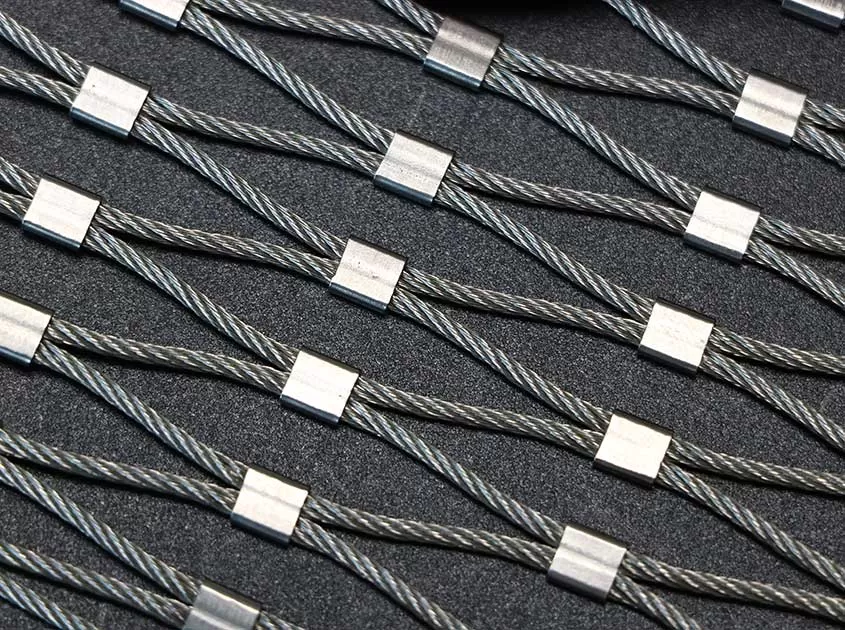

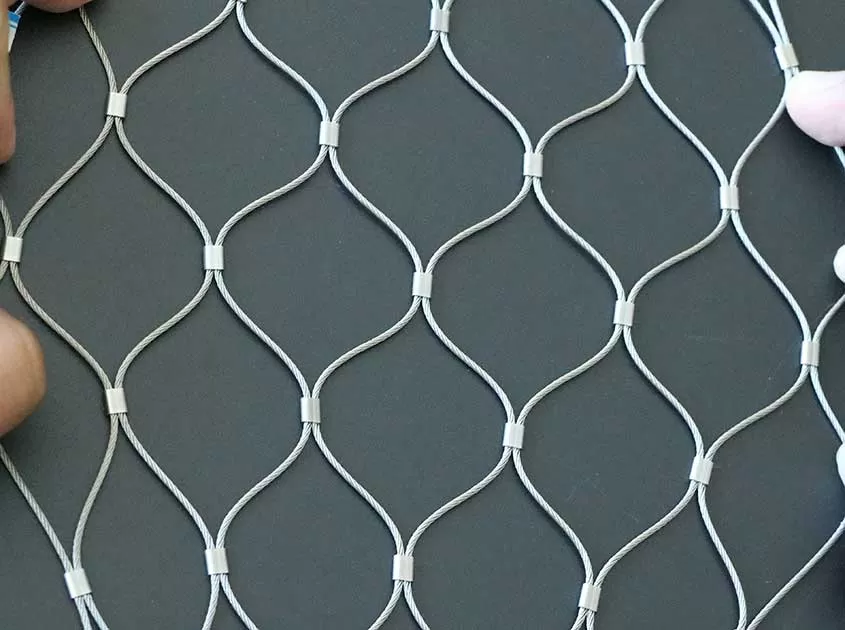

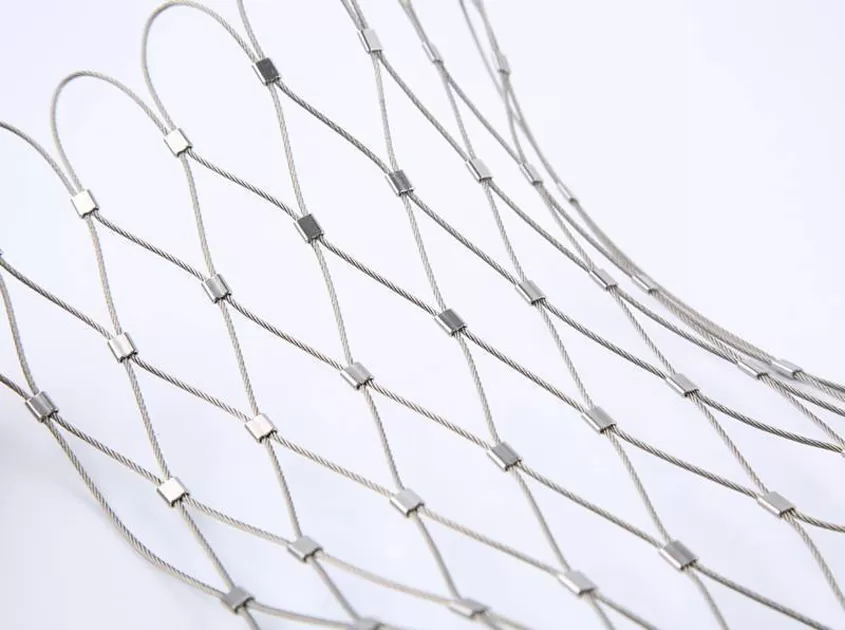

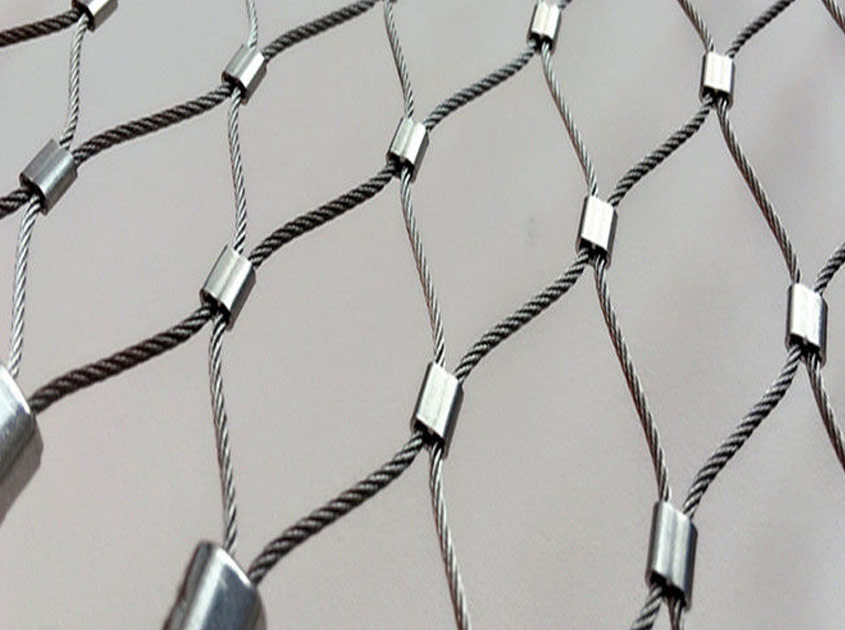

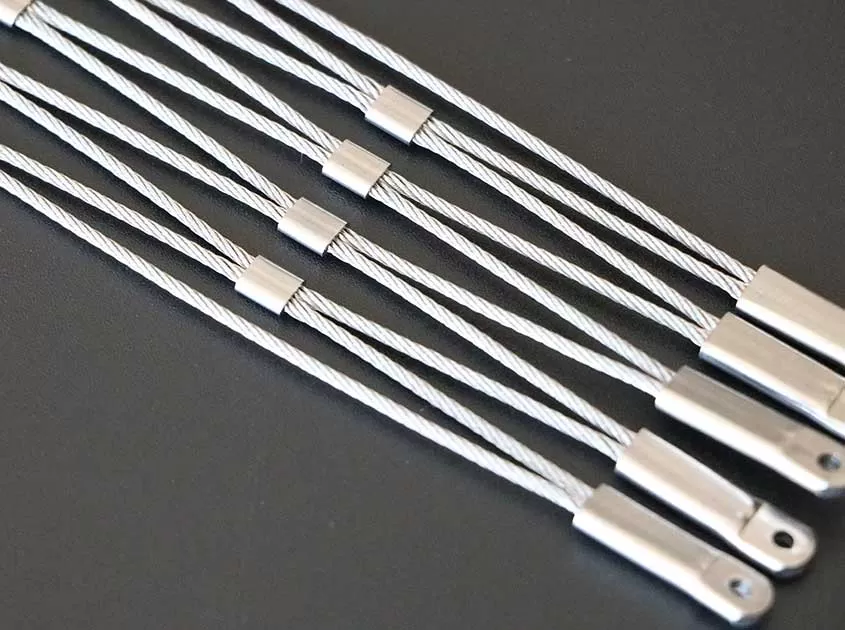

2. Ferruled mesh has the same physical properties as the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
| Flexible Stainless Steel Cable Mesh | ||
| Type | Knotted cable mesh | Ferrule cable mesh |
| Image |   |  |
| Combination | Inter-woven | Seamless ferrule |
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304, 316, 316L, etc | |
| Cable diameter | 1 ~ 4 mm | |
| Cable structure | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) | |
| Diamond size | 20 ~ 200 mm | |
| Mesh Orientation | Horizontal , Vertical | |
| Feature | Quality material, High flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy | |
Drawing and Gallery:
Product Name: Stainless Steel Wire Rope Mesh
