Introduction:

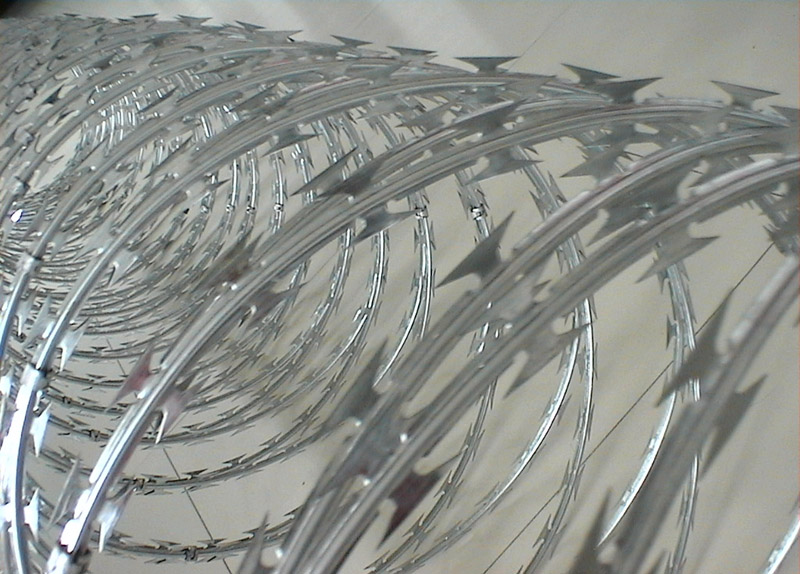

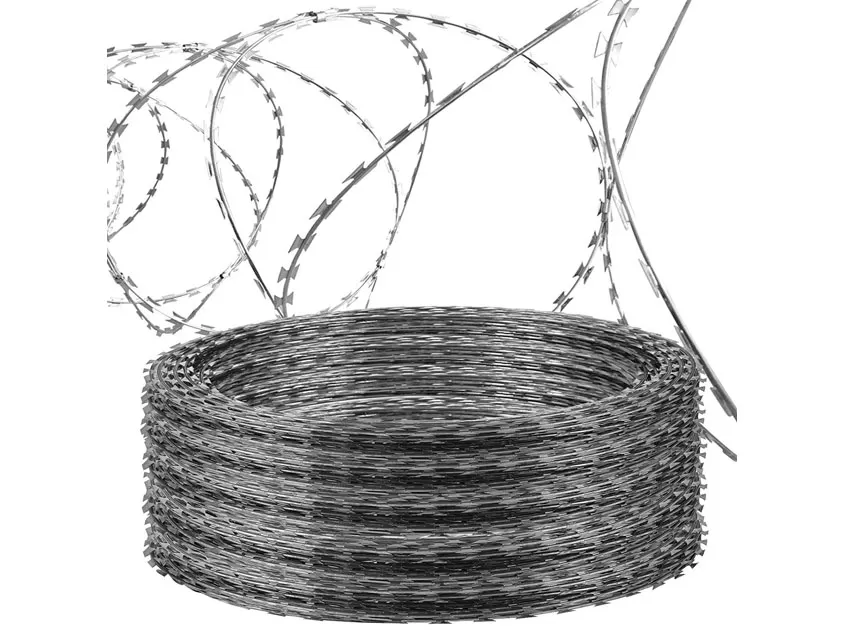

When you need to get serious about security, Concertina Razor Wire is the best solution. It is relatively inexpensive, but viciously effective. Concertina razor Wire around the perimeter is enough to deter any wouldbe vandal, robber or saboteur. Razor Wire is made of a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Concertina Razor Wire is a long lasting and very effective barrier, known and trusted by security professionals.
Features:
Stronger & Last longer
Low Cost effective solution.
Quick and Easy install
high security products
Anti-rust and anti-corrosion.
Suitable where safety is a consideration
Durable and well structured.
Excellent through vision
10-Year limited warranty
Customisation options
Specifications:
| Reference Number | Blade Style | Thickness | Wire Dia | Blade Length | Blade Width | Blade Spacing | |
| BTO-12 |  | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
| BTO-15 | | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 | |
| BTO-22 | | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
| BTO-30 | & | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 | |
| CBT-25 | | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 | |
| CBT-60 | | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
| CBT-65 | | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | |
| Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) | |||||||
| Concertina Razor Wire (Standard Use) | |||||||
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes | |||
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil | |||
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil | |||
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil | |||
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil | |||
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |||
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |||
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |||
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |||
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |||
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |||
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |||
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |||
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type | |||
Note: Special size and specifications can be made according to customers requires.
Technology:
Points to note when selecting Razor Wire ?
The core wire diameter:
2.5mm is the industry standard, anything less has proportionately less tensile and inherent strength.
The number of loops per coil
This determines the amount of Razor wire on the coil and therefore the profile density when deployed, an important point when comparing prices. All our coils have 55 loops per coil, this means the coils can be extended easily up to 10m whilst maintaining a dense profile of Razor wire.
Stainless Steel or Galvanized?
The environment the product is being deployed in may determine whether Stainless Steel or Galvanized is the best option. Stainless Steel is considerably more expensive but offers greater durability especially in salt air environments and over time will outlast Galvanized therefore making it the best long term option in salt air. However Galvanized is more than adequate for most of the regions and applications. We would always suggest you check the level of zinc coating when selecting Razor wire, all our galvanized products are more than 200g/m2, if the supplier cannot provide the information, you may only be getting a product with 60g/m2 which will deteriorate and rust much more quickly.
Blade type
Smaller blades such as BTO10 (10mm) are quite small and therefore less of a deterrent, larger blade profiles such as CBT65 (65mm) are much more effective but the blade type will also be reflected in the price.
Blade thickness
0.5mm is the industry standard, anything less is likely to bend easily.
Concertina wire according to different shapes can be divided into single coil, crossed and double coils:

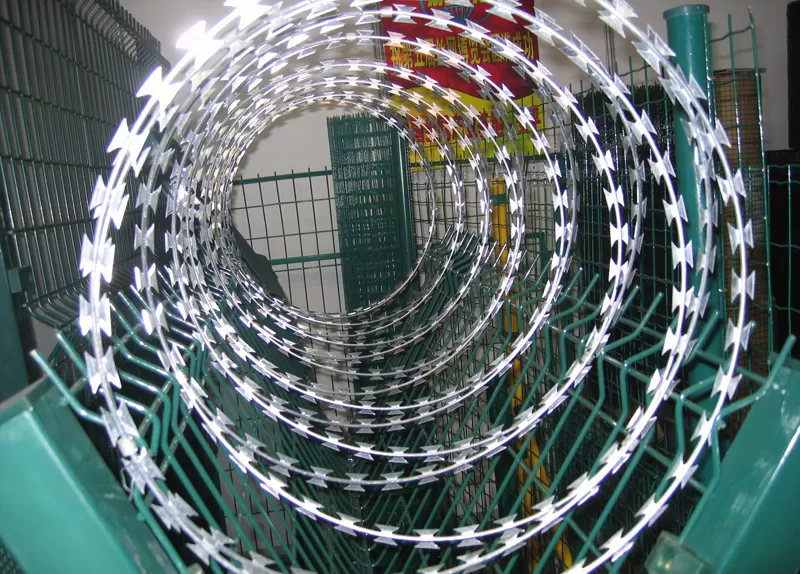

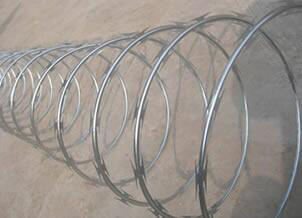

Single coil razor wire
Straight ribbons or single coil concertina. The features of the single coil barbed type wire is installed without clips,It runs in natural loops on walls. Costless and can be easily installed.

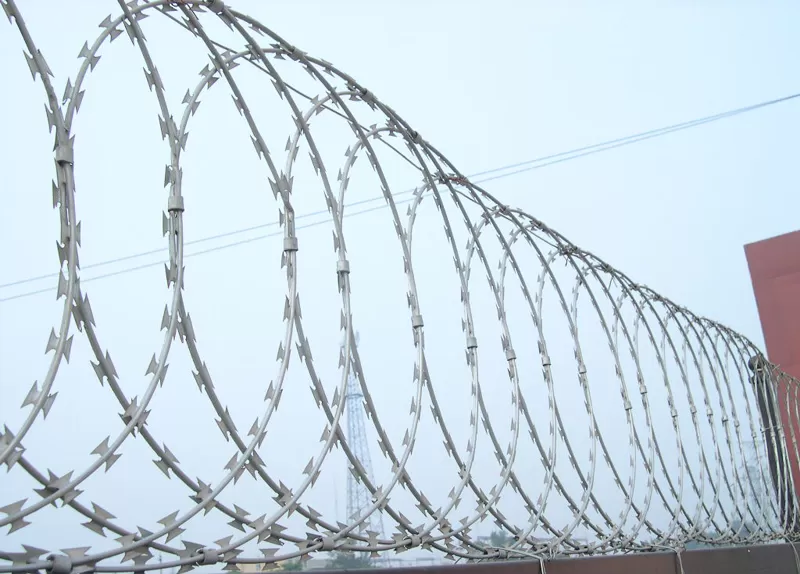

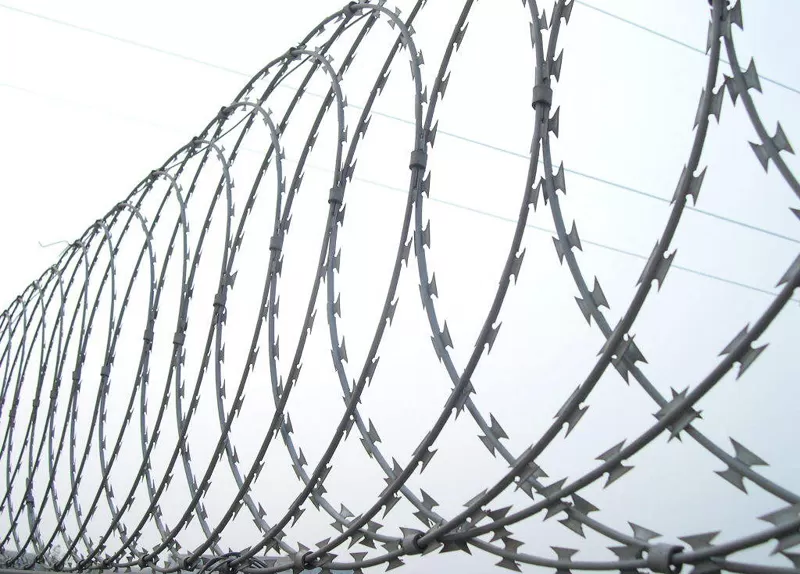

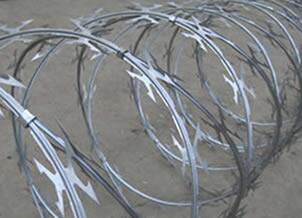

Cross concertina wire coil
is two pieces of stainless steel razor wire or galvanized wire bound together by clips to make it stronger. This galvanized wire tape compresses the core,and adjacent turns of thecramp in five equidistant points on a circle. Total installed 3 or 5 rows of staples, so that it becomes formidable concertina, springy, spatial design. The spiral intersecting barbed wire presents an intersecting shape after opening. After stretch and installation, concertina creates a fixed and strong spatial structure. In order to overcome this type concertina wire, it must be cut at least three points.

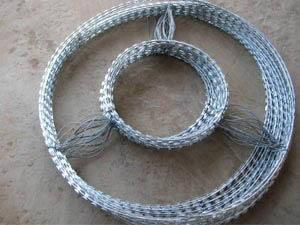

Double Concertina Razor Coil
Includes two razor concertina coils with different diameters, and small diameter concertina is included in the large diameter concertina. Three nodes connect the two concertina razor. Double concertina razor wire has more beautiful appearance and better protection than other razor mesh.

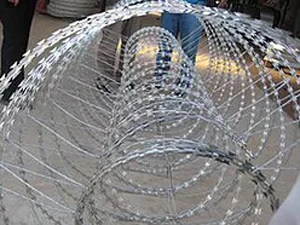

Fold Double Razor Concertina Coil Unfold Double Razor Concertina Coil

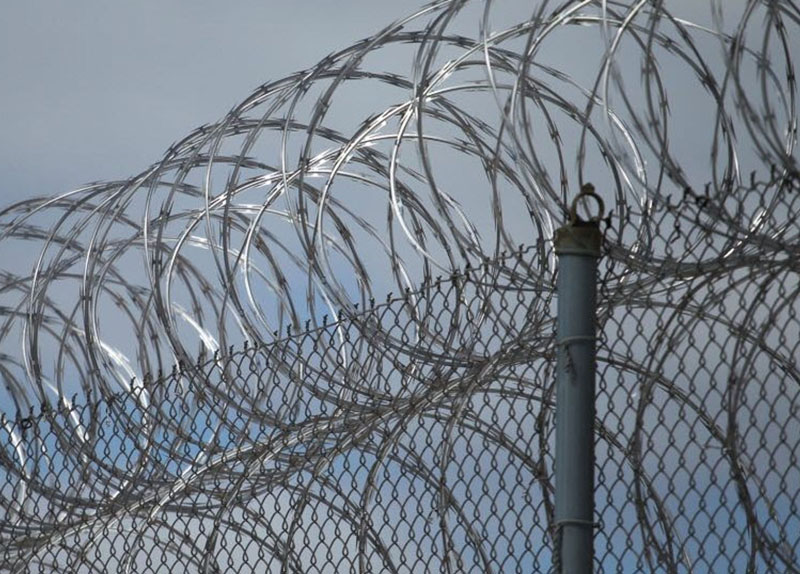

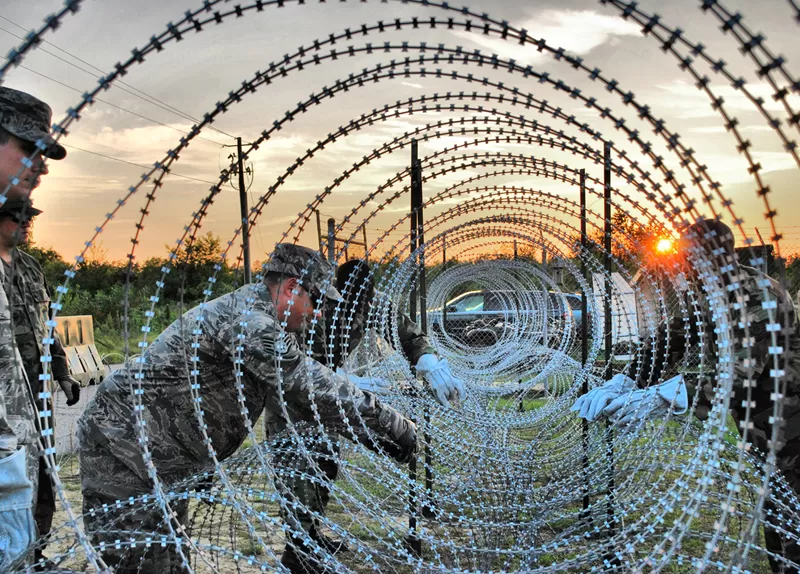

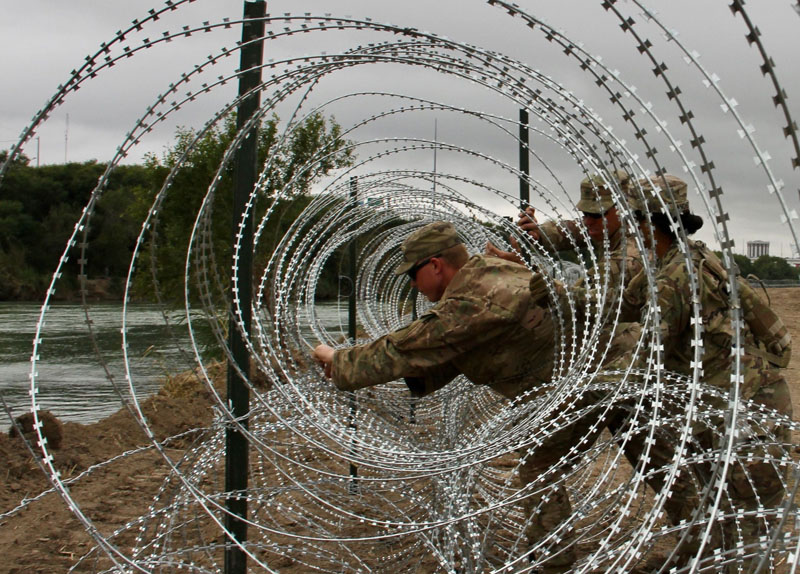

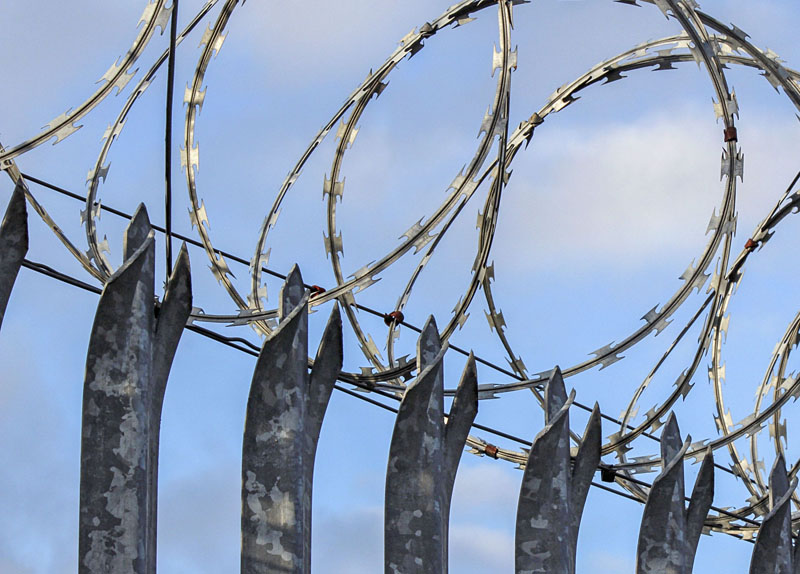

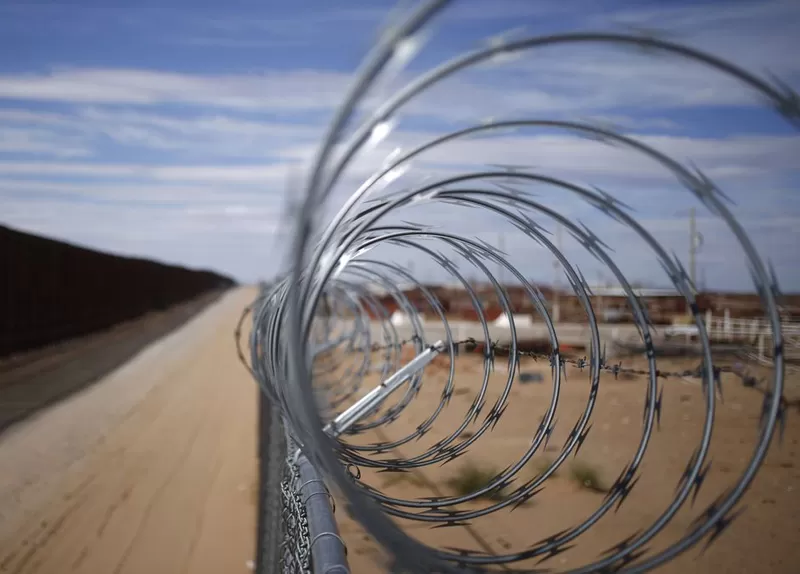

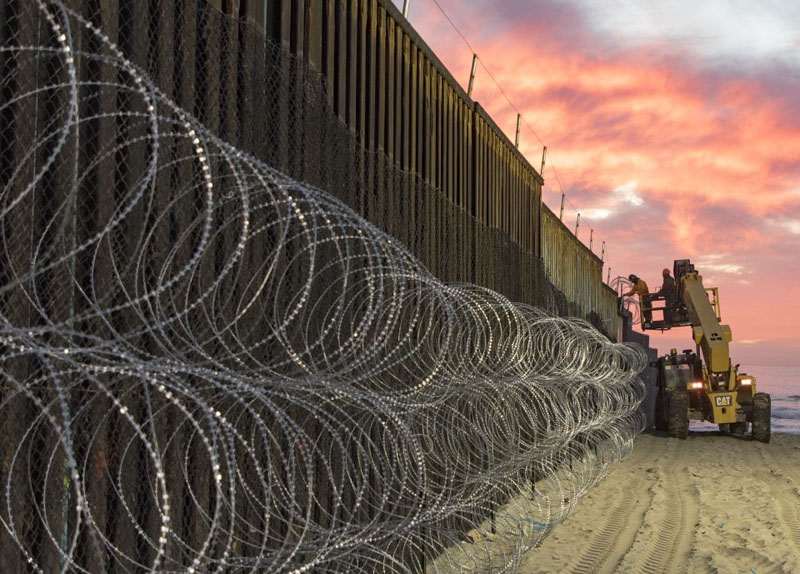

Concertina coiled security barrier

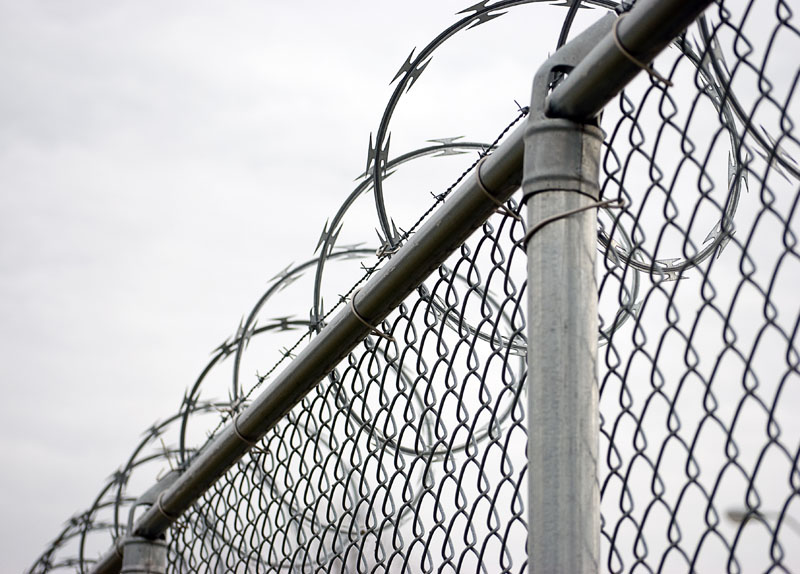

It is installed on the ground or an existing fence to create high performance physical obstructions extremely difficult to overcome. The main advantage of concertina razor wire is that its design is able to retain their protective properties after damage in a few places. And the concertina wire fence is easily installed and disassembled, allowing you to use it repeatedly. This is the cheapest way to protect property from outside intrusion.

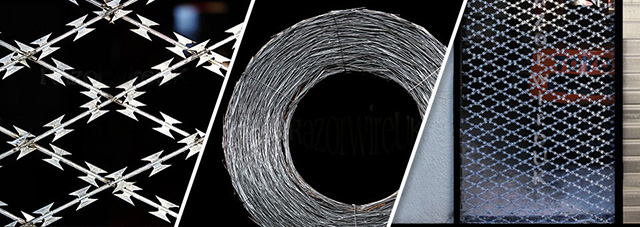

Razor Wire Mesh
Razor Mesh has been in use throughout the world at airports, military bases & borders for many years & is now widely used in domestic situations.
Supplied in 192cm x 33cm panels Razor mesh is an effective deterrent and obstacle when used as either trellis on fences or walls or as a means of protecting voids in fences, windows in out houses or shed roofs etc, simple and easy to fit Razor mesh is extremely difficult and time consuming to force entry through without proper cutting equipment.
Razor Mesh is an effective intruder deterrent & very difficult to defeat without specialist equipment.
The benefits of razor mesh security fence:
1.It is almost impossible to climb.
2.High strength steel core very difficult to cut off.
3.Powerful security fence barriers neat appearance.
4.No secondary use, so he will not be stolen.Simple to install.
Drawing and Gallery:
Product Name: Concertina Razor Wire
