Introduction:
Fiberglass mesh is woven by fiberglass yarn as its basis mesh, and then coated by alkaline resistant latex. It has fine alkaline-resistant, high strength, etc. As an ideal engineering material in construction, it is mainly used to reinforce cement, stone, wall materials, roofing, and gypsum and so on.
We can produce any size mesh according to requirements of customer like different mesh size and weight per square meter.
Fiberglass mesh specifications are from 30g/m2 to 500g/m2, and main mesh size : 5mm x 5mm or 4mm x 4mm, 75 g/m2, 90 g/m2, 125 g/m2,145 g/m2, 160 g/m2.
Fiberglass mesh Characters:
1. Acid- resistant: It can exist in the wall for more than 60-70 years.
2. Heat Insulation: Mainly show as fire proof, most used in industry field and construction building.
3. High Strength: We use the best glue, and produce self of glue, so can keep the stability of the mesh.
Features:
1. Good chemical stability. Alkali resistance, acid resistance, water resistance, cement erosion and other chemical corrosion; And resin bond strong, soluble in styrene and so on.
2. High strength, high modulus and light weight.
3. Better dimension stability, hard, flat, not easy to contract deformation and positioning.
4. Good impact resistance. (due to its high strength and toughness)
5. Anti-mildew and insect repellence.
6. Fire, heat preservation, sound insulation and insulation.
Specifications:

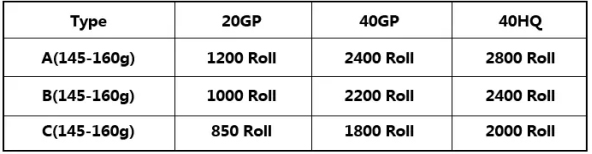

Loading quantity in Difference Size of Container . W X L = 1X50M
A. Each Roll shrank by plastic then two rolls in woven bags.
B. Each Roll Shrank by plastic then four rolls in a carton .
C. Each Roll Shrank by plastic then 33 rolls in a carton put on pallets
Note: Special size and specifications can be made according to customers requires.

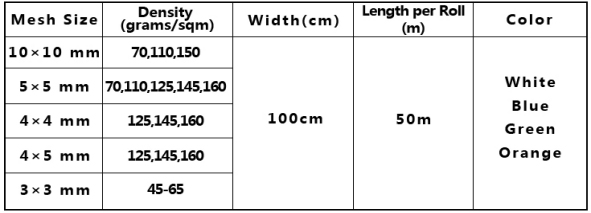

Technology:
| Mesh size | 5x5 mesh, 5x4 mesh, 4x4 mesh, 3x3 mesh, 2.5x2.5 mesh, 1x1 mesh |
| Weight per SQM | 60g-300g |
| Each roll length | 10m, 20m, 30m, 50m-300m |
| Width | 0.5m-2m |
| Example of applications | 1).75g / m2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure. 2).110g / m2 mesh cloth is widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break . 3). 145g/m2 mesh fabric used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking the scatter and whole surface pressure, especially in the external wall insulation system (EIFS ). 4). 160g / m2 mesh fabric used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providinga space to movement maintain between the layers,prevent crack and rupture due or temperature change. |

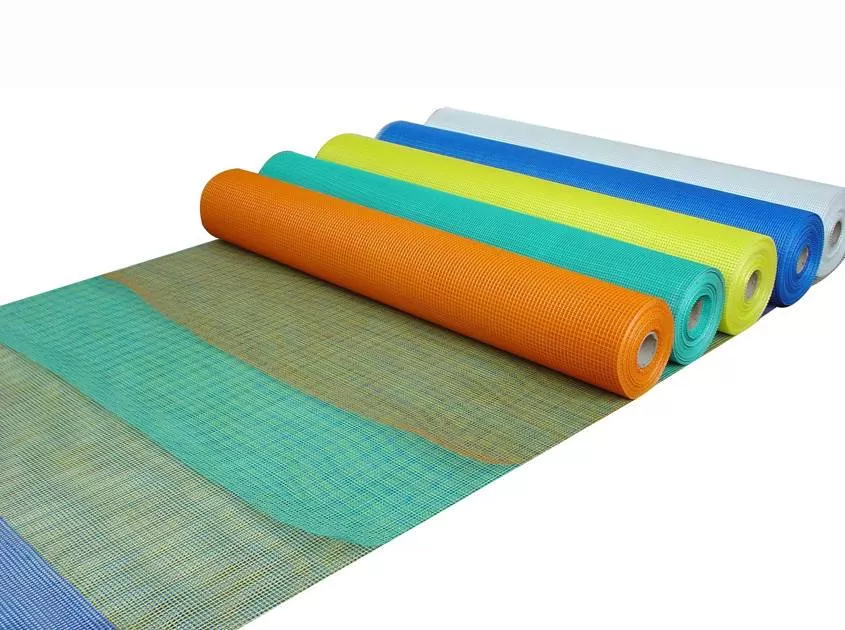

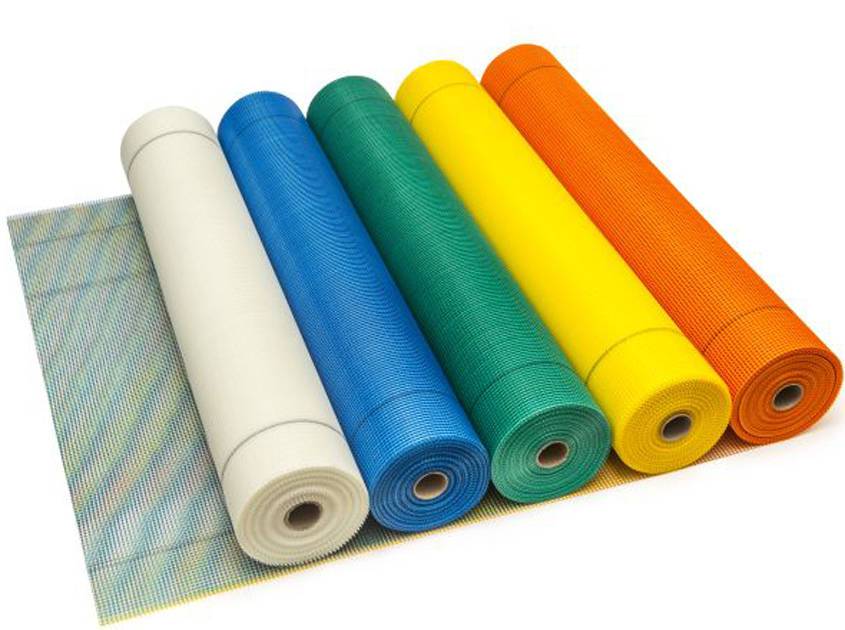

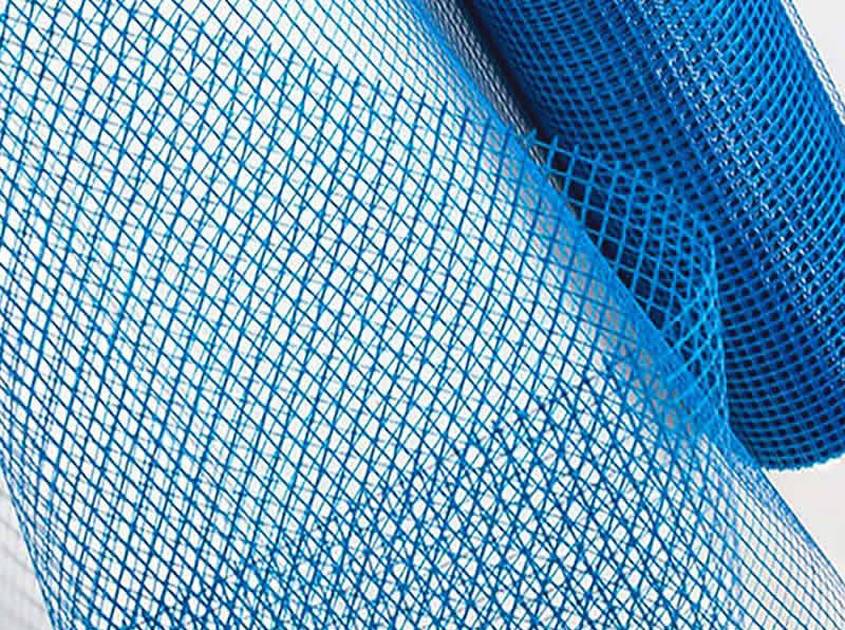

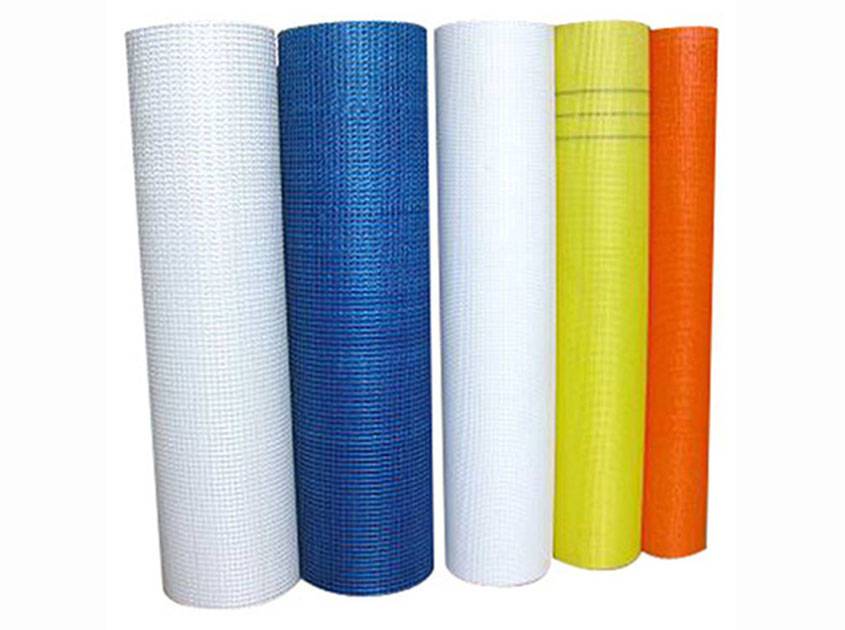

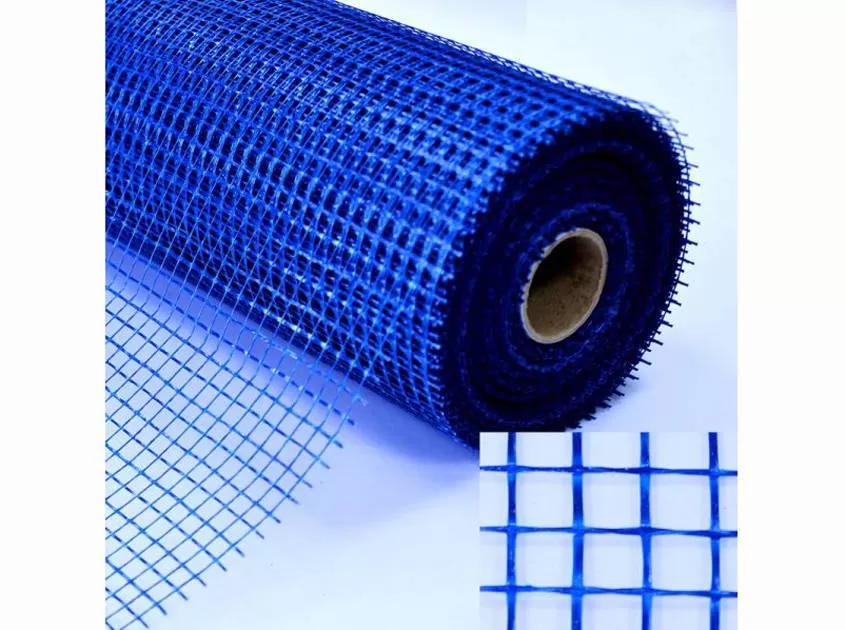

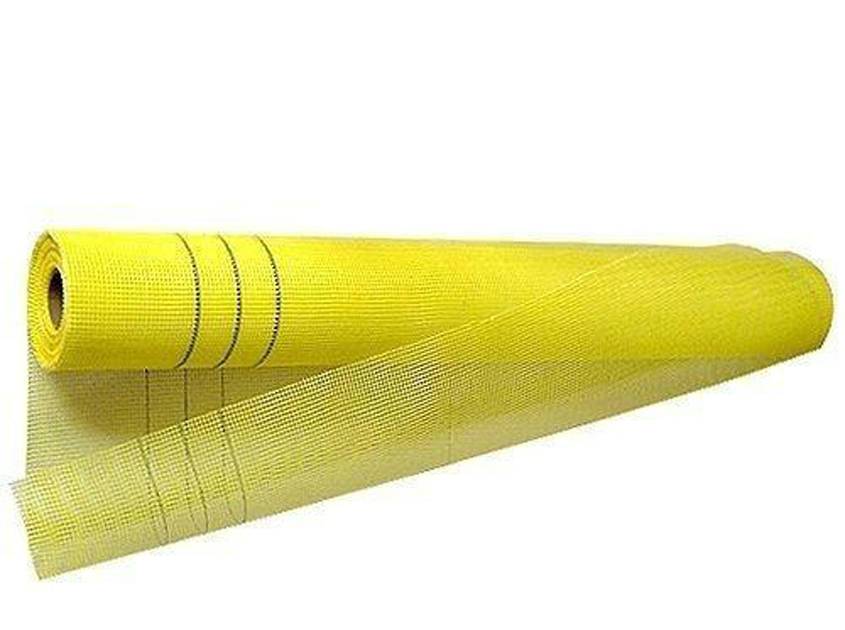

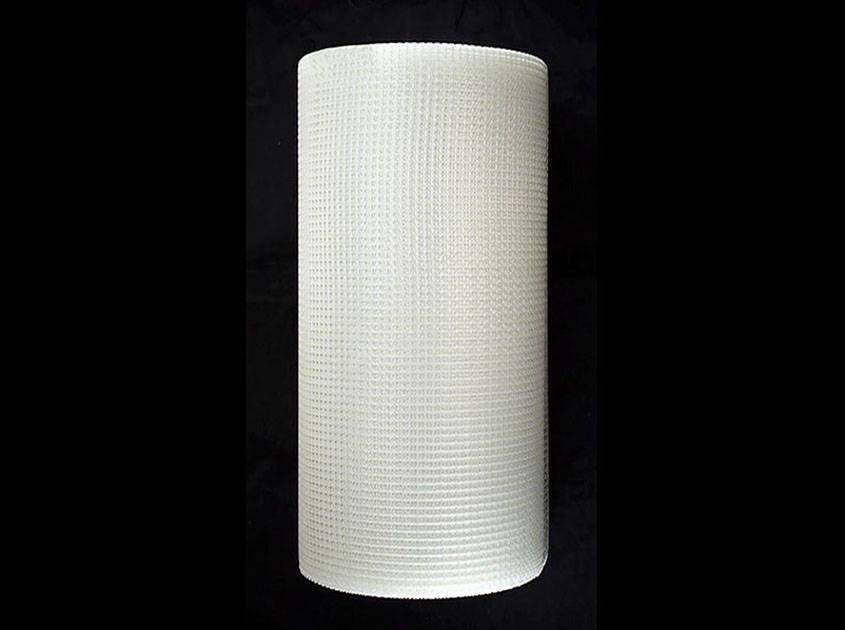

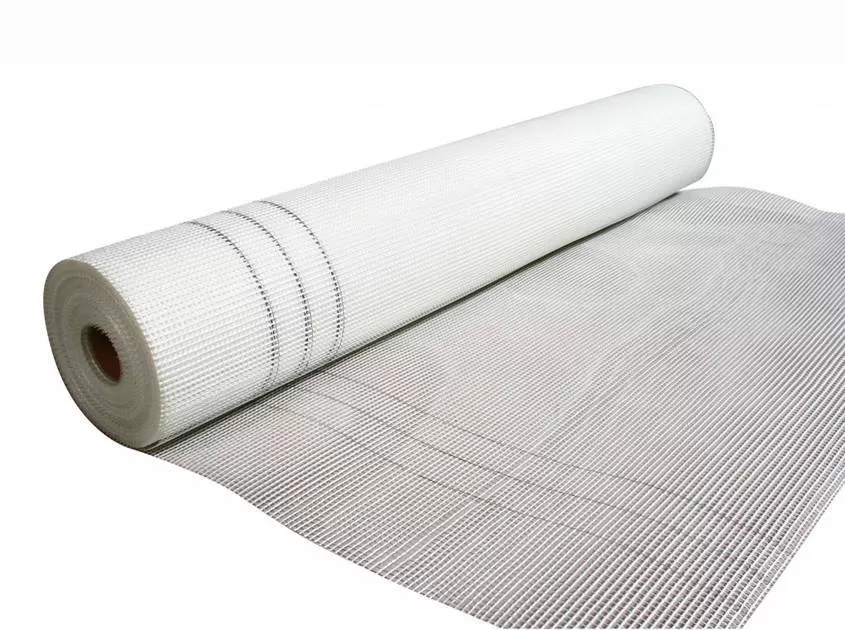

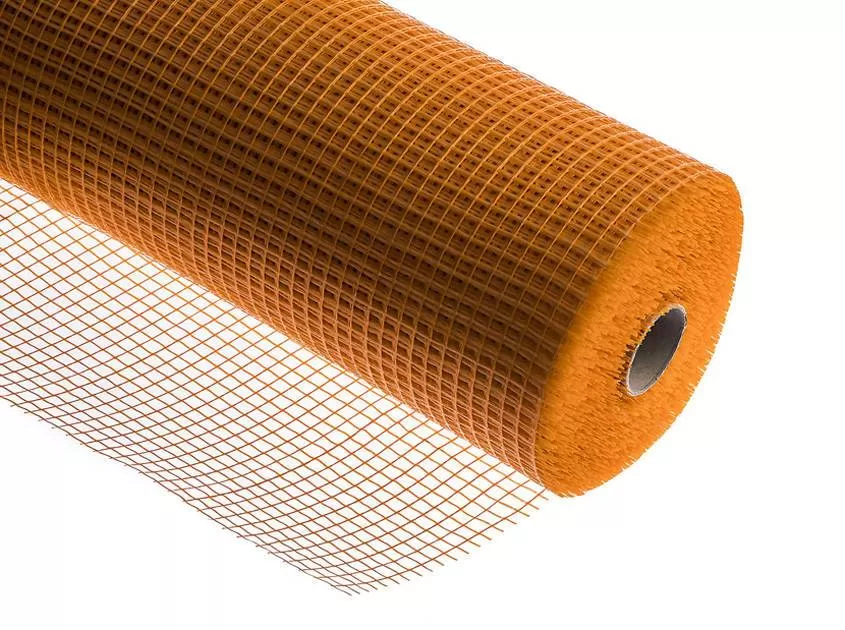

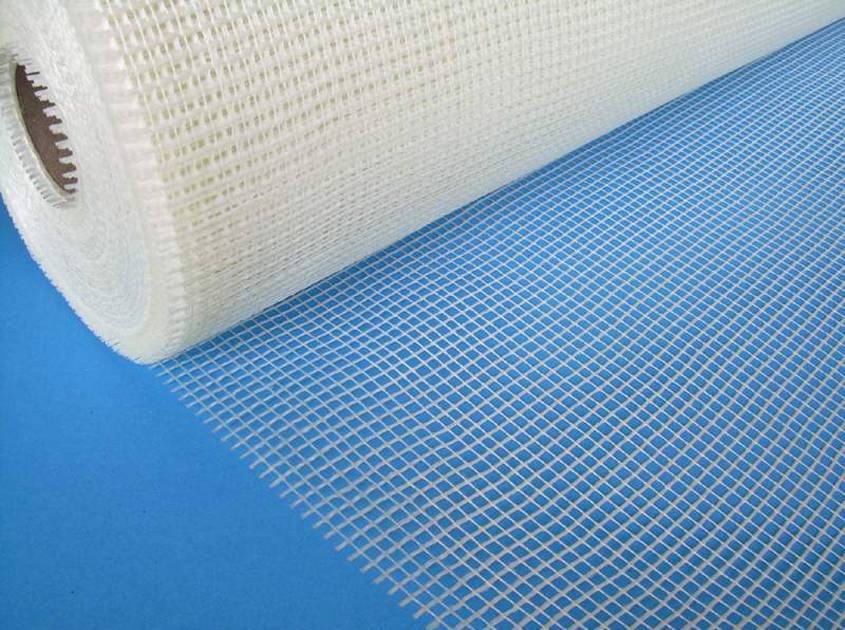

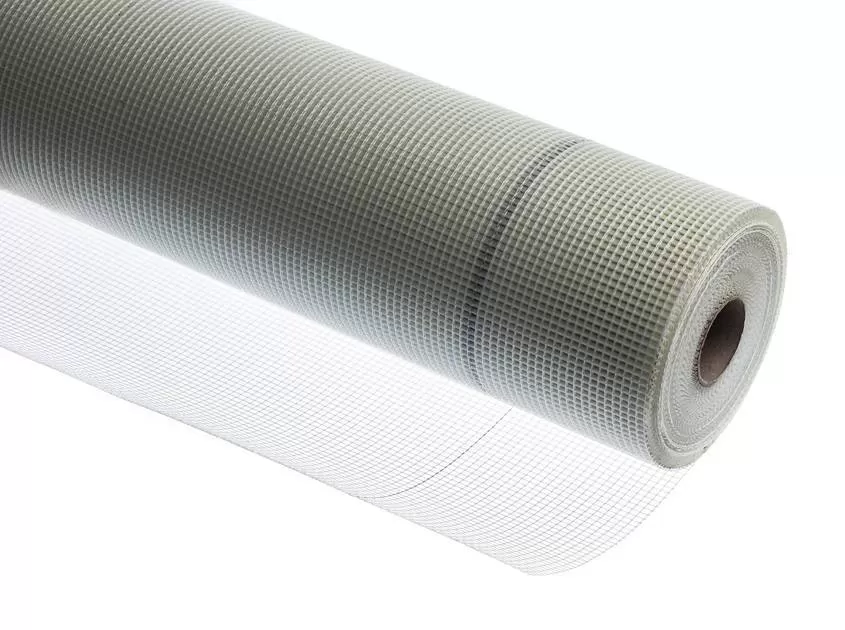

Drawing and Gallery:
Product Name: Fiberglass Mesh
