Introduction:
Sintered Wire Mesh is a wire filtering cloth made by pressing multi-layer stainless steel woven wire cloth, then sintered together in vacuum furnace. this creates a unique material offering excellent mechanical properties. it is ideal material for purification and filtration.This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. the multi-layer sintered mesh is superior to common metal mesh for offering higher durability, strength, hardness and good position of pores. sintered mesh offers high flow rates with average loadings and features adequate cleaning and backwash properties.
Features:
Best stength,high mechanical strength, easy to fabricate, weld, punch, shear, or otherwise form into various parts.
Stable pore structure.
Wide filter rating ranges for choice
Can used for uniform filtration in high pressure or high viscosity environment;
Easy to back wash, long working life(can be used against water, filtrate,ultrasonic wave,melted,baking and cleaning method.
Anti-Corrosion and heat resistance, can be used in -200°c~600°c temperature environment and acid and alkaline environment of filtering.
Stable air permeability ,flow rate.
Specifications:
| Model | Nominal filter rating (um) | Structure protective layer + Control layer + Dispersion layer + Reinforce layer + Reinforce layer |
Thickness (mm) | Air permeability (l/min/cm2) | Bubble pressure (mm h2o) | Weight (kg/m2) | Porosity (%) |
|---|---|---|---|---|---|---|---|
| sm5-1 | 1 | 100 + 400 × 2800 + 100 + 12 × 64 + 64 × 12 | 1.7 | 1.81 | 360-600 | 5-layer sintered wire mesh(8.4) 6-layer sintered wire mesh (14.4) | 40% |
| sm5-2 | 2 | 100 + 325 × 2300 + 100 + 12 × 64 + 64 × 12 | 1.7 | 2.35 | 300-590 | ||
| sm5-5 | 5 | 100 + 200 × 1400 + 100 + 12 × 64 + 64 × 12 | 1.7 | 2.42 | 260-550 | ||
| sm5-10 | 10 | 100 + 165 × 1400 + 100 + 12 × 64 + 64 × 12 | 1.7 | 3.00 | 220-500 | ||
| sm5-15 | 15 | 100 + 165 × 1200 + 100 + 12 × 64 + 64 × 12 | 1.7 | 3.41 | 200-480 | ||
| sm5-20 | 20 | 100 + 165 × 800 + 100 + 12 × 64 + 64 × 12 | 1.7 | 4.50 | 170-450 | ||
| sm5-25 | 25 | 100 + 165 × 600 + 100 + 12 × 64 + 64 × 12 | 1.7 | 6.12 | 150-410 | ||
| sm5-30 | 30 | 100 + 450 + 100 + 12 × 64 + 64 × 12 | 1.7 | 6.7 | 120-390 | ||
| sm5-40 | 40 | 100 + 325 + 100 + 12 × 64 + 64 × 12 | 1.7 | 6.86 | 100-350 | ||
| sm5-50 | 50 | 100 + 250 + 100 + 12 × 64 + 64 × 12 | 1.7 | 8.41 | 90-300 | ||
| sm5-75 | 75 | 100 + 200 + 100 + 12 × 64 + 64 × 12 | 1.7 | 8.7 | 80-250 | ||
| sm5-100 | 100 | 100 + 150 + 100 + 12 × 64 + 64 × 12 | 1.7 | 9.1 | 70-190 | ||
| sm5-150 | 150 | 50 + 100 + 50 + 30 × 30 + 100 × 50 | 2.0 | 25.00 | 50-150 | ||
| sm5-200 | 200 | 40 + 80 + 40 + 20 × 40 + 80 × 40 | 2.0 | 26.00 | 50-150 | ||
| Material: Standard material sus304 (aisi304), sus316 (aisi316), sus316l (aisi316l), alloy steel hastelloy, monel, and inconel. | |||||||
| Standard size: 500 × 1000 mm, 600 × 1200 mm, 1000 × 1000 mm, 1200 × 1200 mm, 300 × 1500 mm. | |||||||
Note: Special size and specifications can be made according to customers requires.
Technology:
Material: SUS304, SUS316, SUS316L,etc
Filter rating:1-300um
Operating temperature range:-200℃~600℃
Packing:With carton or wooden box

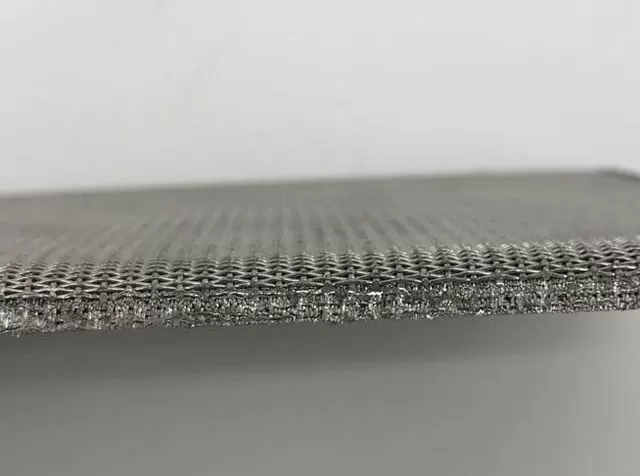

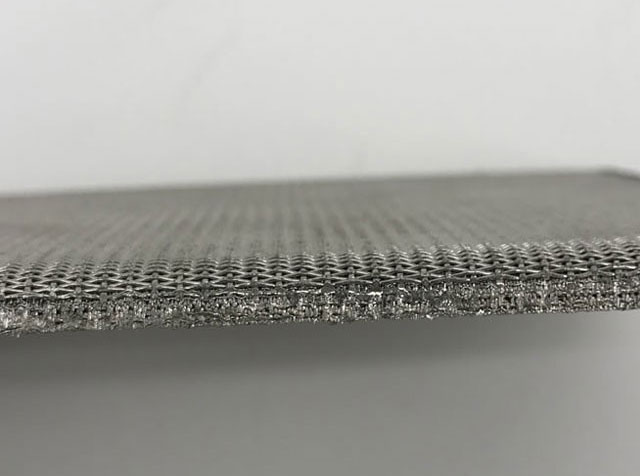

Sintered filter is generally divided into 5 layers, including protection layer, filter layer and reinforcement mesh.

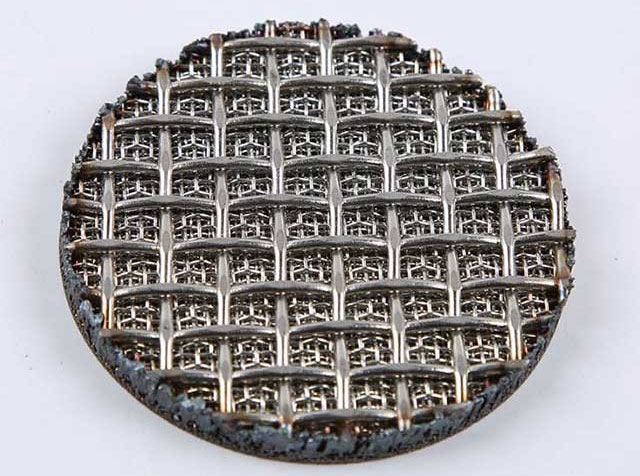

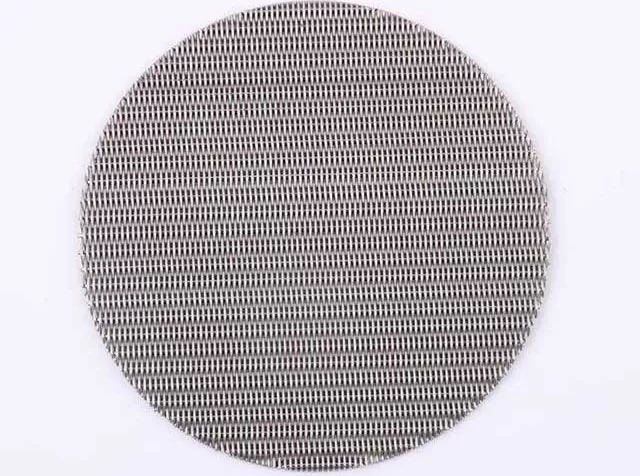

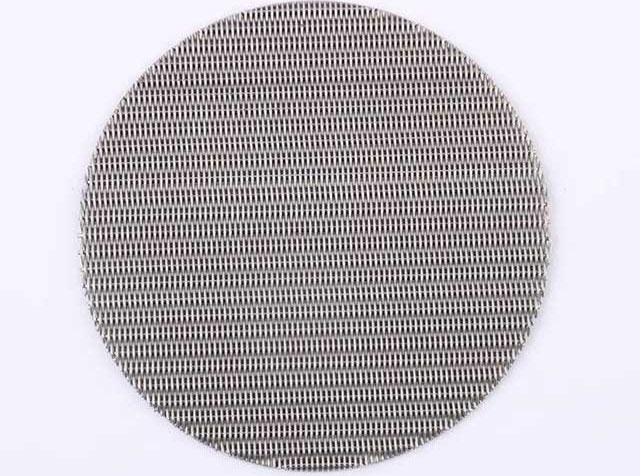

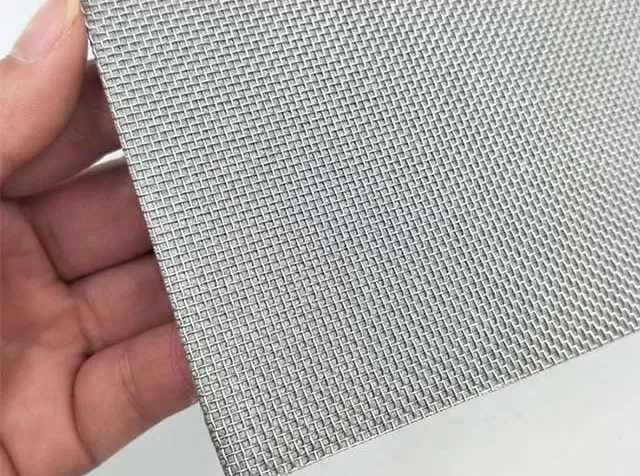

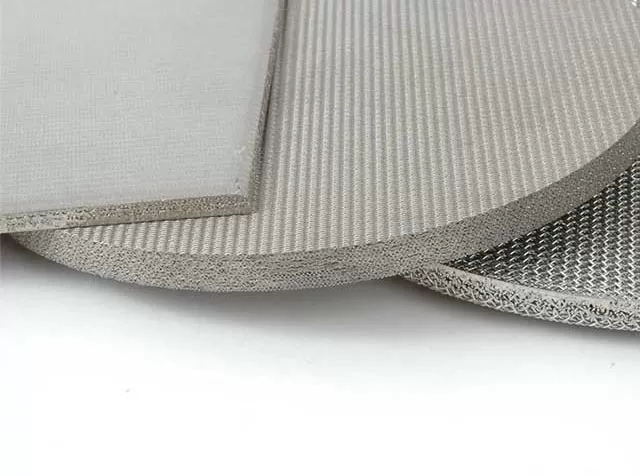

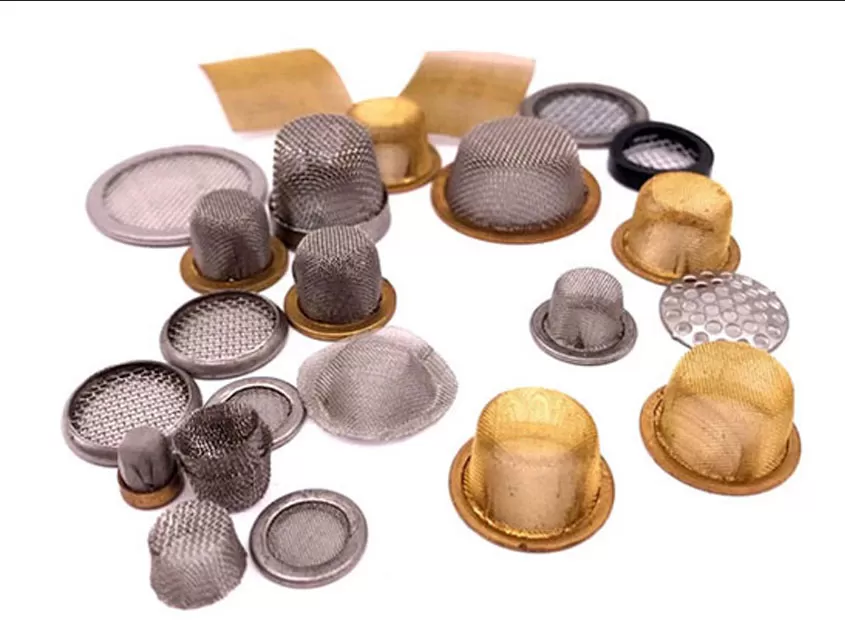

Drawing and Gallery:
Product Name: Sintered Wire Mesh
