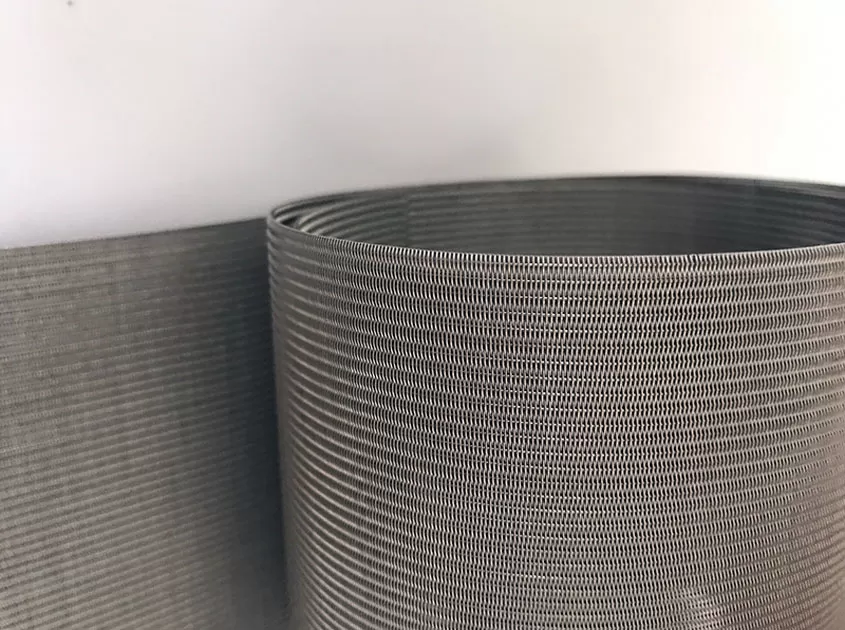

Reverse Dutch Weave Stainless Steel Wire Mesh

Reverse dutch woven wire mesh is another product specially designed for filtering. It is mainly made of stainless steel wire, which is chemical resistance, alkali and acid resistance, rust and corrosion resistance. It can ensure the durable filtering performance during the usage. The reverse dutch weave can also be used in brass wire, which is also has chemical stability for filtering.

Using two different sizes of wire diameter, the stainless steel wire or brass wire is woven into reverse dutch woven wire mesh. Which is widely used as filter disc or other filtration products in petrochemical, aerospace and other field.

Introduction:

Features of Stainless Steel Reverse Dutch Wire Mesh

Stainless steel reverse dutch wire mesh is made of high quality, high strength stainless steel wire. With advanced equipment and exquisite production technology, so the mesh is with advantage of smooth surface, high hardness, continuous net, no deformation, high temperature resistance, corrosion resistance and so on. It has outstanding filtering performance.

Applications of Stainless Steel Reverse Dutch Wire Mesh

Stainless steel reverse dutch wire mesh is suitable for filtering of plastic wire drawing machine, stretch film machine and coating machine. Such as plastic woven bag, plastic film etc.

Specifications of Stainless Steel Reverse Dutch Wire Mesh

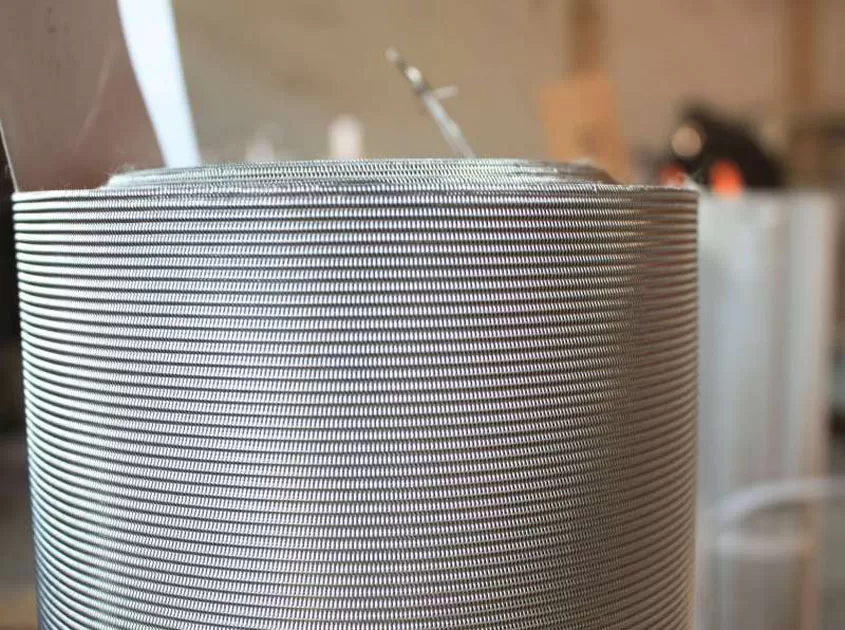

Stainless steel reverse dutch wire mesh is a kind of dutch weave wire mesh. As weft wire is much more thicker than warp wire, it is called reverse dutch weave. Normally, the roll length is 10m, width is 40mm-210mm, 40mesh-350mesh, the widest width can be 50cm. Special requirement can be customized.

Features:

1. Smooth surface.

2. High hardness.

3. Zero aperture.

4. Chemical resistance.

5. Acid and alkali resistance.

6. Rust and corrosion resistance.

7. High tensile strength than the plain weave woven wire mesh.

8. Outstanding filtration performance.

Specifications:

Mesh counts	Wire diameter(mm)	Thickness(mm)	Width(mm)
54*15	0.45*0.6	1.75	50——800
72*15	0.45*0.55	1.7	50——800
132*17	0.23*0.45	1.2	50——1000
160*18	0.28*0.45	1.27	50——1000
200*40	0.17*0.27	0.7	50——1500
260*40	0.15*0.27	0.65	50——1500
300*40	0.13*0.27	0.65	50——1500
350*40	0.13*0.27	0.6	50——1500

Note: Special size and specifications can be made according to customers requires.

Technology:

Material: SUS302,304,316,316L

Property: Acid-resisting, alkali-resisting, high temperature resisting, strong tension and good abrasion performance. Dutch weave wire mesh has advantage of stable, fine and high precision filtering performance.

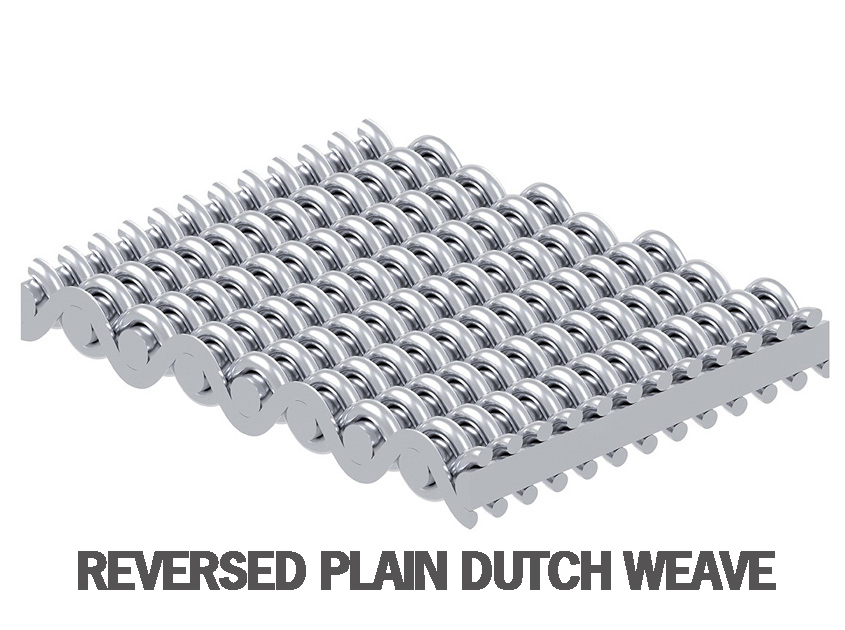

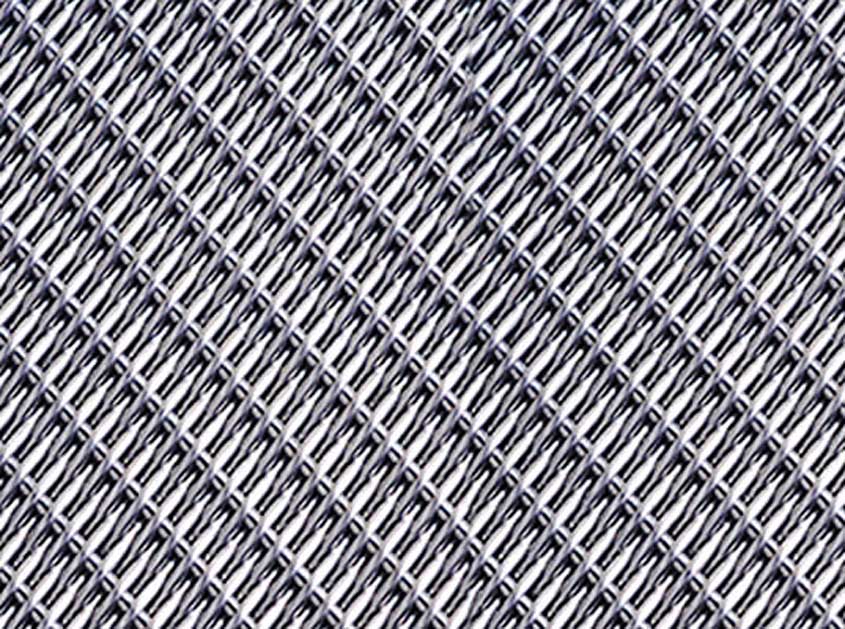

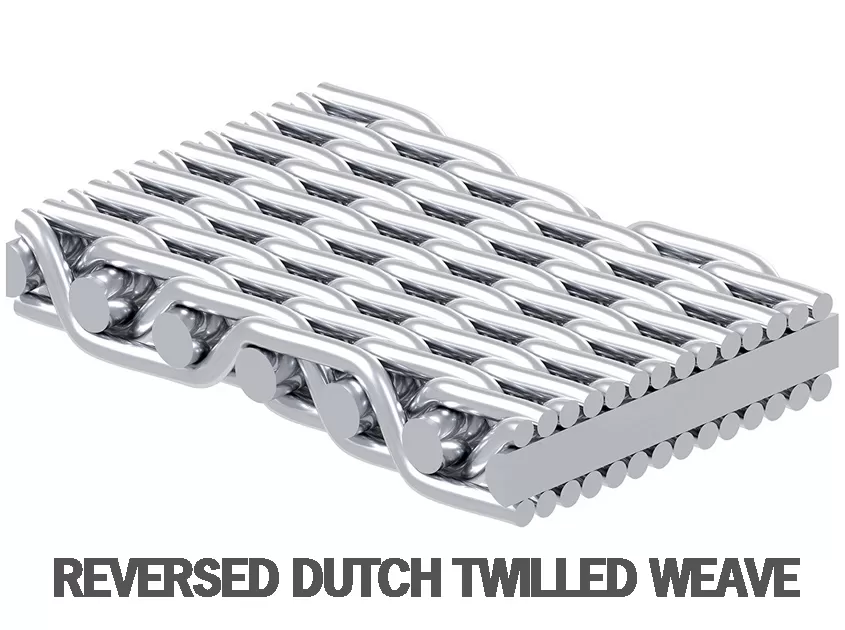

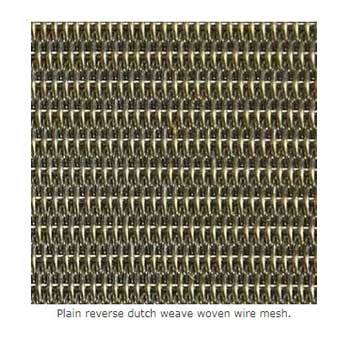

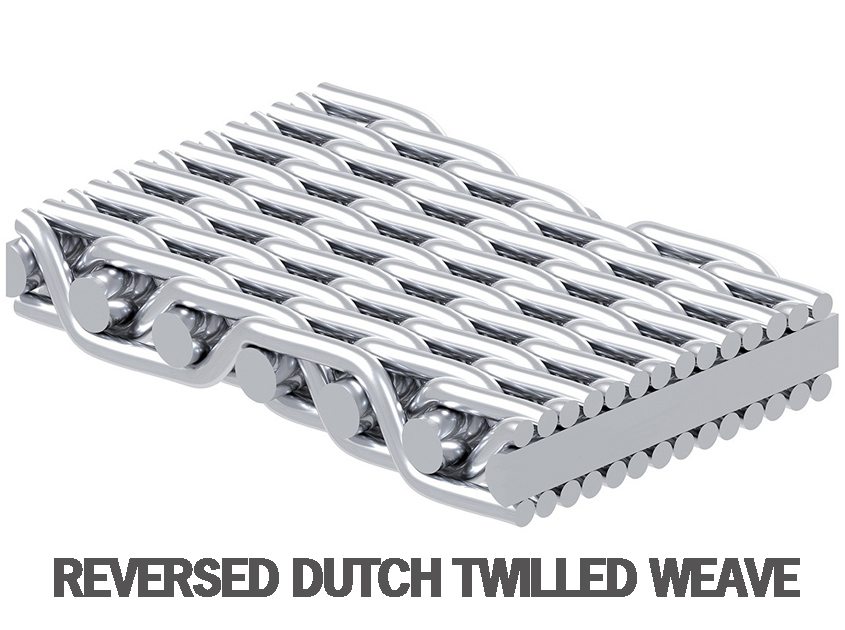

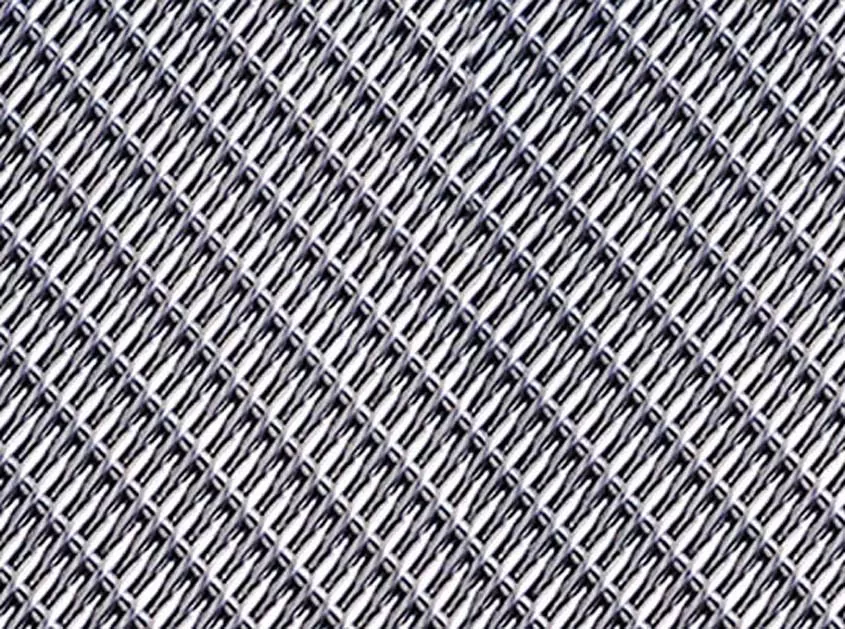

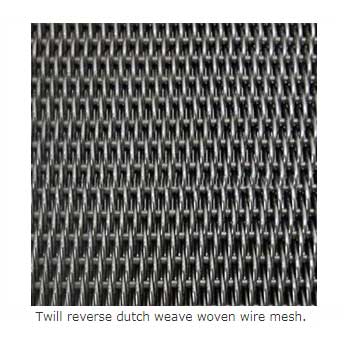

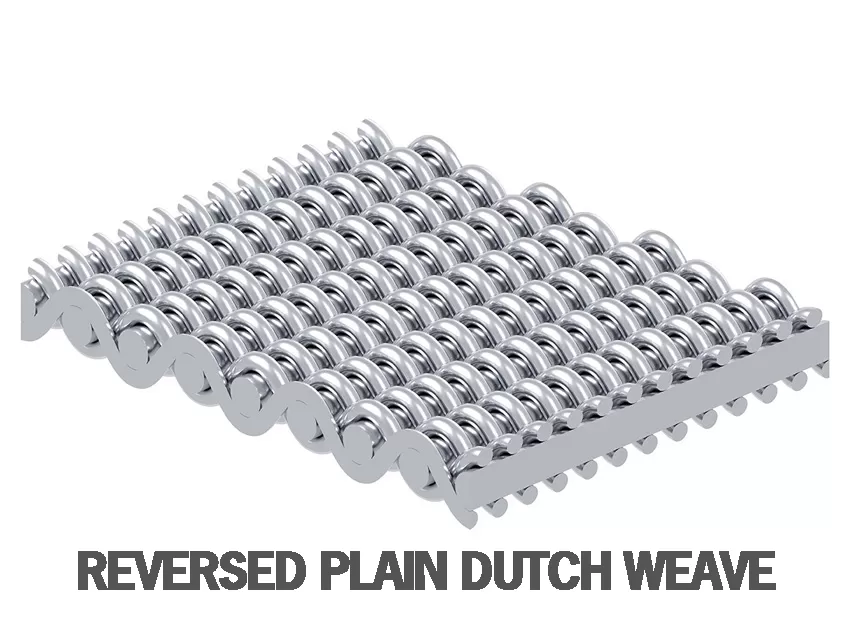

Weave Pattern: Plain reverse dutch weave woven wire mesh and Twill reverse dutch weave woven wire mesh.
