Introduction:
Wedge wire, also called wedge wire screen, is mainly made of stainless steel. And wedge wire products include wedge wire nozzle, cylinder, support grid and lateral assemblies. The size of the pores on the one side is smaller than the pores on the other side, so the wedge wire can greatly filter something from the small pore side to the large pore side without clogging. We can design the flow direction and shape to meet the application requirements. What’s more, we can customized the wedge wire filter element such as filter tube, filter basket based on the clients requirements.
Features:
High quality steel for high strength.
High filtering efficiency without clogging.
Various types and sizes for choice.
Corrosion and rust resistance.
Easy installation and replacement.
Durable and long service life.
Specifications:
| Material | stainless steel 304, 304L, 316, 316L, hastelloy steel, nickle alloy steel or other alloy steel |
| Wedge wire | width:1.50mm, 1.80mm, 2.30mm, 3.00mm, 3.70mm, 3.30mm. |
| Height: 2.20mm, 2.50mm, 2.70mm, 3.60mm, 4.30mm 4.70mm, 5.60mm, 6.30mm, 7.00mm | |
| Support rod | Width: 2.30mm, 3.00mm, 3.30mm, 3.70mm |
| Height: 2.70mm, 3.60mm, 4.70mm, 5.60mm, 6.30mm | |
| Round wire diameter | 2.50 - 5.0mm |
| Support profile | flat, triangle wire, round wire, trapezoid wire. |
| Slot opening | 0.05–35 mm |
| Tube diameter | 10–1500 mm |
| Tube length | 0.3, 0.6, 1, 2, 3, 6m, other lengths available as request |
| Tube Type | Radial internal wedge wire tube,Radial external wedge wire tube,Axial external wedge wire tube |
| Filter type | from outside to inside or inside to outside |
| Edge type | standard type, end ring type, flange type, threaded type |
Note: Special size and specifications can be made according to customers requires.
Technology:

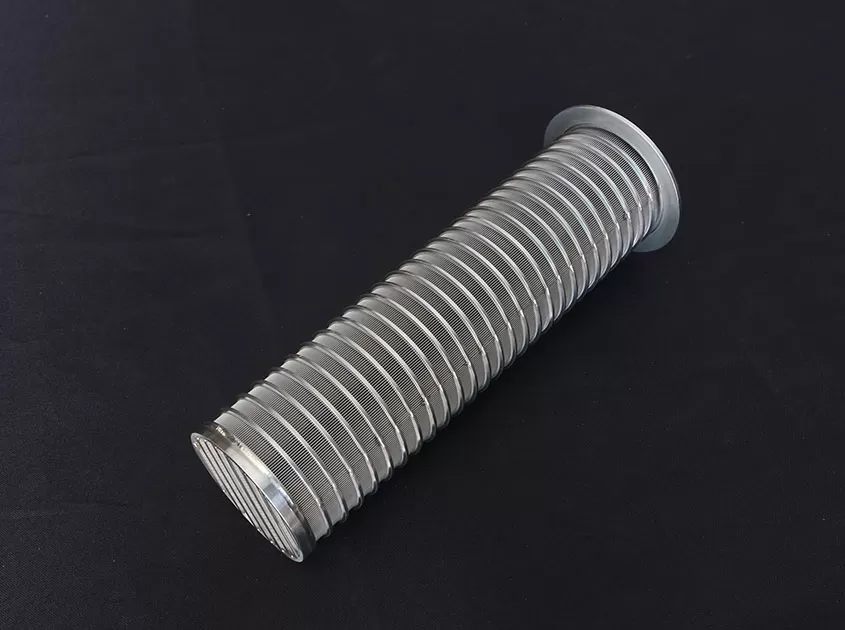

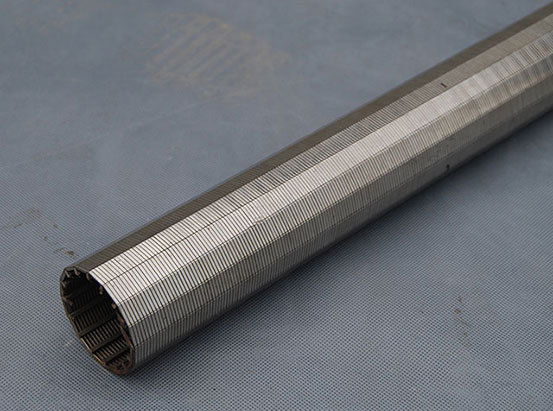

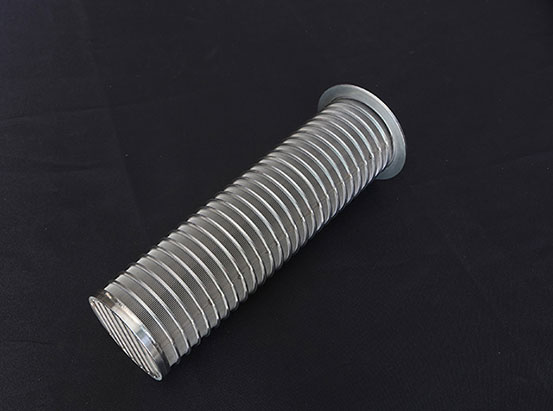

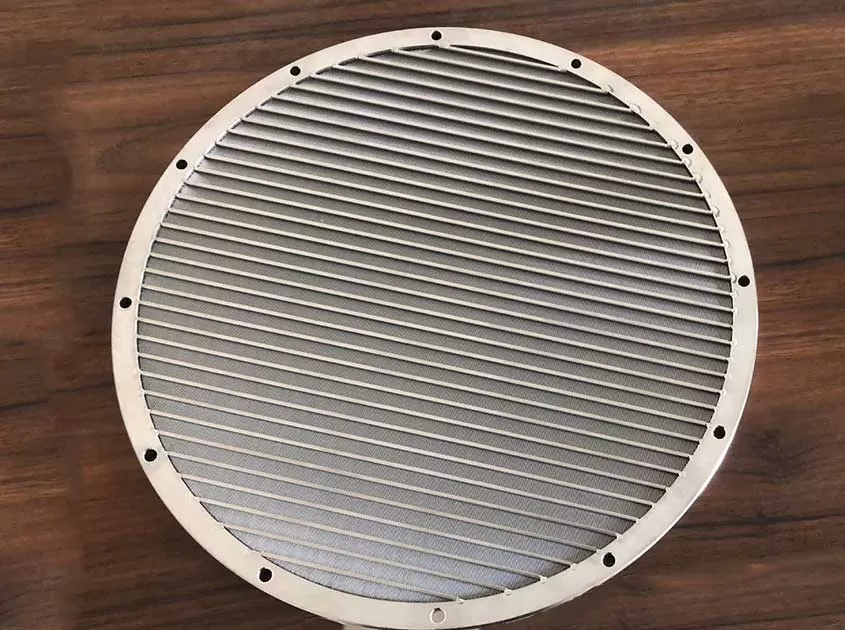

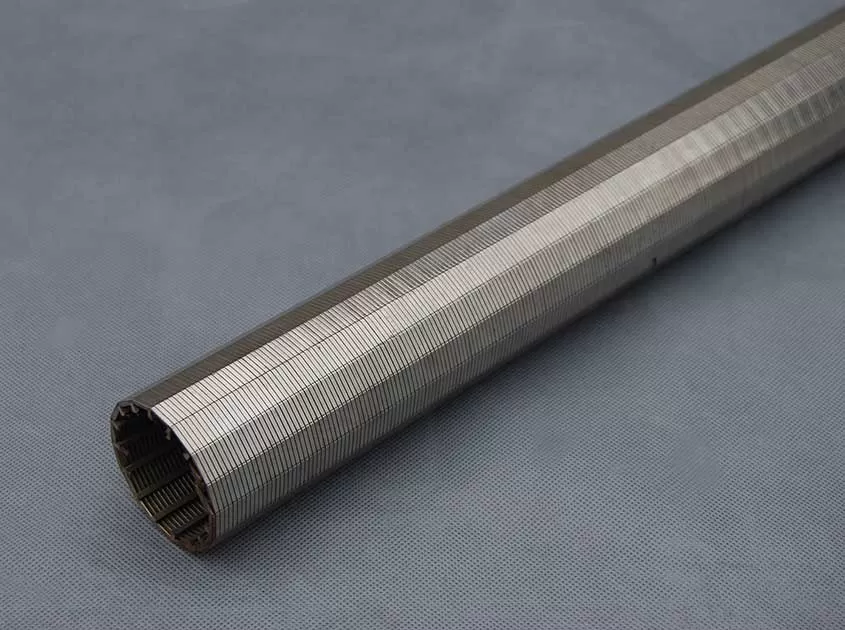

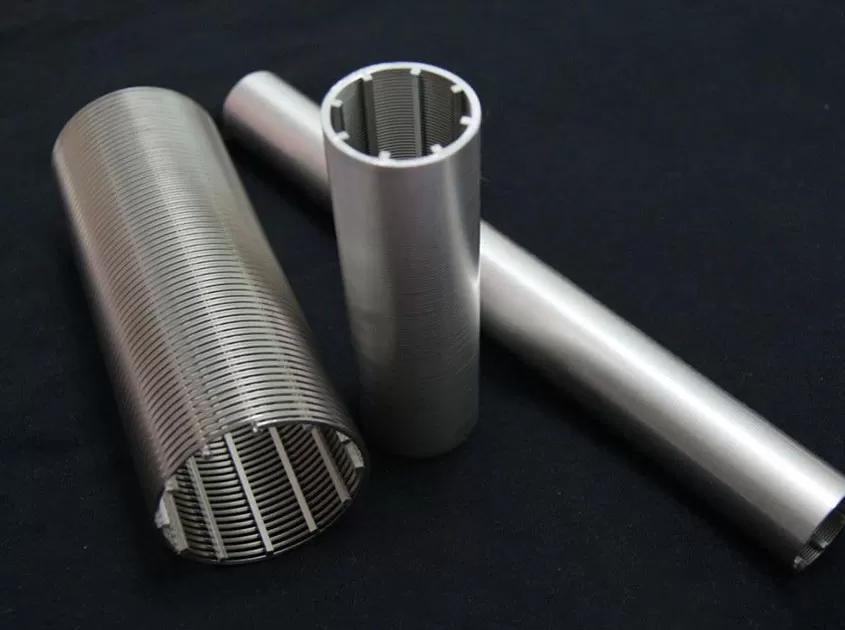

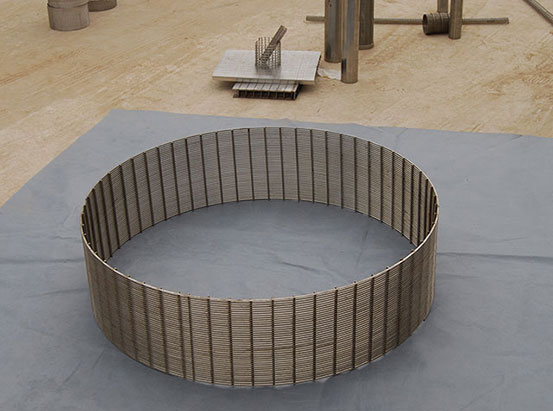

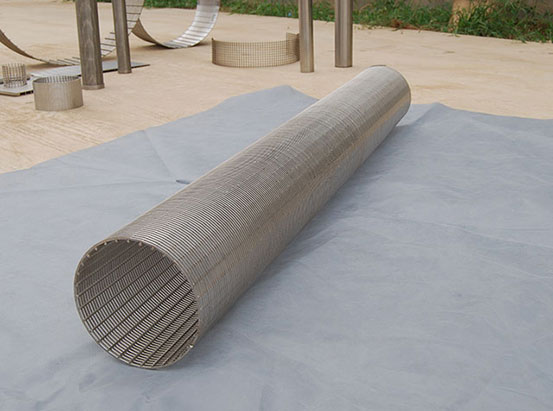

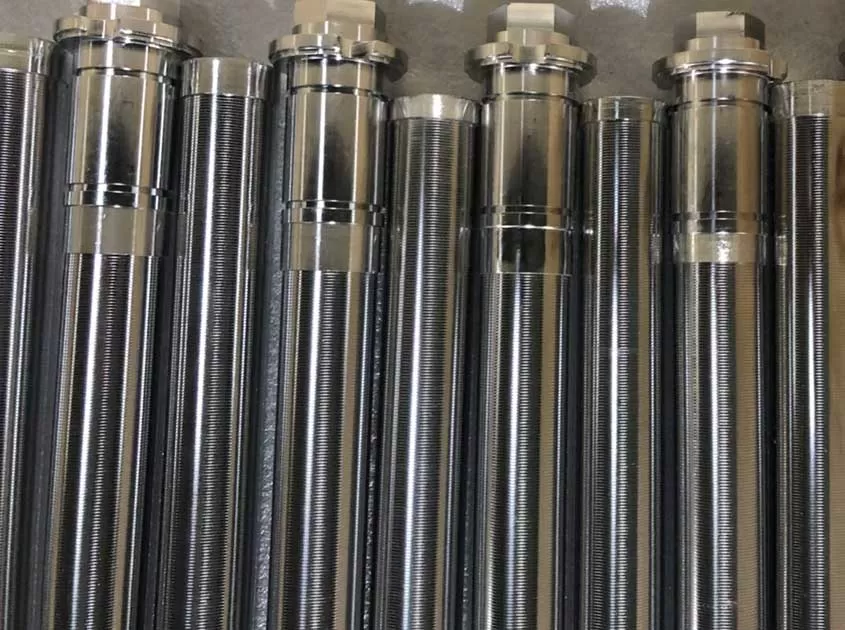

NoneDrawing and Gallery:
Product Name: Wedge Wire
