Introduction:
It is a high-efficiency, reducing 80% labor cost and automatic system to feeding chicken, chicken food will add in feeding hopper by workers or by automatic conveying pipe or by feed silo, hoppers with its frame will go and come back from beginning of chicken cage to the end under electricity, normally one row of chicken cage, one system of automatic feeding hopper system.
And this automatic feeding system is stable and homogeneous, and can therefore guarantee even feeding of chickens.It will enable you to adopt a uniform feeding device throughout the feeding process, from gravity feed, through the feeding tube to fill the material tank evenly, as well as avoid artificial feeding.They save manpower, and because the machinery is driving a single feed, each run takes five to eight minutes through a 70 m-long shed.
So the automatic feeding system is widely used in modern poultry farms.And it dosed the not require any person to operate during the feed conveying and bean process, the whole process is completely automatic.
Features:
1.Safe, convenient, and energy saving, they push directly to the chickens with no noise at all.
2.It takes just 40 minutes to complete feeding 10,000 chickens.
3.One automatic feeding machine can take over the work of a dozen people, in this way reducing labor costs, improving the level of breeding and therefore breeding benefits.
4.It has an automatic feeding function that turns forwards and backwards as the machine moves freely through the chicken house.
5.The automatic feeding machine transports and dispenses powder feed from ground level via a chute. The height of the machine is adjustable and can operate so that it discharges on both sides, left and right.
6.The way the machine has been factory-set for feeding will result in minimal to a moderate degree of charging required.
7.The use of this automatic feeding machine results in less waste of feed because it loads evenly, and the SAP can be adjusted according to the charging speed chosen for the machine.
Specifications:
| Automatic feeding system | |
| Hopper size | 43*75cm |
| Hopper material | 1.8-2.00mm thick galvanized sheet |
| Hopper capacity | 50kg a bucket |
| Running speed | 70 meters chicken house 5-8minutes |
| Room height | Best in 3.5-4 meters of above |
| Rail tube | Diameter:40mm;Thickness:3.0mm |
| Power | 1.5kw |
| Other | Need to configure the ground screw conveyor to carry feed ,diameter of ground screw conveyor is 140mm, capacity is more than a ton per hour |
Note: Special size and specifications can be made according to customers requires.
Technology:
1.Hopper material：galvanized sheet
2.The machine adopts traction type power transmission structure, driven by the motor chain or traction rope, chain or traction rope action on the main machine, movement.

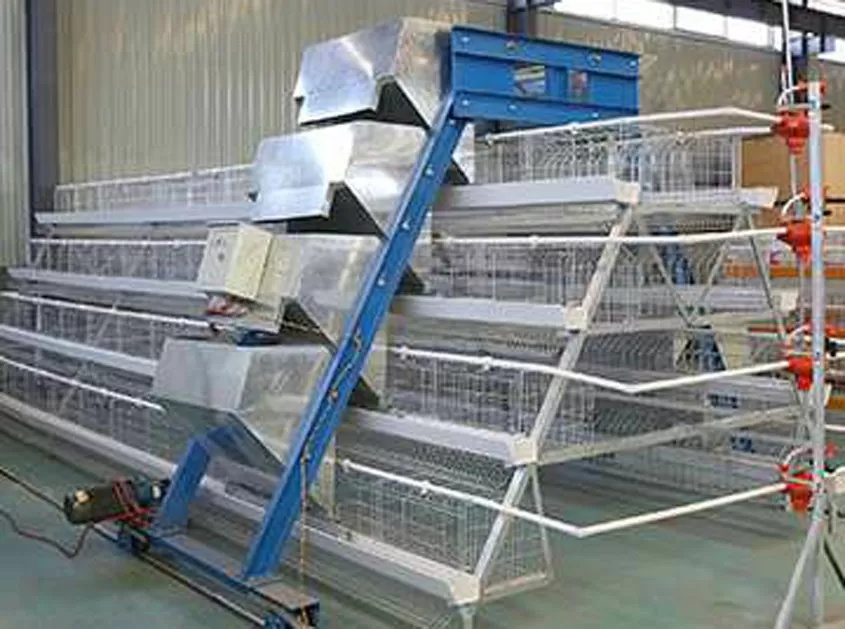

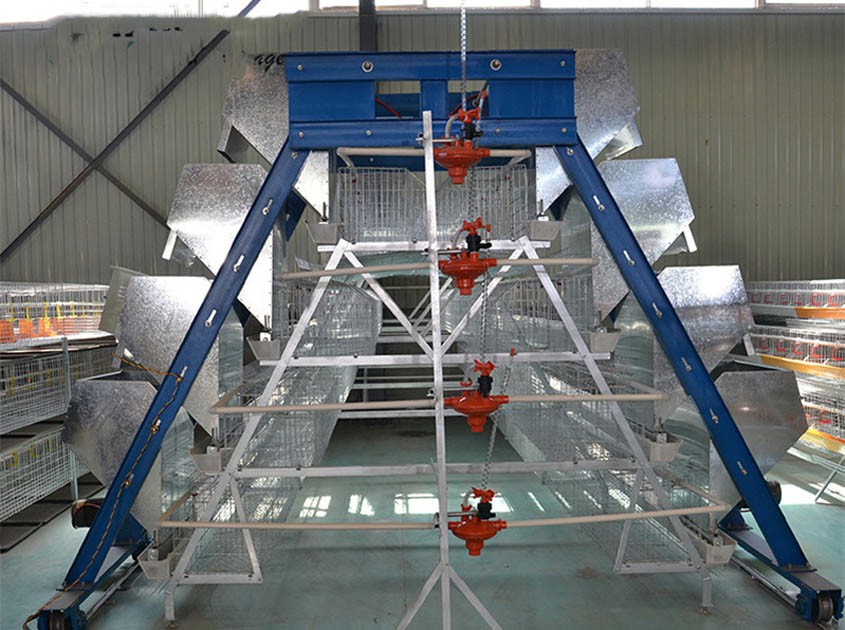

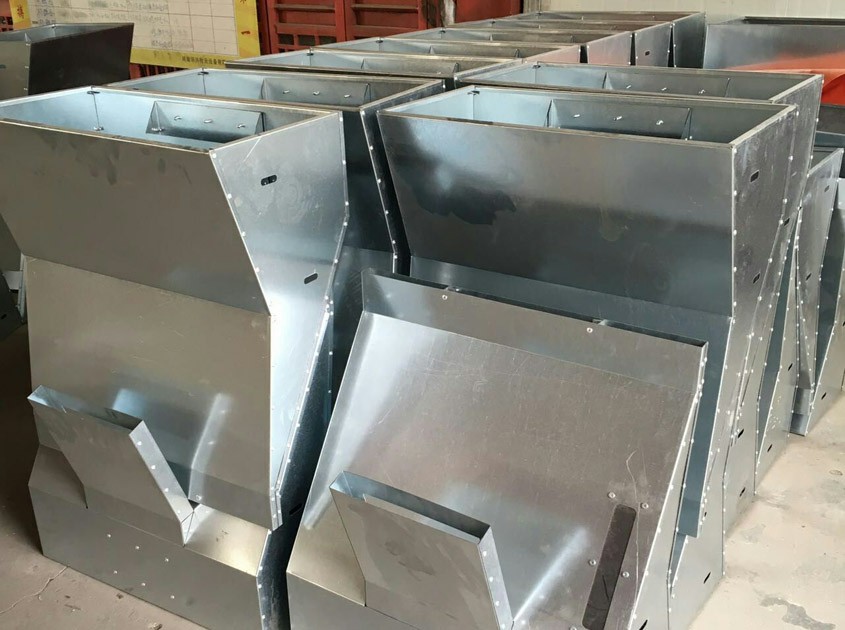

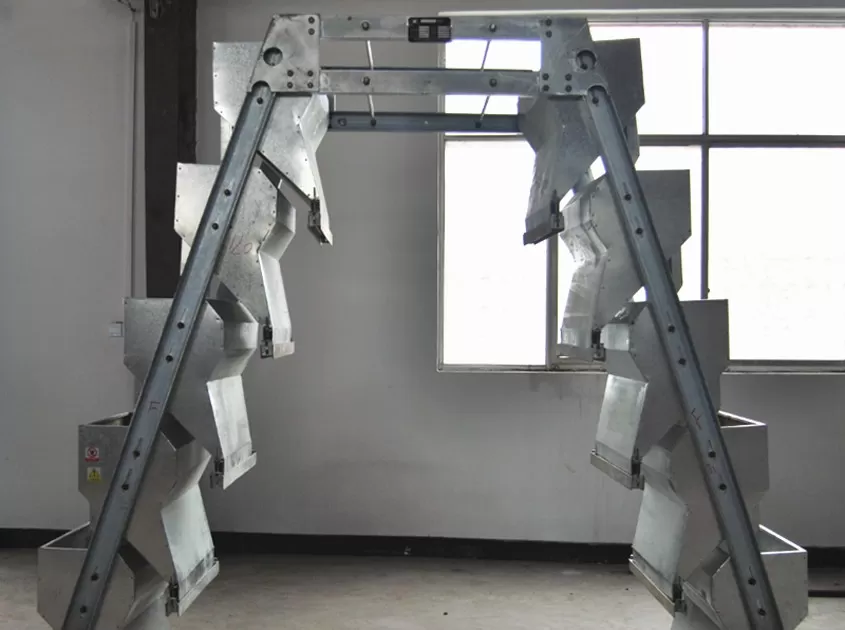

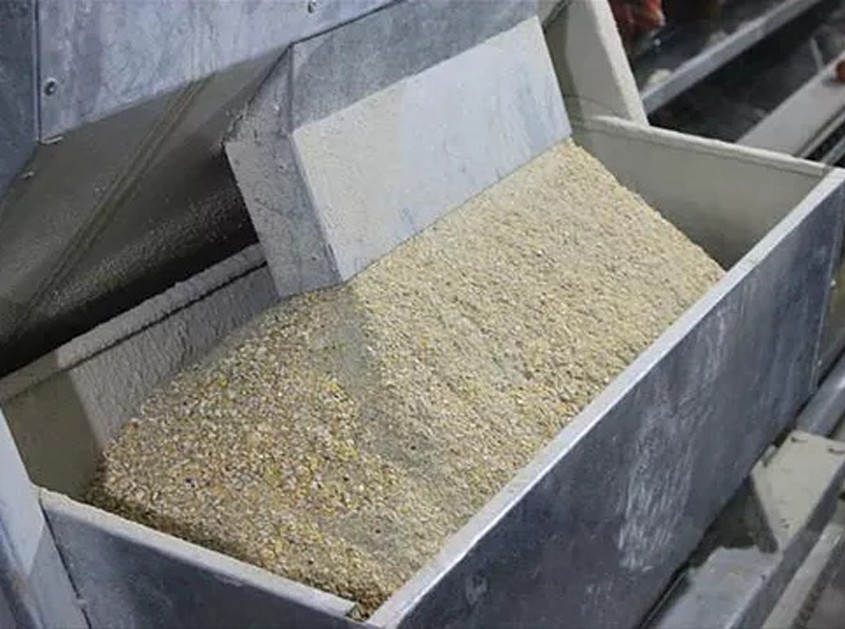

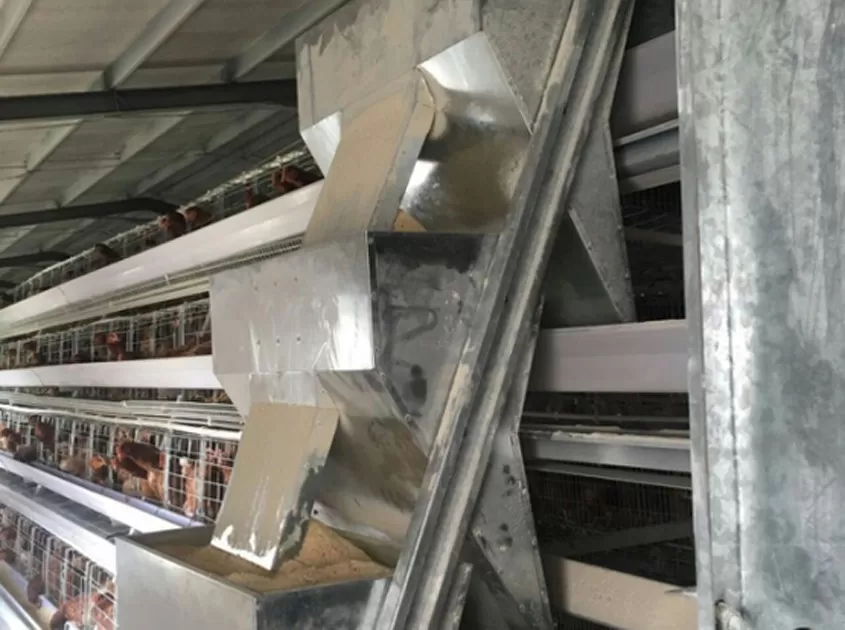

Drawing and Gallery:
Product Name: Automatic Feeding System
