Introduction:
Double wire fencing, also known as twin-wire fencing or double-loop fencing, is a type of security barrier used in various applications where additional strength and security are required. This type of fencing is characterized by its unique construction, which involves two parallel wires connected by shorter cross wires or loops, creating a strong and rigid structure.

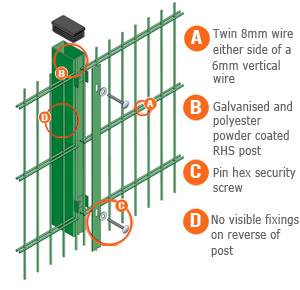

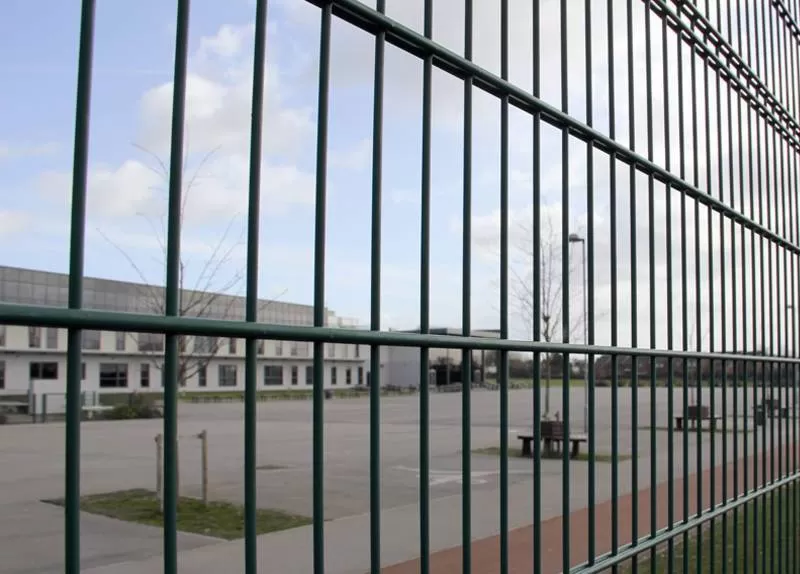

Stopping people from cutting through or climbing over your fencing system is essential for schools, sports grounds and many other public places. LinkLand™ prevents both, with its double wire system acting as a solid barrier and panel heights of up to 6m serving as a mighty obstacle. Each steel panel features twin 8mm wires welded either side of 6mm vertical wires, giving would-be intruders little chance of breaking through. Panels are fixed to steel posts using sturdy clamps and secured with pin hex security screws, with no visible fixings on the back of posts.
Panels

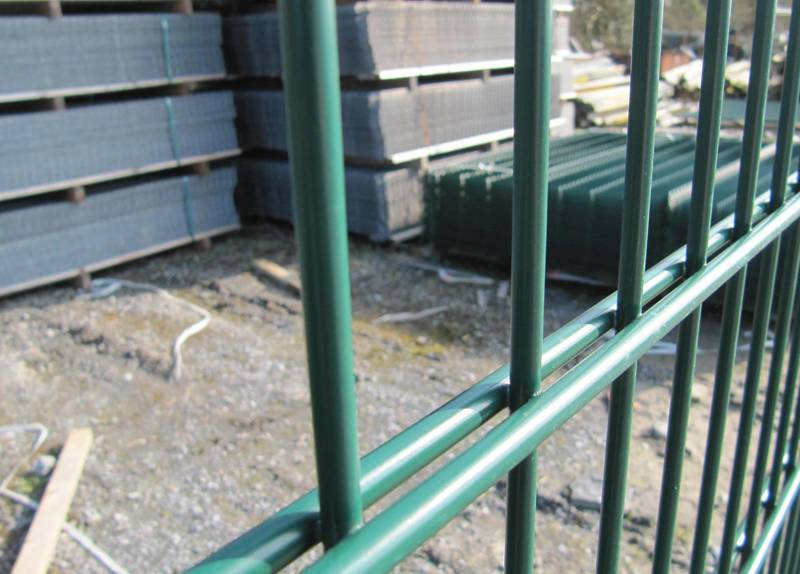

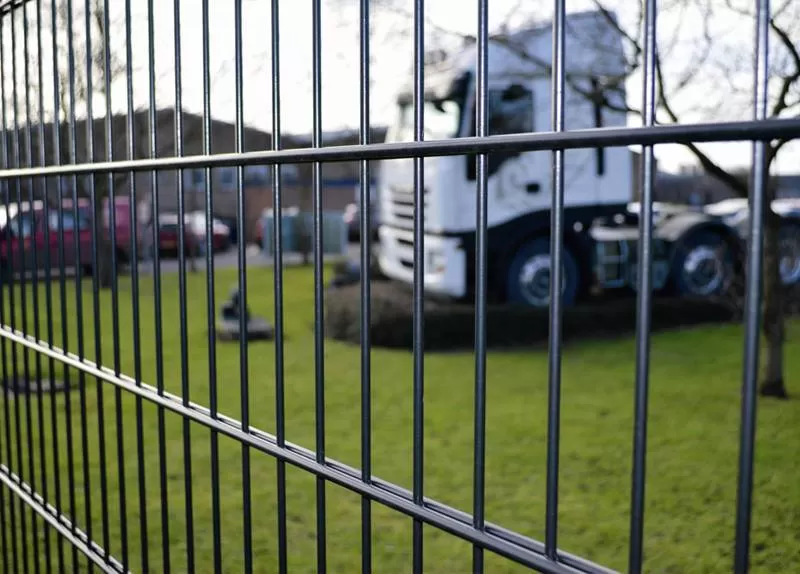

The mesh aperture for this twin-wire type of welded mesh fence is 200mm x 50mm. Twin horizontal wires at each intersection give a rigid but flat profile to this mesh fencing system, with vertical wires at 6mm and horizontal wires either 6 or 8mm depending on the height of the mesh panel and the site application. The height of the mesh panel can be from 1.0M up to 2.4M, with the finish galvanized and polyester coated in a range of standard RAL colors. This system not only makes the panel extremely strong and stable but also makes the panel extremely difficult to cut through. The twin wire mesh fencing system is amongst the most comprehensive, cost effective security fencing systems in the world today.
Posts

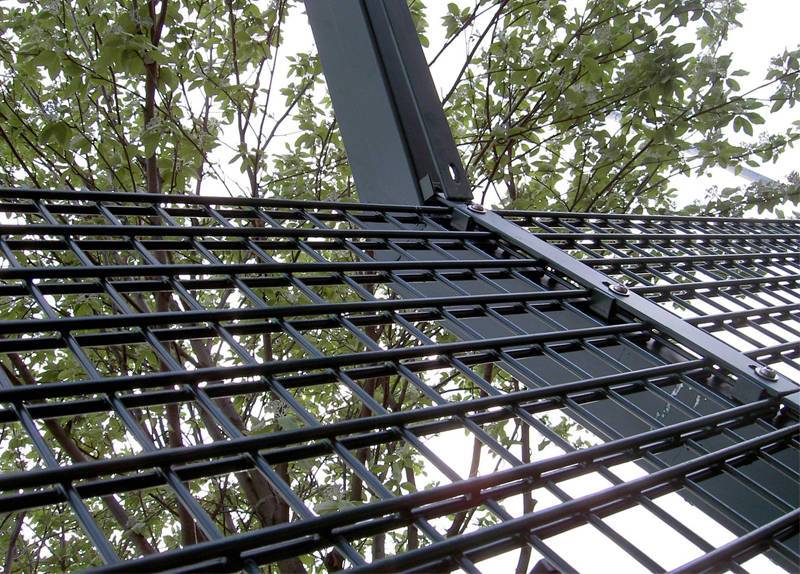

The Double wire mesh fence panels are attached with high strength steel posts. The common posts of the double wire mesh fence are SHS tube, RHS tube, Peach post Round pipe, or Special-shaped post. Panels are fixed to steel posts using sturdy clamps and secured with pin hex security screws, with no visible fixings on the back of posts.
Features:
Features
Beautiful looking
The double wire fence is the See-through panels, Panels mounted inside post or on post face, Brackets and hardware for round and square posts, Difficult to cut and climb but Simple cost effective installation.
High Security
Each steel panel features twin 8mm wires welded either side of 6mm vertical wires, giving would-be intruders little chance of breaking through. Panels are fixed to steel posts using sturdy clamps and secured with pin hex security screws. With its twin wire system this heavy duty fencing is double the strength of a normal panel to withstand constant impact but to stay intact.
Complete System
The system consists of high-quality double wire panels available in various heights, secured to high-strength steel posts. Fence panel will be fixed to the post by suitable clips according to different post type.
Long Service Life
At least 10 Years warranty. Super durable powder coating assures a long service life for this fence system. This coating is applied over galvanization to ensure total protection of panels and gates.
Easy Installation
All components have been developed to provide a professional product of high quality that can be installed efficiently and rapidly
Specifications:
Specifications
| Double wire fence Panel | Wire Thickness | Panel Width | Height | Surface Coating |
| Spacing between horizontal wire: 100mm, 150mm, 200mm. Spacing between vertical wire: 50mm, 55mm. | 8mm/6mm/8mm or 6mm/5mm/6mm | 2.0m or 2.50m or 3.0m | 1030mm | Hot Dipped Galvanized (505g/m²) OR Electric Galvanized + Polyester Powder Coated (All colors in Ral) |
| 1230mm | ||||
| 1430mm | ||||
| 1630mm | ||||
| 1830mm | ||||
| 2030mm | ||||
| 2230mm | ||||
| 2430mm | ||||
| 2530mm |
| Post Type | Size | Thickness | Height |
| Square post | 50x50mm, 60x60mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
| Rectangular post | 40x60mm, 40x80mm | 1.5mm, 2.0mm, 2.5mm, 3.0mm | 1.4m, 1.6m, 1.8m, 2.0m, 2.5m, 2.8m, 3.0m |
Note: Special size and specifications can be made according to customers requires.
Technology:
ACCESSORIES
Posts
The Double wire mesh fence panels are attached with high strength steel posts. The common posts of the double wire mesh fence are SHS tube, RHS tube, Peach post Round pipe or Special-shaped post. Panels are fixed to steel posts using sturdy clamps and secured with pin hex security screws, with no visible fixings on the back of posts.
Gates
The Fence System includes the availability of swing, slide and cantilever gates.
Colors

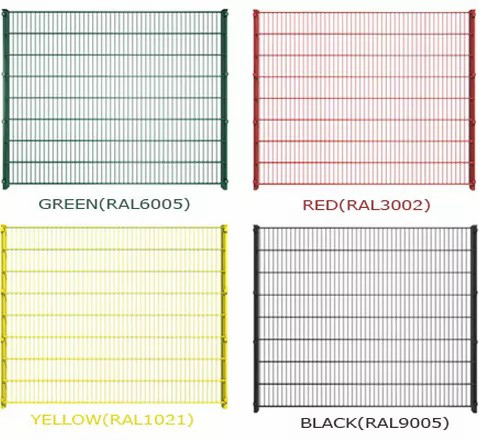

Linkland Double wire mesh fence can be supplied in all colors according to international standard RAL Colors, the popular colors as below:
Metal clamp / anti-UV plastic clamp
Metal cap / anti-UV plastic cap
Coating
The Double wire mesh fence panels are manufactured using galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's Highest Weather-ability and Gloss Retention in U.V. exposure.
Installation and Maintenance:
Installation of double wire fencing typically requires professional services due to the weight and size of the panels. It is often anchored to concrete foundations or sturdy posts for stability. Regular maintenance includes checking for any damage or signs of wear, ensuring that all components are securely fastened, and cleaning the fence to prevent buildup of dirt and debris that could lead to corrosion.
If you are considering double wire fencing for a project, it's important to consult with a fencing expert to determine the appropriate specifications for your needs, such as the height of the fence, the size of the mesh, and the material coatings. They can also provide guidance on local regulations and installation requirements.

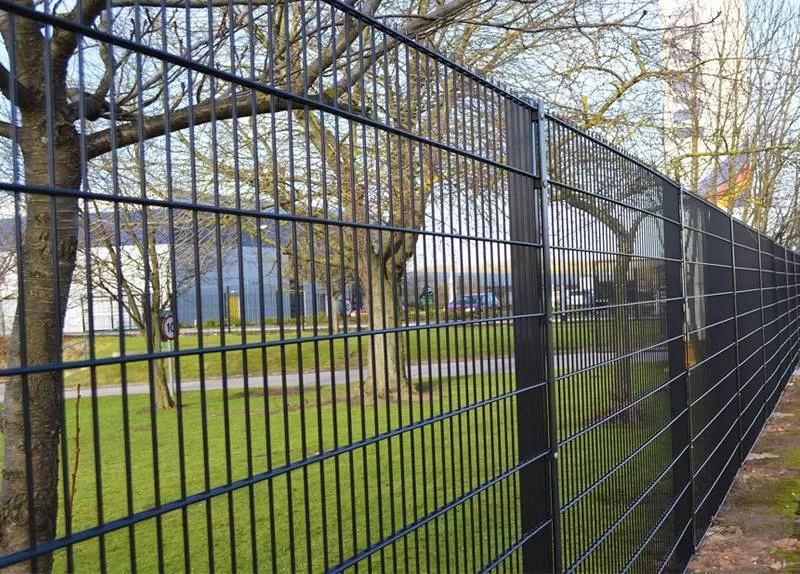

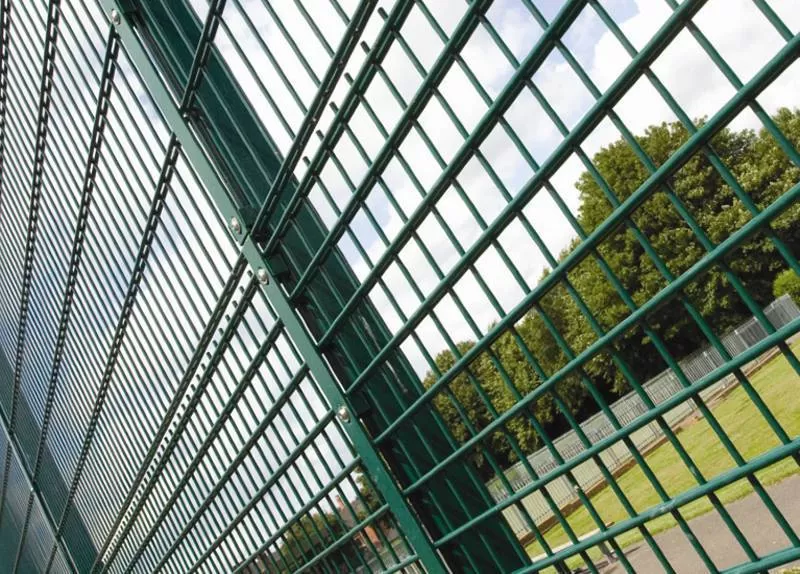

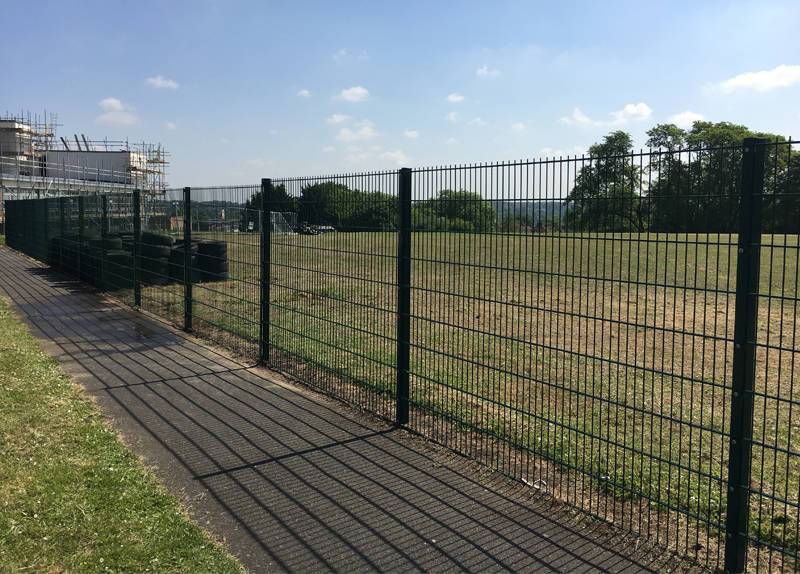

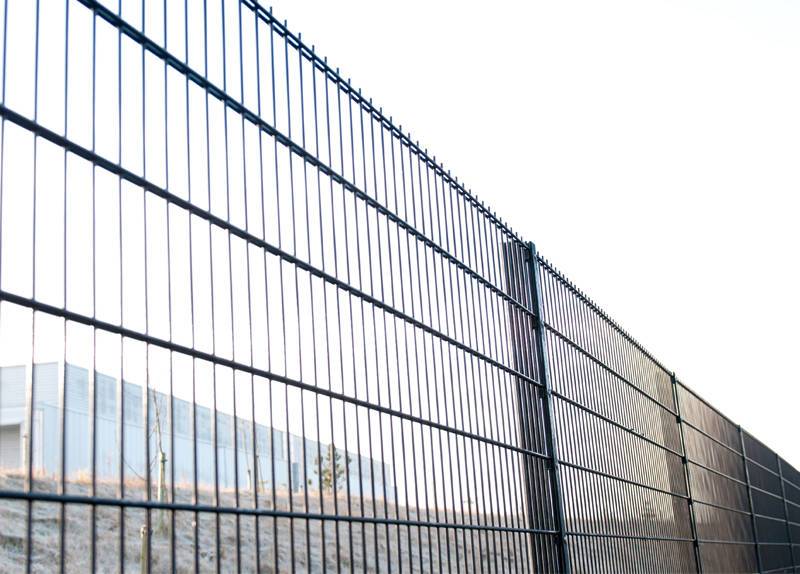

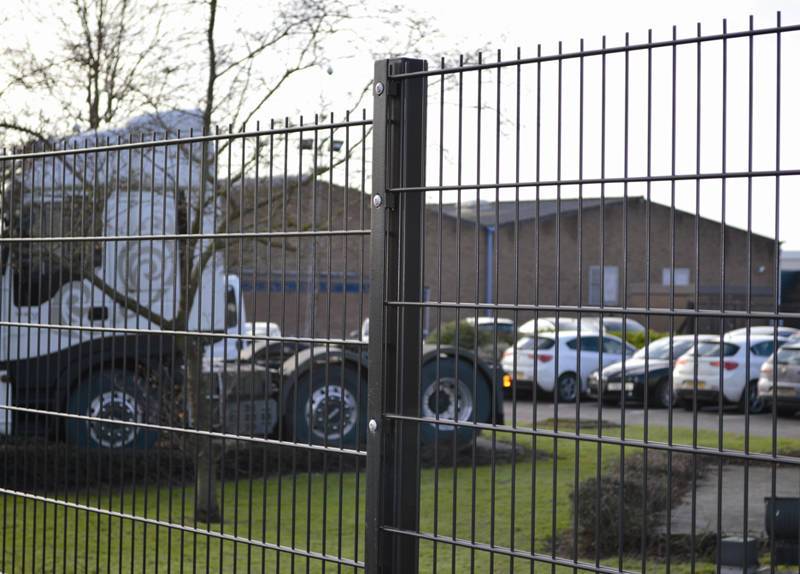

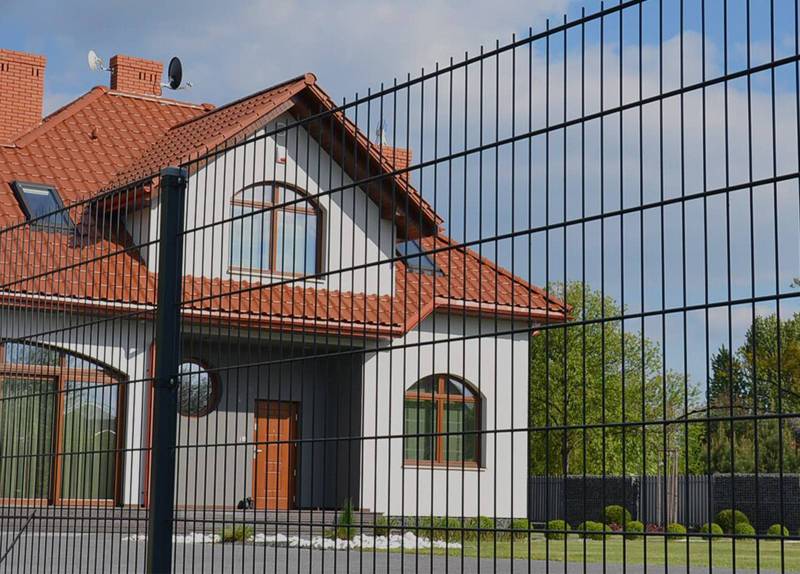

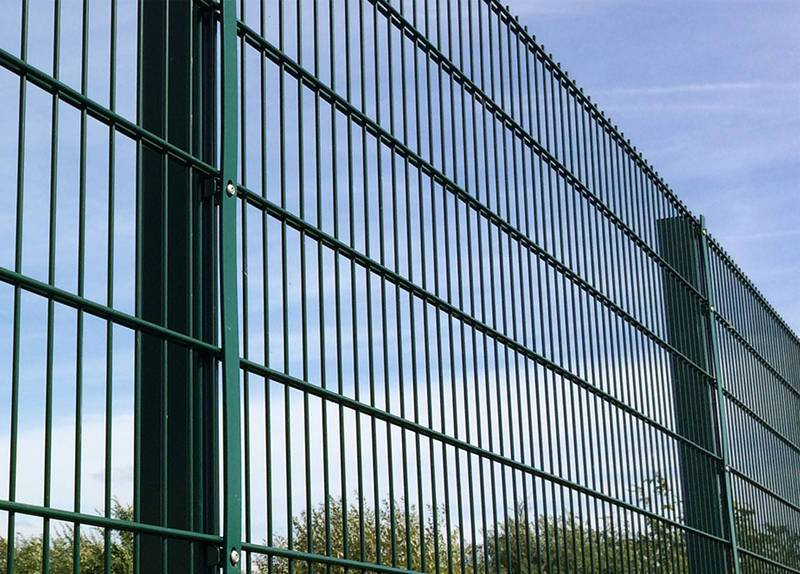

Drawing and Gallery:
Product Name: Double Wire Fencing
