Introduction:
Wire rope mesh, also known as cable mesh or stainless steel rope mesh（stainless steel wire rope mesh） in china, is flexible metal netting made from interwoven wire ropes. It is a highly durable, flexible, and corrosion-resistant material used in a variety of architectural and industrial applications. Wire rope mesh is renowned for its strength, transparency, and aesthetic appeal, making it an ideal solution for modern architectural designs, safety applications, and animal enclosures.
Wire Rope Fence Mesh material is produced by high-quality stainless steel wire cable,
the stainless steel grade includes type 304, 304 L, 316, and 316L.
The Stainless Steel Wire Rope Fence Mesh structures are 7 x 7 and 7 x 19.
The standard Stainless Steel Wire Rope Fence Mesh diameter includes 1/8", 3/32", 1/16", and 3/64", and the standard mesh opening size includes 2" x 2", 3" x 3", and 4" x 4".
Structure and Composition of Wire Rope Mesh（wire rope mesh china）
Wire rope mesh is made from stainless steel cables that are woven or ferrule-connected to form a grid or diamond pattern. The structure can vary based on the diameter of the wire ropes and the size of the openings.

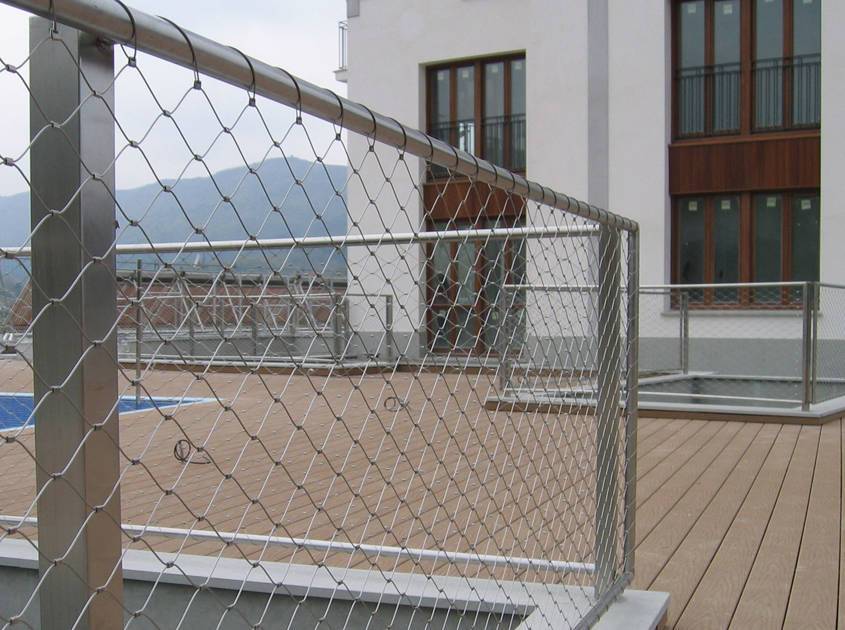

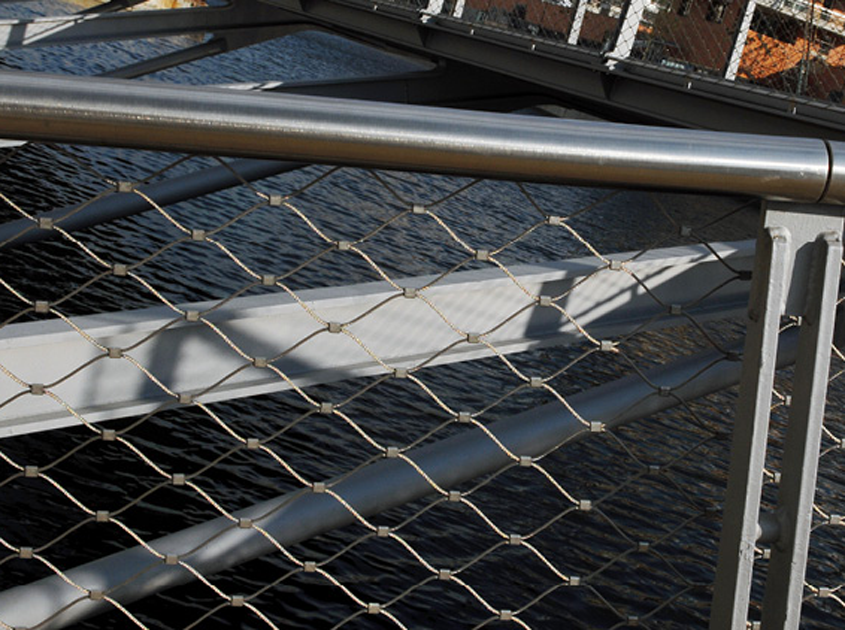

Wire rope mesh offers a combination of strength, flexibility, and aesthetic appeal that makes it suitable for a wide range of architectural, industrial, and safety applications. Its adaptability to complex shapes, durability in harsh environments, and nearly transparent appearance make it a favored solution for modern design challenges. Whether used for safety barriers, decorative facades, or animal enclosures, wire rope mesh continues to be a versatile and sustainable material in construction and design.
Features:
1. The wire rope mesh is clipped to the cable.
2. The hole size and diameter can be modified.
3. It can be made to customer orders and statically tested – especially suitable for facades.
4. High strength, strong toughness, free-angles curving and folding, easy for transportation and installment.
5. Anti-corrosive, resists rust, can be repeated use.
6. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7. This product can bear the heavy snow and the gale very much.
8. Without toxic material, safety, environmental protection.
Specifications:
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
Note: Special size and specifications can be made according to customers requires.
Technology:

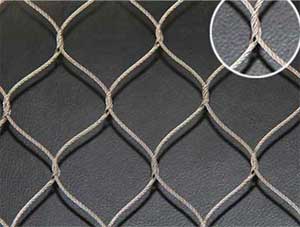

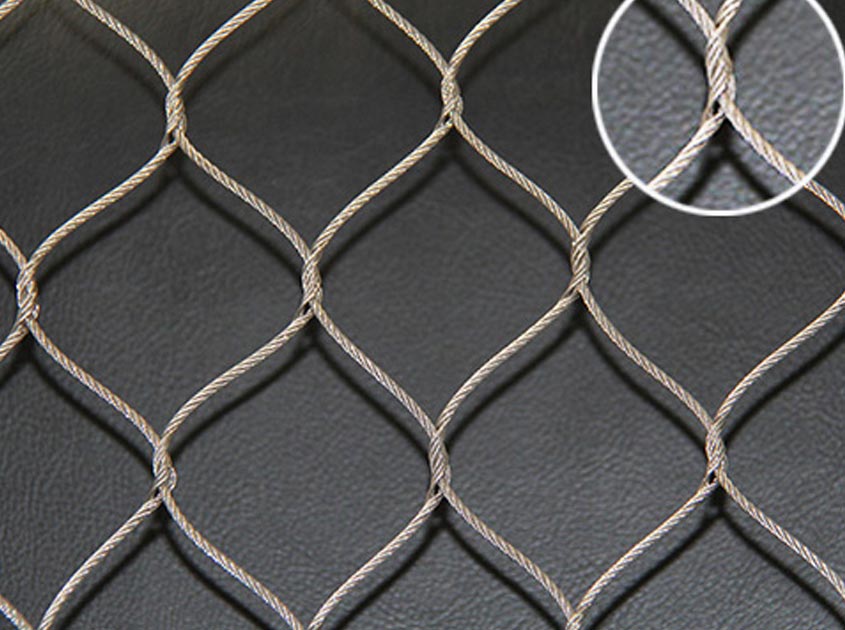

1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

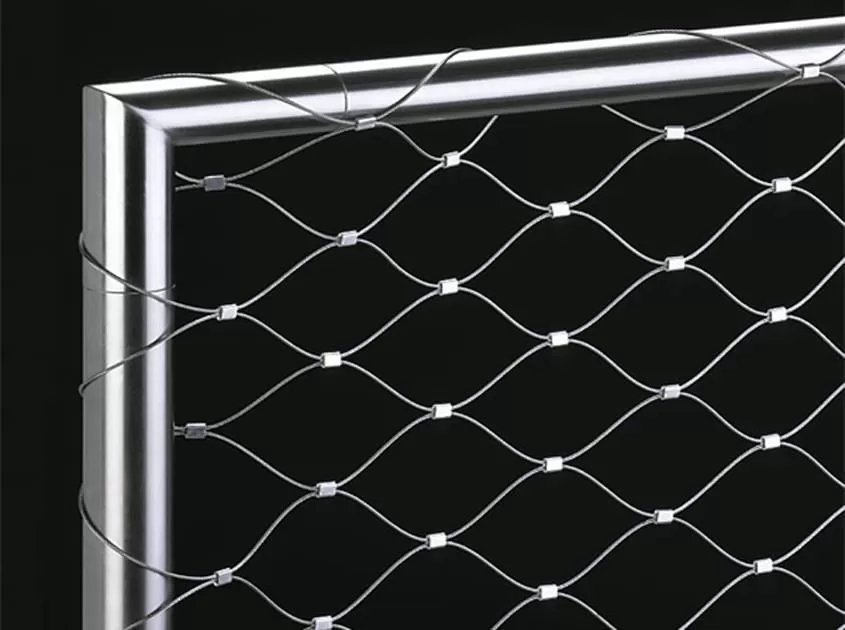

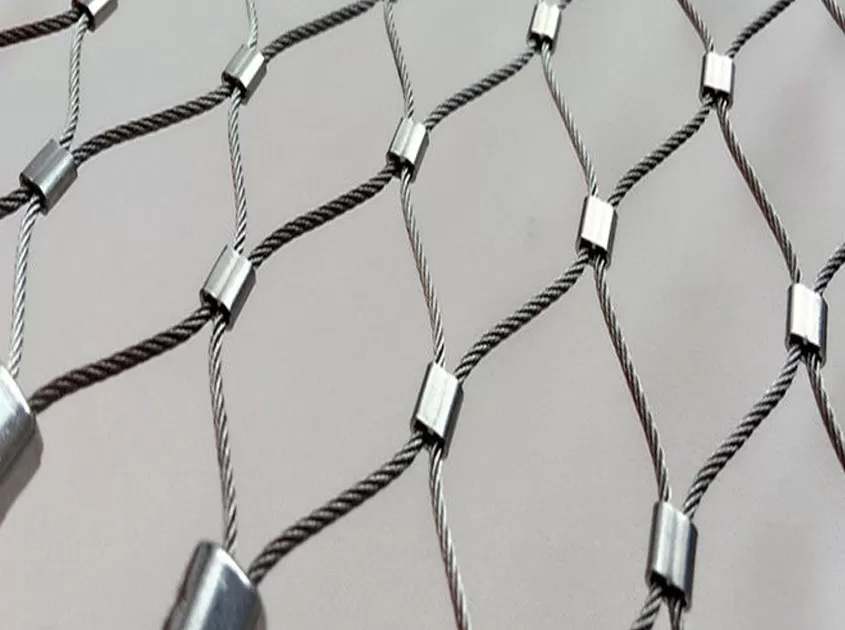

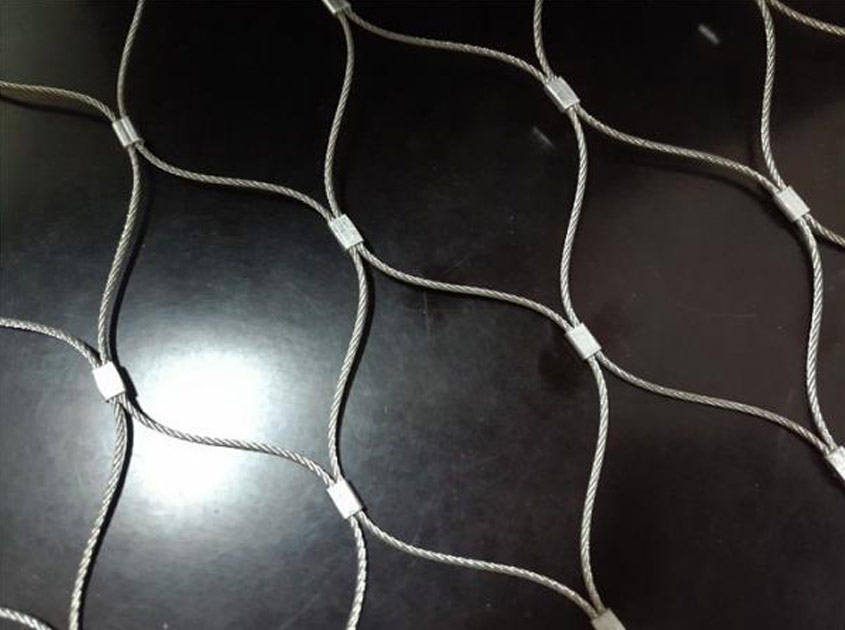

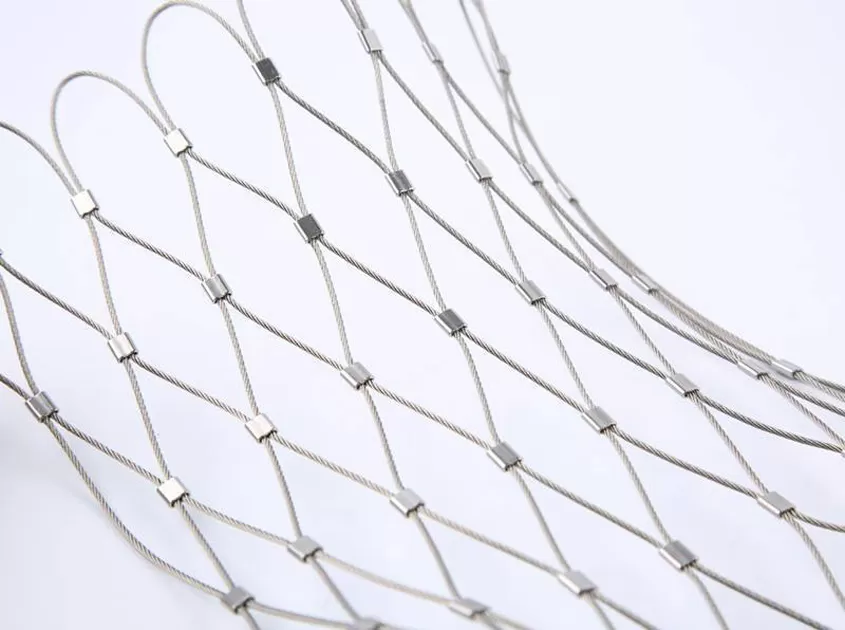

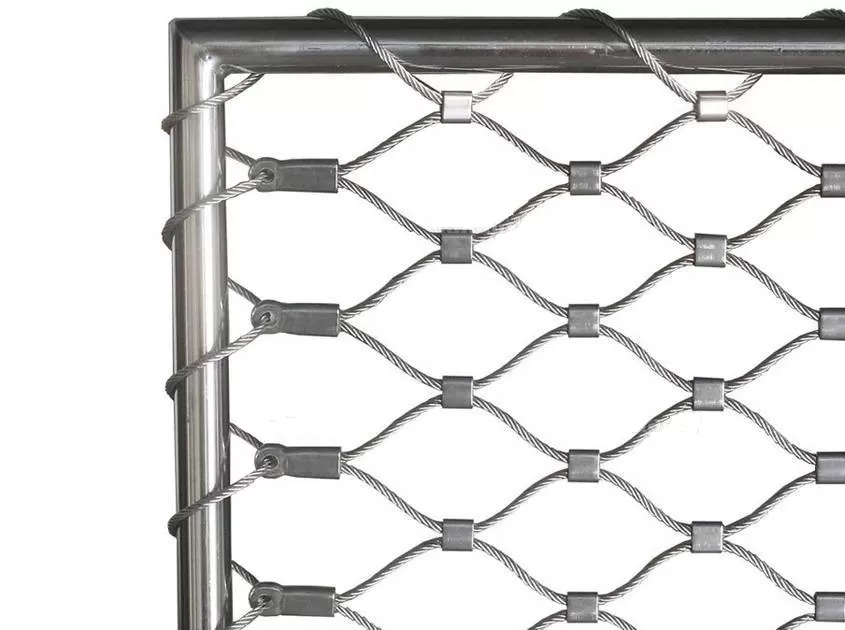

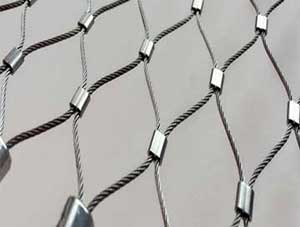

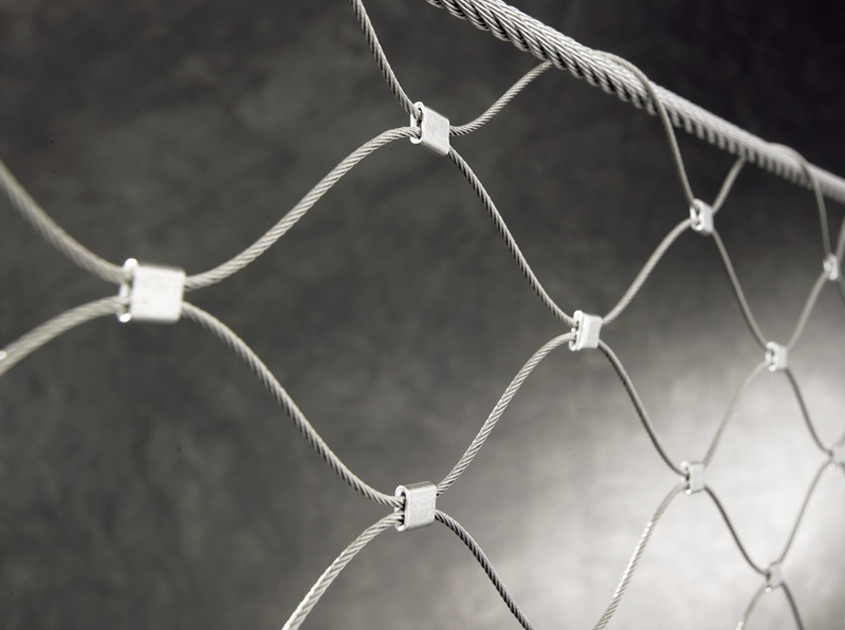

2. Ferruled mesh has the same physical properties as the knotted mesh, the only difference is in the combination style, the stainless wire rope（stainless steel wire rope mesh） is combined with the ferrules which are made of the same grade stainless steel.
| Flexible Wire Rope Mesh | ||
| Type | Knotted cable mesh | Ferrule cable mesh |
| Image |   |  |
| Combination | Inter-woven | Seamless ferrule |
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304, 316, 316L, etc | |
| Cable diameter | 1 ~ 4 mm | |
| Cable structure | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) | |
| Diamond size | 20 ~ 200 mm | |
| Mesh Orientation | Horizontal, Vertical | |
| Feature | Quality material, High flexibility, Anti-corrosion, Longevity, Cost-effectiveness, Easy | |
Drawing and Gallery:
Product Name: Wire Rope Mesh
