Introduction:
Introduction of UNS S32750 Super Duplex Stainless Steel Wire Mesh
S32750 (F53/SAF2507) alloy is super duplex stainless steel made up of 250%Cr, 40% Mo and 7% Ni and N. This steel is mainly used in chemical, petrochemical and marine equipment which required special in tension and corrosion resistance.
Features of UNS S32750 Super Duplex Stainless Steel Wire Mesh:
S32750 is with strong ability to resist chloride corrosion, higher heat conductivity and lower thermal expansion corrosion. High chromium, molybdenum and nitrogen content makes it has strong ability to resist pitting corrosion, crevice corrosion and general corrosion. Compared with 2205, S32750 is with corrosion resistance ability suited to extreme corrosion environment. Its impact strength is high, but S32750 alloy is not suitable for environment with temperature higher than 299℃, then its toughness will be reduced.
Chemical Composition:
| Steel Grade | C | Mn | Si | S | P | Cr | Ni | Mo | Cu | N |
| UNS S32750SAF2507 | ≤0.03 | ≤1.20 | ≤0.80 | ≤0.02 | ≤0.035 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | ≤0.5 | 0.2 |
Application of S32750 Super Duplex Stainless Steel Wire Mesh:
S32750 Super duplex stainless steel wire mesh can be widely used in oil and gad industry equipment, offshore platform, all kinds of heat exchangers, water treatment equipment, water circulation system, chemical industry, pulp container, high corrosion resistance parts, power plant equipment and absorption tower device etc.
Features:
NoneSpecifications:
| UNS S32750(SAF2507) Super Duplex Stainless Steel Wire Mesh | |||
| Mesh Count | Wire diameter(mm) | Aperture(mm) | Max width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Features of UNS S32750 Super Duplex Stainless Steel Wire Mesh:
S32750 is with strong ability to resist chloride corrosion, higher heat conductivity and lower thermal expansion corrosion. High chromium, molybdenum and nitrogen content makes it has strong ability to resist pitting corrosion, crevice corrosion and general corrosion. Compared with 2205, S32750 is with corrosion resistance ability suited to extreme corrosion environment. Its impact strength is high, but S32750 alloy is not suitable for environment with temperature higher than 299℃, then its toughness will be reduced.
Chemical Composition
| Steel Grade | C | Mn | Si | S | P | Cr | Ni | Mo | Cu | N |
| UNS S32750SAF2507 | ≤0.03 | ≤1.20 | ≤0.80 | ≤0.02 | ≤0.035 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | ≤0.5 | 0.2 |
Woven Technique: Plain Weave
Mesh Count: 2-200MESH
Application of S32750 Super Duplex Stainless Steel Wire Mesh:
S32750 Super duplex stainless steel wire mesh can be widely used in oil and gad industry equipment, offshore platform, all kinds of heat exchangers, water treatment equipment, water circulation system, chemical industry, pulp container, high corrosion resistance parts, power plant equipment and absorption tower device etc.

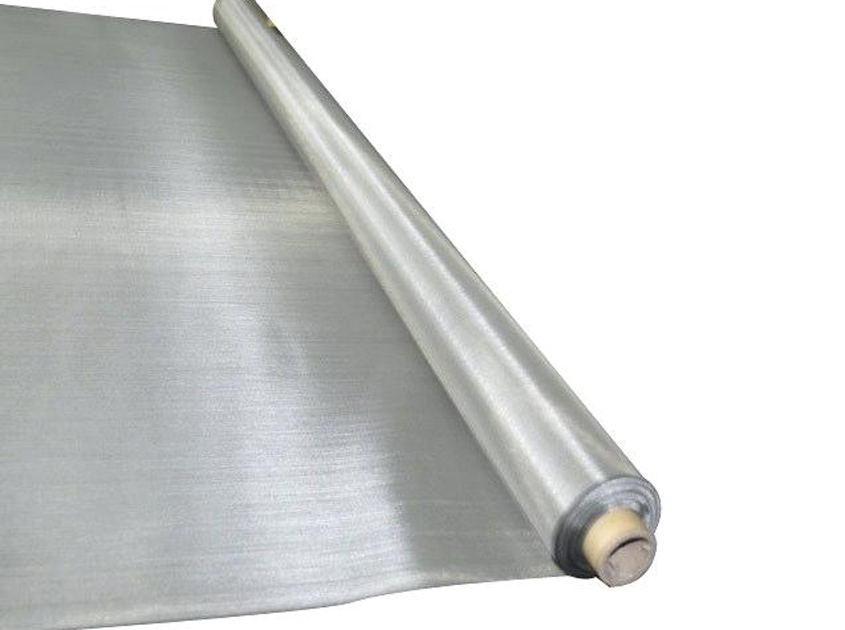

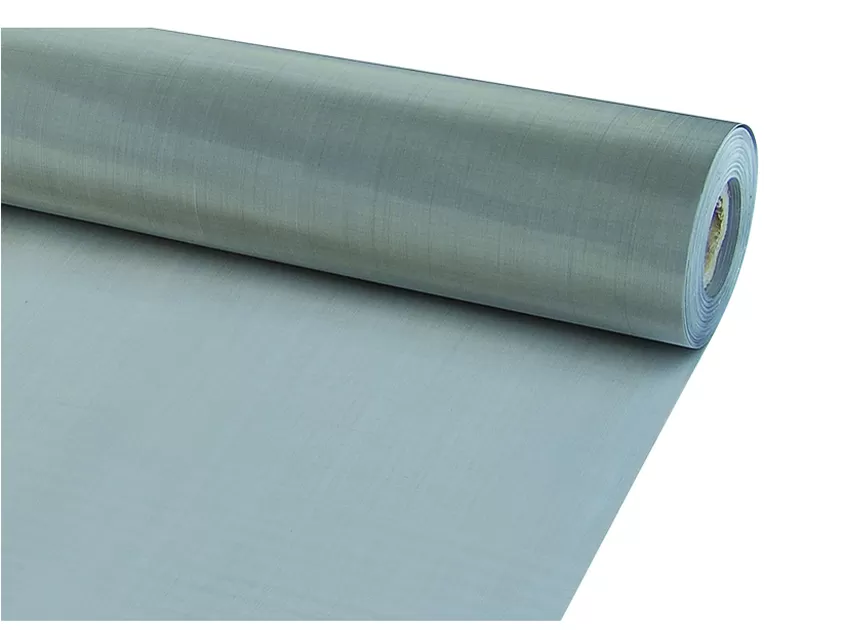

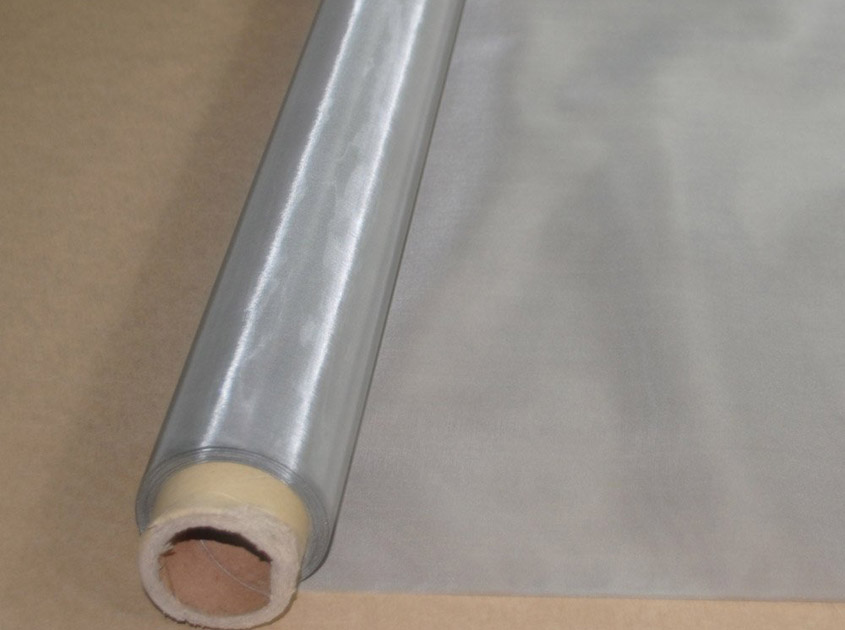

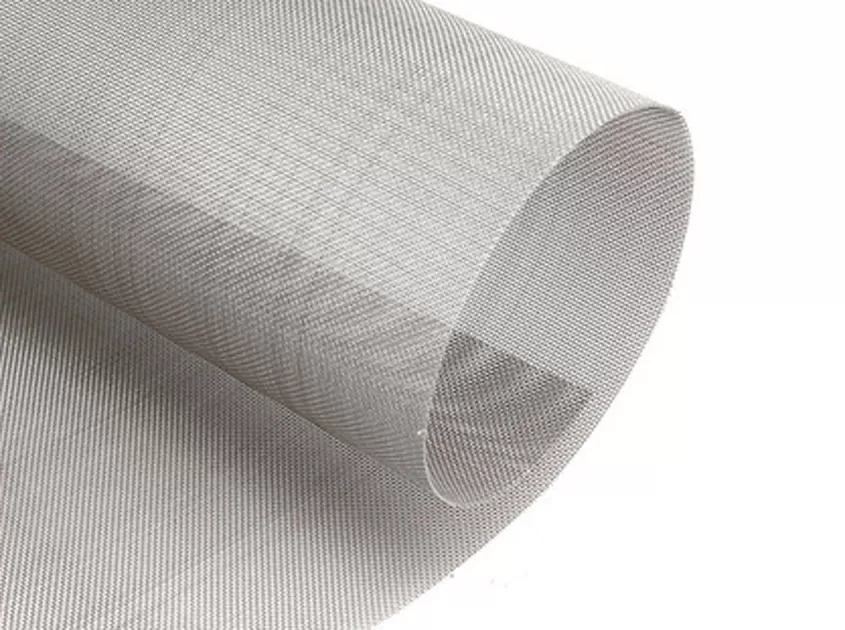

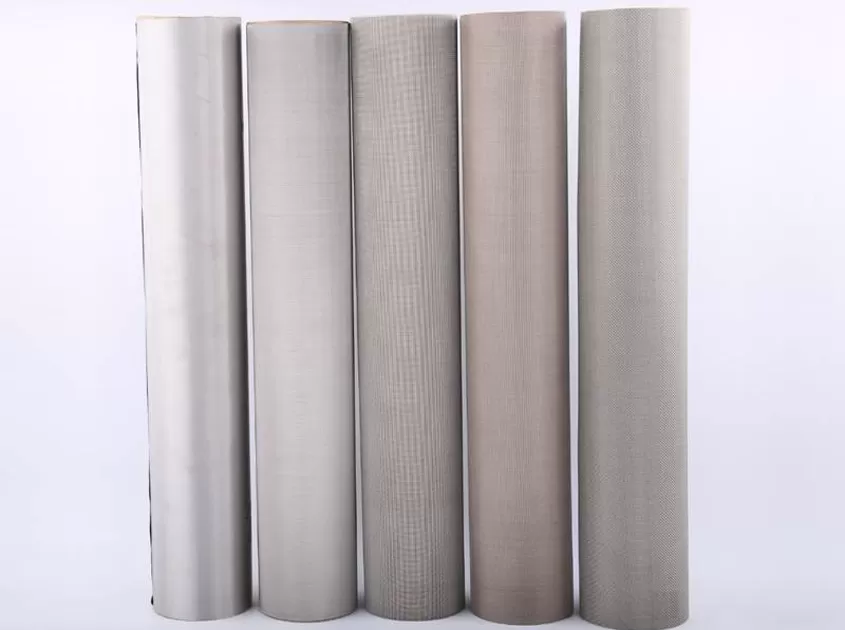

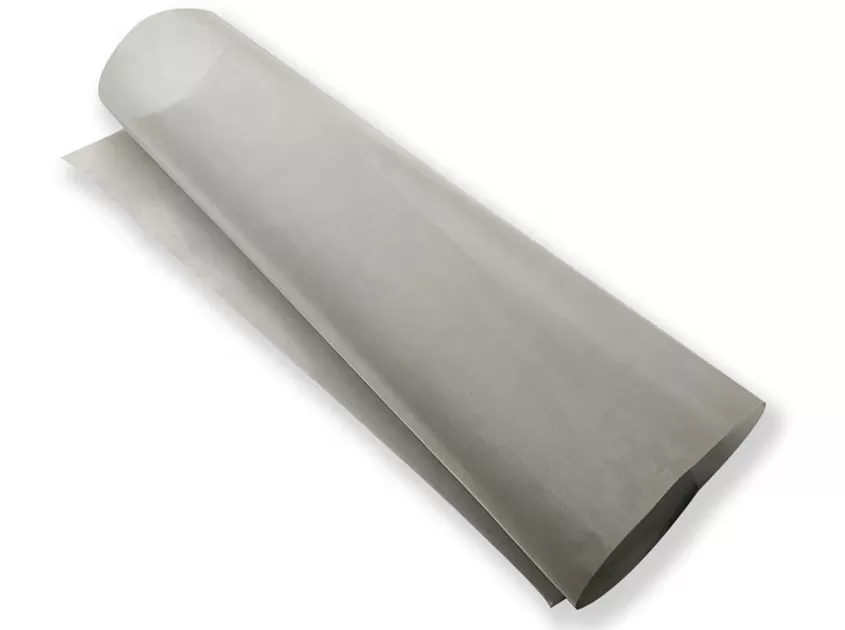

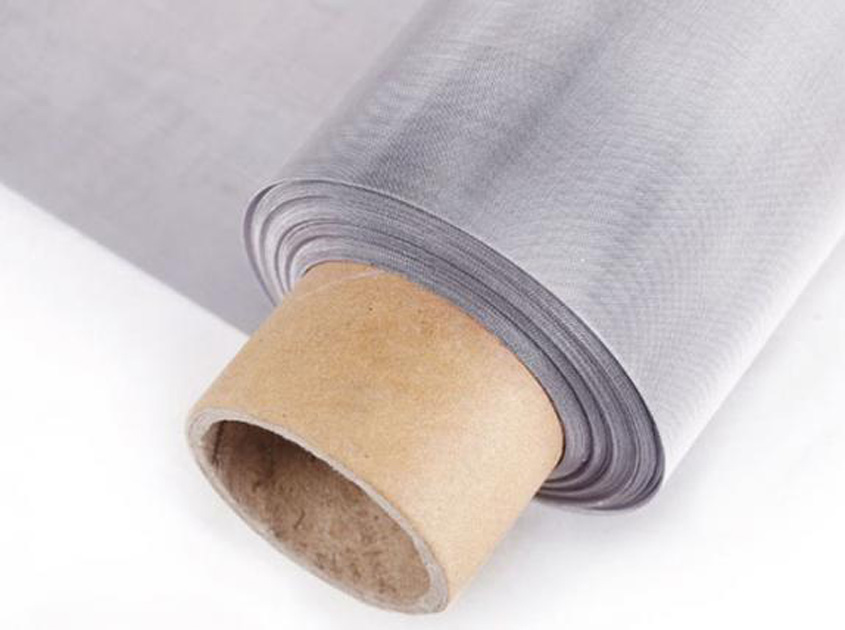

Drawing and Gallery:
Product Name: Super Duplex Stainless Steel Wire Mesh UNS 32750
