Inconel Wire Mesh

Inconel wire mesh is a type of woven wire mesh made of inconel wires. The inconel is the alloy of nickel, chrome and iron. According to the chemical composition, the inconel can be divided into inconel 600, inconel 601, inconel 625, inconel 718 and inconel X750.

Without magnetism, inconel wire mesh can be used in a temperature range from below zero to 1093 degree. Inconel wire mesh has excellent corrosion resistance, and its oxidation resistance performance is better than the nickel wire mesh. It is widely used in the petrochemical, aerospace industry and other fields.

INQUIRY

Our Advantages:

Supply samples for FREE

Free Design

Quality Guaranteed By SGS

Fast reply within 24 hours

Reasonable price directly from Our own Factory

Detailed Information For Inconel Wire Mesh

Introduction
Features
Specifications
Technology
Drawing and Gallery
Inquiry

Introduction:

Features of Hastelloy Wire Mesh:

Inconel Wire Mesh features corrosion reistance; acid and alkali resistance; high temperature resistance; salty resistance; chemical stability; outstanding filtering performance

Applications of Hastelloy Wire Mesh:

Inconel Wire Mesh has various application: Chemical industry; Petrochemical industry; Flue gas desulfurization; Pulp and paper; Environment protection industry.

Features:

1. Non-magnetic.

2. High temperature resistance.

3. Good cold-formed function.

4. Good weld ability.

5. Excellent corrosion resistance.

6. Oxidation resistance.

Specifications:

Mesh (Wires/ in.)	Wire diameter (in.)	Width of opening (in.)	Open area (%)
4 × 4	0.1200	0.1300	27.00
4 × 4	0.0800	0.1700	46.20
4 × 4	0.0630	0.1870	56.00
5 × 5	0.0400	0.1600	64.00
6 × 6	0.0410	0.0126	57.20
8 ×8	0.0470	0.0780	38.90
8 × 8	0.0410	0.0840	45.20
8 × 8	0.0300	0.0950	57.80
8 × 8	0.0280	0.0970	60.20
10 × 10	0.02250	0.0750	56.30
10 × 10	0.0150	0.0850	72.30
12 × 12	0.0410	0.0420	25.40
12 × 12	0.0250	0.0580	48.40
16 × 16	0.0360	0.0275	19.40
16 × 16	0.0280	0.0350	30.50
16 × 16	0.0250	0.0380	36.00
16 × 16	0.0230	0.0400	39.90
16 × 16	0.0180	0.0450	50.70
18 × 18	0.0280	0.0280	24.70
20 × 20	0.0160	0.0340	46.20
22 × 22	0.0150	0.0310	45.00
24 × 24	0.0140	0.0280	44.20
24 × 24	0.0120	0.0300	50.80
28 × 28	0.0130	0.0230	40.40
30 × 30	0.0150	0.0180	30.10
30 × 30	0.0100	0.0233	48.90
35 × 35	0.0055	0.0236	68.10
40 × 40	0.0100	0.0150	36.00
50 × 50	0.0090	0.0110	30.20
60 × 60	0.0075	0.0092	30.50
80 × 80	0.0055	0.0070	31.40
100 × 100	0.0040	0.0060	36.00
100 × 100	0.0045	0.0055	30.20
120 × 120	0.0038	0.0046	30.70
120 × 120	0.0020	0.0063	57.80
200 × 200	0.0021	0.0029	33.60
200 × 200	0.0020	0.0030	36.00

Note: Special size and specifications can be made according to customers requires.

Technology:

Material: Inconel 600 (N06600), Inconel 601 (N06601), Inconel 625 (N06625), Inconel 718 (N07718), Inconel X-750 (N07750)

Mesh Count: 2-200

Weaving: Plain weave, Twill weave

Features of Inconel Wire Mesh:

Inconel wire mesh features non-magnetic; good oxidation resistance and high temperature resistance; good resistance to corrosion and cracking under normal or high temperature conditions; good mechanical properties.

Chemical Composition:

Grade	C	Cr	Cu	Fe	Mn	Ni	S	Si
Inconel 600	0.15	14 - 17	0.5	6 - 10	1.0	72.0	0.015	0.5

Grade	C	Cr	Cu	Fe	Mn	Ni	S	Si	Al
Inconel 601	0.1	21 - 25	1.0	Rem	1.0	58 - 63	0.015	0.5	1.0 - 1.7

Grade	C	Cr	Fe	Mn	Ni	S	Si	Al	Cb	Mo	P	Ti
Inconel 625	0.1	20 - 23	5.0	0.5	Rem	0.15	0.5	0.4	3.15 - 4.15	8 - 10	0.015	0.4

Grade	C	Cr	Cu	Fe	Mn	Ni	S	Si	Al	Cb	Mo	P	Ti	B	C	Co
Inconel 718	0.08	17-21	0.3	Rem	0.035	50 - 55	0.015	0.35	0.2 - 0.8	4.75- 5.50	2.8 - 3.3	0.015	0.65- 1.15	0.006	0.08	1.0

Grade	C	Cr	Cu	Fe	Mn	Ni	S	Si	Al	Cb	Ti
Inconel 750	0.08	14 –17	0.5	5 – 9	1	70	0.01	0.5	0.4 – 1	0.7 – 1.2	2.0 – 2.6

Applications of Inconel Wire Mesh:

Inconel wire mesh can be used in petrochemical, aerospace industry, hydropower, nuclear power, oil refining and shipbuilding, chemical, machinery manufacturing industries.

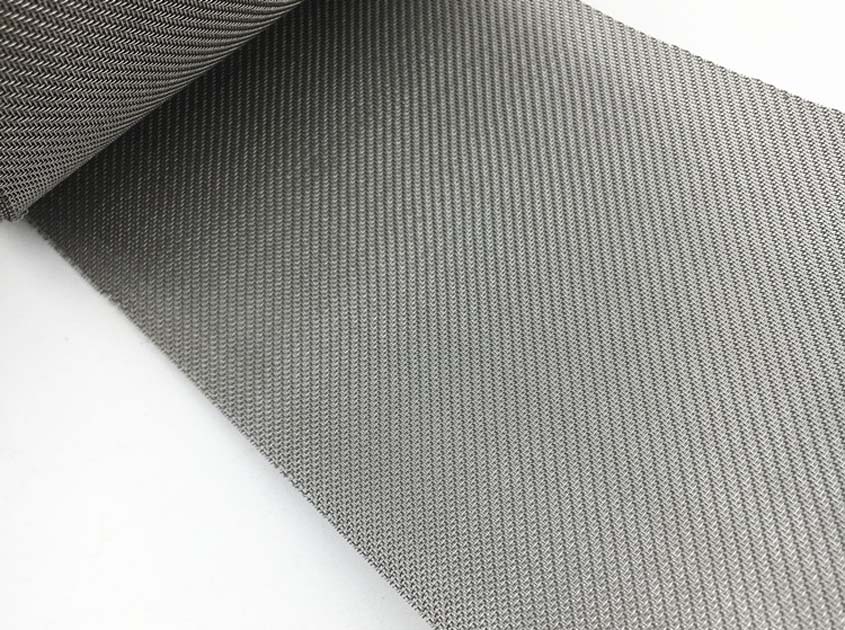

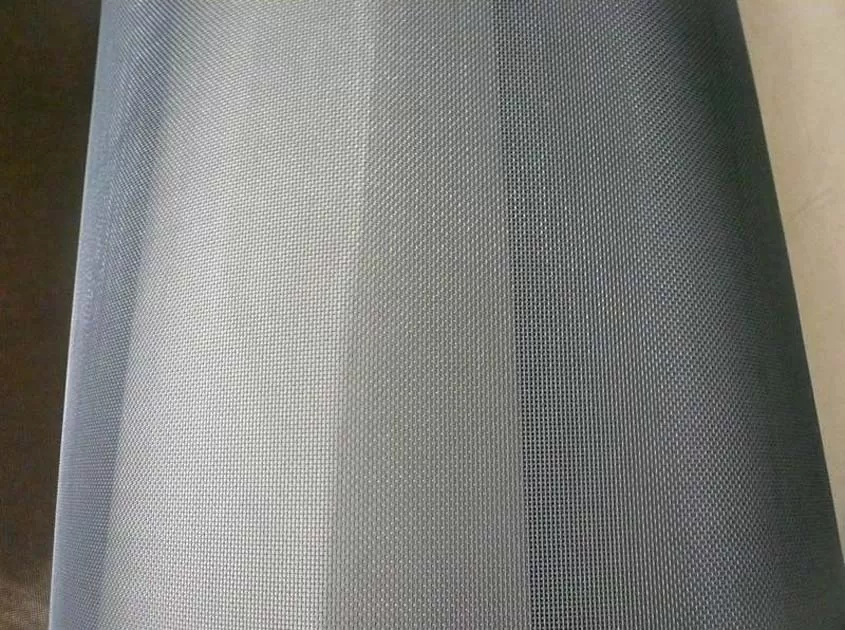

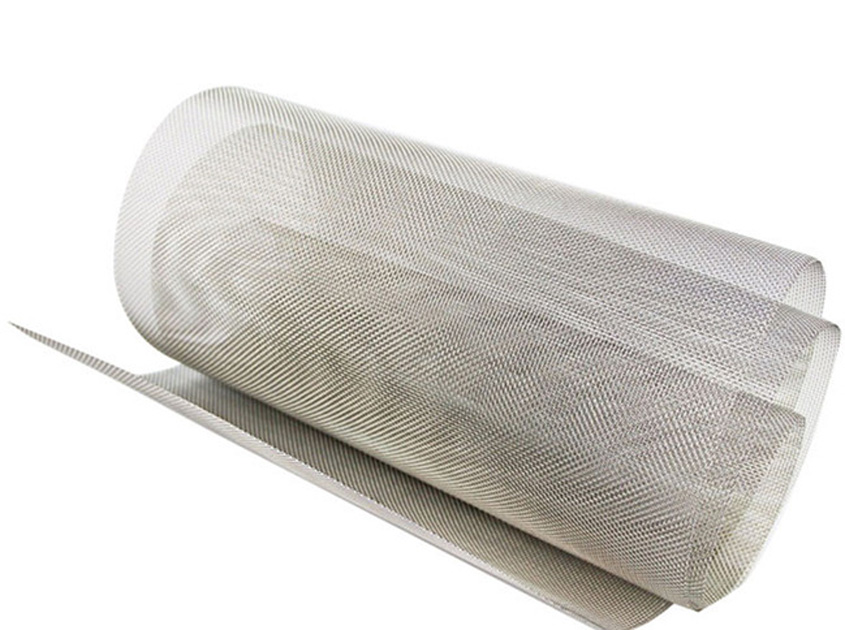

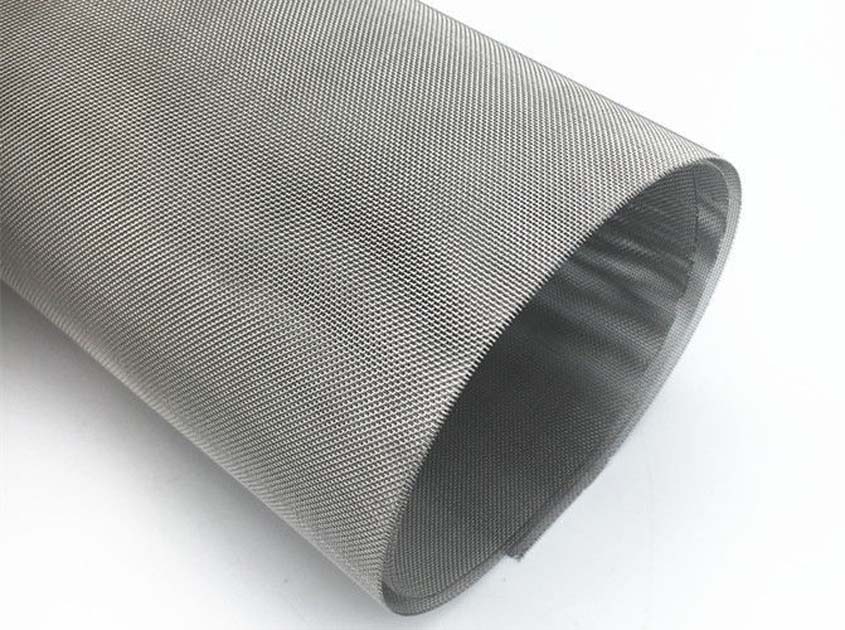

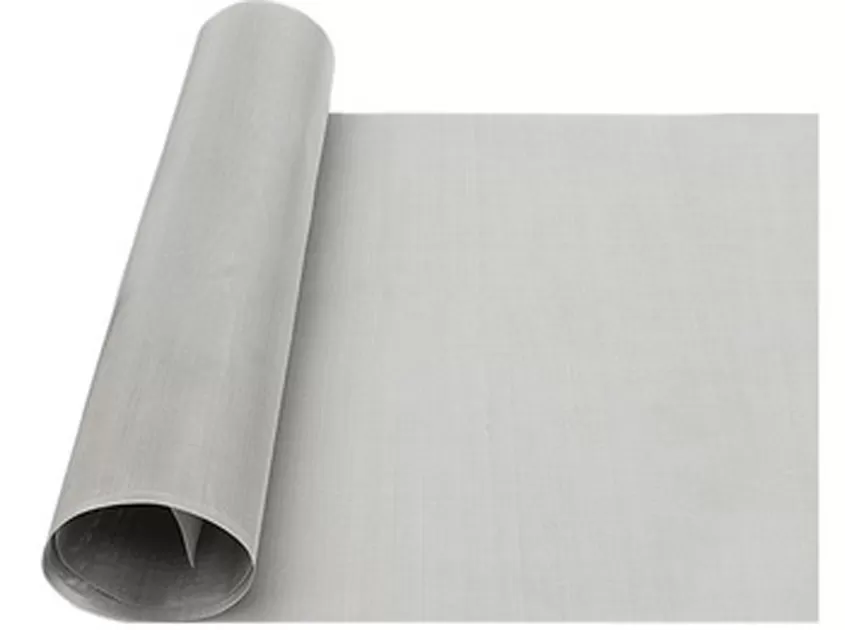

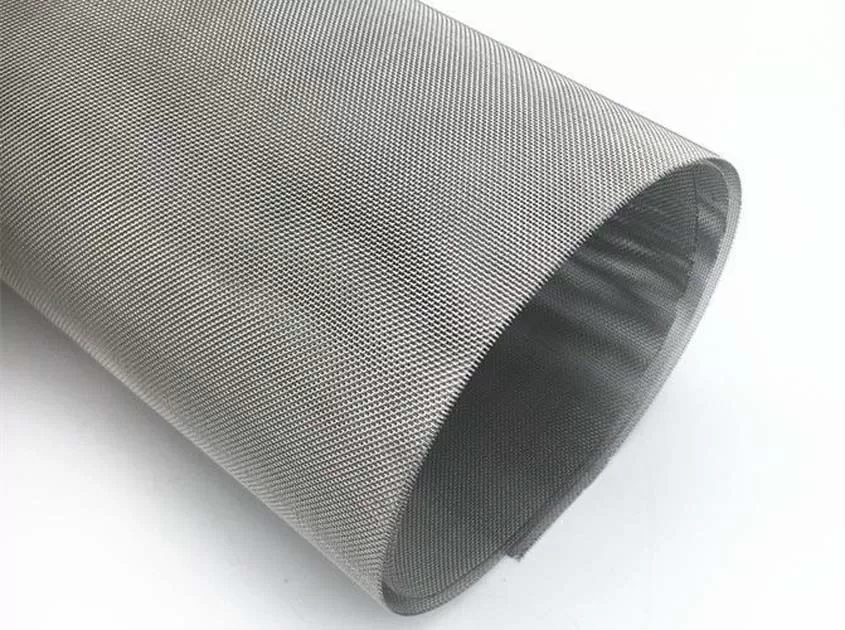

Drawing and Gallery:

Product Name: Inconel Wire Mesh
